Mini Skid Steer Trencher Attachment

Original price $1,500.00 - Original price $1,500.00
Original price
$1,500.00
$1,500.00 - $1,500.00
Current price $1,500.00
Free Shipping on All Orders
Financing Available for Eligible Orders
Authorized Dealer Sourcing

Shipping: LTL freight. Commercial delivery preferred.

Hydraulic trencher attachment for mini skid steers, built for utility trenching, irrigation line installation, and drainage work in tighter access areas where a full-size trencher or skid steer can't operate. Cuts to 800mm depth at 155mm width — confirm carrier hydraulic compatibility before ordering.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

Most equipment and attachments sold by Hardscape Heavy ship by parcel, LTL freight, or specialized freight depending on product size, weight, palletization, and destination.

Commercial delivery locations are preferred when available. Residential delivery, limited-access delivery, liftgate service, appointment scheduling, and other carrier requirements may affect final delivery handling.

Lead times vary by product type, manufacturer availability, selected options, and freight lane. Some configured, special-order, or non-stock items may require additional processing time before shipment.

Buyers should inspect freight shipments at delivery before signing. If visible damage is present, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs
- Trenching Depth: 800 mm (31.5 in)
- Trench Width: 155 mm (6 in)
- Operating Weight: 265 lbs
- Chain Type: Earth teeth

Fitment / Machine Requirements
- Mount Type: Mini Skid Steer Universal Mount
- Hydraulic Flow Requirement: 10–18 GPM
- Hydraulic Pressure Requirement: 2,000–2,800 PSI
- High Flow: Not required
- Compatible Carrier Class: 0.8–1.2 ton mini skid steer loaders


Need full technical detail? See the manufacturer PDF or spec sheet lower on the page.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

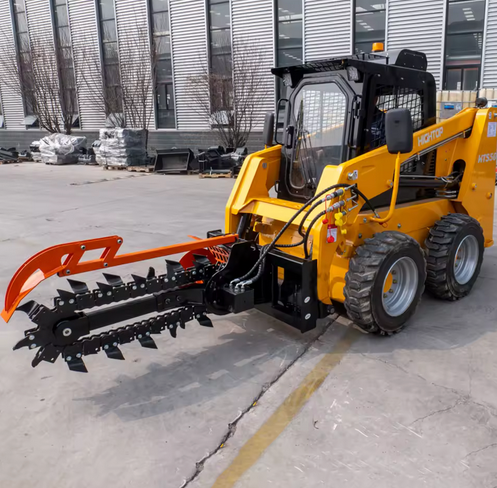

The Mini Skid Steer Trencher Attachment is built for utility trenching, irrigation line installation, drainage work, and conduit runs on tight-access jobsites where a full-size skid steer or walk-behind trencher cannot operate. It mounts to compatible mini skid steer loaders using a mini skid steer universal mount and is driven by the machine's auxiliary hydraulic circuit.

At 155 mm wide and 800 mm deep, the trench profile suits most residential and light commercial utility and irrigation applications. The compact machine footprint and attachment size make this practical for backyard work, narrow side yards, and other confined areas where access is the primary challenge.

Common Applications
- Irrigation line and sprinkler system installation
- Electrical conduit and low-voltage wire runs
- Drainage and French drain installation in tight areas
- Water service and communication line ditching
- Residential and light commercial utility work in confined spaces

Selection Notes
- Designed specifically for mini skid steer carriers — not compatible with full-size skid steer loaders
- Confirm machine hydraulic flow and pressure before ordering
- 155 mm trench width suits standard utility and irrigation line installations
- For wider or deeper trench requirements, a full-size skid steer trencher attachment should be considered

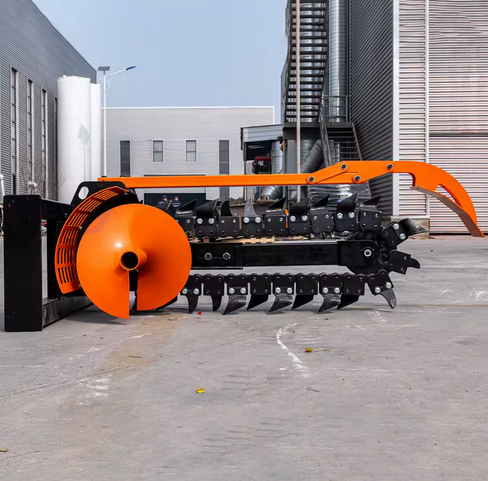

The Mini Skid Steer Trencher Attachment is a hydraulic chain trencher sized and mounted for mini skid steer loaders in the 0.8–1.2 ton carrier class. A hydraulic motor drives the trencher chain around a fixed boom, cutting a 155 mm wide trench to a maximum depth of 800 mm in soil and clay conditions.

Drive System
- Hydraulic motor-driven chain trencher
- Motor powered by mini skid steer auxiliary hydraulic circuit
- Chain speed and cutting performance scale with machine hydraulic output
- Sized for mini skid steer hydraulic flow range — does not require high-flow system

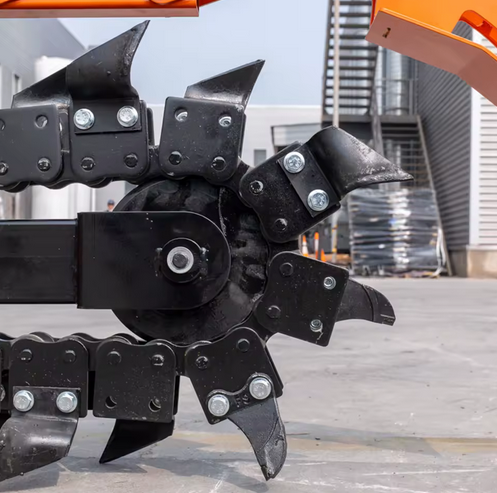

Chain & Cutting
- Standard earth tooth chain configuration
- Suited for soil, clay, and soft to medium ground conditions
- Chain and teeth are field-replaceable for ongoing serviceability
- Spoil auger moves excavated material away from trench opening during cutting

Trench Profile
- Trench width: 155 mm (6 in)
- Maximum trenching depth: 800 mm (31.5 in)
- Fixed boom — trench depth controlled by machine lift arm position

Mount & Interface
- Mini skid steer universal mount
- Compatible with mini skid steer loaders in the 0.8–1.2 ton class
- Hydraulic connections: standard auxiliary flat-face couplers

Build
- Steel boom, chain housing, and drive assembly sized for mini carrier use
- Designed for repeated use in utility and irrigation trenching applications
- Operating weight of 265 lbs appropriate for mini skid steer carrier capacity

Machine Notes
- Hydraulic flow must fall within 10–18 GPM operating range
- Confirm mini skid steer mount type matches attachment before ordering
- Not compatible with full-size skid steer loaders
- Final compatibility depends on machine make, model, and hydraulic configuration

Included with Purchase
- 1 Mini Skid Steer Trencher Attachment
- Mini skid steer universal mount
- Hydraulic drive motor and trencher chain assembly
- Earth tooth chain (installed)
- Spoil auger assembly

Not Included Unless Stated
- Mini skid steer loader
- Replacement chain or teeth
- Hydraulic hoses or fittings on the machine side
- On-site installation or machine configuration
