6-Way Dozer Blade | HitchDoc

Brand HitchDocSKU 35-22802
Original price $5,320.00 - Original price $8,150.00
Original price
$5,320.00
$5,320.00 - $8,150.00
Current price $5,320.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

HitchDoc 6-Way Dozer Blade, 6 ft to 8 ft widths, 22 in tall, with 10 degrees of tilt and 30 degrees of cut angle either way on four double-acting cylinders. Professional or Heavy-Duty model, the Heavy-Duty built on a boxed frame. Universal quick-tach mount, electro-hydraulic control, trip springs and lockout bolts included.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Widths: 6 ft, 7 ft, 8 ft
  • Blade Height: 22 in
  • Blade Tilt: 10 degrees up and down
  • Cut Angle: 30 degrees left or right
  • Cylinders: 4 double-acting
  • Models: Professional, or Heavy-Duty with a boxed frame, larger pivot cylinder, thicker moldboard and commercial-grade backing
  • Moldboard: one-piece rolled steel
  • Cutting Edge: solid, removable and replaceable
  • Trip Springs: included, with lockout bolts for dirt work
  • Skid Shoes: adjustable
  • Control: electrical control kit included, electro-hydraulic operation from the cab
  • Couplers: quick connect hydraulic couplers included
  • Weight: 920 lb to 1,065 lb by model and width

Fitment / Machine Requirements

  • Mount: universal quick-tach mount plate
  • Carriers: skid steers and compact track loaders
  • Horsepower Required: 50+ HP
  • Hydraulic Flow, Pressure and Coupler Face: confirm with supplier
  • Minimum Carrier Rated Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The HitchDoc 6-Way Dozer Blade is a six-way blade for the operator who moves dirt in the warm months and snow in the cold ones on the same machine. Six-way control means the blade tilts ten degrees up or down and rotates thirty degrees left or right, so an operator can hold a crown, cut a slope, or windrow to one side without repositioning the machine. Four double-acting cylinders drive it and an electrical control kit runs it from the seat, so angle and tilt change on the move rather than at the blade.

Two models are offered and the choice is about how hard the blade works. The Professional carries the standard build; the Heavy-Duty is built on a boxed frame and adds a larger pivot cylinder, a thicker moldboard and commercial-grade backing, which puts weight behind the cut where the material is dense. Both blades use a one-piece rolled steel moldboard and a removable, replaceable cutting edge, and both carry trip springs with lockout bolts so the blade can trip over an obstacle in snow and be locked solid for dirt work. Adjustable skid shoes set the cut depth and a universal quick-tach plate mounts it without adapters.

Common Applications

  • Grading, backfilling and contouring dirt on site
  • Pushing and windrowing snow on lots, drives and paths
  • Cutting and holding a slope or crown

Selection Notes

  • Six-way blade: 10 degrees of tilt, 30 degrees of cut angle either way
  • Professional or Heavy-Duty model; the Heavy-Duty is the boxed-frame build for dense material
  • Mounts on skid steers and on compact track loaders through the same universal quick-tach plate
  • Available in 6 ft, 7 ft and 8 ft widths
  • Trip springs with lockout bolts, so the same blade runs snow and dirt
  • The 8 in steel blade extension and the rubber cutting edge are chosen with the blade in the buy box rather than ordered afterwards; the extension is priced by model and width, the rubber edge by width alone
  • Confirm hydraulic flow, pressure and coupler face with supplier
Build
Blade height
22 in (559 mm)
Blade tilt
10 degree up and down
Cut angle
30 degree left or right
Cylinders
4 double acting
Moldboard
One-piece rolled steel
Cutting edge
Solid, abrasion-resistant, removable and replaceable
Trip springs
Included, with lockout bolts
Skid shoes
Adjustable depth guides with skid shoe spacers
Heavy-Duty model
Boxed frame with a larger pivot cylinder, thicker moldboard and commercial grade backing
Steel
American steel
Mount & Interface
Mount
Universal quick-tach mount plate, fits most skid steers without additional adapters
Control
Electrical control kit included; electro-hydraulic control of angle and tilt from inside the cab
Hydraulics
Couplers
Quick connect hydraulic couplers included
Coupler face
Confirm with supplier Confirm with supplier
Hydraulic flow (GPM)
Confirm with supplier Confirm with supplier
Operating pressure (PSI)
Confirm with supplier Confirm with supplier
WidthModelHorsepower requiredBlade heightWeight
6 ft (1829 mm) Professional 50+ HP 22 in (559 mm) 920 lb (417 kg)
7 ft (2134 mm) Professional 50+ HP 22 in (559 mm) 965 lb (438 kg)
8 ft (2438 mm) Professional 50+ HP 22 in (559 mm) 1,000 lb (454 kg)
6 ft (1829 mm) Heavy-Duty 50+ HP 22 in (559 mm) 965 lb (438 kg)
7 ft (2134 mm) Heavy-Duty 50+ HP 22 in (559 mm) 1,015 lb (460 kg)
8 ft (2438 mm) Heavy-Duty 50+ HP 22 in (559 mm) 1,065 lb (483 kg)
Six-way control
Tilts and rotates from the seat, so the operator holds a crown or windrows without repositioning the machine
Trip springs with lockout bolts
Trip over a hidden obstacle in snow, lock solid for dirt work, on the same blade
Heavy-Duty model
Puts a larger pivot cylinder and a thicker moldboard behind the cut where material is dense

Included with Purchase

  • 1 HitchDoc 6-Way Dozer Blade (variant/model as ordered)
  • Electrical control kit
  • Quick connect hydraulic couplers
  • Trip springs and lockout bolts
  • Adjustable skid shoes
  • Universal quick-tach mount plate
  • Solid steel cutting edge, removable and replaceable
  • The 8 in steel blade extension, on the Options choices With Steel Blade Extension and With Steel Blade Extension and Rubber Cutting Edge
  • The rubber cutting edge, on the Options choices With Rubber Cutting Edge and With Steel Blade Extension and Rubber Cutting Edge

Not Included Unless Stated

  • 8 in steel blade extension, on the Options choices No extension or edge upgrade and With Rubber Cutting Edge
  • Rubber cutting edge, on the Options choices No extension or edge upgrade and With Steel Blade Extension
  • Skid steer or compact track loader
  • On-site installation or machine configuration

Every blade ships with the solid steel cutting edge, so an Options choice that names the rubber edge takes that edge in its place rather than adding to it. The rubber edge is 1 in thick and 6 in high with centre punched holes and it eases wear on the plowing surface. The 8 in steel blade extension bolts to the top of the moldboard and adds capacity; the supplier prices it by model and width and prices the rubber edge by width alone, so both are chosen with the blade here rather than ordered afterwards.

Note: Confirm exact included components and mount hardware with supplier at time of order.

Related Equipment

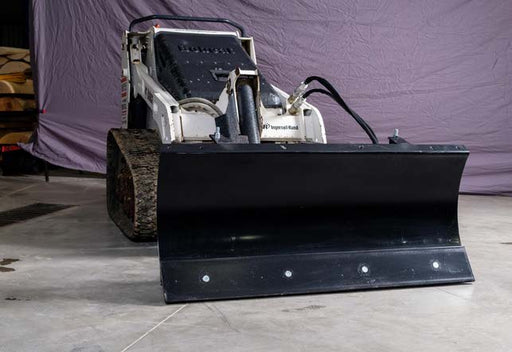

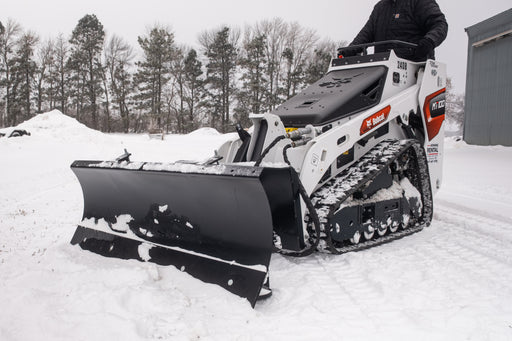

Mini Skid Steer Angle Blade | HitchDoc
