20 Gallon Single Stage Electric Air Compressor | Mi-T-M

Brand Mi-T-MSKU AM1-PE15-20M
Original price $2,656.00 - Original price $2,763.00
Original price
$2,656.00
$2,656.00 - $2,763.00
Current price $2,656.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

20-gallon single-stage electric air compressor, ASME-certified, built for projects that need multiple air tools running at once. 1.5 HP on a 15-amp NEMA 5-15P plug or 2.0 HP on a 20-amp NEMA 5-20P plug; match to the circuit available on site.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • CFM @ PSI: 7.3 to 8.2 @ 90 depending on motor
  • Motor: 1.5 HP (13.2A) or 2.0 HP (18.8A), both 120V
  • Plug: NEMA 5-15P (15-amp) or NEMA 5-20P (20-amp)
  • Tank: 20 gallon, ASME receiver tank
  • Certification: ASME Boiler and Pressure Vessel Code - UM
  • Net Weight: 196-203 lb depending on motor
  • Retail Price: $2656-$2763 depending on motor


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

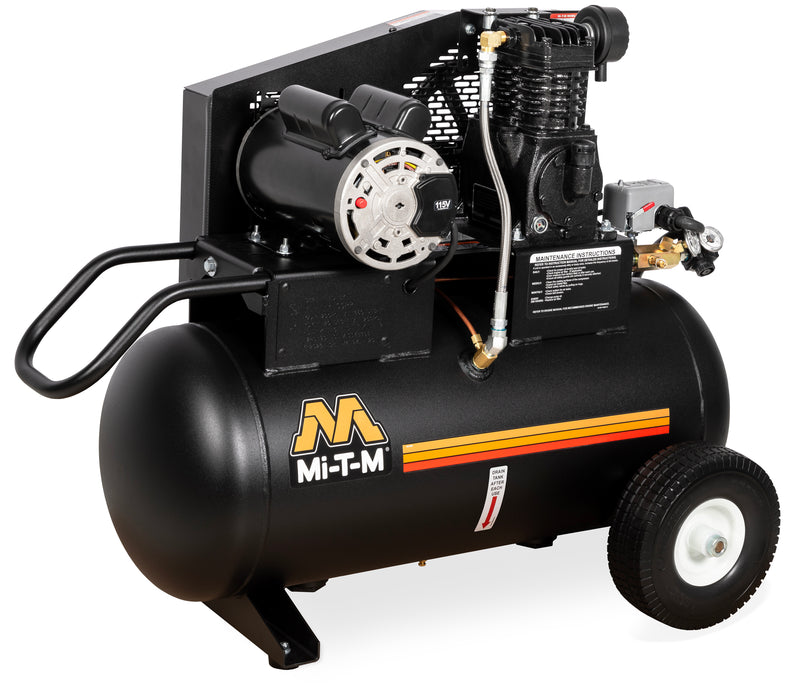

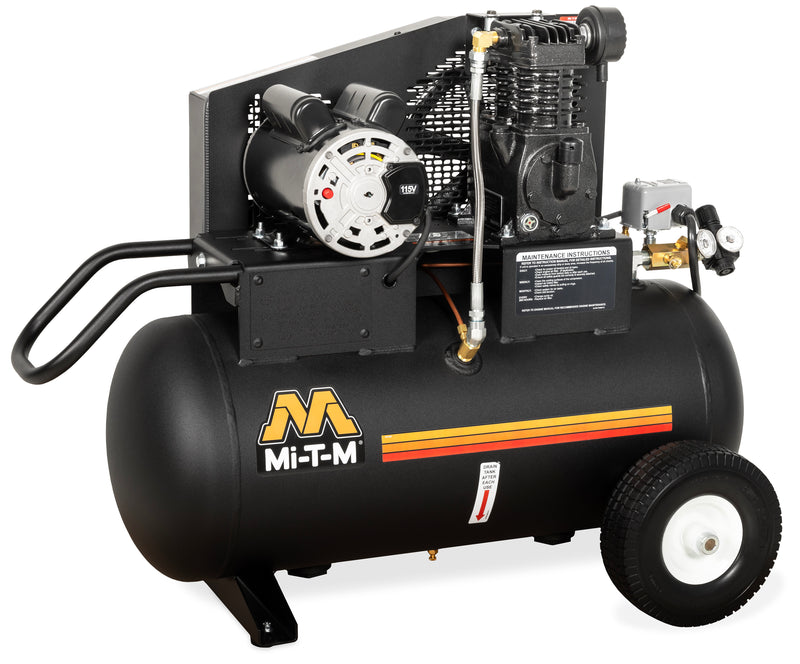

Mi-T-M's 20-gallon single-stage electric air compressor is built for projects that call for running multiple air tools at once. An ASME-certified receiver tank and auto start/stop come standard on both motor options.

The two motors draw different amperage and use different plugs: the 1.5 HP motor pulls 13.2 amps through a standard 15-amp NEMA 5-15P plug, while the 2.0 HP motor pulls 18.8 amps and needs a 20-amp NEMA 5-20P plug. Which one to order comes down to what circuit is available on site as much as which output is preferred. Note that the start/stop pressure control isn't active on continuous-run configurations.

Common Applications

  • Projects that need multiple air tools running at once
  • Matching motor and plug type to whatever circuit is available on site

Selection Notes

  • The 1.5 HP motor uses a standard 15-amp plug (NEMA 5-15P); the 2.0 HP motor needs a 20-amp plug (NEMA 5-20P) and draws more CFM
  • Confirm which circuit is available on site before ordering, since the plug types aren't interchangeable
  • ASME Code UM certified, unlike the 8-gallon electric model in this same lineup
Unit Specifications
Motor options
1.5 HP, 120V, 13.2A, NEMA 5-15P plug or 2.0 HP, 120V, 18.8A, NEMA 5-20P plug
Certification
ETL Certified - American and Canadian; ASME Boiler and Pressure Vessel Code - UM
Build
Compressor pump
Cast iron compressor pump, splash lubricated, stainless-steel braided discharge hose, large canister intake filter, oil level sight indicator
Frame
Powder coated ASME receiver tank, 3/16-inch base plate to reduce vibration, powder coated two-piece belt guard, 10-inch flat-free tires
Components
Regulator and two gauges for tank and outlet pressure, manual drain valve, 10-inch fly wheel, industrial-grade pressure switch, start/stop control set at 95 to 125 PSI (not on continuous run models)
Warranty
1 year electric motor
MotorModelCFM @ PSIPlug TypeShip WeightNet Weight
1.5 HP, 120V, 13.2A AM1-PE15-20M 7.3 @ 90 NEMA 5-15P 265 lb 196 lb
2.0 HP, 120V, 18.8A AM1-PE02-20M 8.2 @ 90 NEMA 5-20P 272 lb 203 lb
Accessories: To order any of these accessories, contact support@hardscapeheavy.com
Part NumberDescriptionFits
AW-6000-1002 Equipment cover All models
AX-0002 Auto drain/regulator/plastic bowl, drains moisture from air system (order-time option, cannot be added later) All models
AX-0003 Manual drain/regulator/metal bowl, drains moisture from air system (order-time option, cannot be added later) All models
AX-0008 Dual control, operates in start/stop mode or continuous run where the pilot valve exhausts air to atmosphere (order-time option, cannot be added later) All models
AX-0027 Stationary kit, converts portable to stationary, removes the tires and handle, adds a stationary leg (order-time option, cannot be added later) All models

Included with Purchase

  • 1 20 Gallon Single Stage Electric Air Compressor (motor option as ordered)
  • Regulator, two gauges, and manual drain valve

Not Included Unless Stated

  • On-site setup

Note: Confirm exact included components with supplier at time of order.
