20 Gallon Single Stage Gas Air Compressor | Mi-T-M

Brand Mi-T-MSKU AM1-PH65-20M
Original price $2,560.00 - Original price $2,897.00
Original price
$2,897.00
$2,560.00 - $2,897.00
Current price $2,897.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

20-gallon single-stage gas air compressor, 13.9 CFM at 90 PSI, ASME-certified receiver tank. Honda engine uses pneumatic idle control; Mi-T-M engine uses cable throttle and costs $337 less. No electric start offered on this size.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • CFM @ PSI: 13.9 @ 90
  • Engine: 196cc Honda GX200 OHV or 212cc Mi-T-M OHV
  • Tank: 20 gallon, ASME receiver tank
  • Dimensions: 37x23.5x33 in
  • Net Weight: 212 lb
  • Retail Price: $2560-$2897 depending on engine


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

Mi-T-M's 20-gallon single-stage gas air compressor is built for contractors to power a variety of air tools and get the job done right on every trip out. It runs from an ASME-certified receiver tank, the same pressure vessel standard used across Mi-T-M's larger stationary compressors.

Engine choice is the only decision here, and it carries a real functional and price difference: the Honda GX200 runs a pneumatic idle control, while the Mi-T-M engine uses a cable throttle and costs $337 less. Neither offers electric start at this tank size; both are pull-start only. Net weight and dimensions are identical between the two, so the choice comes down to idle control preference and price.

Common Applications

  • Powering a variety of air tools on contractor jobsites
  • Converting to a fixed, stationary installation via the optional stationary kit, for a shop or dedicated work area

Selection Notes

  • Engine is the only choice, but it's a real functional difference: Honda GX200 uses pneumatic idle control, Mi-T-M uses cable throttle
  • Mi-T-M costs $337 less than Honda; weight and dimensions are identical between the two
  • No electric start is offered on this tank size, unlike the 8-gallon single-stage line
Unit Specifications
CFM @ PSI
13.9 @ 90
Engine options
196cc Honda GX200 OHV (pneumatic idle control) or 212cc Mi-T-M OHV (cable throttle)
Certification
ASME Boiler and Pressure Vessel Code - UM
Build
Compressor pump
Cast iron compressor pump, splash lubricated, stainless-steel braided discharge hose, large canister intake filter, oil level sight indicator
Frame
Powder coated ASME receiver tank, 3/16-inch base plate to reduce vibration, powder coated two-piece belt guard, 10-inch flat-free tires
Components
Regulator and two gauges for tank and outlet pressure, manual drain valve, 12-inch fly wheel, quality pilot valve unloader, start/stop control set at 95 to 125 PSI
Warranty
3 year engine
EngineModelIdle ControlShip WeightNet Weight

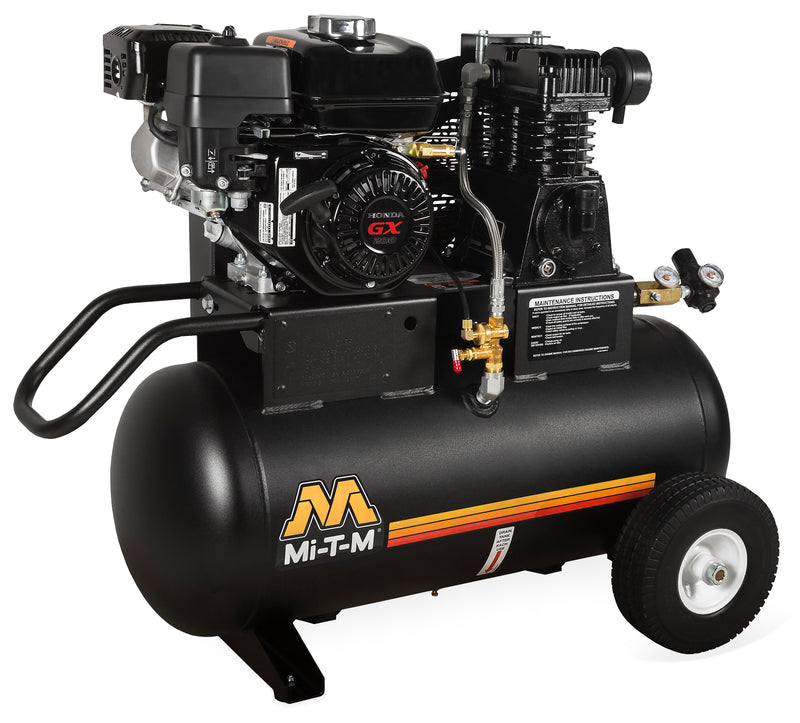

196cc Honda GX200 OHV AM1-PH65-20M Pneumatic 272 lb 212 lb

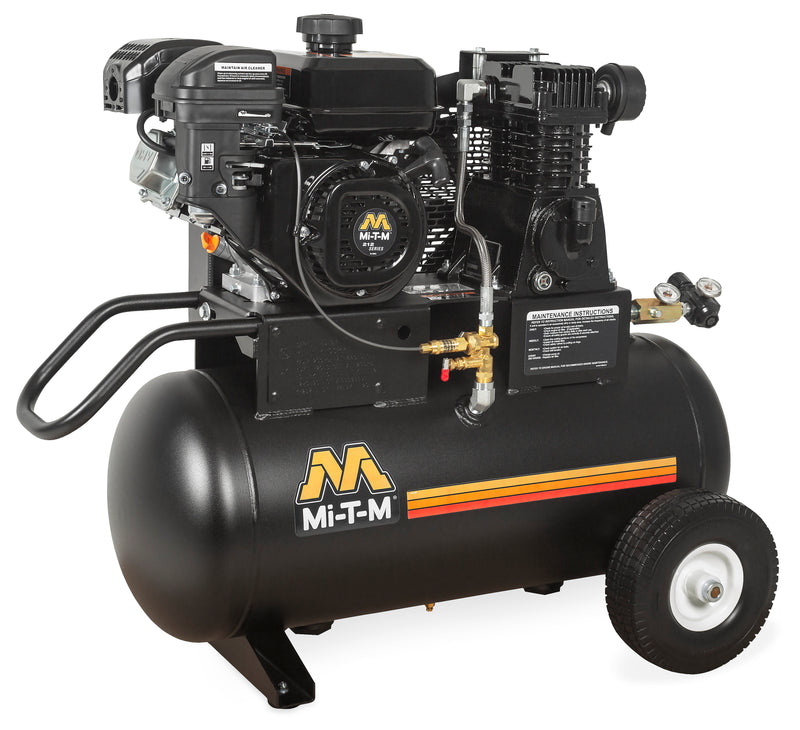

212cc Mi-T-M OHV AM1-PM07-20M Cable throttle 272 lb 212 lb
Accessories: To order any of these accessories, contact support@hardscapeheavy.com
Part NumberDescriptionFits
7-0228A18 Rear lifting handle, allows the unit to be lifted from both ends All models
70-0357 Engine oil drain extension, 14-inch flexible hose for clean oil changes All models
AW-6000-1002 Equipment cover All models
AX-0003 Manual drain/regulator/metal bowl, drains moisture from air system (order-time option, cannot be added later) All models
AX-0027 Stationary kit, converts portable to stationary, removes tires and handle, adds a stationary leg (order-time option, cannot be added later) All models

Included with Purchase

  • 1 20 Gallon Single Stage Gas Air Compressor (engine option as ordered)
  • Regulator, two gauges, and manual drain valve

Not Included Unless Stated

  • On-site setup or fuel

Note: Confirm exact included components with supplier at time of order.
