Booster 20 Pump | IMER

Brand IMERSKU 1106428
Original price $77,999.00 - Original price $77,999.00
Original price
$77,999.00
$77,999.00 - $77,999.00
Current price $77,999.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

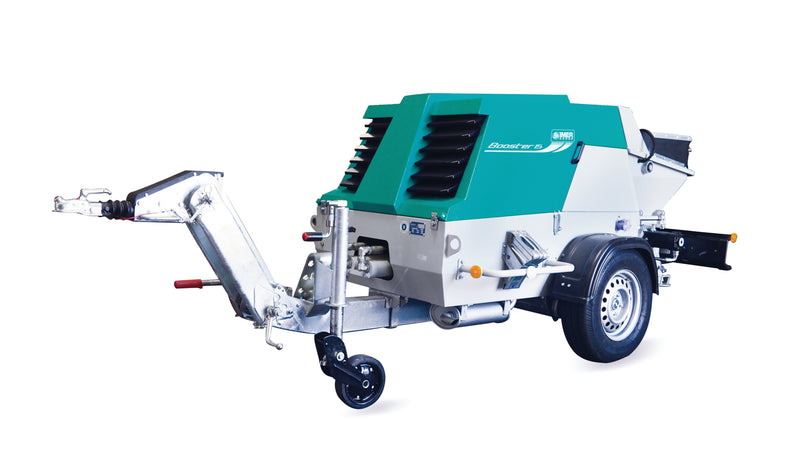

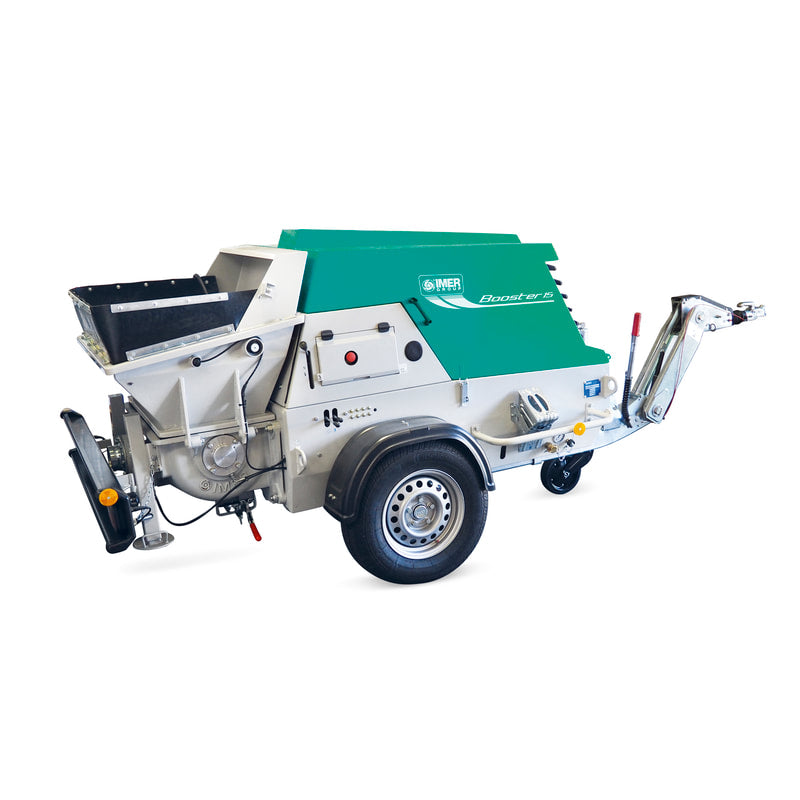

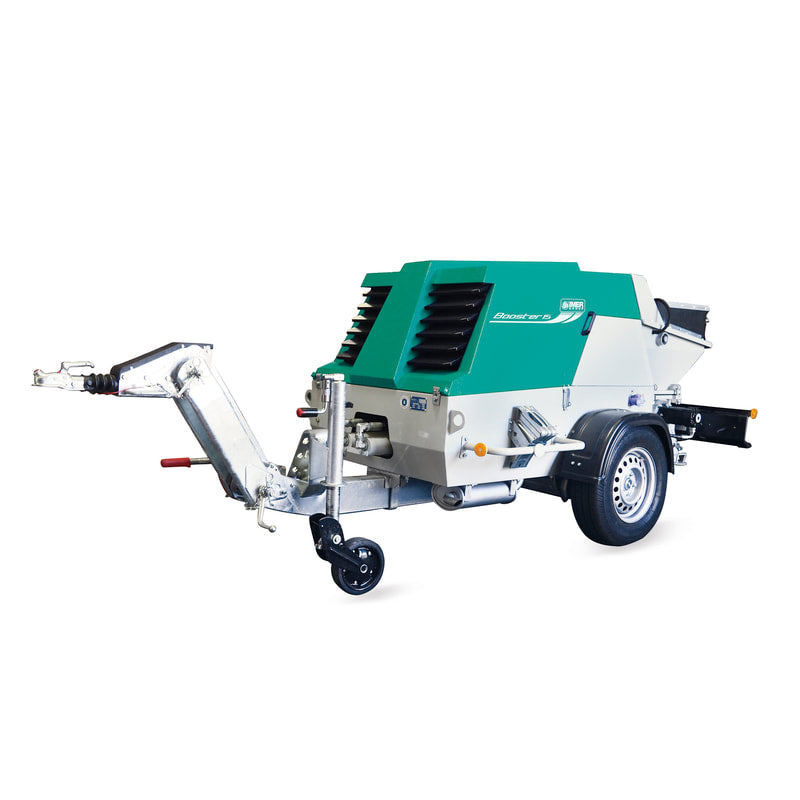

Booster 20 towable diesel concrete piston pump, up to 20 cu yd/hr of concrete, shotcrete, or grout through a 4 in heavy-duty pipe outlet. 28 hp 3-cylinder diesel engine, 2-cylinder hydraulic pumping unit with automatic wear compensation.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Flow Rate: 3 to 20 cu yd/hr
  • Engine: Diesel, 3-cylinder, 28 hp
  • Pumping Pressure: 1,000 psi
  • Hopper Capacity: 7 cu ft
  • Net Weight: 3,100 lb
  • Retail Price: $77,999


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

IMER's Booster 20 is a towable diesel concrete piston pump built for job sites where a compact footprint matters as much as output; its maker states it fits where larger pumps of similar capability can't. A 28 hp, 3-cylinder diesel engine drives a 2-cylinder pumping unit through an "S-valve" system that automatically compensates for clearance and wear as the pump ages, moving concrete, shotcrete, or high-strength grout through a 4 in heavy-duty pipe outlet.

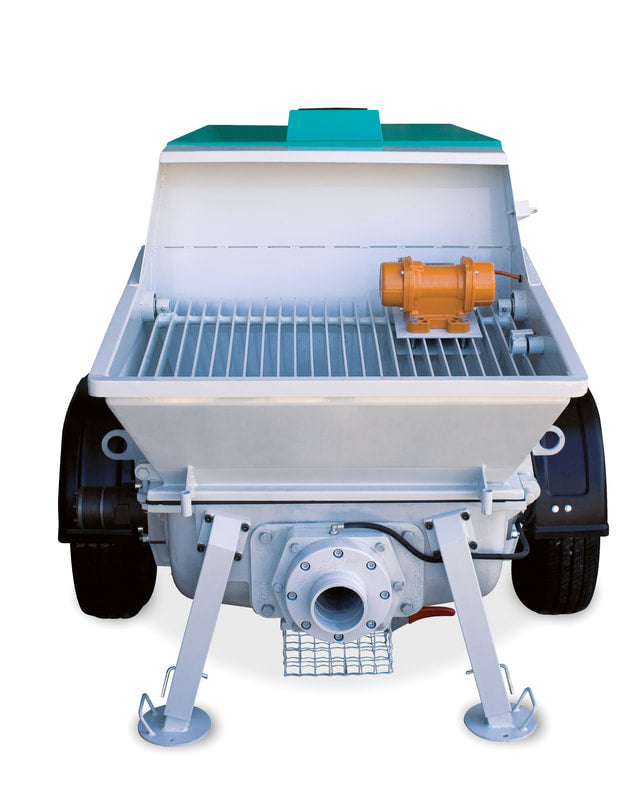

An automatic greasing system lubricates the pump's vital components without manual intervention, and a hinged hopper with a 12V vibrating grid keeps material moving into the pumping chamber. The articulated tow bar levels to fit different tow heights, and torsion bar suspension keeps the ride smooth in transit. This is built for concrete and shotcrete placement crews who need real pumping output on tight, space-constrained sites, not a full-size stationary pump.

Common Applications

  • Pumping 3/4 in concrete, shotcrete, or 3/8 in grout / self-consolidating concrete on space-constrained sites
  • Towing between job sites via the articulated, height-adjustable tow bar

Selection Notes

  • Compact, towable design trades some capacity for the ability to work sites a larger pump can't fit into
  • Max flow rate and max pumping pressure are not available at the same time; the pump trades one for the other depending on setting
  • Optional hopper extensions (13 cu ft rubber, 17 cu ft steel) and remote controls (5-function radio, 4-function wired) are sold separately
Unit Specifications
Engine

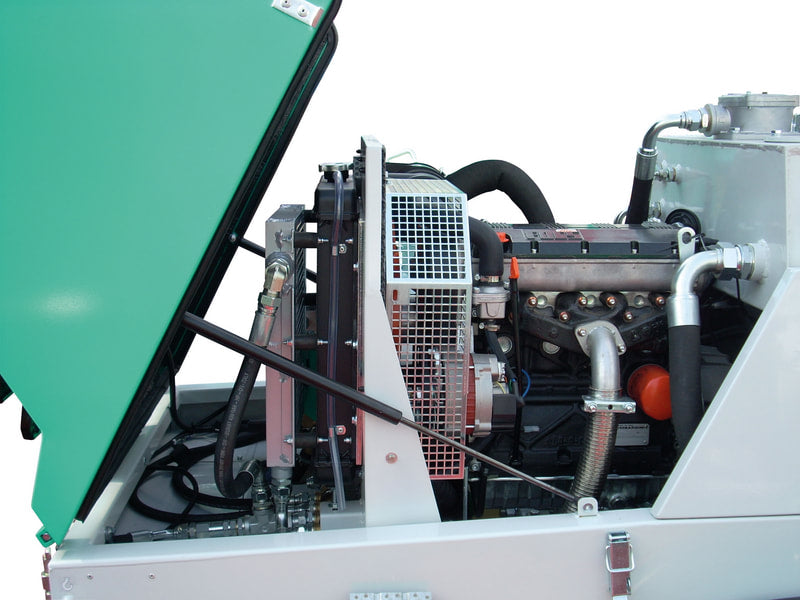

Diesel, 3-cylinder, 28 hp installed power
Pumping system
2-cylinder piston pump with hydraulic control, S-valve automatic clearance/wear compensation
Flow rate
3 to 20 cu yd/hr (max flow and max pumping pressure are not available simultaneously)
Pumping pressure
1,000 psi
Max aggregate size
1 in
Pipe outlet
Heavy duty 4 in
Hopper capacity
7 cu ft
Loading height
42.5 in
Noise level
Under 78 dB
Country of manufacture
Italy
Build
Components

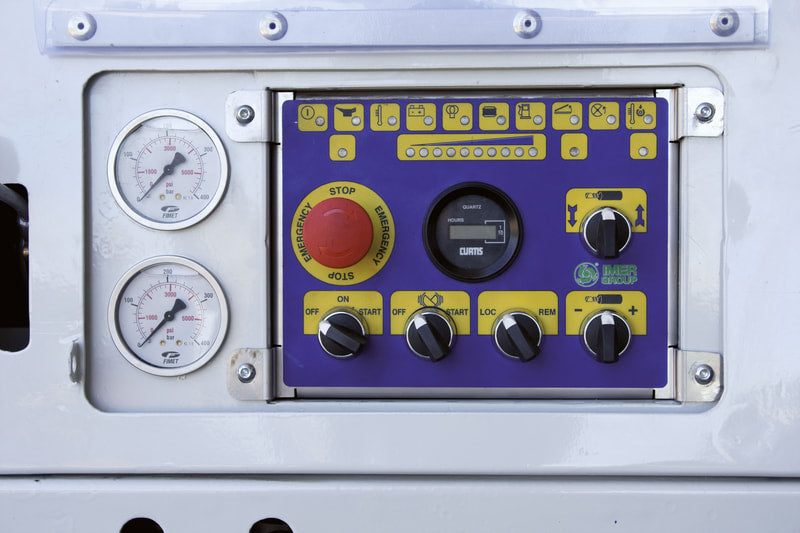

Automatic greasing system; concrete hopper with 12V vibrating grid and agitator; hydraulic system with reverse; full-featured electric control panel with LED indicators and hydraulic gauges; piston head installation and extraction tool kit
Towing
Articulated tow bar levels to fit tow height; torsion bar suspension; surge brakes; wheel chocks; hand brake for locking into position
Warranty
1 year limited
Accessories
Hydraulic power washer (1107171); 5-function radio remote (1107001); four-function remote control, 164 ft cable (1107086); rubber hopper extension kit, 13 cu ft (1107196); steel hopper extension kit, 17 cu ft (1107197) -- contact support@hardscapeheavy.com to order
S-valve automatic wear compensation
The pumping unit automatically adjusts for clearance and wear as it ages, instead of needing manual adjustment

Included with Purchase

  • 1 Booster 20 Pump
  • Heavy-duty highway tow package, accessory box with grease pump

Not Included Unless Stated

  • Hopper extensions, remote controls, and hydraulic power washer (sold separately)
  • On-site installation or configuration

Note: Confirm exact included components with supplier at time of order.
