Mix 360 Mixer | IMER

Brand IMERSKU 1194661
Original price $9,599.00 USD - Original price $9,599.00 USD
Original price
$9,599.00 USD
$9,599.00 USD - $9,599.00 USD
Current price $9,599.00 USD
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Mix 360 towable vertical shaft paddle mixer, 12 cu ft drum, 9 cu ft batch output. Available with an 11 HP Honda GXV390 gas engine or a 240V, 5 HP single-phase electric motor. Mixes low-slump materials like dry pack mortar, refractory cement, and UHPC that a conventional paddle-lift mixer struggles with.

Need fitment or freight help before you order? Contact us.

Shipping & Freight

We ship to the 48 contiguous states. We do not ship to Alaska, Hawaii, US territories, military (APO/FPO/DPO) addresses or outside the United States.

Smaller items ship by parcel carrier, priced by weight. Larger items and heavy equipment ship by LTL freight, priced by your ZIP code and the delivery type you choose: terminal pickup and dock delivery cost the least, and commercial liftgate, residential liftgate and jobsite delivery each add the carrier’s fee. Your shipping cost is shown at checkout before you pay.

The best way to get a shipping quote or ask a freight question is the Get a Freight Quote button on this page. You can also call (805) 398-6165.

Delivery types, delivery times, terminal pickup, liftgate service and damage inspection are covered in our Shipping Policy.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Drum Capacity: 12 cu ft, 9 cu ft batch output
  • Power: Honda GXV390 11 HP gas engine, or 240V 5 HP single-phase electric motor
  • Maximum Aggregate Size: 3/8 in
  • Net Weight: 787-794 lb depending on power source
  • Retail Price: $9599


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns: within 30 days of delivery if unused and complete, with a restocking fee of up to 25% plus return freight. Returns need the manufacturer's agreement to take the item back; if they won't, the sale is final. Custom and made-to-order items are final sale. Full terms: Refund Policy.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

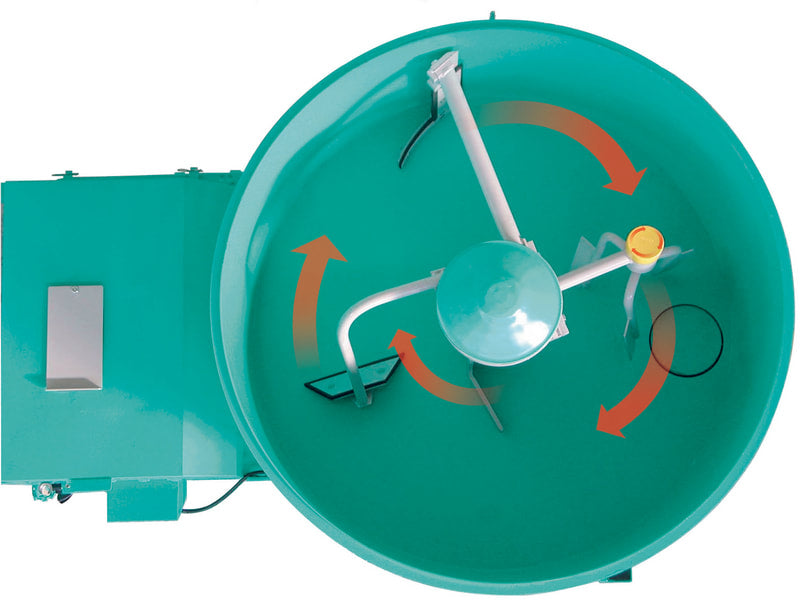

IMER's Mix 360 is a towable vertical shaft paddle mixer built on concrete batch plant principles: the paddles sweep through the mix rather than lifting and dropping it the way a conventional drum mortar mixer does. It's available with an 11 HP Honda GXV390 gas engine for sites without electrical service, or a 240V, 5 HP single-phase electric motor for sites with power on hand; both drive the paddles through heavy-duty gearboxes rated for aggregate up to 3/8 in, and the design handles very low-slump materials like dry pack mortar, refractory cement, and UHPC that a conventional mixer struggles with.

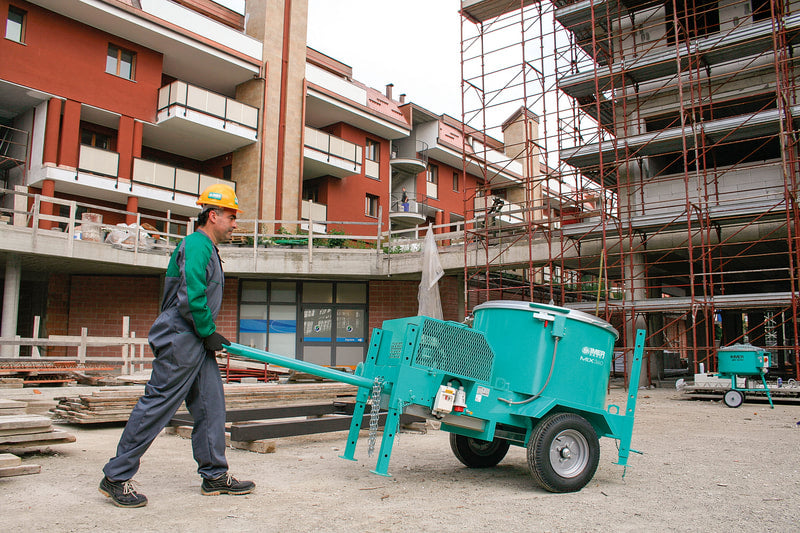

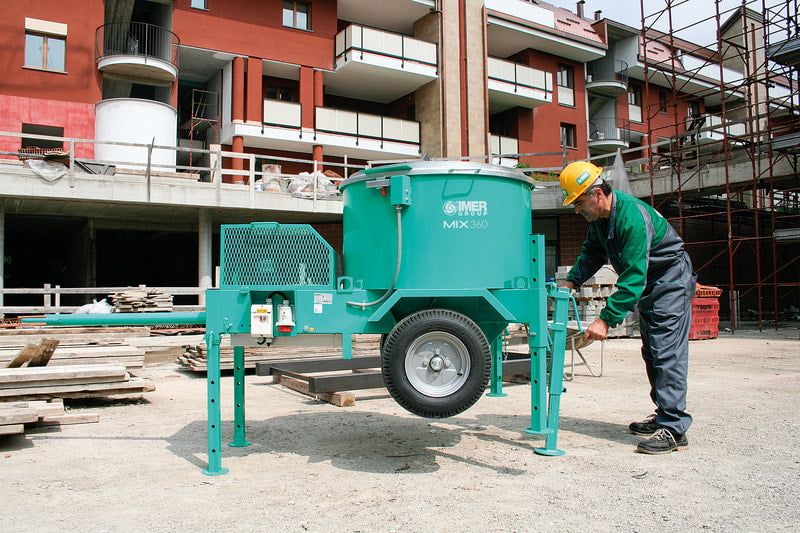

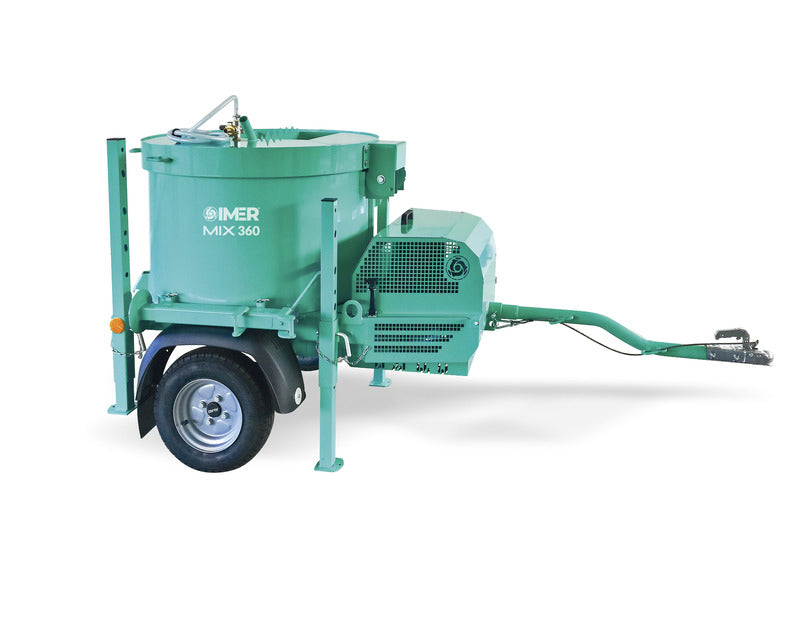

Four adjustable legs let the mixer sit level on uneven ground, and a dump mechanism discharges the batch on demand rather than requiring a full drum tilt. Torsion bar suspension and highway tires make the unit towable between jobsites, and a water hookup and auto shut-down safety grate are both built in. This is for crews mixing stiff, dry, or low-slump material in volume, on sites with or without reliable electrical service.

Common Applications

  • Mixing low-slump materials (dry pack mortar, refractory cement, UHPC) that a conventional mixer struggles with
  • Towing a high-output mixer between jobsites rather than running a stationary batch plant

Selection Notes

  • Gas engine (Honda GXV390, 11 HP) suits sites without reliable electrical service; electric motor (240V, 5 HP single-phase) suits sites with power where running a gas engine isn't necessary
  • Vertical shaft paddle design trades the conventional tilt-drum mechanism for batch-plant-style mixing action
Unit Specifications
Drum capacity
12 cu ft, 9 cu ft batch output (materials can influence batch output)
Maximum aggregate size
3/8 in
Discharge outlet height
18-30 in adjustable
Noise level
Under 79 dB
Country of manufacture
Italy
Build
Frame
4 adjustable legs, torsion bar suspension, highway tires, tow bar, 18 in pneumatic wheels
Components

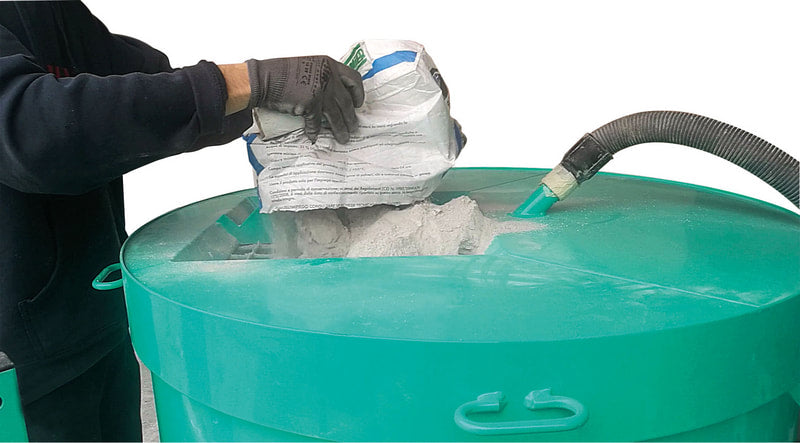

Auto shut-down safety grate, dust suppression grate, water hookup, dump-mechanism discharge
Warranty
1 year limited
PowerModelNet WeightShip WeightCarton Dimensions
Gas (Honda GXV390, 11 HP)1194661794 lb925 lb50x60x80 in
Electric (240V, 5 HP)1194662787 lb925 lb50x60x80 in
Vertical shaft paddle mixing
Sweeps through the mix instead of lifting and dropping it, handling low-slump material a conventional mixer struggles with

Included with Purchase

  • 1 Mix 360 Mixer (power source as ordered)

Not Included Unless Stated

  • On-site installation or configuration

Note: Confirm exact included components with supplier at time of order.
