Name: 30-80 Gallon Base-Mount Two Stage Gas Air Compressor | Mi-T-M
Brand: Mi-T-M
SKU: ABS-13H-30H
Price: 6527.0 USD
Availability: InStock

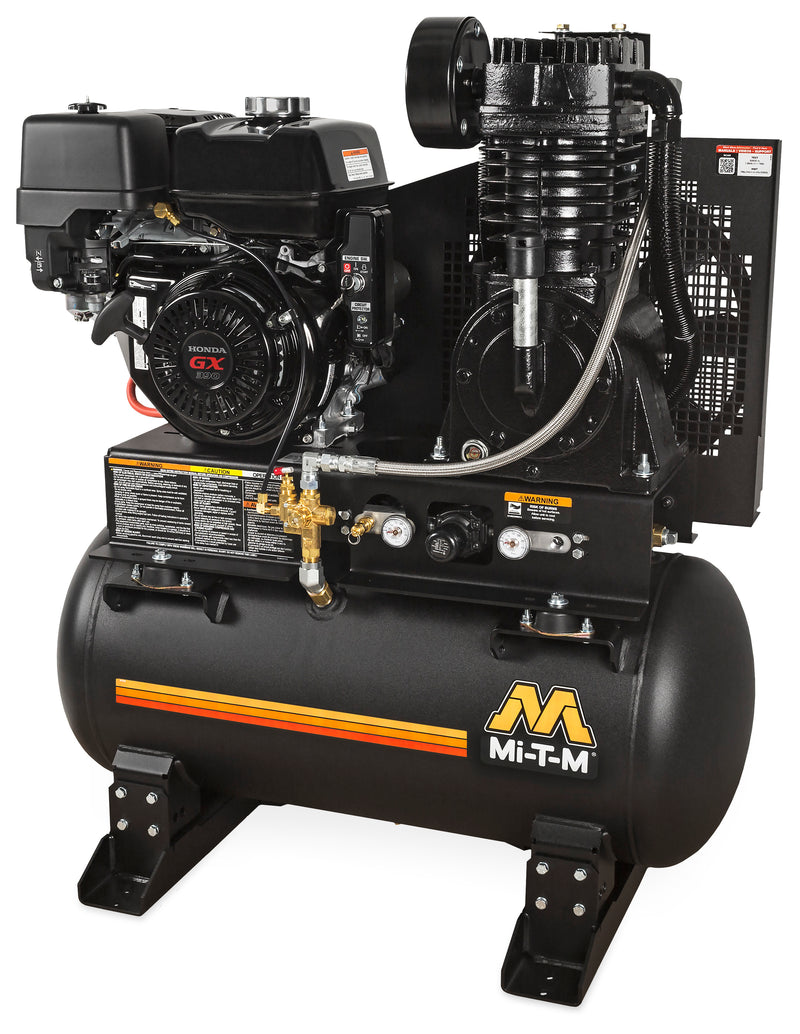

Mi-T-M gas air compressor on a 30 gallon horizontal tank with stationary mounting feet

Mi-T-M gas air compressor on an 80 gallon horizontal tank with extended receiver length

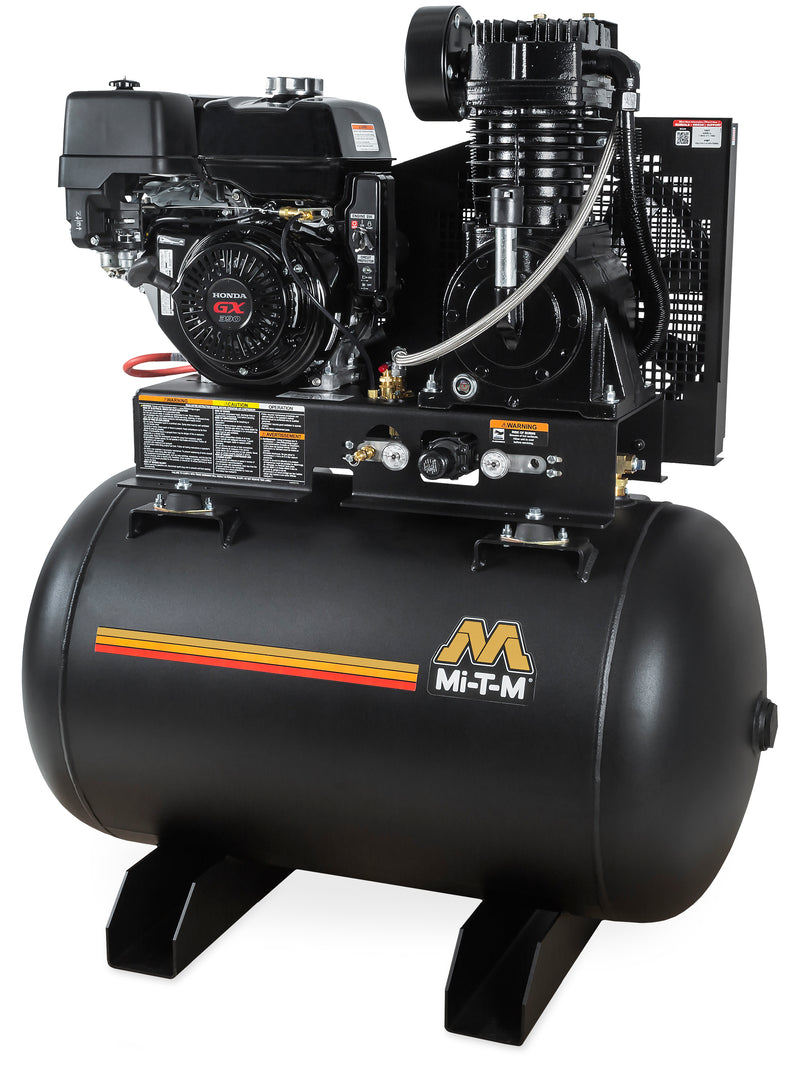

Mi-T-M gas air compressor mounted on an 80 gallon horizontal receiver tank

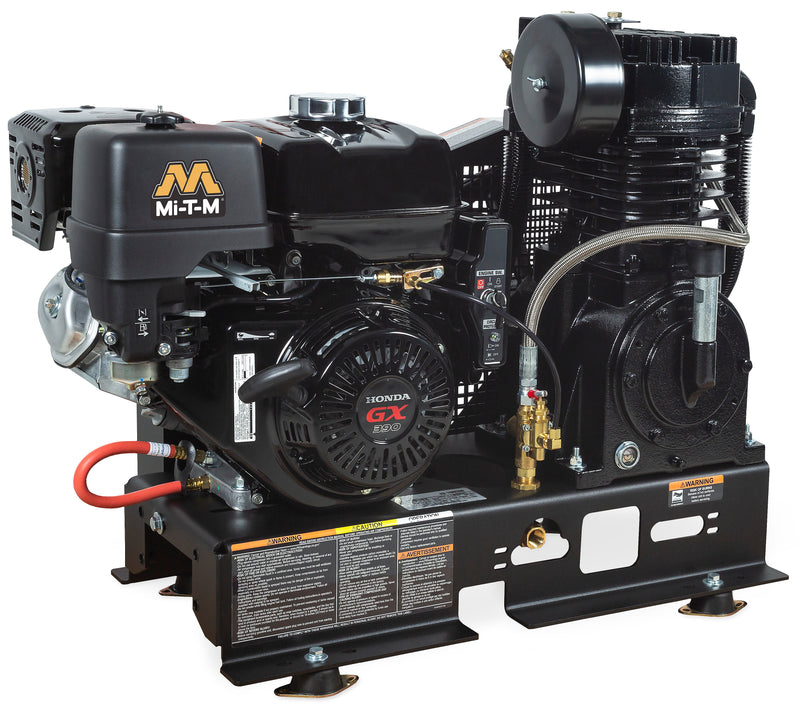

Mi-T-M gas air compressor, bare base mount unit on a skid frame with no receiver tank

Mi-T-M gas air compressor, base mount assembly on a skid frame without a tank

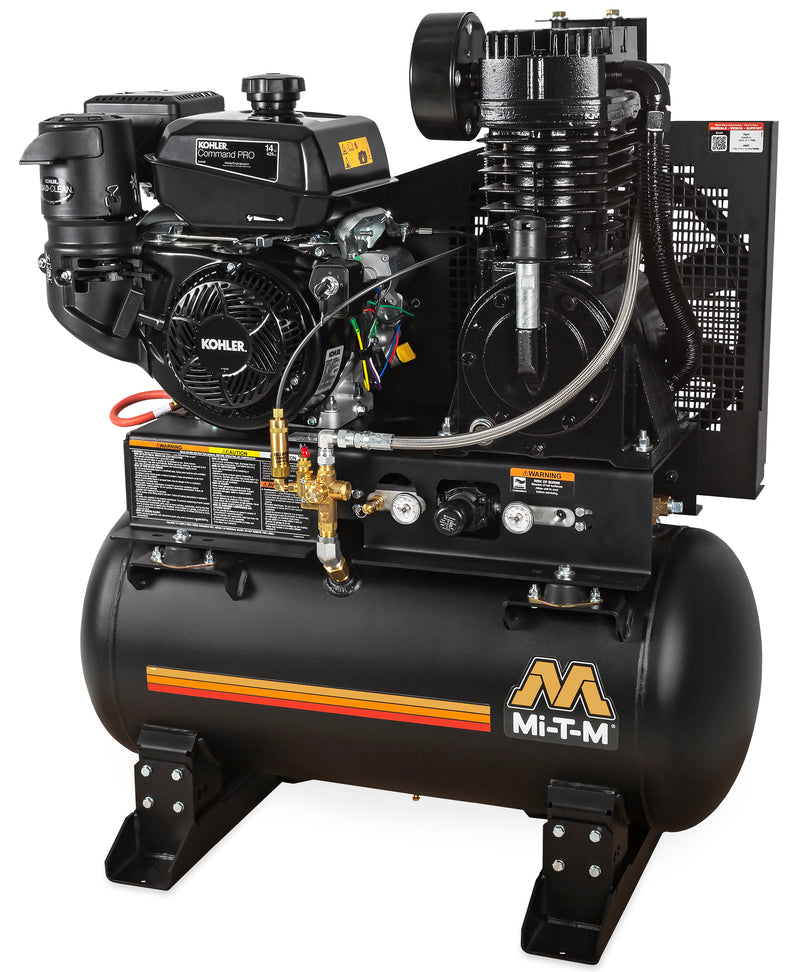

Mi-T-M 30-80 Gallon Base-Mount Two Stage Gas Air Compressor, 30-Gallon, Rehlko engine

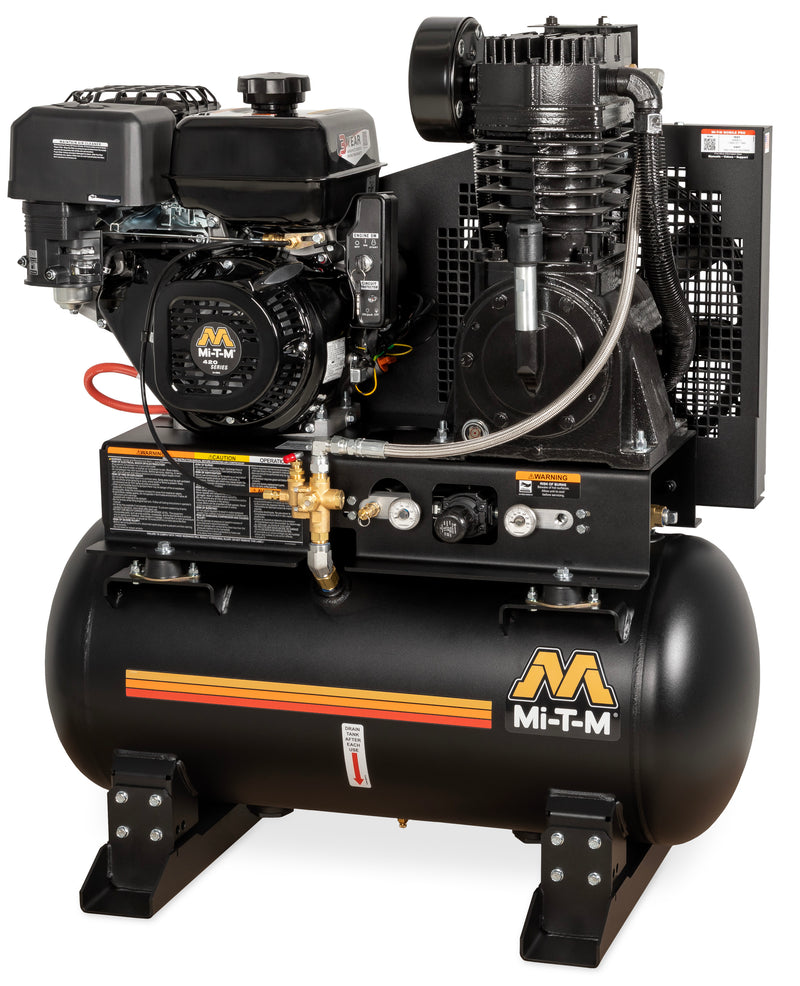

Mi-T-M 30-80 Gallon Base-Mount Two Stage Gas Air Compressor, 30-Gallon, Mi-T-M engine

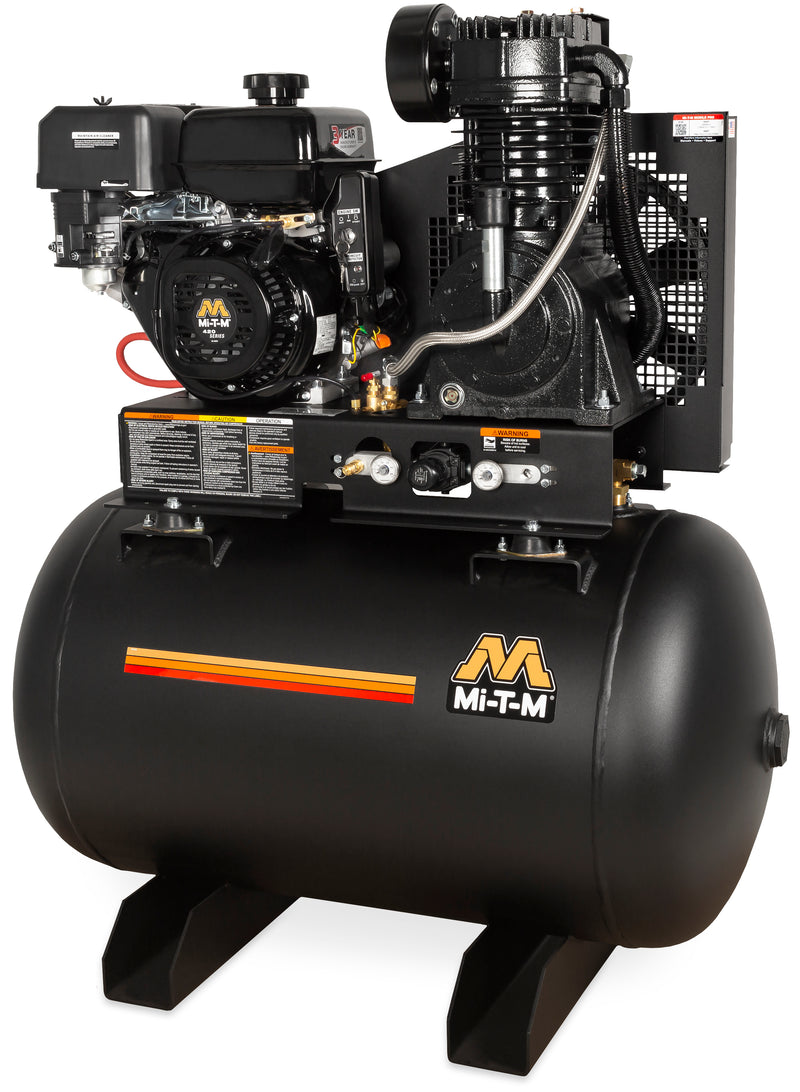

Mi-T-M 30-80 Gallon Base-Mount Two Stage Gas Air Compressor, 80-Gallon, Mi-T-M engine

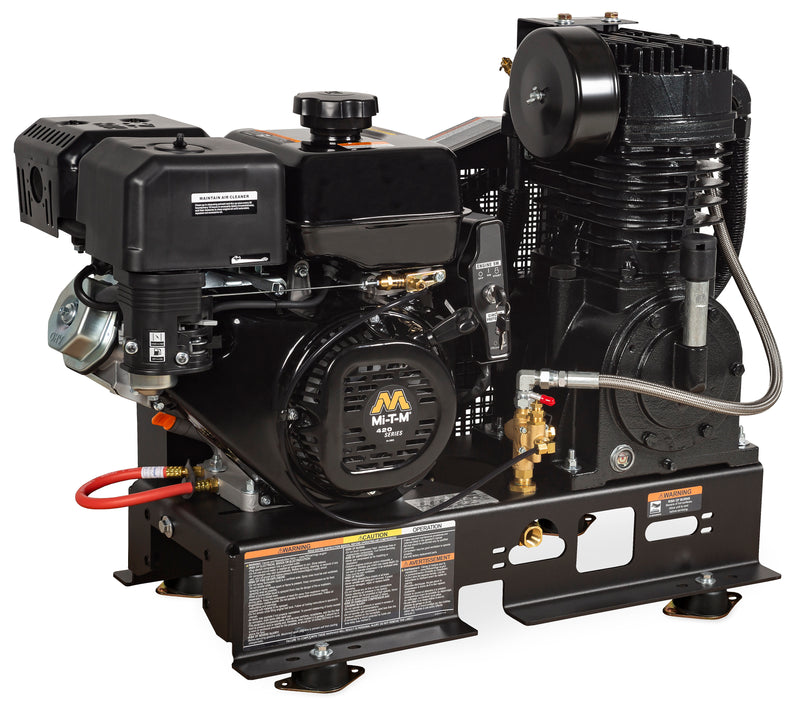

Mi-T-M 30-80 Gallon Base-Mount Two Stage Gas Air Compressor, Base-Mount, Mi-T-M engine

30-80 Gallon Base-Mount Two Stage Gas Air Compressor | Mi-T-M

Brand Mi-T-MSKU ABS-13H-30H

$3,854.00 - $6,902.00

$6,527.00

$3,854.00 - $6,902.00

$6,527.00

Shipping: LTL freight. Commercial delivery preferred.

Quantity

30 or 80-gallon two-stage gas air compressor, or a tankless base-mount version, electric start standard on every configuration (battery not included). Honda or Mi-T-M at every size; Rehlko is a 30-gallon-only third engine option. 30-gallon models are ASME Code UM, 80-gallon models are ASME Code U.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

Orders up to $5,000: $279
Orders $5,000 to $10,000: $347
Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

CFM @ PSI: 29.0 @ 175, 150 PSI maximum rated regulator
Engine: 389cc Honda GX390, 429cc Rehlko CH440 (30-gallon only), or 420cc Mi-T-M OHV
Configuration: 30-gallon or 80-gallon tank-mount, or tankless base-mount (receiver tank required separately)
Certification: ASME Boiler and Pressure Vessel Code - UM (30-gallon), Code U (80-gallon)
Net Weight: 215-496 lb depending on configuration
Retail Price: $3854-$6902 depending on configuration and engine

Need full technical detail? See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

Mi-T-M's 30/80-gallon and base-mount two-stage gas air compressor line is designed with the ability to mount on trailers or service trucks, and electric start comes standard across every configuration in the line (the battery, box, and cables are never included, on any of them). The two tank-mount sizes and the tankless base-mount version all share the same output rating.

Engine choice narrows by configuration: 30-gallon models get a third option, a Rehlko CH440, alongside Honda and Mi-T-M; the 80-gallon and base-mount configurations offer Honda or Mi-T-M only. The 80-gallon tank carries a different ASME code than the 30-gallon (Code U vs Code UM), and Mi-T-M rates the base-mount configuration standard for the service truck mount kit, since it has no integrated tank of its own to work around.

Common Applications

Mounting on a trailer or service truck for consistent, portable air power
A tankless base-mount unit for a truck or trailer that already carries its own receiver tank

Selection Notes

Configuration is the first decision: 30-gallon and 80-gallon carry an integrated ASME tank, base-mount is tankless and needs one sourced separately
Only the 30-gallon size offers a third engine option, Rehlko CH440, alongside Honda and Mi-T-M
Electric start is standard everywhere in this line, but the battery, box, and cables are never included
30-gallon and 80-gallon tanks carry different ASME certifications (Code UM vs Code U)

Unit Specifications

CFM @ PSI: 29.0 @ 175, equipped with 150-PSI maximum rated regulator
Engine options: 389cc Honda GX390 OHV (pneumatic idle), 429cc Rehlko CH440 OHV (cable throttle, 30-gallon tank-mount only), or 420cc Mi-T-M OHV (pneumatic idle); electric start standard on all
Certification: ASME Boiler and Pressure Vessel Code - UM (30-gallon models), Code U (80-gallon models)

Build

Compressor pump: Cast iron compressor pump, splash lubricated, stainless-steel braided discharge hose, large canister intake filter, oil level sight indicator
Frame: Powder coated ASME receiver tank on tank-mount models, 3/16-inch base plate to reduce vibration, powder coated two-piece belt guard; removable base plate on base-mount models offers flexible installation
Components: Regulator and two gauges for tank and outlet pressure, ASME safety valves, 16.5-inch fly wheel, tank drain valve, 1/2-inch port, service truck mount kit standard on base-mount models, start/stop control set at 145 to 175 PSI
Warranty: 3 year engine

Configuration	Engine	Model	Ship Weight	Net Weight
30-Gallon	389cc Honda GX390 OHV	ABS-13H-30H	480 lb	416 lb
30-Gallon	429cc Rehlko CH440 OHV	ABS-14K-30H	480 lb	416 lb
30-Gallon	420cc Mi-T-M OHV	ABS-14M-30H	480 lb	416 lb
80-Gallon	389cc Honda GX390 OHV	ABS-13H-80H	560 lb	496 lb
80-Gallon	420cc Mi-T-M OHV	ABS-14M-80H	560 lb	496 lb
Base-Mount (receiver tank required)	389cc Honda GX390 OHV	ABS-13H-B	279 lb	215 lb
Base-Mount (receiver tank required)	420cc Mi-T-M OHV	ABS-14M-B	279 lb	215 lb

Accessories: To order any of these accessories, contact support@hardscapeheavy.com

Part Number	Description	Fits
AW-6000-1002	Equipment cover	30-gallon and base-mount models (not 80-gallon)
AX-0017	Battery, battery tray, box, and 2-foot cables, attaches to engine side (order-time option, cannot be added later)	30 and 80-gallon models
AX-0077	Battery tray, box, and 2-foot cables (no battery), attaches to engine side (order-time option, cannot be added later)	30 and 80-gallon models
AX-0087	Remote start/choke, sealed cable, 7-foot wire extension for key switch (order-time option, cannot be added later)	ABS-13H-30H only
AX-0088	Remote start/choke, sealed cable, 7-foot wire extension for key switch (order-time option, cannot be added later)	ABS-14M-30H only
AX-0090	Remote start/choke, sealed cable, 7-foot wire extension for key switch (order-time option, cannot be added later)	ABS-13H-B only
AX-0091	Remote start/choke, sealed cable, 7-foot wire extension for key switch (order-time option, cannot be added later)	ABS-14M-B only
AX-0092	Remote start/choke, sealed cable, 7-foot wire extension for key switch (order-time option, cannot be added later)	ABS-13H-80H only
AX-0093	Remote start/choke, sealed cable, 7-foot wire extension for key switch (order-time option, cannot be added later)	ABS-14M-80H only
IX-0001	Vibration isolator pads, recommended for service truck mounting	30 and 80-gallon models

Included with Purchase

1 30-80 Gallon Base-Mount Two Stage Gas Air Compressor (configuration and engine option as ordered)
Regulator and two gauges for tank and outlet pressure, ASME safety valves

Not Included Unless Stated

Battery on every configuration: AX-0017 (includes battery) or AX-0077 (tray/box/cables only) sold separately
Receiver tank on base-mount models: must be sourced separately
On-site setup or fuel

Note: Confirm exact included components with supplier at time of order.

$3,254.00 - $5,164.00

$3,254.00
