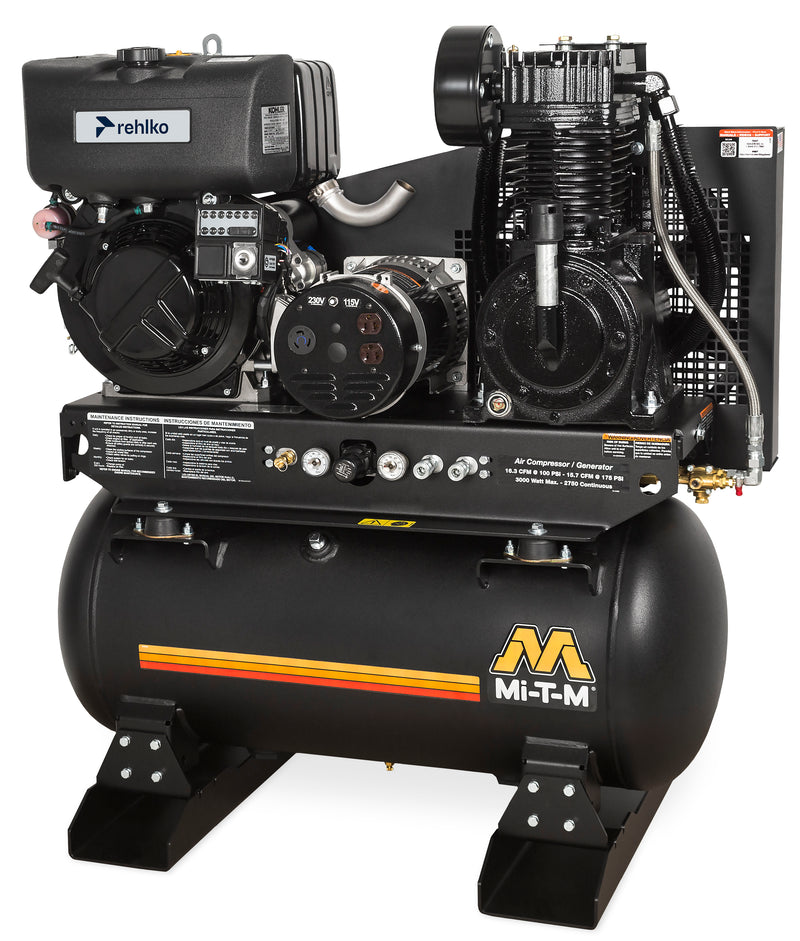

30 Gallon Two Stage Diesel Air Compressor Generator Combo | Mi-T-M

Brand Mi-T-MSKU AG2-SKD9-30M
Original price $13,570.00 - Original price $13,570.00
Original price
$13,570.00
$13,570.00 - $13,570.00
Current price $13,570.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

30-gallon two-stage diesel air compressor and generator combo, one machine for both jobsite functions. 9.1 HP Rehlko KD440 engine with a glow plug for cold-temperature starting. Electric start is standard; battery, box, and cables not included.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Compressor: 16.4 CFM @ 90 PSI / 15.7 CFM @ 175 PSI
  • Generator: 3000 watts max, 2300 watts continuous with compressor on-load, 3000 watts continuous off-load
  • Engine: 9.1 HP Rehlko KD440 OHV
  • Certification: ASME Boiler and Pressure Vessel Code - UM
  • Net Weight: 489 lb
  • Retail Price: $13570


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

Mi-T-M's 30-gallon diesel air compressor and generator combo puts both functions in one compact unit for industrial and contracting jobs. A 9.1 HP Rehlko KD440 engine drives both the compressor pump and a brushless alternator rated under 6% total harmonic distortion, with a glow plug built in for easy starting in cold temperatures.

Generator output isn't fixed: it holds 3000 watts with the compressor off-load, but drops to 2300 watts continuous once the compressor is drawing air alongside it, since both functions share the same engine. Electric start is standard, though the battery, box, and cables aren't included.

Common Applications

  • Combining air tool power and electrical power on one machine for industrial and contracting jobs
  • Cold-weather jobsites, where the glow plug helps the engine start reliably

Selection Notes

  • Single configuration, no variant choice to make
  • Generator output drops under compressor load (2300W) versus compressor off-load (3000W); size the job around the lower figure if both will run together
  • Electric start is standard, but the battery, box, and cables are not included
Unit Specifications
Engine
9.1 HP Rehlko KD440 OHV, electric start standard, glow plug for cold-temperature starting
Compressor
16.4 CFM @ 90 PSI / 15.7 CFM @ 175 PSI, 150-PSI maximum rated regulator
Generator
Brushless alternator, THD under 6%, 100% copper windings; 3000W max, 2300W continuous with compressor on-load, 3000W continuous off-load
Receptacles
(2) NEMA 5-20R 120V 20A, (1) NEMA L6-20R 240V 20A
Certification
ASME Boiler and Pressure Vessel Code - UM
Build
Compressor pump
Cast iron compressor pump, splash lubricated, stainless-steel braided discharge hose, large canister intake filter, oil level sight indicator
Frame
Powder coated ASME receiver tank, 3/16-inch base plate to reduce vibration, powder coated two-piece belt guard, removable base plate offers flexible installation
Components
Regulator and two gauges for tank and outlet pressure, manual drain valve, 16.5-inch fly wheel, quality pilot valve unloader
Warranty
3 year engine
Accessories: To order any of these accessories, contact support@hardscapeheavy.com
70-0380
Engine oil drain extension, 14-inch flexible hose for clean oil changes
AW-6000-1002
Equipment cover
AX-0016
Battery, battery tray, box, and 2-foot cables, attaches to engine side (order-time option, cannot be added later)
AX-0070
Battery tray, box, and 2-foot cables (no battery), attaches to engine side (order-time option, cannot be added later)
IX-0001
Vibration isolator pads, recommended for service truck mounting

Included with Purchase

  • 1 30 Gallon Two Stage Diesel Air Compressor Generator Combo
  • Regulator, two gauges, manual drain valve

Not Included Unless Stated

  • Battery, box, and cables for electric start
  • On-site setup or fuel

Note: Confirm exact included components with supplier at time of order.
