Name: 8 Gallon Two Stage Air Compressor Generator Combo | Mi-T-M
Brand: Mi-T-M
SKU: AG2-PH13-08M1
Price: 5835.0 USD
Availability: InStock

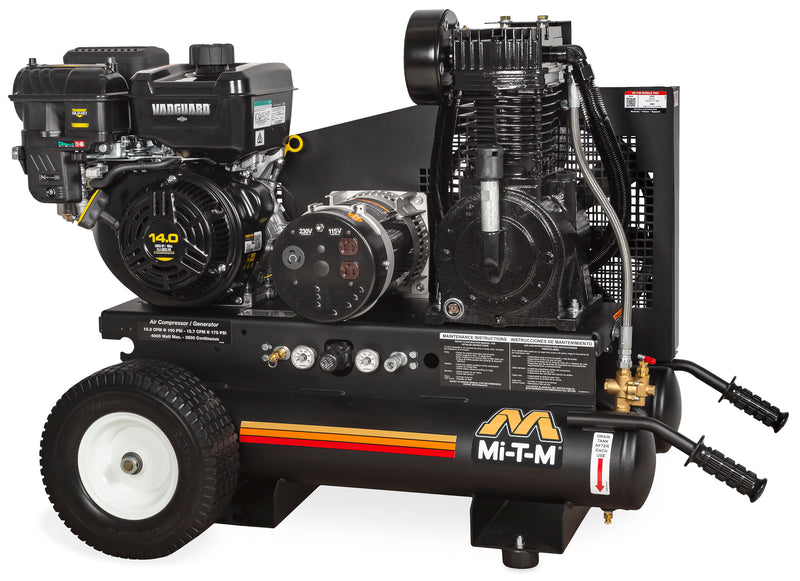

Mi-T-M 8 gallon two stage air compressor generator combo on a wheelbarrow frame

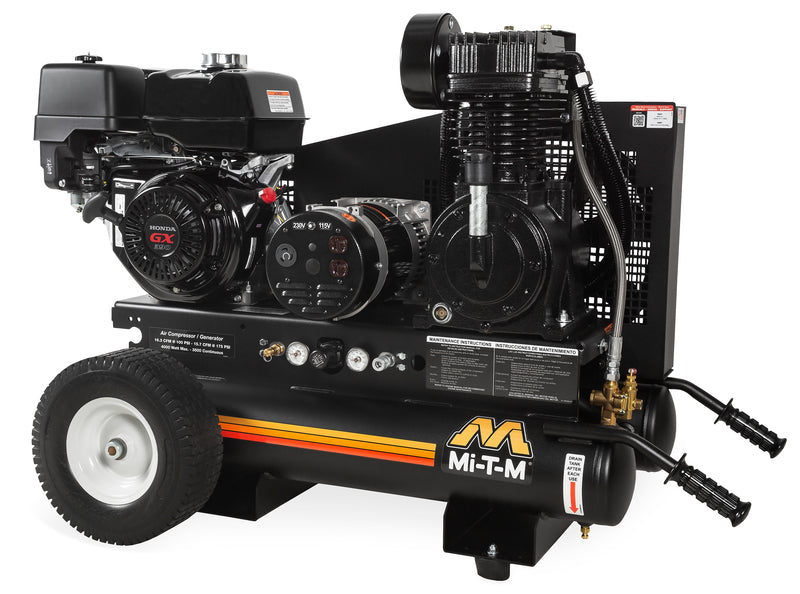

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Portable, Honda engine

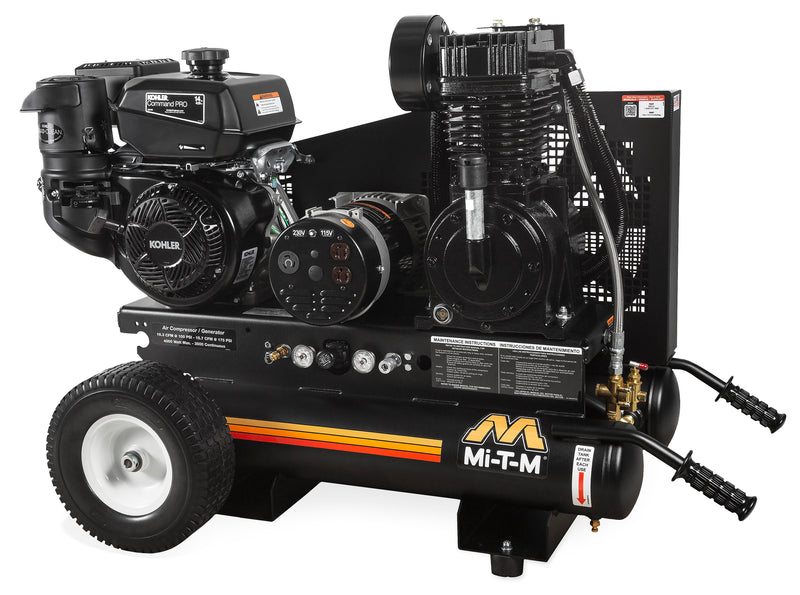

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Portable, Rehlko Electric Start engine

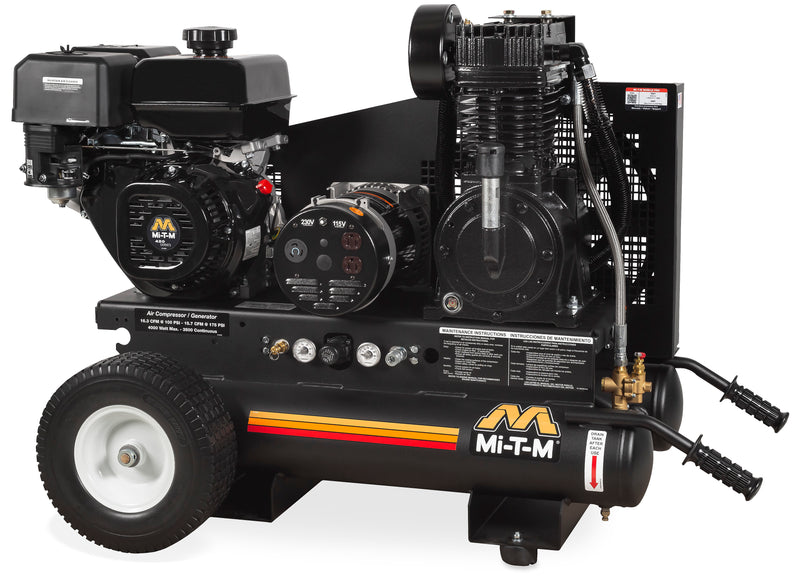

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Portable, Mi-T-M engine

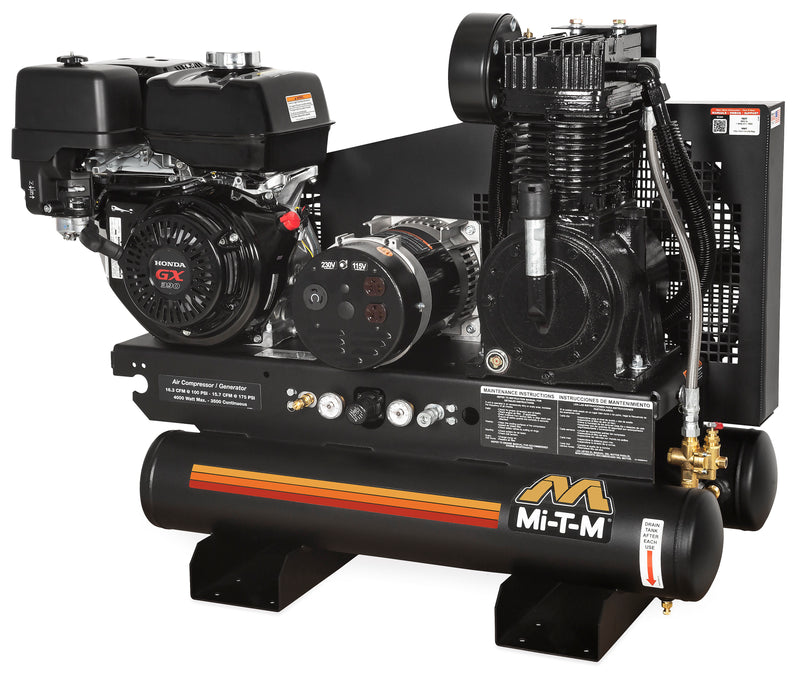

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Stationary, Honda engine

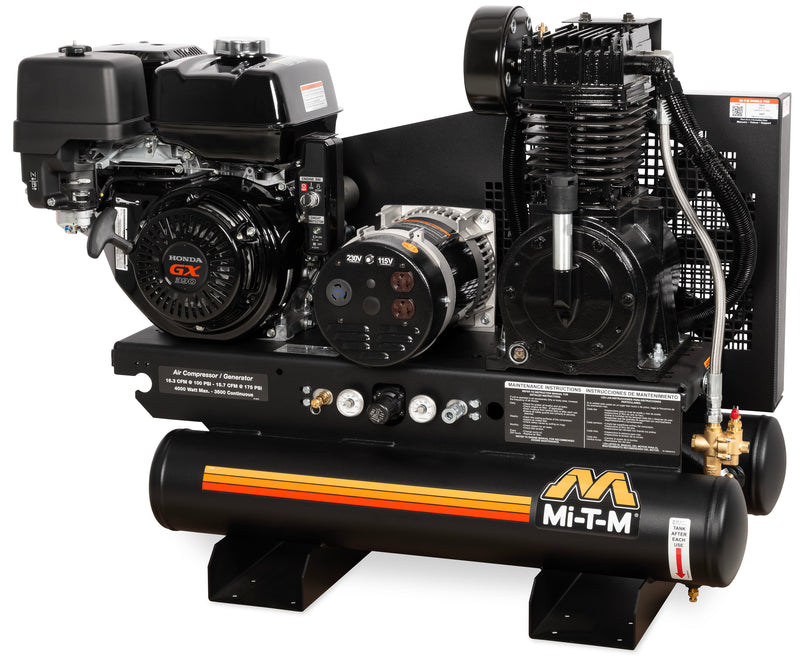

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Stationary, Honda Electric Start engine

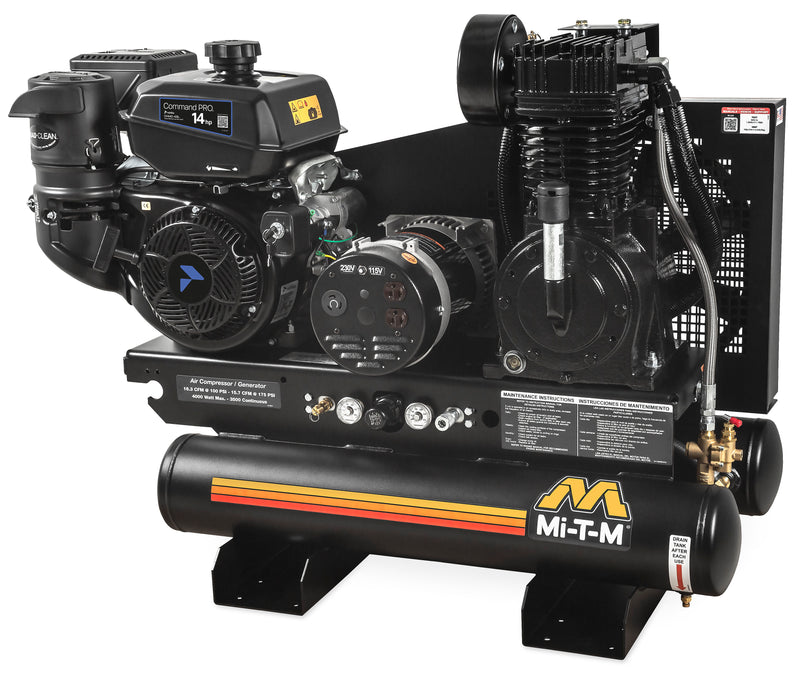

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Stationary, Rehlko Electric Start engine

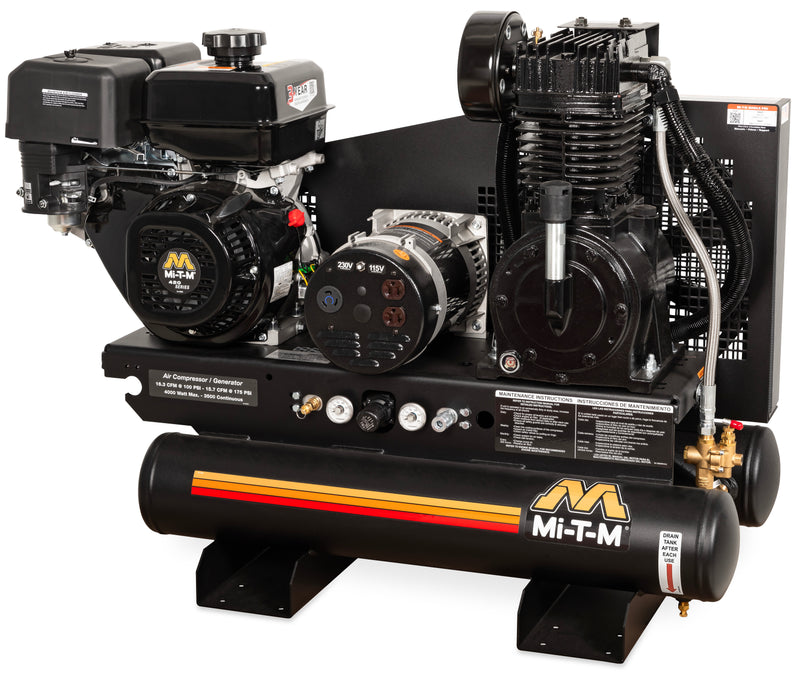

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Stationary, Mi-T-M engine

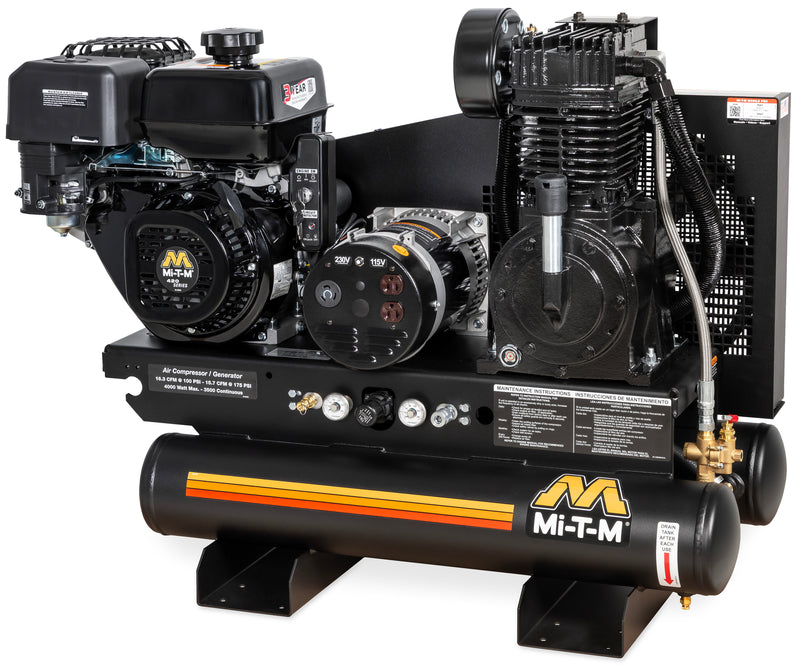

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Stationary, Mi-T-M Electric Start engine

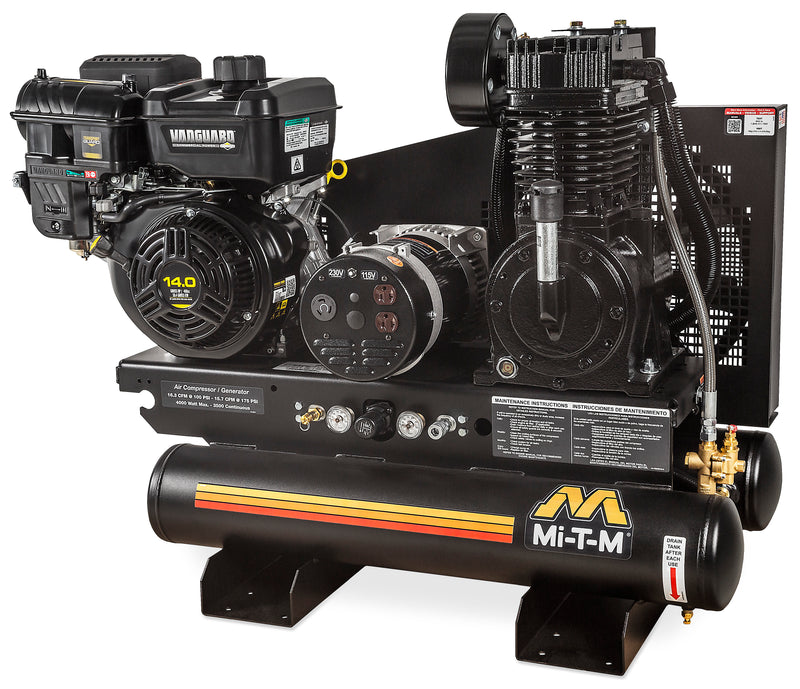

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Stationary, Vanguard engine

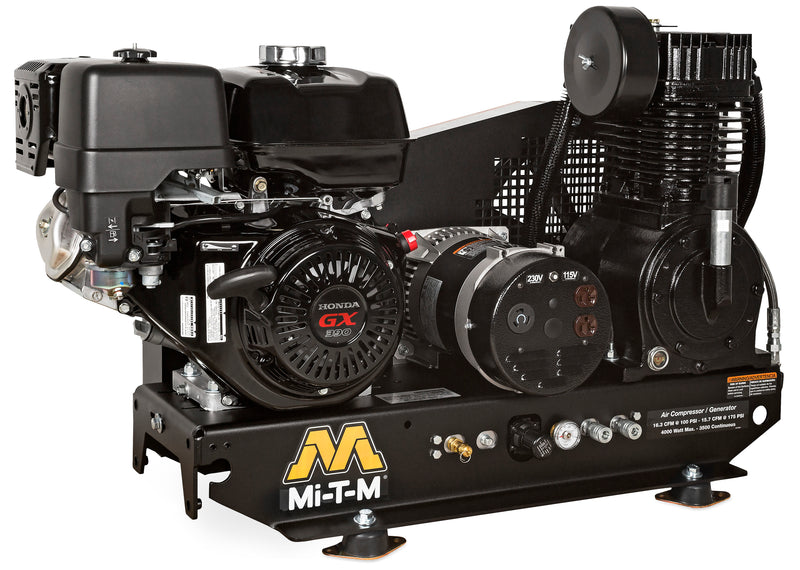

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Base-Mount, Honda engine

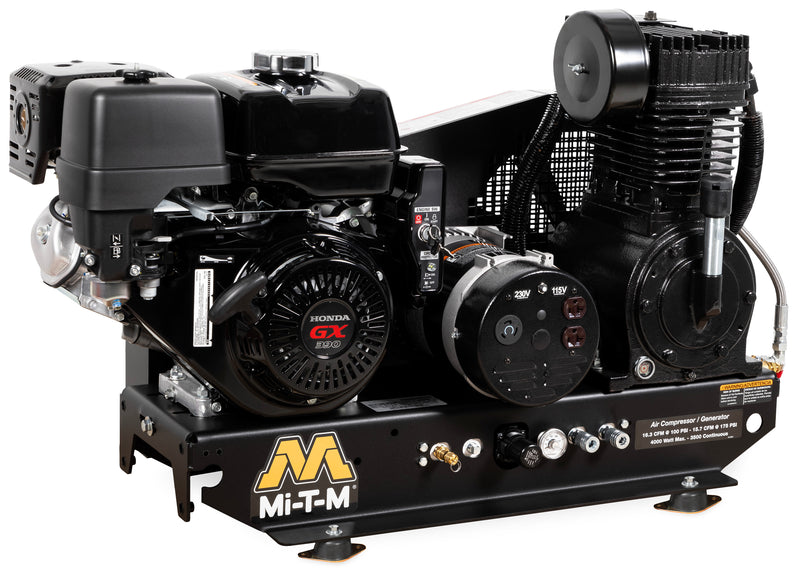

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Base-Mount, Honda Electric Start engine

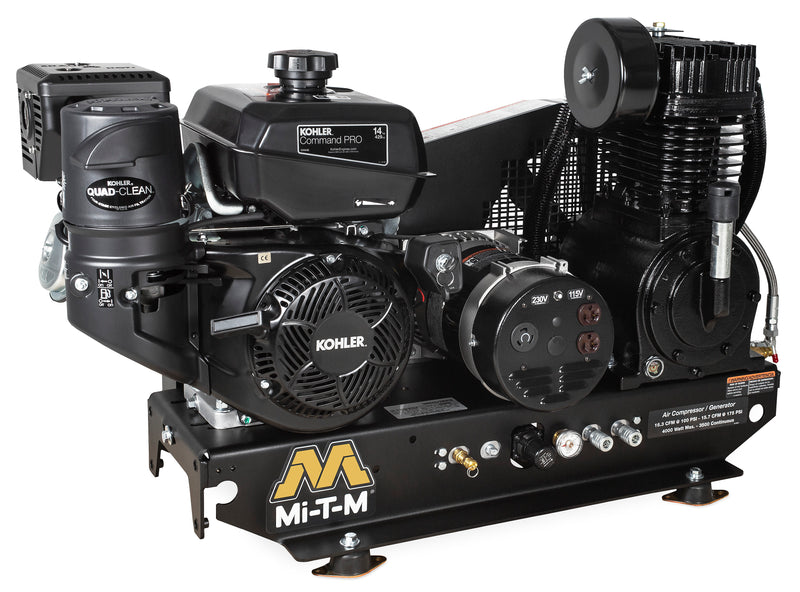

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Base-Mount, Rehlko Electric Start engine

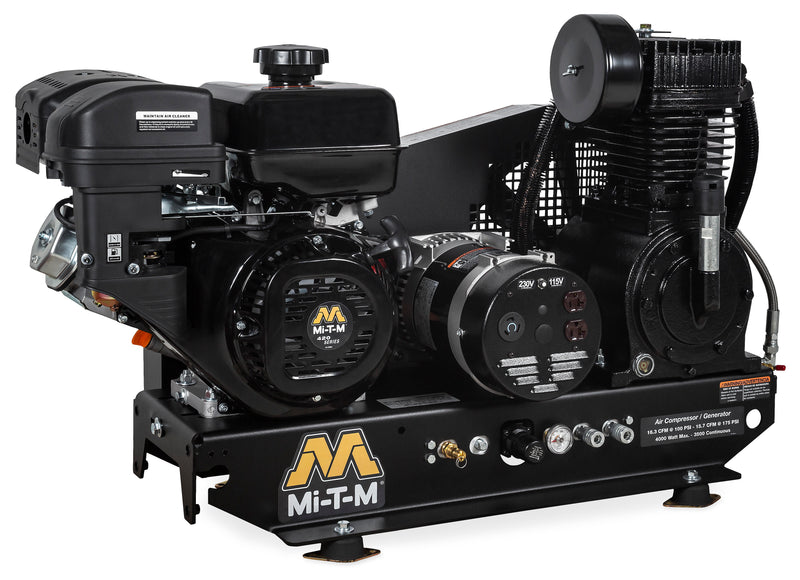

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Base-Mount, Mi-T-M engine

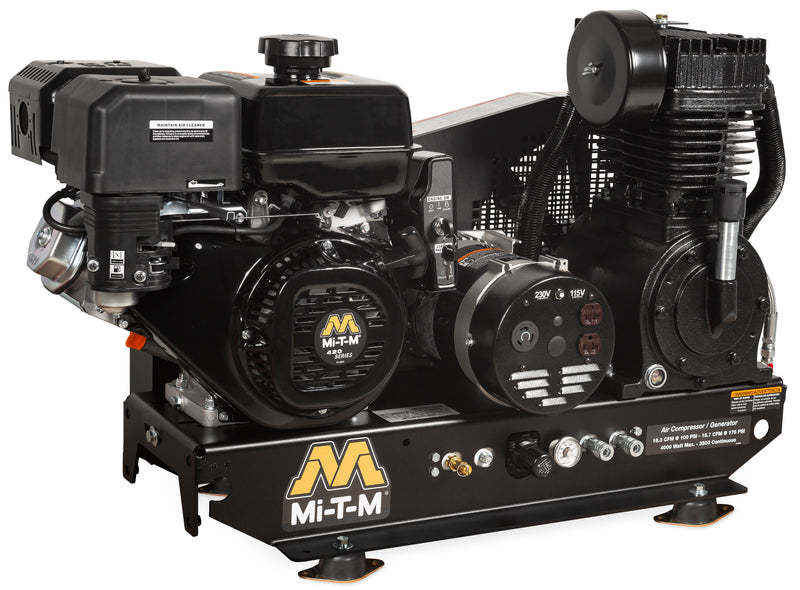

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Base-Mount, Mi-T-M Electric Start engine

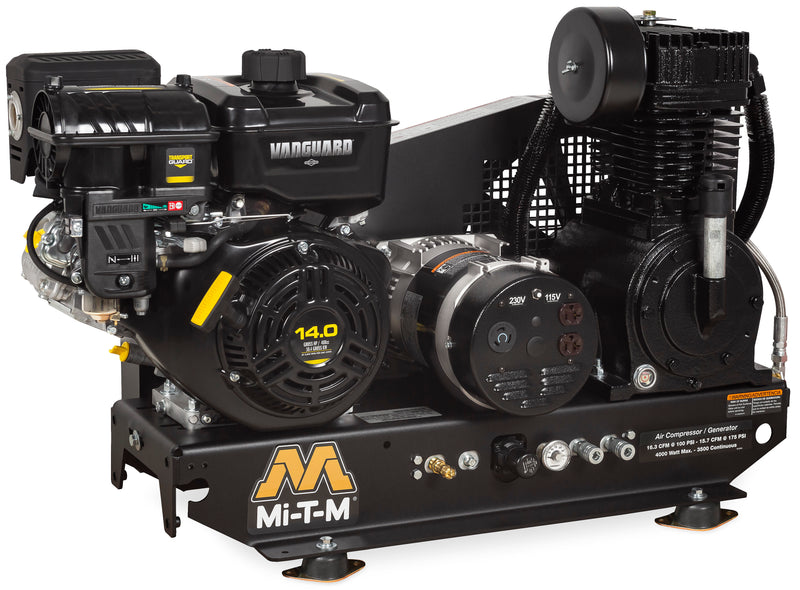

Mi-T-M 8 Gallon Two Stage Air Compressor Generator Combo, Base-Mount, Vanguard engine

8 Gallon Two Stage Air Compressor Generator Combo | Mi-T-M

Brand Mi-T-MSKU AG2-PH13-08M1

$4,539.00 - $6,651.00

$5,835.00

$4,539.00 - $6,651.00

$5,835.00

Shipping: LTL freight. Commercial delivery preferred.

Quantity

8-gallon two-stage air compressor and generator combo, up to 4000 watts and 15.7 CFM, in portable, stationary, or tankless base-mount form. Honda, Mi-T-M, and Vanguard each offer standard or electric start; Rehlko is electric start only. Honda, Rehlko, and Vanguard are 49-state, not sold in California; Mi-T-M has no restriction.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

Orders up to $5,000: $279
Orders $5,000 to $10,000: $347
Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

Compressor: 16.4 CFM @ 90 PSI / 15.7 CFM @ 175 PSI
Generator: 4000 watts max, 2300 watts continuous with compressor on-load, 3500 watts continuous off-load
Engine: 389cc Honda GX390, 429cc Rehlko CH440, 420cc Mi-T-M, or 408cc Vanguard
Mount: Portable, Stationary, or tankless Base-Mount (receiver tank required)
Net Weight: 325-382 lb depending on configuration
Retail Price: $4539-$6651 depending on mount and engine

Need full technical detail? See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

Mi-T-M's 8-gallon two-stage air compressor and generator combo supplies air power and electricity to any jobsite from one machine, available as a portable unit, a stationary unit, or a tankless base-mount unit for a truck or trailer with its own tank. All three mounts share the same compressor and generator output.

Generator output isn't fixed: it holds 3500 watts continuous with the compressor off-load, but drops to 2300 watts once the compressor is drawing air alongside it, on every mount and engine. Four engine brands are available: Honda, Mi-T-M, and Vanguard each offered standard or with electric start, and Rehlko available as electric start only. Honda, Rehlko, and Vanguard are all 49-state engines not sold in California; only Mi-T-M has no restriction.

Common Applications

Combining air tool power and electrical power on one machine, in whatever mount fits the job: portable, stationary, or bolted to a service truck's own tank
Jobsites needing both compressor and generator output at once, sized around the 2300-watt continuous rating rather than the 3500-watt off-load figure

Selection Notes

Mount is the first decision: Portable and Stationary carry their own tank; Base-Mount is tankless and needs a receiver tank sourced separately
Generator output drops under compressor load (2300W) versus compressor off-load (3500W) on every configuration
Four engine brands: Honda, Mi-T-M, and Vanguard each offer a standard or electric-start version; Rehlko is electric start only. Only Mi-T-M has no California restriction

Unit Specifications

Engine options: 389cc Honda GX390 OHV, 420cc Mi-T-M OHV, or 408cc Vanguard OHV, each available standard or with electric start; 429cc Rehlko CH440 OHV available as electric start only (battery, box, and cables not included on any electric-start option)
Compressor: 16.4 CFM @ 90 PSI / 15.7 CFM @ 175 PSI, 150-PSI maximum rated regulator
Generator: Brushless alternator, THD under 6%, 100% copper windings; 4000W max, 2300W continuous with compressor on-load, 3500W continuous off-load
Receptacles: (2) NEMA 5-20R 120V 20A, (1) NEMA L6-20R 240V 20A

Build

Compressor pump: Cast iron compressor pump, splash lubricated, stainless-steel braided discharge hose, large canister intake filter, oil level sight indicator
Frame: Powder coated twin tank receivers on portable and stationary models, 3/16-inch base plate to reduce vibration, powder coated two-piece belt guard, 13-inch flat-free tires on portable models
Components: Regulator and two gauges for tank and outlet pressure, manual drain valves, 16.5-inch fly wheel, quality pilot valve unloader
Warranty: 3 year engine

Mount	Engine	Model	Ship Weight	Net Weight
Portable	389cc Honda GX390 OHV	AG2-PH13-08M1	450 lb	375 lb
Portable	389cc Honda GX390 OHV, electric start	AG2-PH13-08M1E	457 lb	382 lb
Portable	429cc Rehlko CH440 OHV, electric start	AG2-PK14-08M1E	457 lb	382 lb
Portable	420cc Mi-T-M OHV	AG2-PM14-08M1	450 lb	375 lb
Portable	420cc Mi-T-M OHV, electric start	AG2-PM14-08M1E	457 lb	382 lb
Portable	408cc Vanguard OHV	AG2-PV14-08M1	450 lb	375 lb
Portable	408cc Vanguard OHV, electric start	AG2-PV14-08M1E	457 lb	382 lb
Stationary	389cc Honda GX390 OHV	AG2-SH13-08M1	465 lb	365 lb
Stationary	389cc Honda GX390 OHV, electric start	AG2-SH13-08M1E	472 lb	372 lb
Stationary	429cc Rehlko CH440 OHV, electric start	AG2-SK14-08M1E	472 lb	372 lb
Stationary	420cc Mi-T-M OHV	AG2-SM14-08M1	465 lb	365 lb
Stationary	420cc Mi-T-M OHV, electric start	AG2-SM14-08M1E	472 lb	372 lb
Stationary	408cc Vanguard OHV	AG2-SV14-08M1	465 lb	365 lb
Stationary	408cc Vanguard OHV, electric start	AG2-SV14-08M1E	472 lb	372 lb
Base-Mount (receiver tank required)	389cc Honda GX390 OHV	AG2-SH13-B	390 lb	325 lb
Base-Mount (receiver tank required)	389cc Honda GX390 OHV, electric start	AG2-SH13-BE	397 lb	332 lb
Base-Mount (receiver tank required)	429cc Rehlko CH440 OHV, electric start	AG2-SK14-BE	397 lb	332 lb
Base-Mount (receiver tank required)	420cc Mi-T-M OHV	AG2-SM14-B	390 lb	325 lb
Base-Mount (receiver tank required)	420cc Mi-T-M OHV, electric start	AG2-SM14-BE	397 lb	332 lb
Base-Mount (receiver tank required)	408cc Vanguard OHV	AG2-SV14-B	390 lb	325 lb
Base-Mount (receiver tank required)	408cc Vanguard OHV, electric start	AG2-SV14-BE	397 lb	332 lb

Accessories: To order any of these accessories, contact support@hardscapeheavy.com

Part Number	Description	Fits
70-0358	Engine oil drain extension, 14-inch flexible hose for clean oil changes	Two stage models
854-0093	Service truck mount kit, four rubber isolators	Two stage portable and stationary models
AW-6000-1002	Equipment cover	All models
AX-0016	Battery, battery tray, box, and 2-foot cables, attaches to engine side (order-time option, cannot be added later)	Electric start models
AX-0070	Battery tray, box, and 2-foot cables (no battery), attaches to engine side (order-time option, cannot be added later)	Electric start models
AX-0028	Lifting hook, for easier portability	Two stage portable and stationary models
AX-0063	Lifting hook, for easier portability	Base-mount models
AX-0068	Idle down, automatically throttles down engine to conserve fuel (order-time option, cannot be added later)	Two stage Honda engine models
AX-0075	Idle down, automatically throttles down engine to conserve fuel (order-time option, cannot be added later)	Two stage Mi-T-M engine models
AX-0083	Idle down, automatically throttles down engine to conserve fuel (order-time option, cannot be added later)	Vanguard engine models
AX-0094	Remote start/choke, sealed cable, 7-foot wire extension for key switch (order-time option, cannot be added later)	Two stage Honda engines with electric start
AX-0095	Remote start/choke, sealed cable, 7-foot wire extension for key switch (order-time option, cannot be added later)	Two stage Mi-T-M engines with electric start
AX-0096	Remote start/choke, sealed cable, 7-foot wire extension for key switch (order-time option, cannot be added later)	Two stage Vanguard engines with electric start

Included with Purchase

1 8 Gallon Two Stage Air Compressor Generator Combo (mount and engine option as ordered)
Regulator, two gauges, manual drain valves

Not Included Unless Stated

Battery, box, and cables on electric-start models
Receiver tank on base-mount models: must be sourced separately
On-site setup or fuel

Note: Confirm exact included components with supplier at time of order.
