8 Gallon Two Stage Gas Air Compressor | Mi-T-M

Brand Mi-T-MSKU AM2-PH09-08M
Original price $3,607.00 - Original price $4,820.00
Original price
$4,020.00
$3,607.00 - $4,820.00
Current price $4,020.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

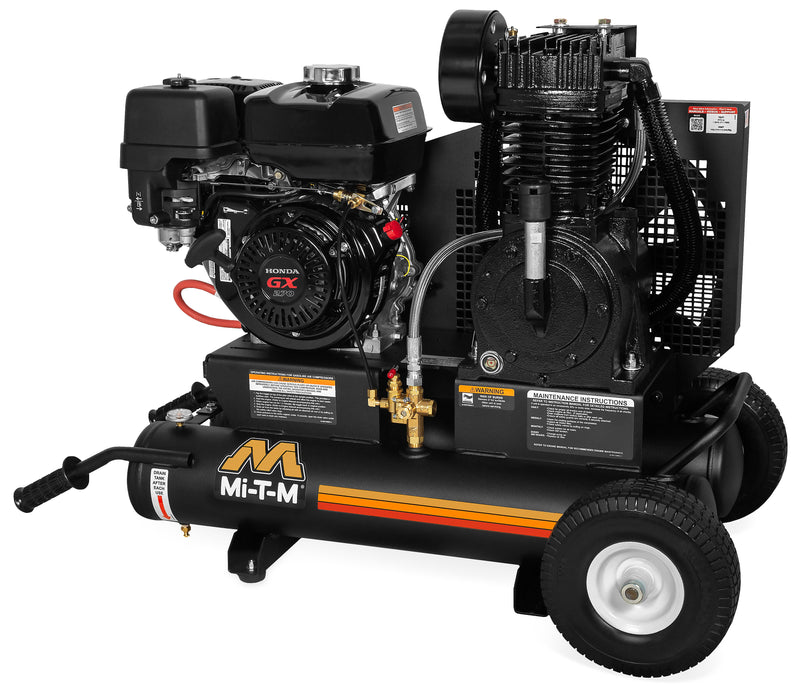

8-gallon two-stage gas air compressor, 17.2 CFM at 175 PSI (150 PSI max regulated outlet), wheelbarrow design for construction, remodeling, and shop projects. Six configurations: Honda, Honda Electric Start, a reinforced Honda variant with a strengthened frame, Rehlko, Mi-T-M, and Mi-T-M Electric Start. The reinforced Honda skips factory electric start and the standard stationary-conversion option.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • CFM @ PSI: 17.2 @ 175, 150 PSI maximum rated regulator
  • Engine: 270cc Honda GX270, 277cc Rehlko CH395, or 300cc Mi-T-M OHV
  • Tank: 8 gallon, twin tank receivers
  • Dimensions: 44x26x31 in
  • Net Weight: 260-267 lb depending on configuration
  • Retail Price: $3607-$4820 depending on configuration


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

Mi-T-M's 8-gallon two-stage gas air compressor powers air tools like paint sprayers and pneumatic drills, with a wheelbarrow design suited to construction, remodeling, and shop projects. An installed regulator caps outlet pressure below the compressor's own tank rating.

Three engine brands are available across six configurations. Honda and Mi-T-M each come standard or with factory electric start; Rehlko is cable-throttle only, with no electric start offered. A sixth configuration, the reinforced AM2-PH09-08M2, adds a strengthened frame and an enhanced pilot valve exhaust filter over the standard Honda build, but skips factory electric start (it can be added as an option, though the battery and cables still aren't included) and is the one configuration in the line not eligible for the standard stationary-conversion option. Electric-start models, whether factory or option-added, never include the battery, box, or cables.

Common Applications

  • Powering air tools like paint sprayers and pneumatic drills
  • Construction, remodeling, and shop projects

Selection Notes

  • Three engine brands: Honda GX270, Rehlko CH395, and Mi-T-M; only Honda and Mi-T-M offer factory electric start
  • The reinforced Honda (AM2-PH09-08M2) adds a strengthened frame and enhanced exhaust filter, but has no factory electric start and can't take the standard stationary-conversion option
  • Electric start, factory or option-added, never includes the battery, box, or cables
Unit Specifications
CFM @ PSI
17.2 @ 175, equipped with 150-PSI maximum rated regulator
Engine options
270cc Honda GX270 OHV (pneumatic idle), 277cc Rehlko CH395 OHV (cable throttle), or 300cc Mi-T-M OHV (pneumatic idle); Honda and Mi-T-M also available with electric start
Build
Compressor pump
Cast iron compressor pump, splash lubricated, stainless-steel braided discharge hose, large canister intake filter, oil level sight indicator
Frame
Powder coated twin tank receivers, 3/16-inch base plate to reduce vibration, powder coated two-piece belt guard, 10-inch flat-free tires; reinforced frame design and enhanced pilot valve exhaust filter on AM2-PH09-08M2 only
Components
Regulator and two gauges for tank and outlet pressure, manual drain valves, 16.5-inch fly wheel, quality pilot valve unloader, start/stop control set at 145 to 175 PSI
Warranty
3 year engine
EngineModelIdle ControlShip WeightNet Weight
270cc Honda GX270 OHV AM2-PH09-08M Pneumatic 330 lb 260 lb

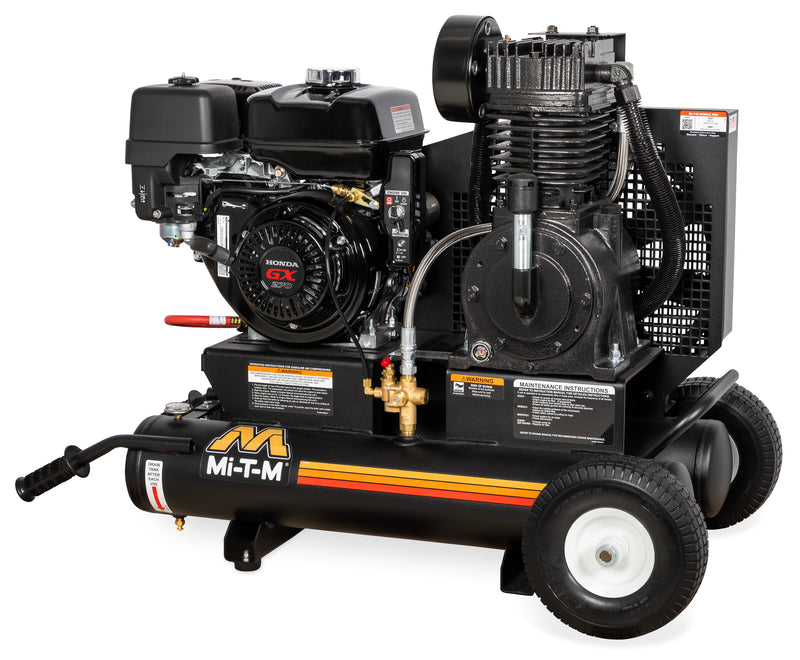

270cc Honda GX270 OHV, electric start AM2-PH09-08ME Pneumatic 337 lb 267 lb

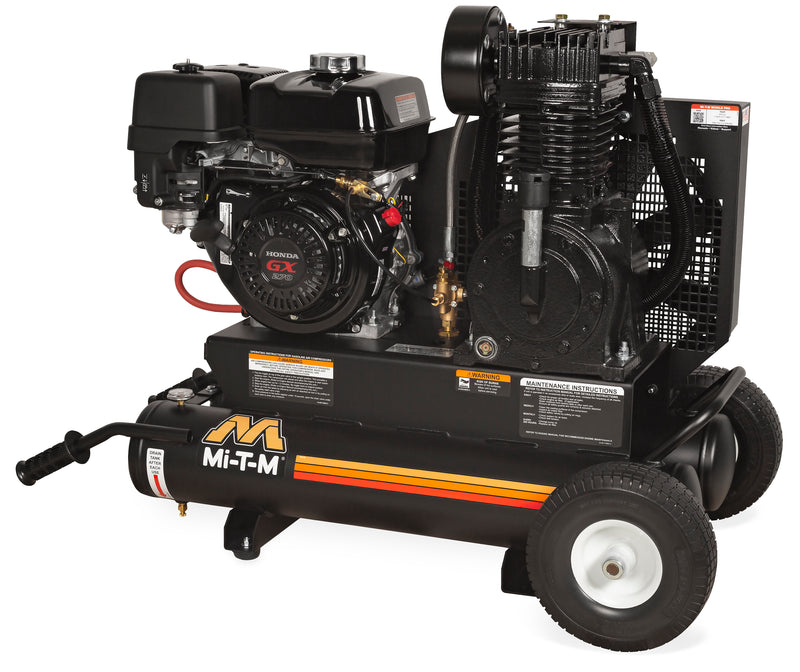

270cc Honda GX270 OHV, reinforced frame AM2-PH09-08M2 Pneumatic 330 lb 260 lb

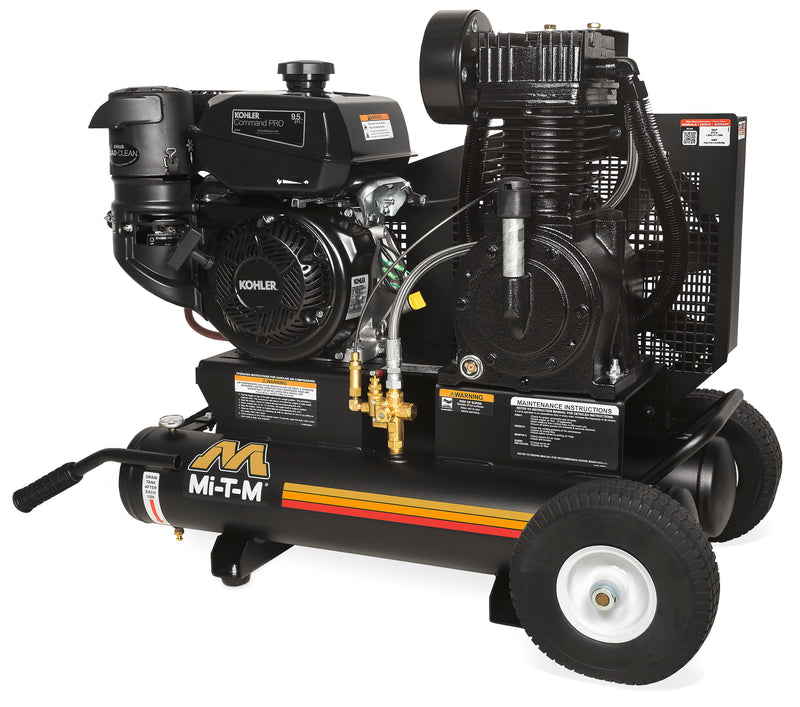

277cc Rehlko CH395 OHV AM2-PK95-08M Cable throttle 330 lb 260 lb

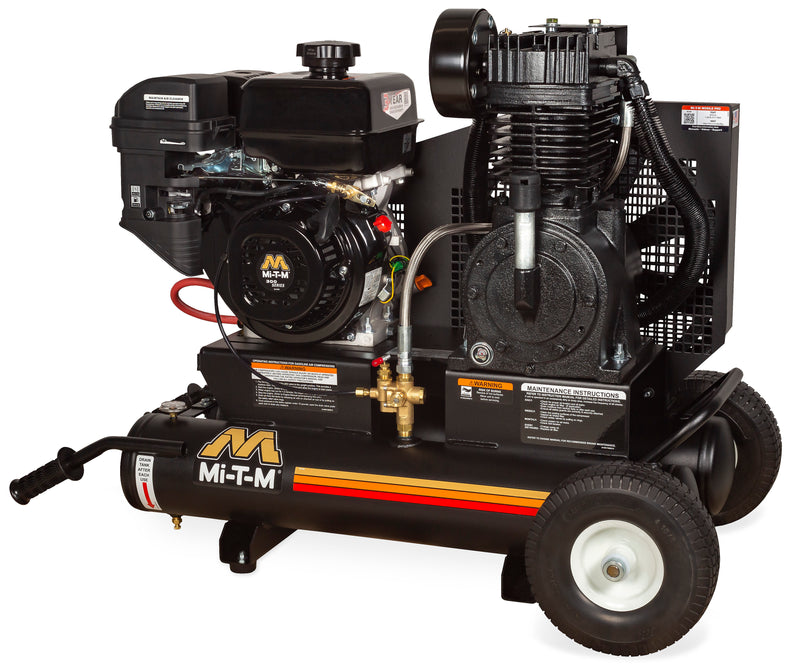

300cc Mi-T-M OHV AM2-PM09-08M Pneumatic 330 lb 260 lb

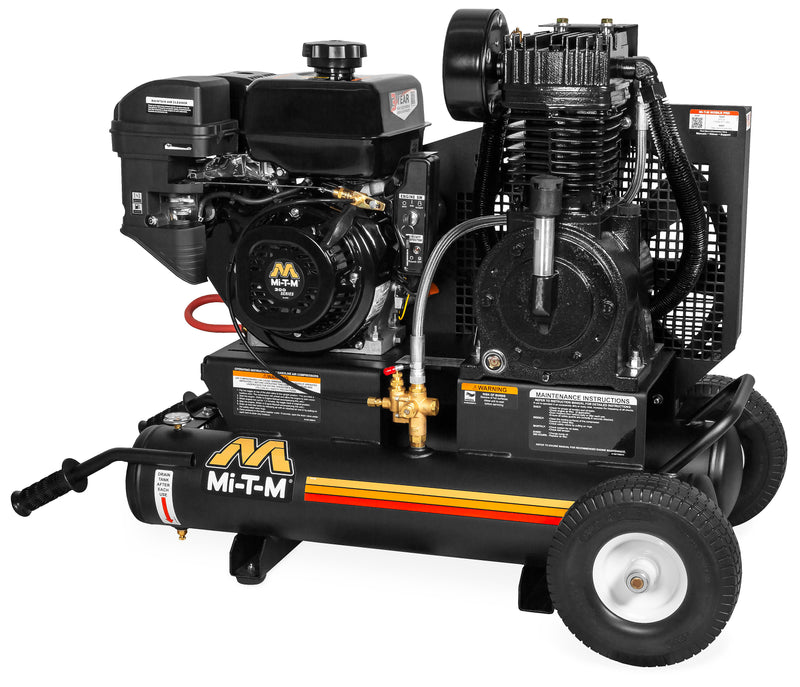

300cc Mi-T-M OHV, electric start AM2-PM09-08ME Pneumatic 337 lb 267 lb
Accessories: To order any of these accessories, contact support@hardscapeheavy.com
Part NumberDescriptionFits
AW-6000-1002 Equipment cover All models
AX-0003 Manual drain/regulator/metal bowl, drains moisture from air system (order-time option, cannot be added later) All models
AX-0015 Electric start, battery and cables not included, for easy starting (order-time option, cannot be added later) AM2-PH09-08M2 only
AX-0084 Stationary option, converts portable to stationary, removes tire and handles (order-time option, cannot be added later) All models except AM2-PH09-08M2
AX-0101 Remote start/choke, sealed cable, 7-foot wire extension for key switch (order-time option, cannot be added later) AM2-PH09-08ME only
AX-0102 Remote start/choke, sealed cable; requires option AX-0015 (order-time option, cannot be added later) AM2-PH09-08M2 only
AX-0105 Remote start/choke, sealed cable, 7-foot wire extension for key switch (order-time option, cannot be added later) AM2-PM09-08ME only

Included with Purchase

  • 1 8 Gallon Two Stage Gas Air Compressor (engine option as ordered)
  • Regulator, two gauges, and manual drain valves

Not Included Unless Stated

  • Battery, box, and cables on electric-start models, factory or option-added
  • On-site setup or fuel

Note: Confirm exact included components with supplier at time of order.
