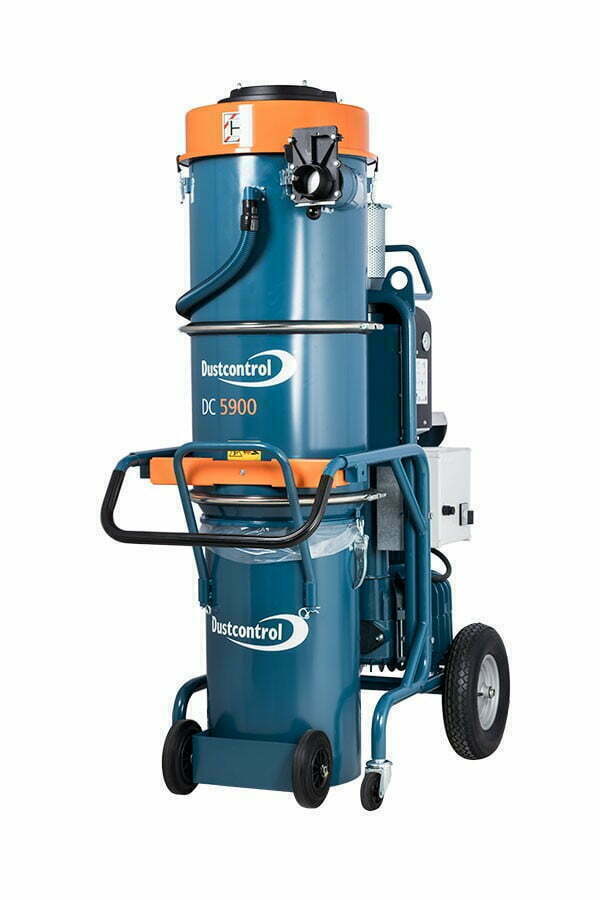

DC 5900 Dust Extractor | Dustcontrol

Brand DustcontrolSKU 119314
Original price $20,469.00 - Original price $23,093.00
Original price
$20,469.00
$20,469.00 - $23,093.00
Current price $20,469.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

The DC 5900 is a three-phase 460 V dust extractor moving 471 CFM, built to feed a tubing system with up to four extraction points working at once. It separates in a cyclone ahead of a 90.42 sq ft polyester fine filter and a HEPA H13 filter to Class H, and is ordered with a plastic bag, a steel container or a Longopac continuous bag.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Weight: 463 lbs
  • Airflow: 471 CFM maximum
  • Negative Pressure: 112.4 inwg maximum
  • Power: 460 V, 60 Hz, three phase
  • Motor Rating: confirm with supplier
  • Collection: 15.8 gal plastic bag, 19.8 gal steel container, or Longopac
  • Filtration: 90.42 sq ft polyester fine filter plus 39.83 sq ft HEPA H13
  • Hose Inlet: 4.25 in
  • Sound Level: 75 dB(A) maximum


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The DC 5900 is the machine that stops being a vacuum and starts being infrastructure. Dustcontrol builds it for semi-mobile extraction systems, where the unit is parked in one central spot and piped out to the work through a tubing system, holding its efficiency with as many as four operators drawing at the same time.

A three-phase motor generates the airflow, the cyclone takes the coarse fraction out first, and semi-automatic cleaning keeps the fine filter open behind it before a HEPA H13 element brings the machine to Class H. The cyclone assembly tilts for filter replacement and for transport, the handles are set at both ends of the machine, the handle height adjusts, and the bagged discharge is built with handles so a loaded bag can be closed and carried out rather than wrestled. This is built for the shop or the long-running site that has stopped moving an extractor from tool to tool and would rather run pipe once and plug into it.

Common Applications

  • Central extraction for a piped tubing system serving several tools
  • Extraction at up to four points working simultaneously
  • Material transport and cleaning in industrial and site work
  • Collection of dry, non-combustible Class H dust

Selection Notes

  • This machine needs a 460 V three-phase supply. That is not a site convenience circuit, so confirm the service before it is ordered
  • Choose the plastic bag build for the lowest consumable cost, the steel container where the material is sharp or heavy, and Longopac where the discharge should be closed into a continuous sleeve
  • All three builds share the chassis, the airflow and the filter set at the same weight, so the discharge decides the choice
  • Confirm the motor rating with Dustcontrol before matching this machine to an existing starter or feeder
Unit Specifications
Electrical
460 V, 60 Hz, three phase
Airflow
471 CFM (800 m3/h) maximum
Negative pressure
112.4 inwg (28 kPa) maximum
Inlet
4.25 in
Sound level
75 dB(A) maximum
Capacity
Fine filter
90.42 sq ft polyester, 99.9 percent separation to EN 60335-2-69 Class M
HEPA filter
39.83 sq ft, HEPA H13 to EN 1822-1
Machine separation
99.995 percent to EN 60335-2-69 Appendix AA, Class H
Suction hose
16.4 to 98.4 ft (5 to 30 m) x 2 in
Simultaneous users
Up to four extraction points at full efficiency
Build
Separation
Cyclone coarse separation ahead of the fine filter
Filter cleaning
Semi-automatic filter cleaning system
Service access
Cyclone assembly tilts for filter replacement and transport
Handling
Handles at the front and rear, adjustable handle height, and a bagged discharge rated for lifting at up to 110 lb (50 kg)
Machine Notes
Intended installation
Semi-mobile extraction system, centrally positioned and connected to a tubing system
Rated material
Dry, non-combustible dust in Class H
Motor rotation
Direction of rotation is checked at connection; a phase converter build allows it to be changed without an electrician
Dimensions & Weights
Overall
76 x 31 x 46 in
Weight
463 lb (210 kg)
Discharge options
DischargeCollectionWeight

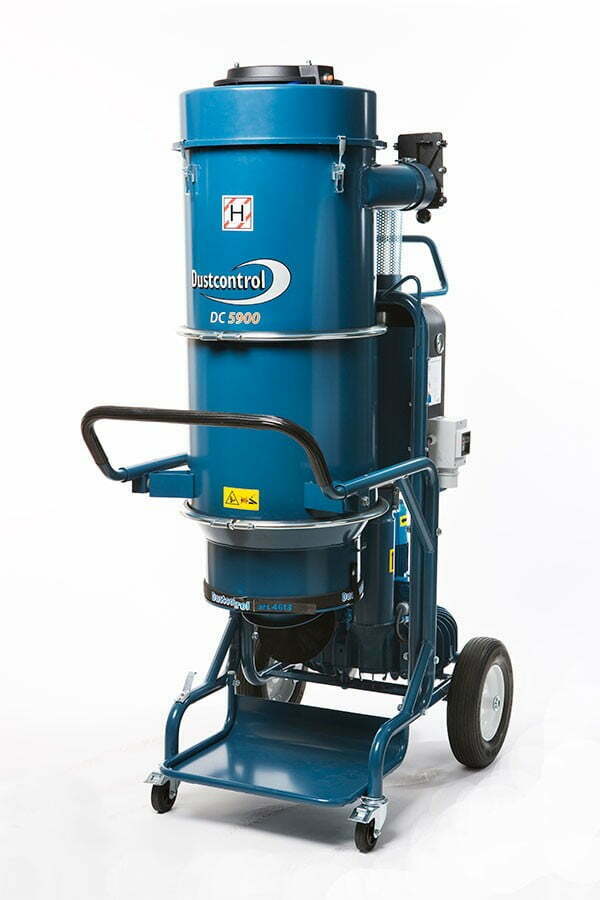

Plastic Bag (c) 15.8 gal (60 l) plastic bag 463 lb (210 kg)
Container (a) 19.8 gal (75 l) steel container 463 lb (210 kg)

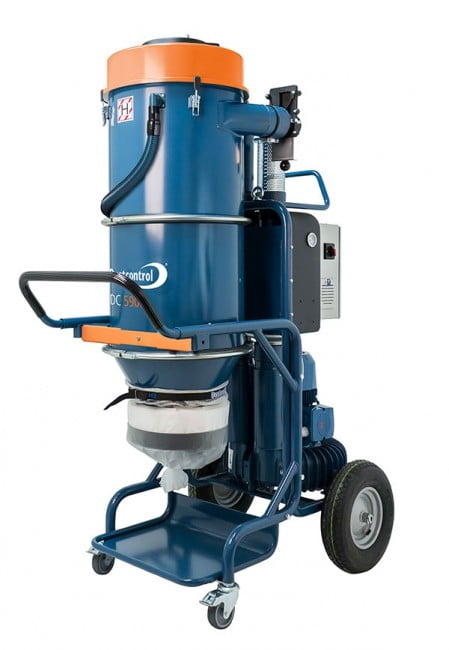

Longopac (L) Longopac continuous bag 463 lb (210 kg)
Four simultaneous extraction points
One machine and one pipe run serve a whole crew instead of a vacuum per tool
Tilting cyclone assembly
Filter replacement is reachable on a machine this size, and it lowers for transport
Semi-automatic filter cleaning
The fine filter is kept open without an operator stopping to do it

Included with Purchase

  • 1 DC 5900 Dust Extractor (variant/model as ordered)
  • Polyester fine filter
  • HEPA H13 filter
  • Discharge consumable matching the build ordered: 10 plastic bags on the plastic bag build, a 19.8 gal steel container on the container build, or an 82 ft Longopac roll on the Longopac build

Not Included Unless Stated

  • Suction hose, suction pipe and floor tooling
  • Tubing system, valves and extraction points
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
