DL3000 Dust Collector | National Flooring Equipment

Original price $6,673.60 - Original price $6,673.60
Original price
$6,673.60
$6,673.60 - $6,673.60
Current price $6,673.60
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

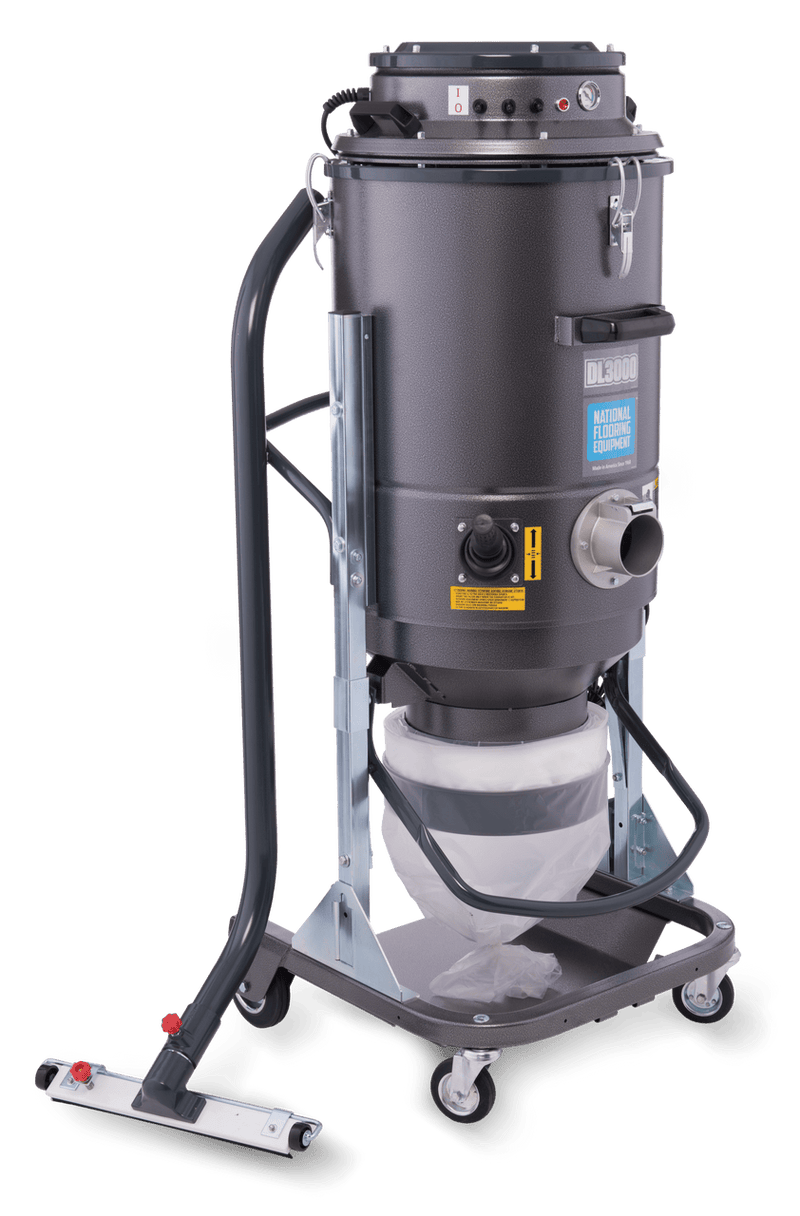

The DL3000 is National's 318 CFM single-phase collector, a three-motor machine on a rugged steel frame running 230 V. Washable integrated filters sit in a float-and-flow system, and with the endless bagging system it exceeds HEPA standards at 99.995 percent to 0.14 microns.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Air Movement: 318 CFM (600 m3/h)
  • Filter Efficiency: 99.995% at 0.14 microns
  • Filter Area: 32.3 sq ft (30,000 sq cm)
  • Inlet: 3.15 in (80 mm)
  • Voltage: 230 V single phase
  • Weight: 154.3 lb (70 kg)


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The DL3000 is the collector sized to the middle of a surface prep fleet, the one that sits behind an A96 blaster or a mid-size grinder and keeps up with it. It is the point in the line where the inlet steps up to 3.15 in and the motor count goes to three, and where a crew stops matching a small collector to a small machine and starts running one collector across the fleet.

Its filters are the part worth knowing. They are washable and integrated rather than consumable cartridges, held in a float-and-flow arrangement, so filter maintenance on this machine is a wash rather than a purchase. Paired with the endless bagging system, the collector exceeds HEPA standards rather than meeting them.

The body telescopes like the smaller DL2000: raised for use so the bag expands and fills, dropped down for transport and storage. A manual valve pulses the filter to shake residual dust from it during the day.

Common Applications

  • Dust capture behind an 8 in shot blaster or mid-size grinder
  • Concrete surface preparation where 230 V single-phase power is available
  • Continuous collection on jobs where filter consumables are a running cost

Selection Notes

  • Requires 230 V single-phase power
  • Step up to the DL4000P for a reverse pulse compressor and pass-through power
  • Pairs with the DLS3000 pre-separator, sold separately
Capacity
Air movement
318 CFM (600 m3/h)
Filter area
32.3 sq ft (30,000 sq cm)
Filter efficiency
99.995% at 0.14 microns
Inlet
3.15 in (80 mm)
Unit Specifications
Voltage
230 V
Phase
Single
Frequency
50 to 60 Hz
Motors
Three
Vacuum pressure
98.4 in H2O (2.5 m H2O)
Noise emission
75 dBA
Build
Frame
Rugged steel
Filtration
Washable integrated filters in a float-and-flow system, primary and secondary HEPA
Filter cleaning
Manual pulse valve
Bagging
Endless bag, exceeds HEPA standards
Body
Telescopes up for use and down for transport
Dimensions & Weights
Weight
154.3 lb (70 kg)
Width
25.6 in (65 cm)
Height
63 in (160 cm)
Length
31 in (80 cm)
Washable integrated filters
Filter maintenance is a wash rather than a consumable purchase
Three-motor head at 318 CFM
One collector keeps up with a blaster or a mid-size grinder across the fleet
Endless bagging system
Captured dust is contained on removal instead of being tipped out of a drum

Included with Purchase

  • 1 DL3000 Dust Collector (variant/model as ordered)

Not Included Unless Stated

  • Hoses, connectors and floor tools
  • DLS3000 pre-separator
  • Replacement filters and endless bag stock
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
