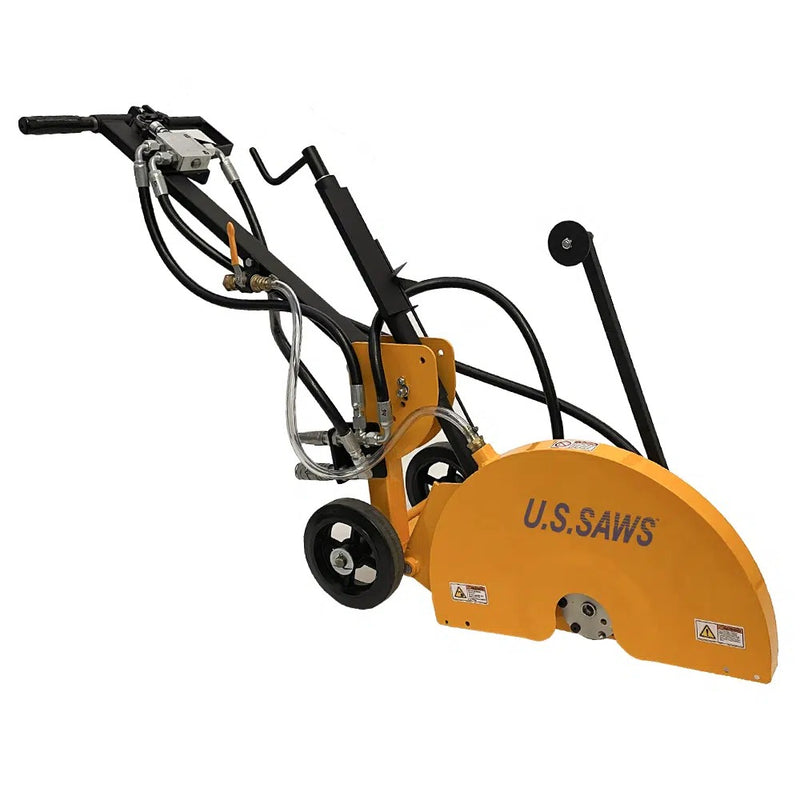

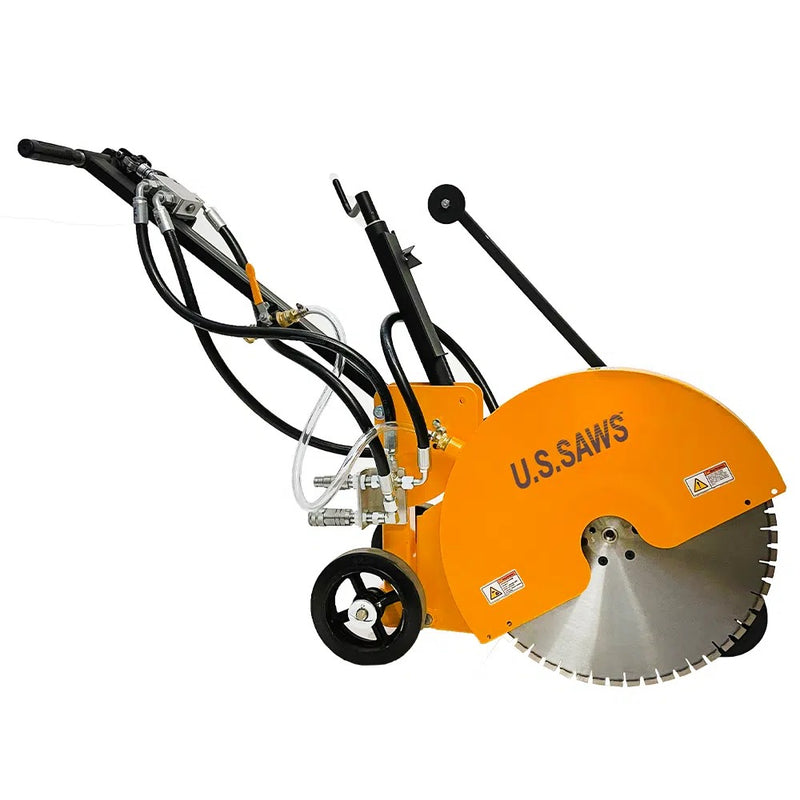

FSB-150H Walk-Behind Hydraulic Saw | U.S. Saws

Brand U.S. SawsSKU US60050-H
Original price $4,918.30 - Original price $4,918.30
Original price
$4,918.30
$4,918.30 - $4,918.30
Current price $4,918.30
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

The FSB-150H is a hydraulic walk-behind saw that cuts to 7.5 in deep with blades up to 20 in, flush-cut capable, running on 12 GPM at 2,500 PSI. It is the hydraulic twin of the FSB-150 air saw for crews on power packs rather than compressors.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Weight: 144 lbs
  • Drive: hydraulic
  • Hydraulic Flow: 12 GPM
  • Hydraulic Pressure: 2,500 PSI
  • Blade Shaft Speed: 3,300 RPM
  • Max Depth of Cut: 7.5 in
  • Blade Capacity: 20 in maximum, flush cut


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

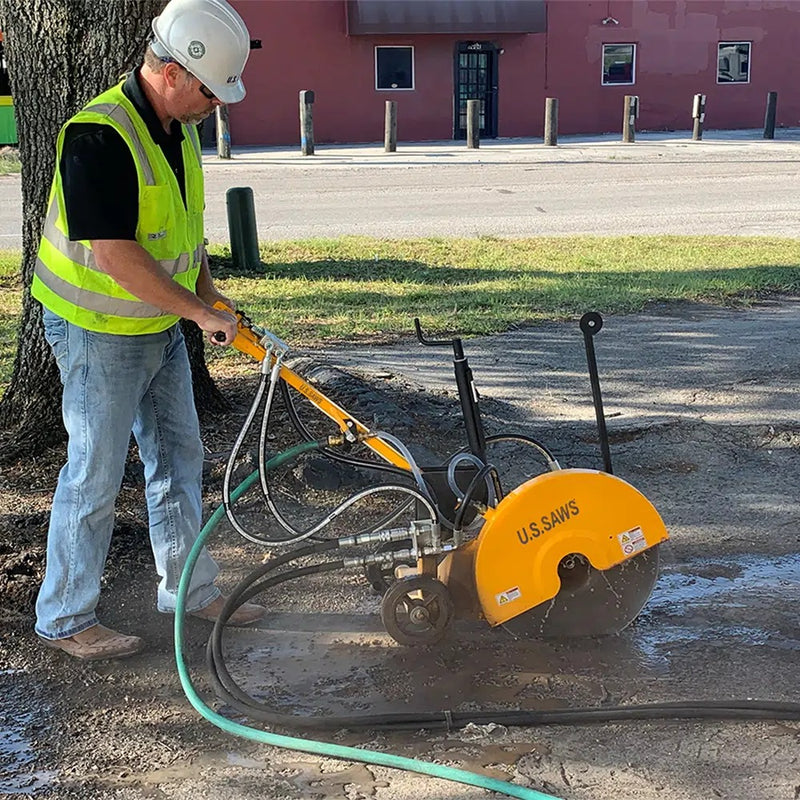

The FSB-150H makes straight, upright cuts in concrete and asphalt from a hydraulic power source: sidewalk repair, interior trench cutting, and asphalt patching for crews that run power packs instead of compressor trucks. No engine at the saw means no exhaust at the cut, the same below-grade and indoor advantage as its air twin.

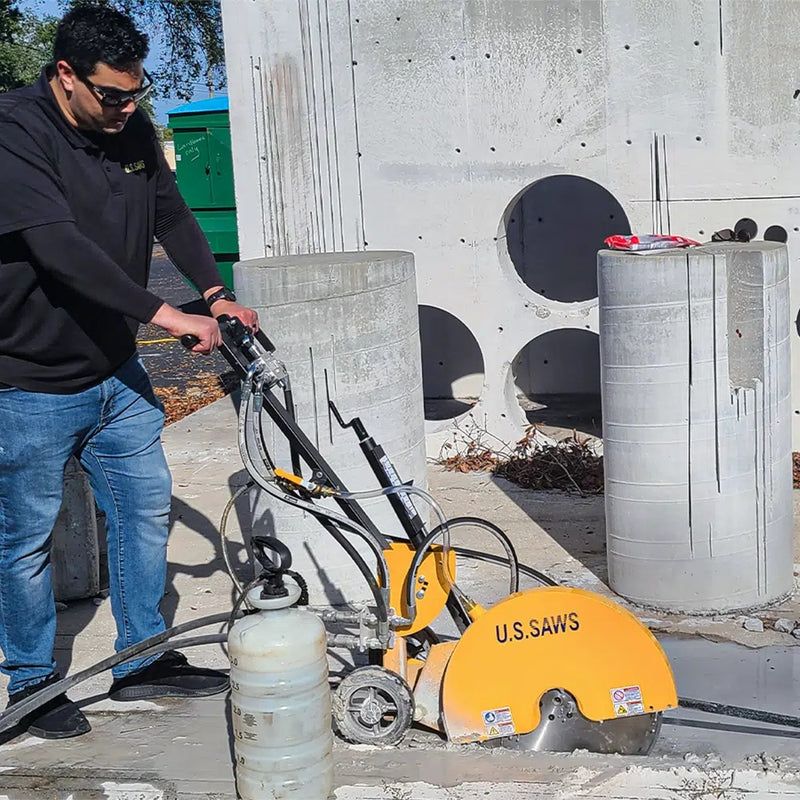

The blade mounts for flush cutting, taking the cut tight against walls and curbs that a centered-arbor saw leaves uncut. Half-inch flush-face quick connect fittings drop it onto a standard hydraulic circuit, there is no belt in the drivetrain to slip under load, and the deck balance keeps the saw from rocking off its line. This is the flat saw for utility and rental fleets already invested in hydraulic power on the truck.

Common Applications

  • Sidewalk repair cutting
  • Interior trench cutting
  • Asphalt patch cutting
  • Flush cutting against walls and curbs

Selection Notes

  • Requires 12 GPM at 2,500 PSI; a power pack in that band runs it, and the same circuit runs the hydraulic hand-held saws
  • Compressor-equipped crews should compare the air-drive FSB-150 on the same frame
  • Runs blades to 20 in for the full 7.5 in depth, flush-cut mounted
Unit Specifications
Drive
Hydraulic
Hydraulic flow
12 GPM
Hydraulic pressure
2,500 PSI
Blade shaft speed
3,300 RPM
Cutting Capacity
Max depth of cut
7.5 in (191 mm)
Blade capacity
20 in maximum, flush cut
Build
Fittings
1/2 in flush-face quick connect hydraulic fittings
Balance
Weight balanced to eliminate rocking during the cut
Dimensions & Weights
Weight
144 lb (65 kg)
Flush-cut blade mounting
Cuts tight to walls and curbs a centered saw cannot reach

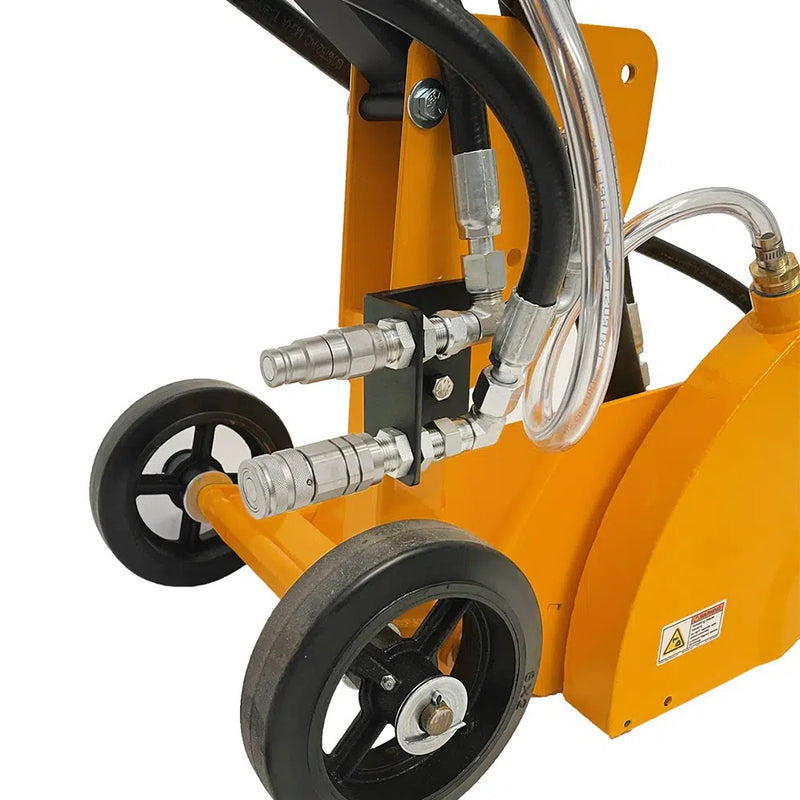

Flush-face quick connects
Drops onto a standard hydraulic circuit without adapters or drips
No belt in the drivetrain
Nothing to slip or burn when the blade loads mid-cut

Included with Purchase

  • 1 FSB-150H Walk-Behind Hydraulic Saw (variant/model as ordered)

Not Included Unless Stated

  • Hydraulic power pack and hoses
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.

Related Equipment

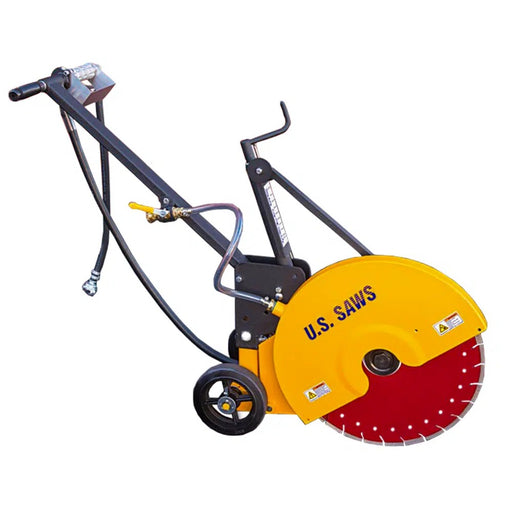

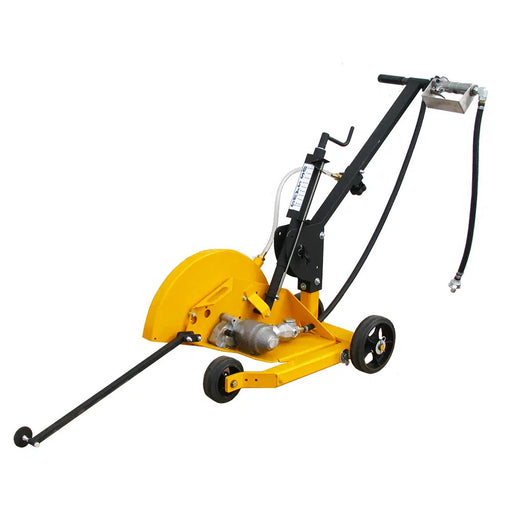

FSB-150 Walk-Behind Air Saw | U.S. Saws
