HD Root/Brush Grapple | Storm

Brand Storm AttachmentsSKU 02140472-HD-SS
Original price $2,841.00 - Original price $3,126.00
Original price
$2,841.00
$2,841.00 - $3,126.00
Current price $2,841.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

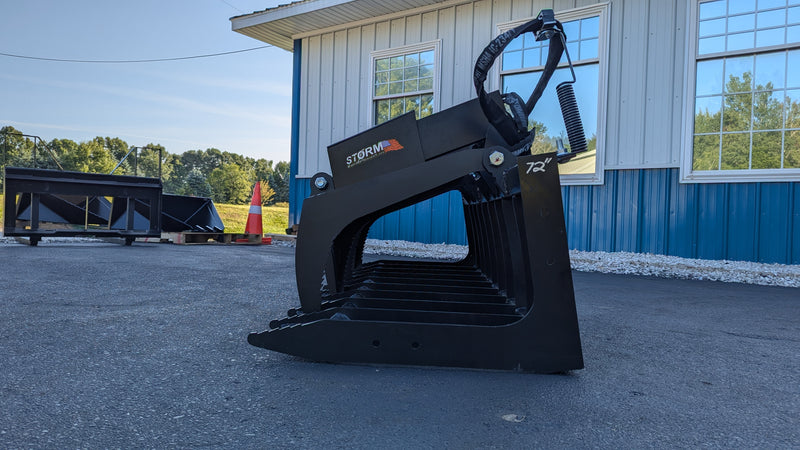

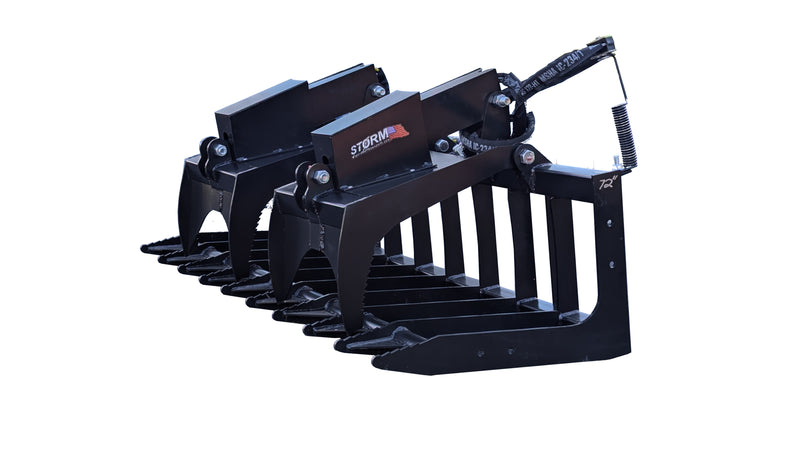

Storm HD dual-cylinder root/brush grapple, 72 in wide, in American steel with 1/2" sides and 3/8" inner tines. Heavier sides and a larger frame handle bigger brush and debris on home, farm, and light commercial work. Available in SSQA, John Deere, and Euro Global mounts.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Width: 72 in
  • Steel: American steel
  • Sides: 1/2"
  • Inner Tines: 3/8"
  • Tine Spacing: 7"
  • Cylinders: dual hydraulic cylinders
  • Side Plates: bolted side plates available
  • Pivots: all greaseable
  • Weight: 520 lb (SSQA / John Deere), 590 lb (Euro Global)

Fitment / Machine Requirements

  • Mount: SSQA, John Deere, or Euro Global as ordered
  • Carriers: skid steers and compact track loaders up to 75 HP
  • Hydraulic Couplers: flat-faced 08 SAE
  • Hydraulic Flow: confirm with supplier
  • Hydraulic Pressure: confirm with supplier
  • Minimum Carrier Rated Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

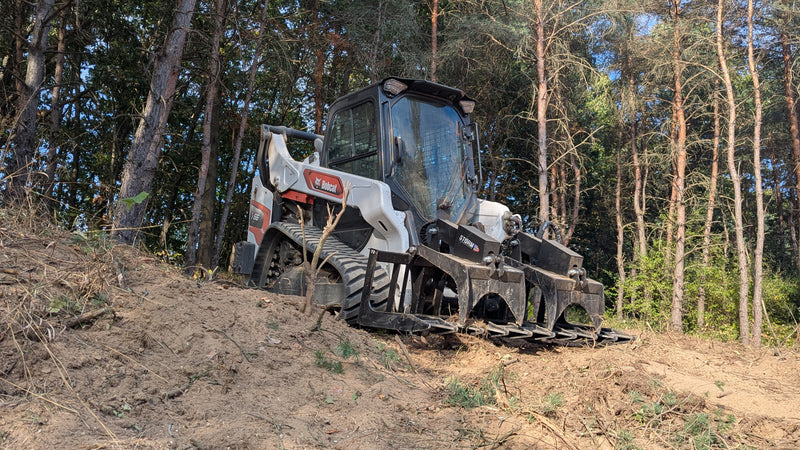

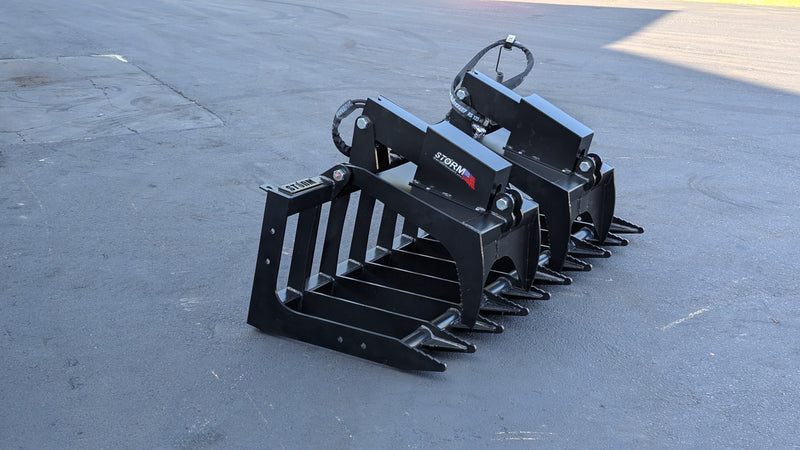

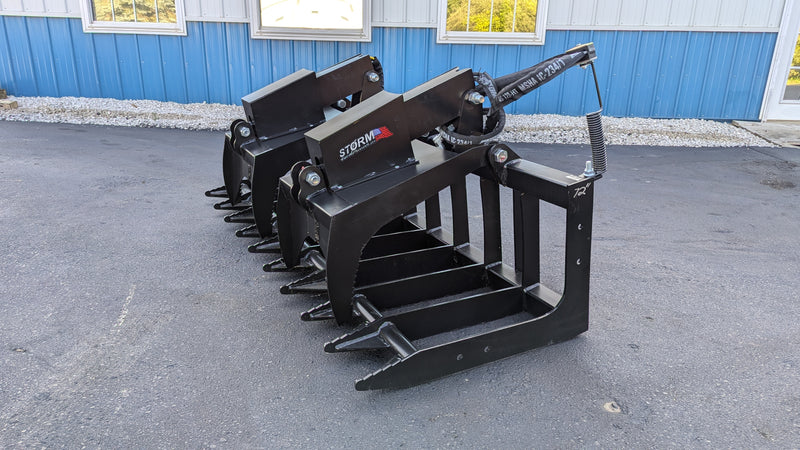

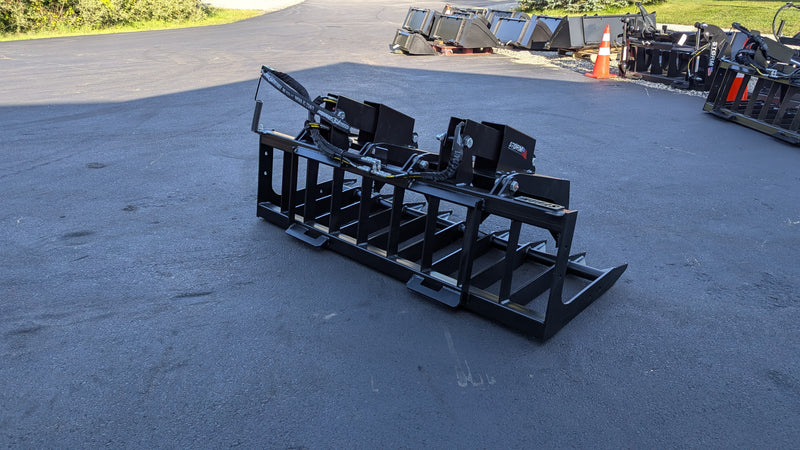

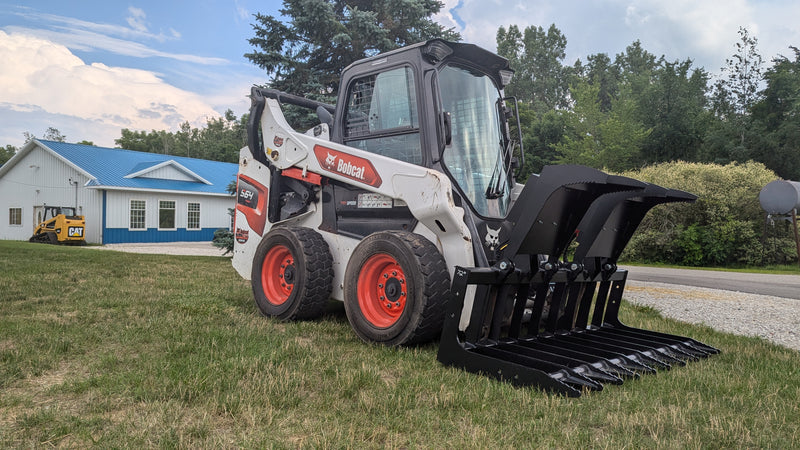

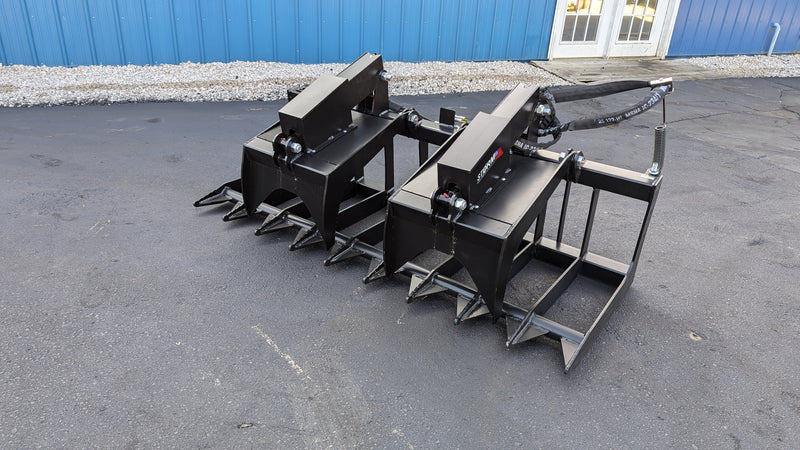

The Storm HD Root/Brush Grapple is a heavy-duty, dual-cylinder root grapple that picks up and moves rock, logs, brush, and other odd-shaped or hard-to-lift material on skid steers and compact track loaders. Heavier sides and a larger frame than the standard Storm grapple let it work bigger brush and heavier debris without the frame flexing. It is the pick for home, farm, and light commercial crews moving up from lighter cleanup.

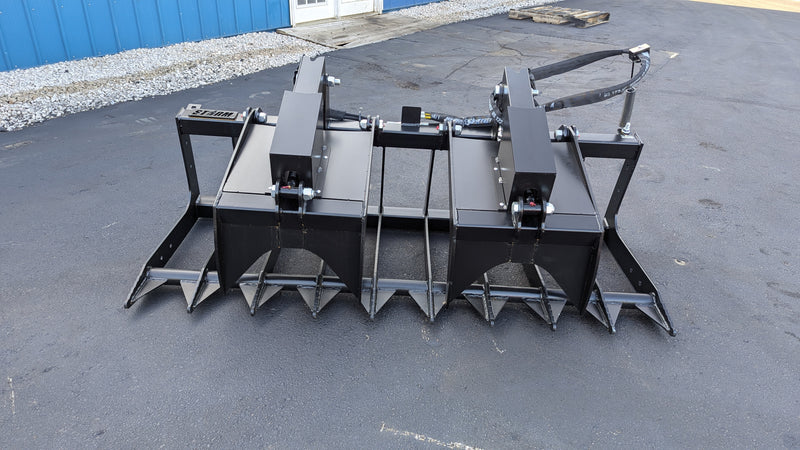

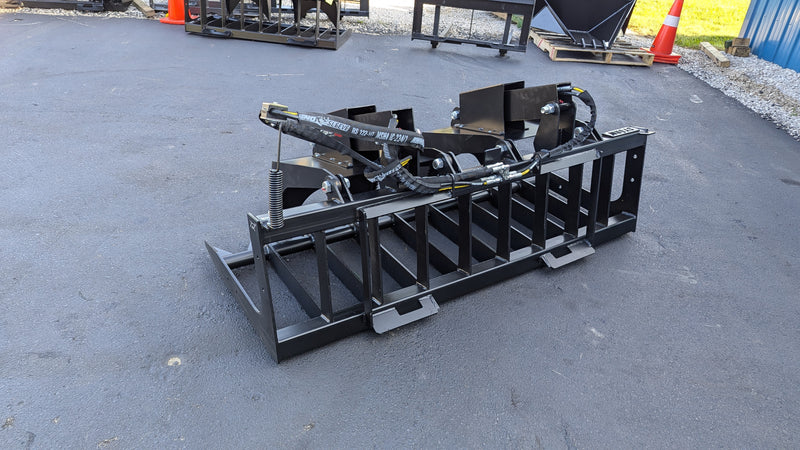

A lower tine bank carries the load while two hydraulic cylinders drive a top clamp down on it, and the heavier sides give the frame the rigidity to take repeated loading from rock and roots. Greaseable pivots keep the joints serviced in the field, and the side plates can bolt on so a worn or bent plate is replaced rather than scrapping the grapple. Serviceable joints and replaceable sides are what the crew clearing heavy brush and moving rock regularly needs to keep running.

Common Applications

  • Picking up and moving rock, logs, and brush
  • Loading debris and odd-shaped material
  • Land clearing and heavy brush cleanup

Selection Notes

  • Heavy-duty dual-cylinder build; sized for skid steers and compact track loaders up to 75 HP
  • Available in SSQA, John Deere, and Euro Global mounts
  • Bolted side plates available to extend wear life
  • Runs off the carrier's auxiliary hydraulics; confirm hydraulic flow and pressure with supplier
  • HD hoses ship with a bracket for the hose protector kit; the coupler set is ordered separately
Build
Steel
American steel
Sides
1/2 in
Inner tines
3/8 in
Tine spacing
7 in
Pivots
All greaseable
Side plates
Bolted side plates available
Mount
SSQA, John Deere, or Euro Global
Finish
Industrial exterior coating
Origin
Made in Michigan
Warranty
2 year Confirm with supplier
Hydraulics
Cylinders
Dual 3000 lb welded cylinders with HD covers
Hoses
HD 6100 lb hydraulic hoses
Coupler face
Flat-faced 08 SAE
Hydraulic flow (GPM)
Confirm with supplier Confirm with supplier
Operating pressure (PSI)
Confirm with supplier Confirm with supplier
MountWeight
SSQA 520 lb (236 kg)
John Deere 520 lb (236 kg)
Euro Global 590 lb (268 kg)
Bolted side plates
Replaceable wear plates extend service life in abrasive material

Included with Purchase

  • 1 Storm HD Root/Brush Grapple (variant/model as ordered)
  • HD 6100 lb hydraulic hoses
  • Bracket for the hose protector kit

Not Included Unless Stated

  • Hose protector kit
  • Coupler set (flat-faced 08 SAE or AG, ordered separately)
  • Skid steer or compact track loader
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.

Related Equipment

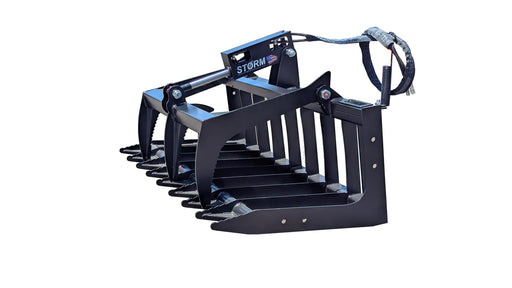

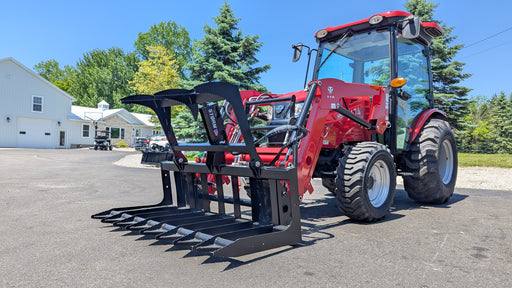

Root/Brush Grapple 1 Cylinder | Storm

Storm Attachments
Original price $1,558.00 - Original price $1,796.00
Original price
$1,558.00 - $1,796.00
$1,558.00 - $1,796.00
Current price $1,558.00

Storm single-cylinder root/brush grapple, 48 in and 60 in widths, in A572 steel with 1/4" tines and sides and a 3/8" claw. A lower tine bank and a ...

View full details
Original price $1,558.00 - Original price $1,796.00
Original price
$1,558.00 - $1,796.00
$1,558.00 - $1,796.00
Current price $1,558.00

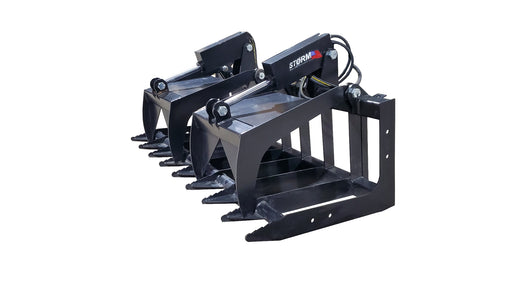

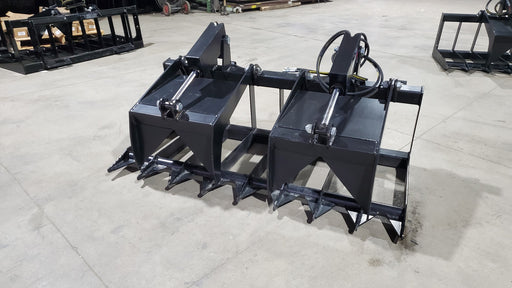

Root/Brush 2 Cylinder Grapple | Storm

Storm Attachments
Original price $2,060.00 - Original price $2,202.00
Original price
$2,060.00 - $2,202.00
$2,060.00 - $2,202.00
Current price $2,060.00

Storm two-cylinder root/brush grapple, 48 in and 60 in widths, in A572 steel with 1/4" tines and sides and a 3/8" claw. Two cylinders drive the top...

View full details
Original price $2,060.00 - Original price $2,202.00
Original price
$2,060.00 - $2,202.00
$2,060.00 - $2,202.00
Current price $2,060.00

Root/Brush Grapple | Glacier

Glacier Attachments
Original price $4,191.00 - Original price $5,115.00
Original price
$4,191.00 - $5,115.00
$4,191.00 - $5,115.00
Current price $4,191.00

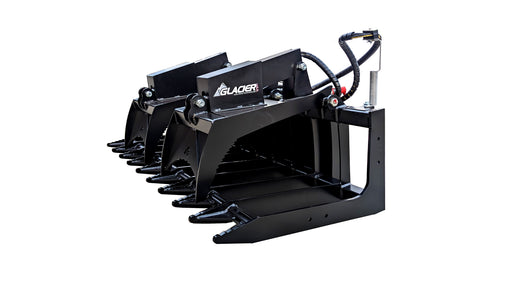

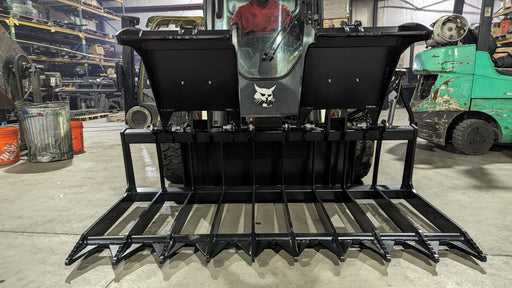

Glacier root/brush grapple, 60 in to 96 in widths, in 5/8" American steel with heavy reinforcement and full cylinder and rod guards. Built for fore...

View full details
Original price $4,191.00 - Original price $5,115.00
Original price
$4,191.00 - $5,115.00
$4,191.00 - $5,115.00
Current price $4,191.00

Surge Grapple | Eterra

Eterra Attachments
Original price $5,995.00 - Original price $6,495.00
Original price
$5,995.00 - $6,495.00
$5,995.00 - $6,495.00
Current price $5,995.00

The Eterra Surge Grapple is a dual-arm skid steer grapple rake for clearing brush, rock, and debris on land-clearing jobs. It is built from 3/4-inc...

View full details
Original price $5,995.00 - Original price $6,495.00
Original price
$5,995.00 - $6,495.00
$5,995.00 - $6,495.00
Current price $5,995.00

Rock/Brush Grapple | Storm

Storm Attachments
Original price $1,846.00 - Original price $3,055.00
Original price
$1,846.00 - $3,055.00
$1,846.00 - $3,055.00
Current price $1,846.00

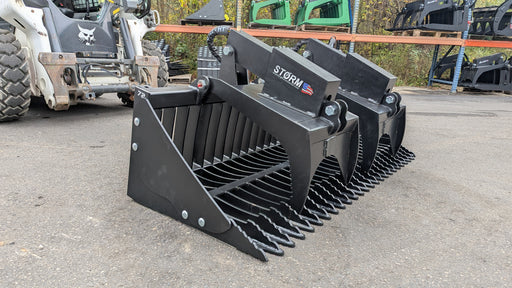

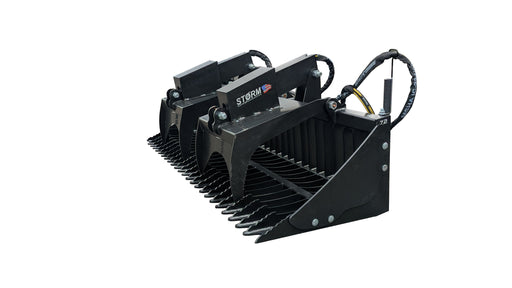

Storm rock/brush grapple, 48 in to 72 in widths, in American steel with 3/8" bolted side plates, 1/4" inner tines, and tight 2.75 in tine spacing f...
