HD Grapple Bucket | Storm

Brand Storm AttachmentsSKU S14BUCKHD60-SS
Original price $2,841.00 - Original price $3,055.00
Original price
$2,841.00
$2,841.00 - $3,055.00
Current price $2,841.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

Storm HD grapple bucket, 60 in and 72 in widths, with a 3/16" body, 3/8" sides, and a 1/2" welded cutting edge drilled for an optional bolted edge. Dual 3000 lb cylinders clamp loose and bulky material in the bucket. Available in SSQA and John Deere mounts.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Widths: 60 in and 72 in
  • Body: 3/16"
  • Sides: 3/8"
  • Wear Bars: 1/2" x 5"
  • Cutting Edge: 1/2" welded, with holes for an optional bolted edge
  • Cylinders: dual 3000 lb cylinders with bore covers
  • Finish: industrial exterior coating
  • Weight: 490 lb (60 in) to 540 lb (72 in)

Fitment / Machine Requirements

  • Mount: SSQA or John Deere as ordered
  • Carriers: skid steers and compact track loaders
  • Hydraulic Couplers: flat-faced 08 SAE
  • Hydraulic Flow: confirm with supplier
  • Hydraulic Pressure: confirm with supplier
  • Minimum Carrier Rated Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

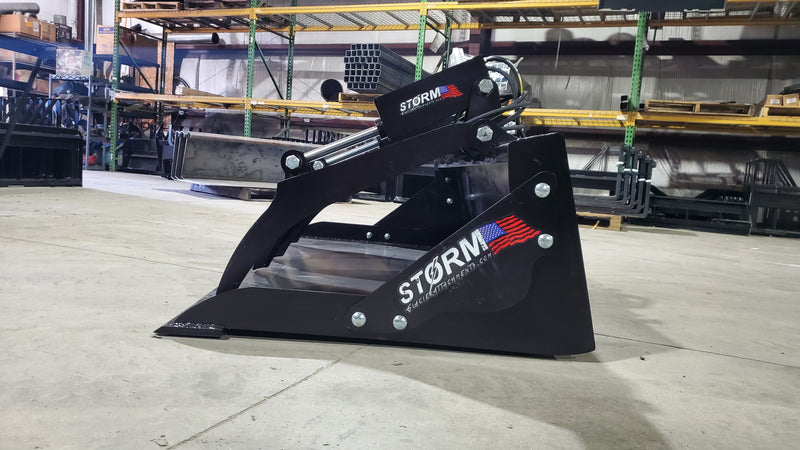

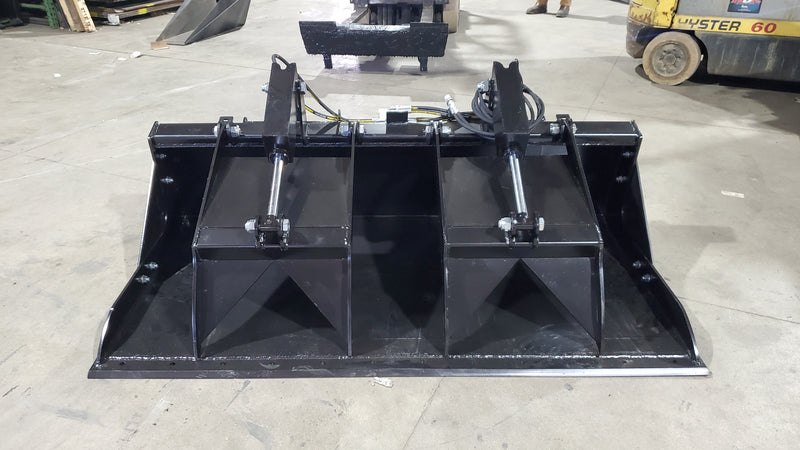

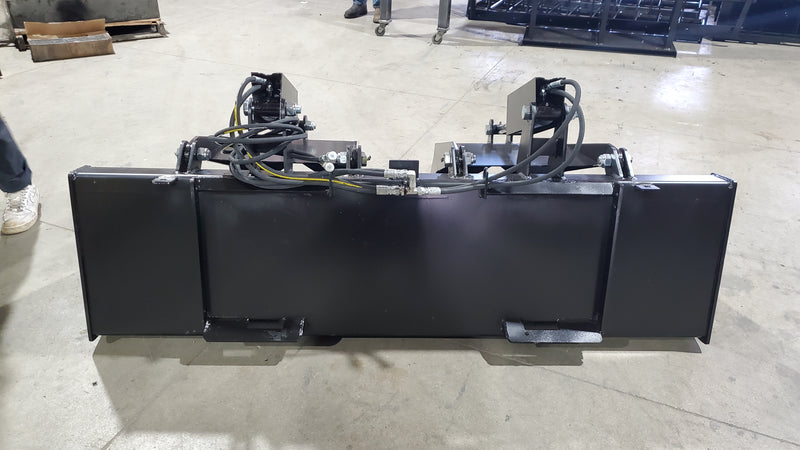

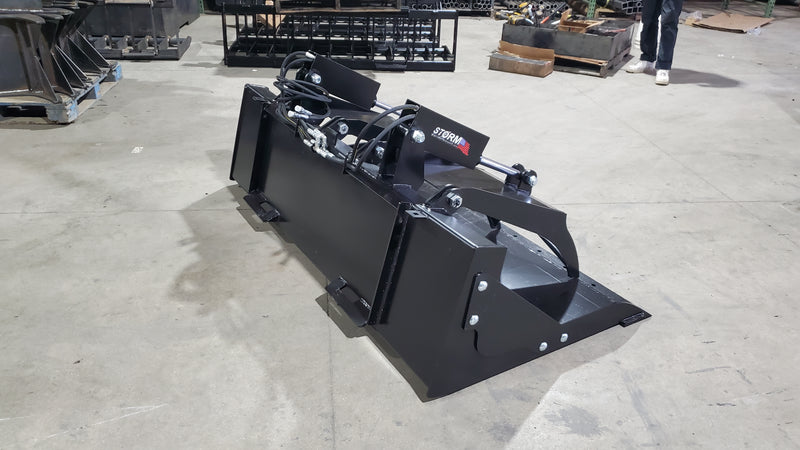

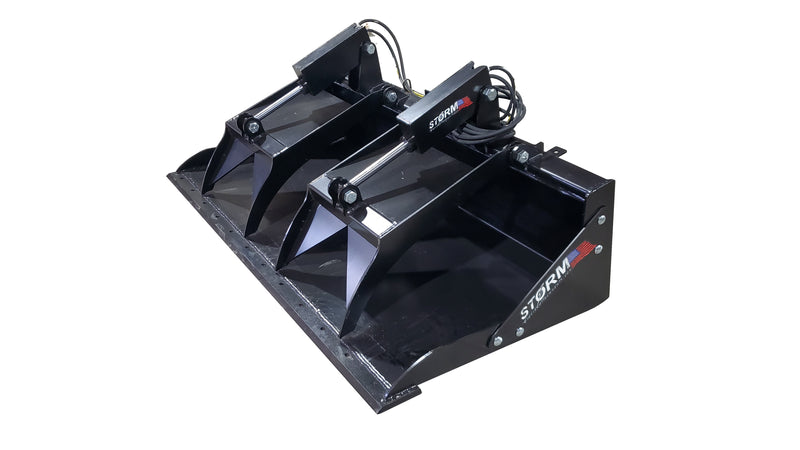

The Storm HD Grapple Bucket pairs a bucket with a hydraulic top clamp to scoop and hold rock, debris, and bulky material on skid steers and compact track loaders. The bucket scoops loose material while the clamp holds odd or oversized pieces on top, so one attachment both digs and grabs. It is built for home, farm, and lighter commercial cleanup, not heavy commercial or rental duty.

A welded cutting edge leads the bucket into the pile while dual hydraulic cylinders close the clamp over the load, and the edge is drilled for an optional bolted-on edge for when the welded one wears. Wear bars and a quick-attach frame take the repeated digging, so the bucket holds its shape through regular scooping. That scoop-and-clamp pairing carries loose and odd material a plain bucket would drop, which is what the operator cleaning up around the property or farm is after.

Common Applications

  • Scooping and moving rock and debris
  • Holding bulky or odd-shaped material
  • Home and farm cleanup and loading

Selection Notes

  • Bucket with a hydraulic clamp for home, farm, and lighter commercial use
  • Welded cutting edge with holes for an optional bolted edge
  • Available in 60 in and 72 in widths; SSQA or John Deere mount
  • Runs off the carrier's auxiliary hydraulics; confirm hydraulic flow and pressure with supplier
Build
Body
3/16 in
Sides
3/8 in
Wear bars
1/2 in x 5 in
Cutting edge
1/2 in welded, with holes for an optional bolted edge
Mount
SSQA or John Deere (quick attach)
Finish
Industrial exterior coating
Warranty
2 year Confirm with supplier
Hydraulics
Cylinders
Dual 3000 lb cylinders with bore covers
Coupler face
Flat-faced 08 SAE
Hydraulic flow (GPM)
Confirm with supplier Confirm with supplier
Operating pressure (PSI)
Confirm with supplier Confirm with supplier
WidthWeight
60 in (1524 mm) 490 lb (222 kg)
72 in (1829 mm) 540 lb (245 kg)
Bucket with hydraulic clamp
Scoops like a bucket and clamps loose or odd material a bucket would spill

Included with Purchase

  • 1 Storm HD Grapple Bucket (variant/model as ordered)

Not Included Unless Stated

  • Bolted cutting-edge option
  • Coupler set (flat-faced 08 SAE or AG, ordered separately)
  • Skid steer or compact track loader
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.

Related Equipment

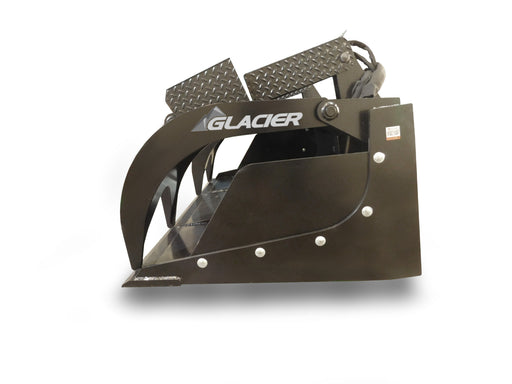

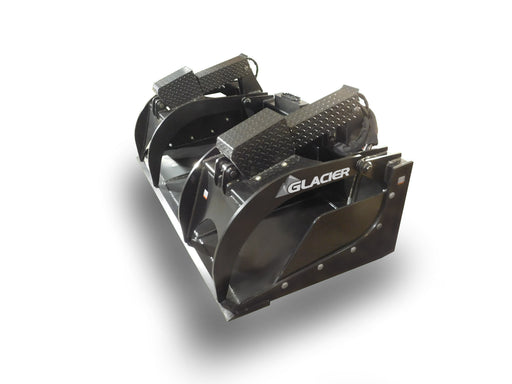

Extreme Grapple Bucket | Glacier
