Mini Grapple Bucket | Star Industries

Brand Star IndustriesSKU 175-MIBC-36
Original price $1,854.00 - Original price $2,057.00
Original price
$1,854.00
$1,854.00 - $2,057.00
Current price $1,854.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

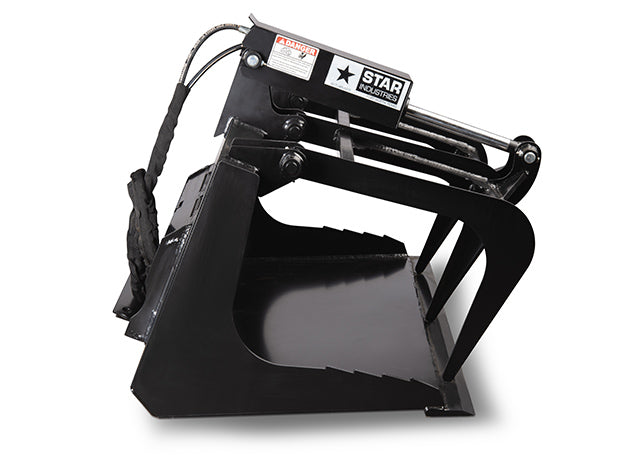

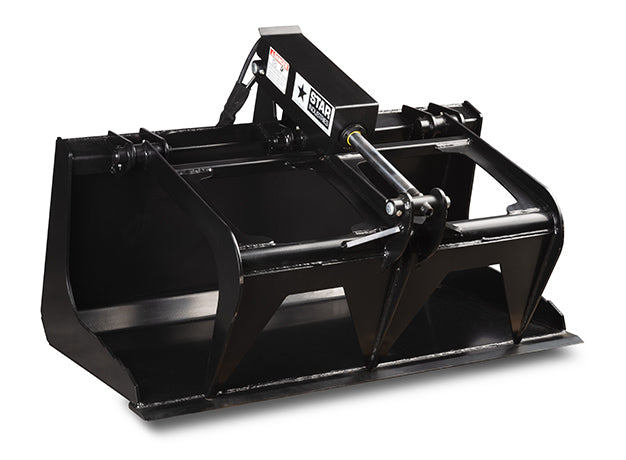

The Star Industries Mini Grapple Bucket grapples and loads brush, logs, and bulky debris on mini skid steers, with a solid bottom that keeps material in the bucket. It comes in 36 in and 44 in widths and fits Dingo, Ditchwitch, Vermeer, Boxer, Ramrod, and Bobcat mini skid steers.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Empty Weight: 329.10 lb (149 kg) to 373.06 lb (169 kg), depending on width and Fits
  • Width: 36 in or 44 in
  • Grapple Max Opening: 30 in (762 mm)
  • Grapple Tines: 5/16 in thick
  • Overall Depth (44 in width): 35.75 in (908 mm)
  • Overall Height (44 in width): 27.75 in (705 mm)
  • Bucket Depth (44 in width): 26.375 in (670 mm)

Fitment / Machine Requirements

  • Fits: Dingo, Ditchwitch, Vermeer, Boxer, Ramrod, Bobcat mini skid steers
  • Hydraulic Cylinder: 2 in bore x 10 in stroke
  • Hydraulic Couplers: 1/2 in flat body
  • Hydraulic Flow: confirm with supplier
  • Hydraulic Pressure: confirm with supplier
  • Minimum Carrier Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The Star Industries Mini Grapple Bucket moves bulky, hard-to-handle material like brush and logs on mini skid steers. Its solid bottom keeps all of that material in the bucket instead of losing it, so a crew can move a full load in one pass.

A hydraulic cylinder opens and closes the grapple arms over the load, and the bucket opens wide enough to take a full load without spilling material back out. Grease fittings at every pivot point and protective sleeves on the hydraulic lines are built to hold up under repeated grappling cycles. This is built for crews moving brush, logs, and bulky debris as regular work, not an occasional cleanup.

Common Applications

  • Brush and log removal
  • Loading and moving bulky debris
  • General debris cleanup

Selection Notes

  • Choose width to match the reach and capacity you need, then choose the Fits option that matches the carrier: Dingo, Ditchwitch, Vermeer, Boxer, or Ramrod uses 175-MI-36 (36 in) or 175-MI-44 (44 in); Bobcat uses 175-MIBC-36 (36 in) or 175-MIBC-44 (44 in).
  • Weight differs by width and Fits: 348.76 lb (175-MI-36), 329.10 lb (175-MIBC-36), 373.06 lb (175-MI-44), 351.17 lb (175-MIBC-44).
  • 175-MI-36 pricing: confirm with the supplier before ordering that configuration.
  • Grapple opening and tine spacing are fixed, not adjustable.
  • Hydraulic flow and pressure are not stated; confirm the auxiliary requirement with the supplier before ordering.
Build
Bottom
Solid, retains all material in the bucket
Grapple Tines
5/16 in thick
Grapple Max Opening
30 in (762 mm)
Pivot Pins
1 in (25 mm) diameter, grease fittings on all pivot points
Hydraulics
Cylinder
2 in bore x 10 in stroke
Hydraulic Hoses
Protective sleeves on all hydraulic lines
Quick-Disconnects
1/2 in flat body couplers
Hydraulic Flow
Confirm with supplier Confirm with supplier
Hydraulic Pressure
Confirm with supplier Confirm with supplier
Dimensions & Weights
Width
36 in (914 mm) or 44 in (1118 mm)
Overall Depth
35.75 in (908 mm)
Overall Height
27.75 in (705 mm)
Bucket Height
21 in (533 mm)
Bucket Depth
26.375 in (670 mm)
WidthFitsModelWeight
36 in Dingo, Ditchwitch, Vermeer, Boxer, Ramrod 175-MI-36 348.76 lb (158 kg)
36 in Bobcat 175-MIBC-36 329.10 lb (149 kg)
44 in Dingo, Ditchwitch, Vermeer, Boxer, Ramrod 175-MI-44 373.06 lb (169 kg)
44 in Bobcat 175-MIBC-44 351.17 lb (159 kg)
Solid-bottom bucket
Keeps loaded material in the bucket instead of sifting through
Grease fittings on all pivot points
Serviceable pivot points for a grapple built for repeated cycles

Included with Purchase

  • 1 Mini Grapple Bucket (variant/model as ordered)
  • 1/2 in flat body hydraulic couplers

Not Included Unless Stated

  • Carrier machine (mini skid steer)
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.

Related Equipment

2000 LB Pallet Forks | Storm

Storm Attachments
Original price $689.00 - Original price $689.00
Original price
$689.00
$689.00 - $689.00
Current price $689.00

Storm 2000 LB pallet forks for small skid loaders and compact tractors, with lighter overall weight, 3" x 1" fork blades, 42" length, a 36" walk-th...

View full details
Original price $689.00 - Original price $689.00
Original price
$689.00
$689.00 - $689.00
Current price $689.00

20 in Ranch Axe Tree Shear | Maxx

Maxx Attachments
Original price $18,500.00 - Original price $18,500.00
Original price
$18,500.00
$18,500.00 - $18,500.00
Current price $18,500.00

The Maxx Attachments 20 in Ranch Axe Tree Shear is a near-ground-level tree shear for skid steer loaders, built for pasture cleanup and clearing mo...

View full details
Original price $18,500.00 - Original price $18,500.00
Original price
$18,500.00
$18,500.00 - $18,500.00
Current price $18,500.00

8000 LB Pallet Forks | Glacier

Glacier Attachments
Original price $1,712.00 - Original price $2,127.00
Original price
$1,712.00 - $2,127.00
$1,712.00 - $2,127.00
Current price $1,712.00

Glacier 8000 LB pallet forks with a 1/2" AR400 top fork rail, all 1/2" A572 steel frame and mast, and 1-3/4" x 4" fork blades. Class 2 fork frame, ...

View full details
Original price $1,712.00 - Original price $2,127.00
Original price
$1,712.00 - $2,127.00
$1,712.00 - $2,127.00
Current price $1,712.00

Clamp-On Pallet Forks | Top Dog

Top Dog Attachments
Original price $560.14 - Original price $560.14
Original price
$560.14
$560.14 - $560.14
Current price $560.14

A set of two pallet forks that mount to most loader buckets without tools, locking down with a threaded rod. Turns a bucket into pallet forks in mi...

View full details
Original price $560.14 - Original price $560.14
Original price
$560.14
$560.14 - $560.14
Current price $560.14

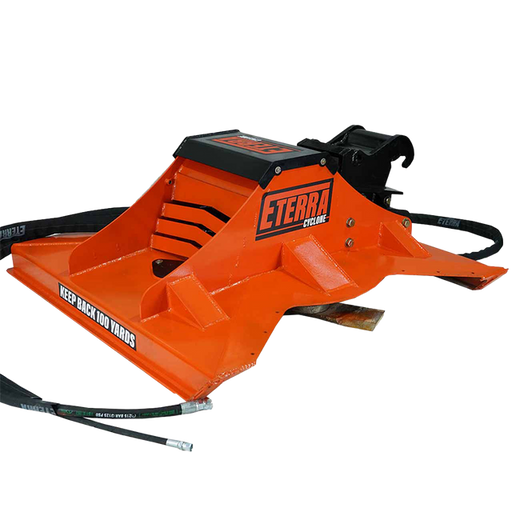

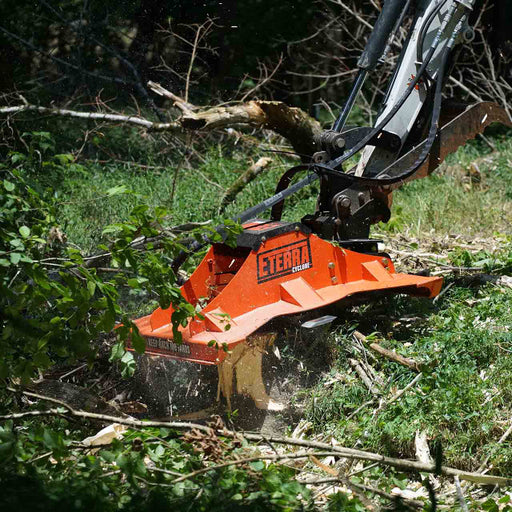

Cyclone Excavator Rotary Brush Cutter | Eterra
