Heavy Duty Skid Steer Pallet Forks | Arrow

Brand Arrow Material Handling ProductsSKU 513125-4-42-2CB
Original price $1,319.44 - Original price $1,581.94
Original price
$1,319.44
$1,319.44 - $1,581.94
Current price $1,319.44
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

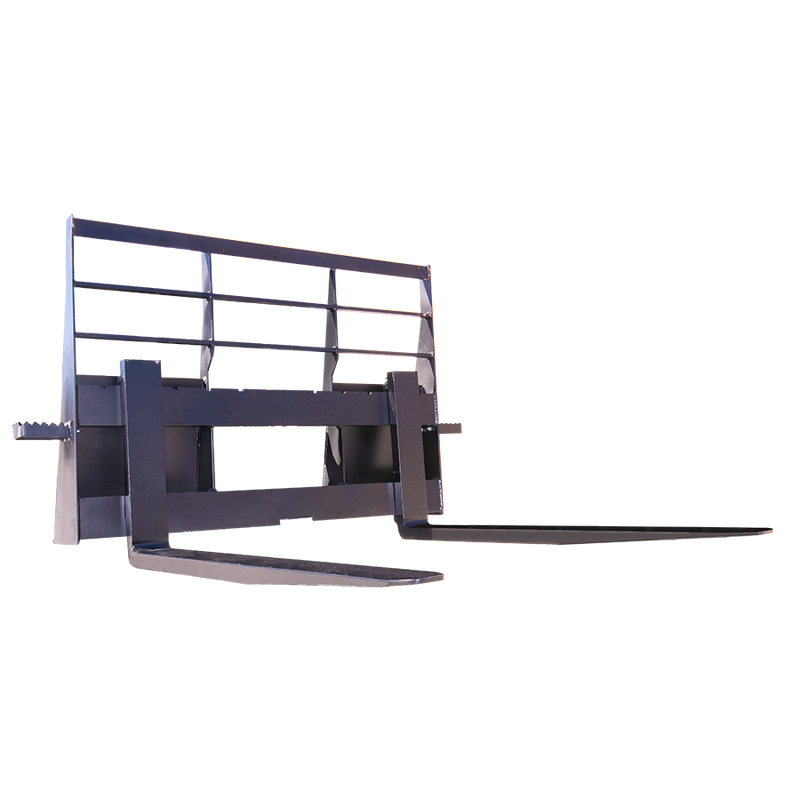

Arrow Heavy Duty Skid Steer Pallet Forks, a fork and frame assembly with class II ITA forks included and a universal quick-tach mount. Six builds across three fork thicknesses and two lengths, rated 3,000 lb to 6,000 lb at a 24 in load center with a 3 to 1 safety factor. Two bolt-on steps are included.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Fork Lengths: 42 in, 48 in
  • Fork Thicknesses: 1.25 in, 1.5 in, 1.75 in
  • Fork Width: 4 in
  • Rated Capacity: 3,000 lb, 5,500 lb or 6,000 lb at a 24 in load center by fork size
  • Safety Factor: 3 to 1
  • Fork Type: high carbon steel class II ITA forks with position locking latches
  • Steps: two bolt-on steps included
  • Weight: confirm with supplier

Fitment / Machine Requirements

  • Mount: universal quick-tach mount plate
  • Carriers: skid steers
  • Early Style Couplers: available to fit Bobcat, Mustang, John Deere, Gehl and New Holland carriers
  • Minimum Carrier Rated Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The Arrow Heavy Duty Skid Steer Pallet Forks put a rated, ITA class II fork carriage on a skid steer for crews that move palletized material every day. This is a complete fork and frame assembly rather than a bare frame: the forks are high carbon steel with position locking latches, and they arrive fitted. Three fork thicknesses are offered so the rating can be matched to the material a crew actually lifts, and every one of them is rated at a fixed load center against the same safety factor.

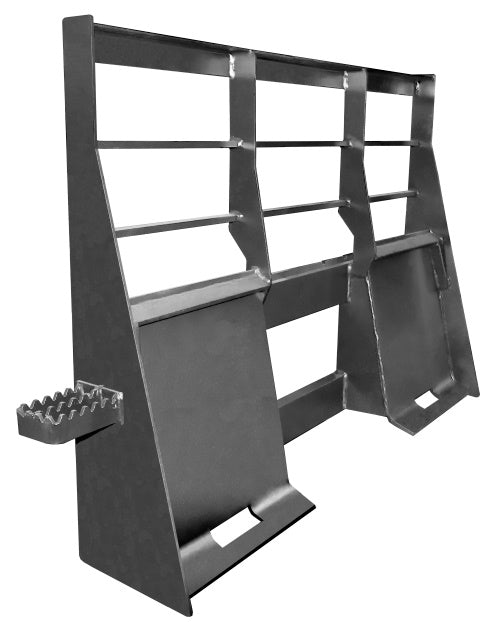

The frame is what does the work behind the forks. A true class II ITA carriage bar takes the fork hooks top and bottom, an open bar load backrest holds tall loads back without blocking the operator's view, and a universal quick-tach plate mounts the assembly on a current-generation skid steer without adapters. Two bolt-on steps come with the frame, which matters on a machine an operator climbs several times an hour. Crews running block, bagged material or pallets off a truck all day are the ones this build is sized for.

Common Applications

  • Moving palletized block, pavers and bagged material around a site
  • Unloading pallets from a delivery truck or trailer
  • Placing material at working height for a crew
  • Handling lumber, fencing and other long bundled stock

Selection Notes

  • Fork thickness sets the rating: 1.25 in for 3,000 lb, 1.5 in for 5,500 lb, 1.75 in for 6,000 lb, each at a 24 in load center
  • Both fork lengths, 42 in and 48 in, are offered against every thickness
  • Forks are included with the frame, not ordered separately
  • Early style couplers are available for older Bobcat, Mustang, John Deere, Gehl and New Holland carriers
  • A custom nameplate can be added to this frame model through an Arrow representative
  • Confirm unit weight with supplier
Fork & Carriage
Fork type
Class II ITA, high carbon steel
Fork latches
Position locking
Fork width
4 in (102 mm)
Carriage bar
True class II ITA upper and lower bar
Load backrest
Open bar backrest
Safety factor
3 to 1
Mount & Interface
Mount
Universal quick-tach mount plate, fits a new generation of skid steers
Early style couplers
Available to fit Bobcat, Mustang, John Deere, Gehl and New Holland
Steps
Two bolt-on steps included
Build
Fork steel
High carbon steel
Custom nameplate
Available on this frame model through an Arrow representative
Fork CapacityFork sizeFork LengthWeight
3,000 lb (1361 kg) at a 24 in (610 mm) load center 1.25 in x 4 in (32 mm x 102 mm) 42 in (1067 mm) Confirm with supplier
3,000 lb (1361 kg) at a 24 in (610 mm) load center 1.25 in x 4 in (32 mm x 102 mm) 48 in (1219 mm) Confirm with supplier
5,500 lb (2495 kg) at a 24 in (610 mm) load center 1.5 in x 4 in (38 mm x 102 mm) 42 in (1067 mm) Confirm with supplier
5,500 lb (2495 kg) at a 24 in (610 mm) load center 1.5 in x 4 in (38 mm x 102 mm) 48 in (1219 mm) Confirm with supplier
6,000 lb (2722 kg) at a 24 in (610 mm) load center 1.75 in x 4 in (44 mm x 102 mm) 42 in (1067 mm) Confirm with supplier
6,000 lb (2722 kg) at a 24 in (610 mm) load center 1.75 in x 4 in (44 mm x 102 mm) 48 in (1219 mm) Confirm with supplier
Forks included
The assembly arrives with class II ITA forks fitted and latched, so the frame is not ordered bare

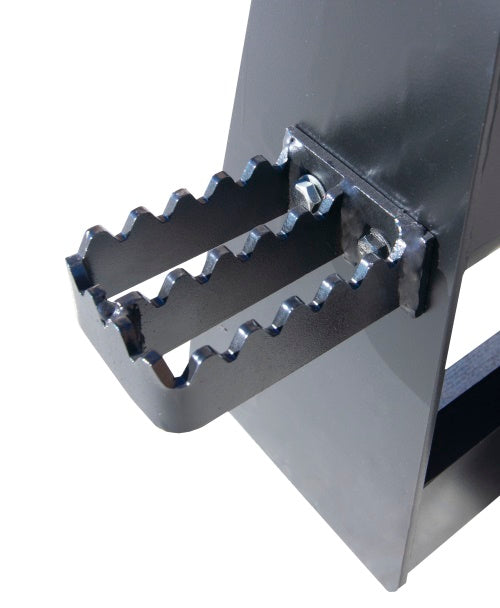

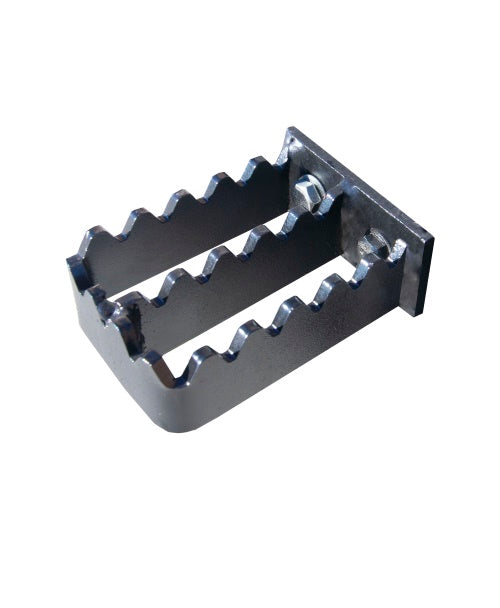

Two bolt-on steps
Gives the operator a fixed foothold on a machine they climb several times an hour

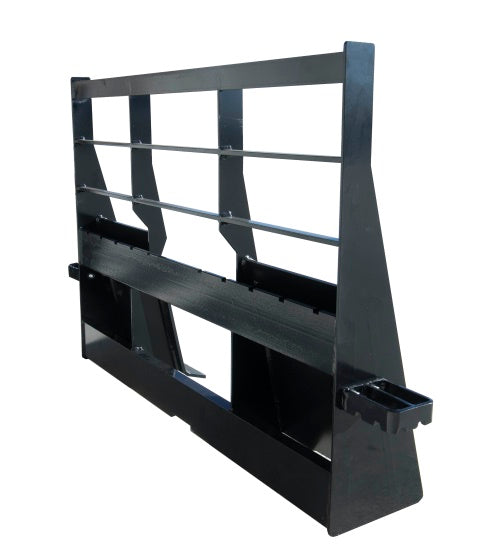

Open bar load backrest
Holds a tall load back without closing off the operator's view through the frame

Included with Purchase

  • 1 Arrow Heavy Duty Skid Steer Pallet Forks (variant/model as ordered)
  • Class II ITA forks with position locking latches
  • Two bolt-on steps
  • Universal quick-tach mount plate

Not Included Unless Stated

  • Early style coupler for an older carrier
  • Custom nameplate
  • Skid steer
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
