Hydraulic Hand-Held Saw | U.S. Saws

Brand U.S. SawsSKU US-HS160H
Original price $3,235.67 USD - Original price $3,413.29 USD
Original price
$3,235.67 USD
$3,235.67 USD - $3,413.29 USD
Current price $3,235.67 USD
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

The Hydraulic Hand-Held Saw is a fully welded aluminum-frame cut-off saw driven by a hydraulic motor on 12 GPM at 2,500 PSI, in three sizes cutting 5, 8, and 10 in deep. A dual-position front handle and a protected water valve and manifold block set it up for wet cutting on utility work.

Need fitment or freight help before you order? Contact us.

Shipping & Freight

We ship to the 48 contiguous states. We do not ship to Alaska, Hawaii, US territories, military (APO/FPO/DPO) addresses or outside the United States.

Smaller items ship by parcel carrier, priced by weight. Larger items and heavy equipment ship by LTL freight, priced by your ZIP code and the delivery type you choose: terminal pickup and dock delivery cost the least, and commercial liftgate, residential liftgate and jobsite delivery each add the carrier’s fee. Your shipping cost is shown at checkout before you pay.

The best way to get a shipping quote or ask a freight question is the Get a Freight Quote button on this page. You can also call (805) 398-6165.

Delivery types, delivery times, terminal pickup, liftgate service and damage inspection are covered in our Shipping Policy.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Weight: 22 to 31 lbs by size
  • Drive: hydraulic motor
  • Hydraulic Flow: 12 GPM
  • Hydraulic Pressure: 2,500 PSI
  • Max Depth of Cut: 5 in (16 in size), 8 in (21 in size), 10 in (24 in size)
  • Frame: fully welded aluminum, powder coated


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns: within 30 days of delivery if unused and complete, with a restocking fee of up to 25% plus return freight. Returns need the manufacturer's agreement to take the item back; if they won't, the sale is final. Custom and made-to-order items are final sale. Full terms: Refund Policy.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

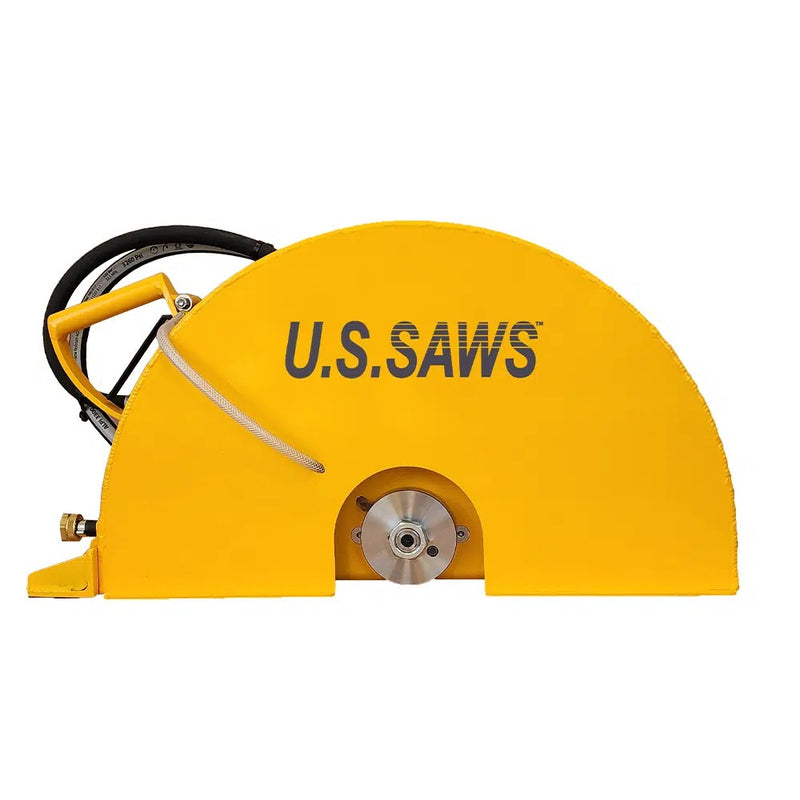

The Hydraulic Hand-Held Saw makes deep cuts in pipe, concrete, and utility structures from a hydraulic circuit, with no engine on the saw and no exhaust at the cut. All three sizes share one platform: the same hydraulic motor spec, the same welded frame, different blade capacity.

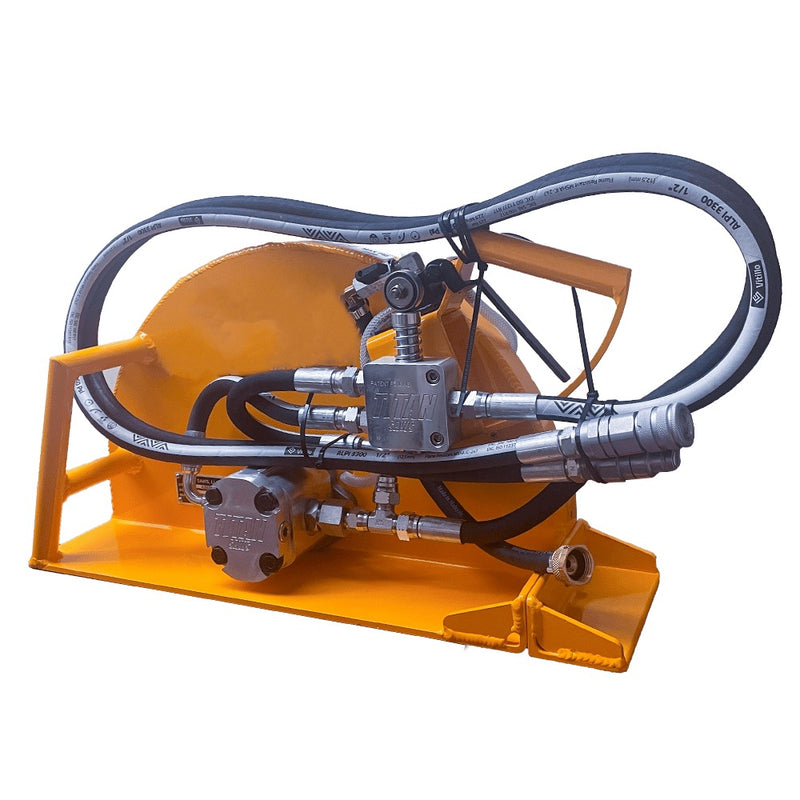

The frame is fully welded aluminum under powder coat, and the oversized dual-position front handle gives the operator two grips for horizontal and vertical cuts. The water shut-off valve and manifold block sit positioned out of harm's way, so the wet-cut plumbing survives the drops and drags of trench work. The hydraulic motor delivers blade speed and torque steadily under load, and U.S. Saws fits motors to match the power pack driving the saw. This is the deep-cut handsaw for utility crews that already run hydraulic circuits and need cuts past what a gas cut-off saw reaches.

Common Applications

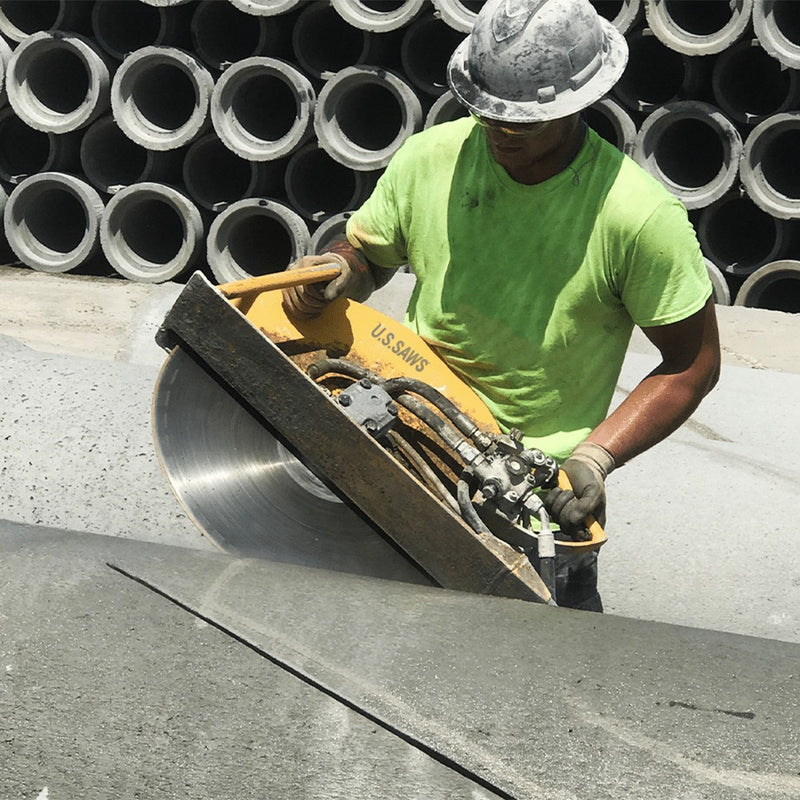

  • Deep cutting of pipe and concrete on utility work
  • Wet cutting in trenches and structures
  • Cut-off work beyond gas-saw depth from a hydraulic circuit

Selection Notes

  • Choose by depth of cut: 5 in on the 16 in saw, 8 in on the 21 in saw, 10 in on the 24 in saw
  • Size is the saw's model size: the 21 in saw takes a 20 in maximum blade.
  • Runs on the same 12 GPM at 2,500 PSI band as the FSB-150H walk-behind; one power pack drives both
  • Motor fitment varies with power pack engine and pump sizing; confirm the circuit at ordering
Unit Specifications
Drive
Hydraulic motor
Hydraulic flow
12 GPM
Hydraulic pressure
2,500 PSI
Motor fitment
Motors vary with power pack engine and pump sizes
Build
Frame
Fully welded aluminum, powder coated
Handle
Oversized dual-position front handle
Water valve
Shut-off valve and manifold block positioned clear of impact damage
SizeBlade DiameterMax Depth of CutWeight
16 in16 in (406 mm)5 in (127 mm)22 lb (10 kg)
21 in20 in (508 mm)8 in (203 mm)26 lb (12 kg)
24 in24 in (610 mm)10 in (254 mm)31 lb (14 kg)
Welded aluminum frame
Deep-cut capacity at hand-saw weight, 31 pounds at the heaviest
Dual-position front handle
A proper grip in both horizontal and vertical cuts
Protected wet-cut plumbing
The water valve and manifold survive trench handling

Included with Purchase

  • 1 Hydraulic Hand-Held Saw (variant/model as ordered)

Not Included Unless Stated

  • Hydraulic power pack and hoses
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
