Koine 3.1 Pump | IMER

Brand IMERSKU 1106351
Original price $17,599.00 - Original price $17,599.00
Original price
$17,599.00
$17,599.00 - $17,599.00
Current price $17,599.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

Koine 3.1 continuous mortar pump, single-phase 240V, 3 HP motor with turbo boost to 5 HP. Runs in wet or dry mode to pump preblended bagged material -- underlayment, mortar, grout -- up to 120 50-lb bags per hour.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Motor: 3 HP single-phase, turbo boost to 5 HP (4.5 HP max installed)
  • Output: Up to 120, 50-lb bags per hour
  • Material Flow: 0.25-0.6 cu ft/min dry mode, 0.08-0.6 cu ft/min wet mode
  • Hopper Volume: 2.65 cu ft
  • Net Weight: 350 lb
  • Retail Price: $17599


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

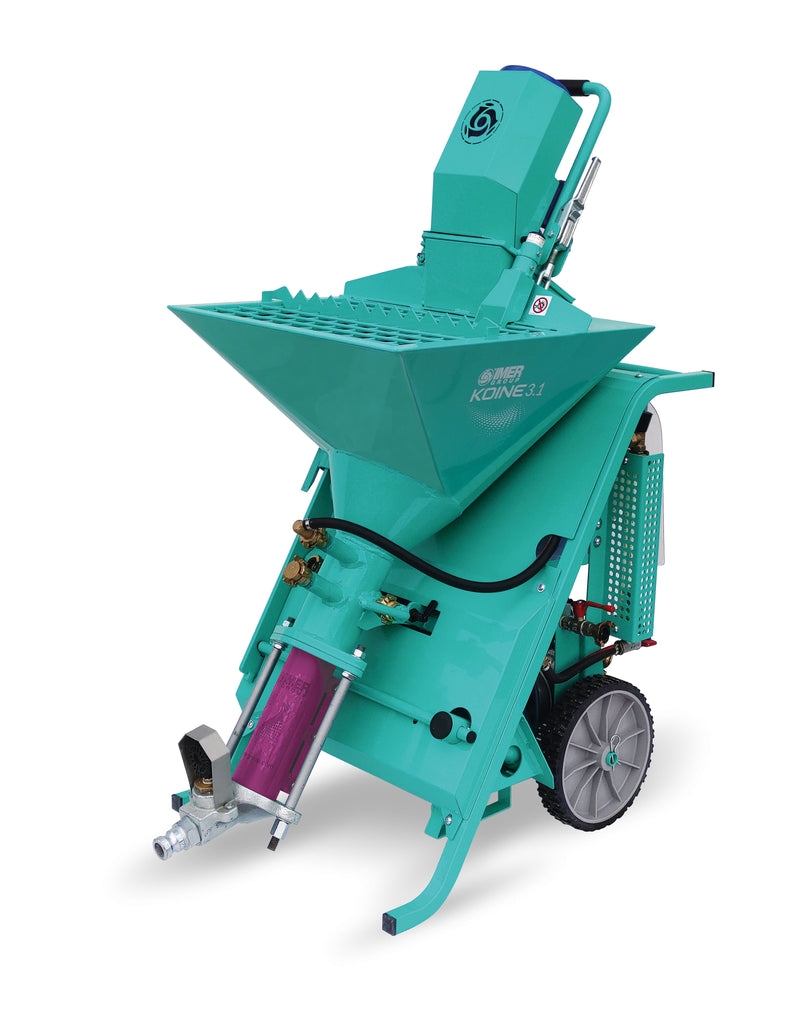

IMER's Koine 3.1 is a continuous pump built to feed bagged dry material -- underlayment, mortar, or grout -- straight from the bag into the hose, running on a single-phase 3 HP motor that turbo-boosts to 5 HP for higher demand. Inverter technology balances power draw and monitors electricity across 6 speed settings, and a 100% duty cycle rating means the motor is built to run all day rather than needing rest cycles.

The pump switches between dry mode (feeding bagged dry material directly) and wet mode (pouring in material already mixed by a separate mixer like the Mix 120), giving one machine the flexibility to work either way depending on the job. A self-priming water pump with a stainless housing and brass impeller handles water metering, and the hose and hopper rinse out fast when the job is done. This is built for crews who need one pump that handles feeding straight from bags on some jobs and finished mixed material on others, without owning two machines.

Common Applications

  • Pumping grouts and self-leveling underlayments
  • Spraying fireproofing, mortar and stucco base coat, or waterproofing and stucco finish coat

Selection Notes

  • Add the optional compressor to mix and spray up to 16 bags of fireproofing material per hour
  • Single-phase 240V only; the Koine Dual (3-phase or single-phase capable) is the step-up model for higher-volume work
Unit Specifications
Power supply
240V, 60Hz, single-phase
Motor
3 HP single-phase with turbo boost to 5 HP (4.5 HP max installed); mixer motor 2.9 HP, electric pump motor 0.6 HP
Material flow rate
Dry mode 0.25-0.6 cu ft/min; wet mode 0.08-0.6 cu ft/min
Hopper volume
2.65 cu ft
Loading height
39 in
Sound pressure level
Under 76 dB
Country of manufacture
Italy
Build
Components

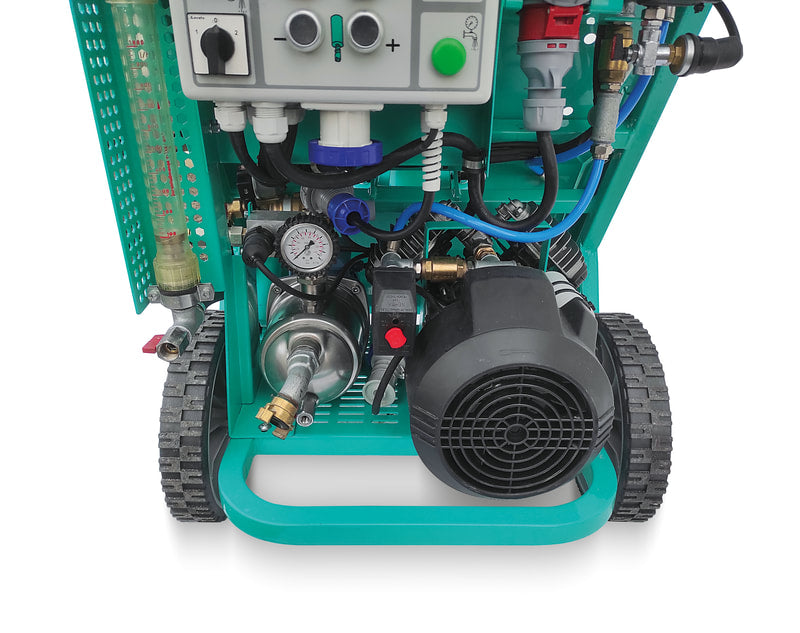

Self-priming water pump, stainless steel housing, brass impeller; turbo mixer kit with material delivery pressure gauge; includes D8-1.5 rotor/stator

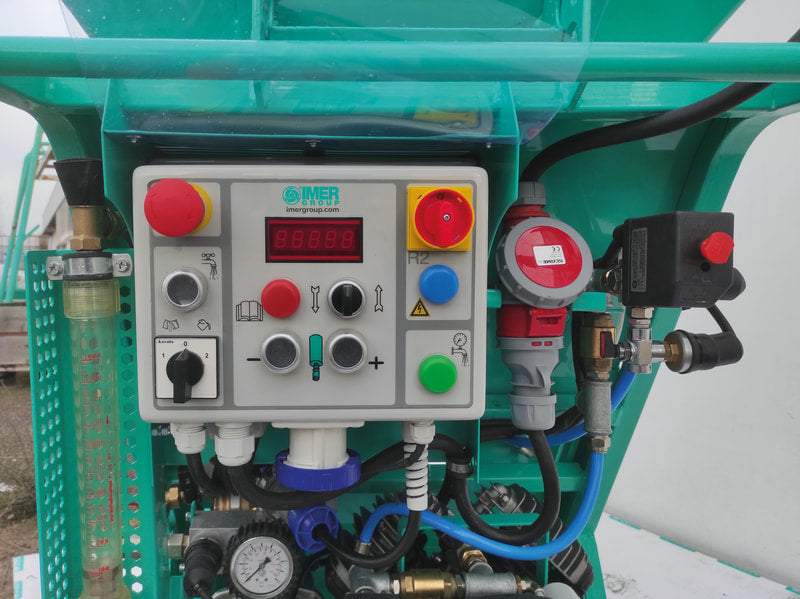

Control panel
6-speed inverter control panel, single-phase
Standard hoses
66 ft power cord; 66 ft water hose (3/4 in); 50 ft material hose (1 in)
Warranty
1 year limited
Net weight
350.5 lb (assembled)
Ship weight
507 lb, 31.5x63x67 in carton
Accessories (contact support@hardscapeheavy.com to order)
1107005 mortar/stucco/fireproofing gun kit; 1107010 stucco and fine coatings gun kit; 1107085/1107084 D5-2.5 rotor/stator (requires manifold 3223416); 1107637 dual-diaphragm compressor (optional, for spray applications)
Wet or dry mode
Feeds bagged dry material directly, or pumps material already mixed by a separate mixer -- one machine covers both workflows

Included with Purchase

  • 1 Koine 3.1 Pump
  • Turbo mixer kit with pressure gauge, self-priming water booster pump, water system with flow meter and drainage valves, 66 ft power cord, 66 ft water hose, 50 ft material hose, 35mm-25mm reducer, hose cleaning kit with toolbox

Not Included Unless Stated

  • Compressor (required for spray applications)
  • On-site installation or configuration

Note: Confirm exact included components with supplier at time of order.

Related Equipment

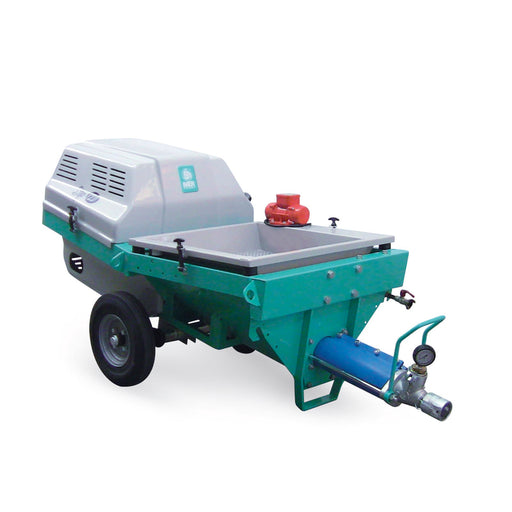

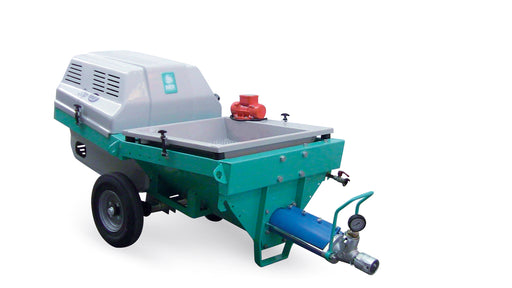

Step-Up 120 Pump | IMER

IMER
Original price $18,999.00 - Original price $18,999.00
Original price
$18,999.00
$18,999.00 - $18,999.00
Current price $18,999.00

Step-Up 120 towable mortar and grout pump, 7.5 HP 3-phase motor, pumps or sprays mortars, stuccos, grouts, and underlayments up to 3/8 in aggregate...

View full details
Original price $18,999.00 - Original price $18,999.00
Original price
$18,999.00
$18,999.00 - $18,999.00
Current price $18,999.00

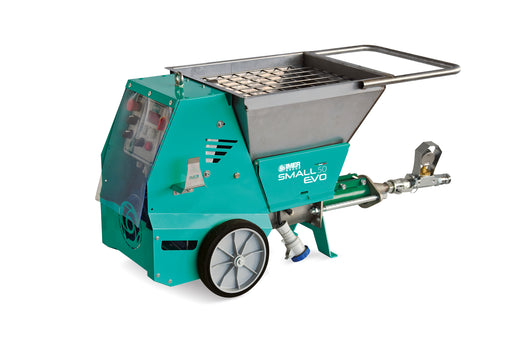

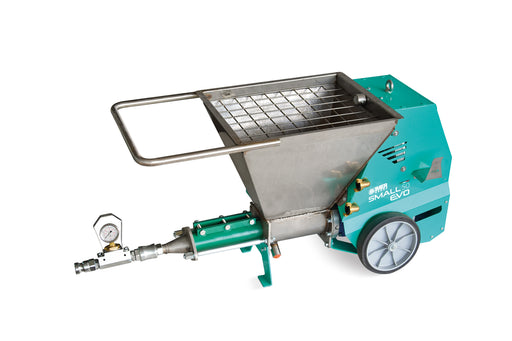

Mighty Small 50 Pump | IMER

IMER
Original price $9,199.00 - Original price $9,799.00
Original price
$9,199.00 - $9,799.00
$9,199.00 - $9,799.00
Current price $9,199.00

Mighty Small 50 portable mortar and plaster pump, a progressive cavity (screw) pump for pumping and spraying grout, mortar, stucco, and fireproofin...

View full details
Original price $9,199.00 - Original price $9,799.00
Original price
$9,199.00 - $9,799.00
$9,199.00 - $9,799.00
Current price $9,199.00

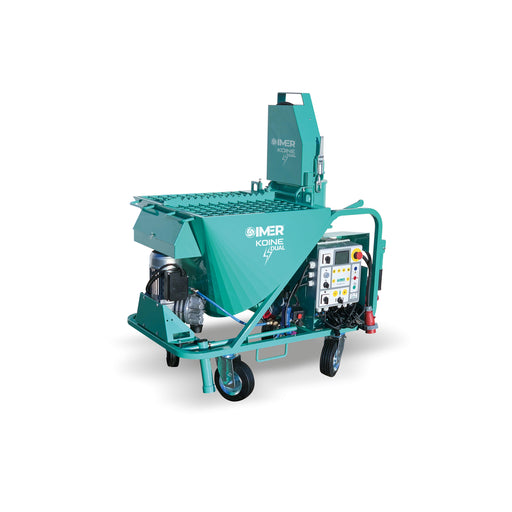

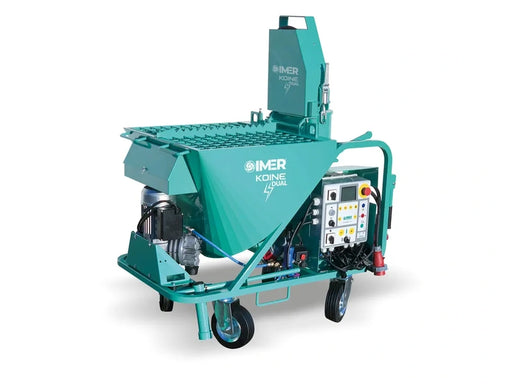

Koine Dual Pump | IMER
