Koine Dual Pump | IMER

Brand IMERSKU 1106312
Original price $24,999.00 - Original price $24,999.00
Original price
$24,999.00
$24,999.00 - $24,999.00
Current price $24,999.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

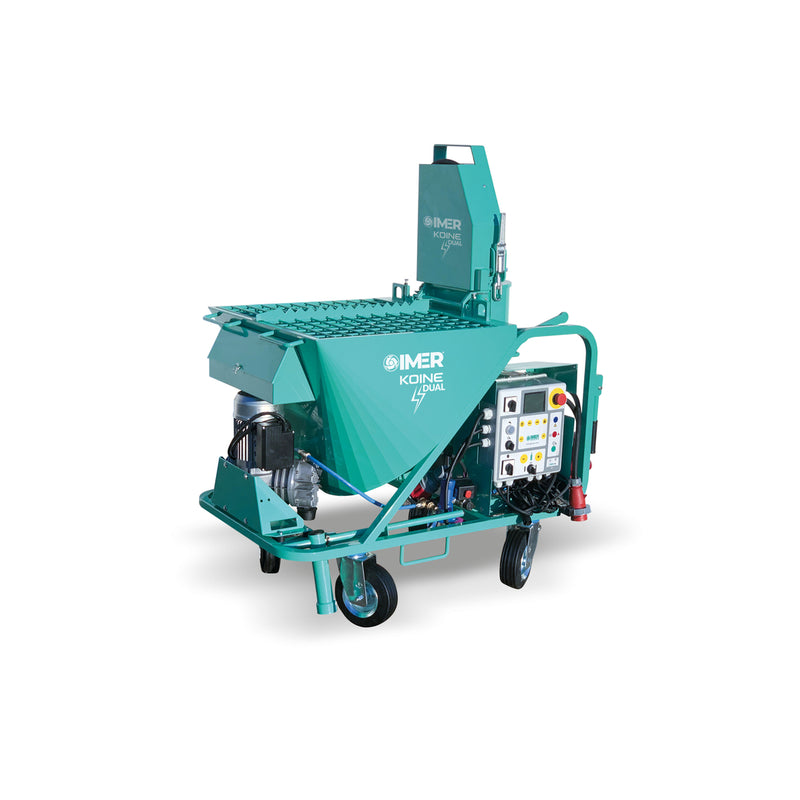

Koine Dual high-flow continuous mortar pump, runs on 208V 3-phase for full power or 240V single-phase up to speed 7 of 8. Pumps up to 275 bags per hour of underlayment or similar bagged material; includes an iDust dust grate and Bluetooth app connectivity.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Total Machine Power: 9 HP (7.5 HP drive motor)
  • Output: Up to 275 bags per hour (SLU)
  • Material Flow: Up to 140 cu ft/hr
  • Power Supply: 208V 3-phase or 240V single-phase
  • Net Weight: 574 lb
  • Retail Price: $24999


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

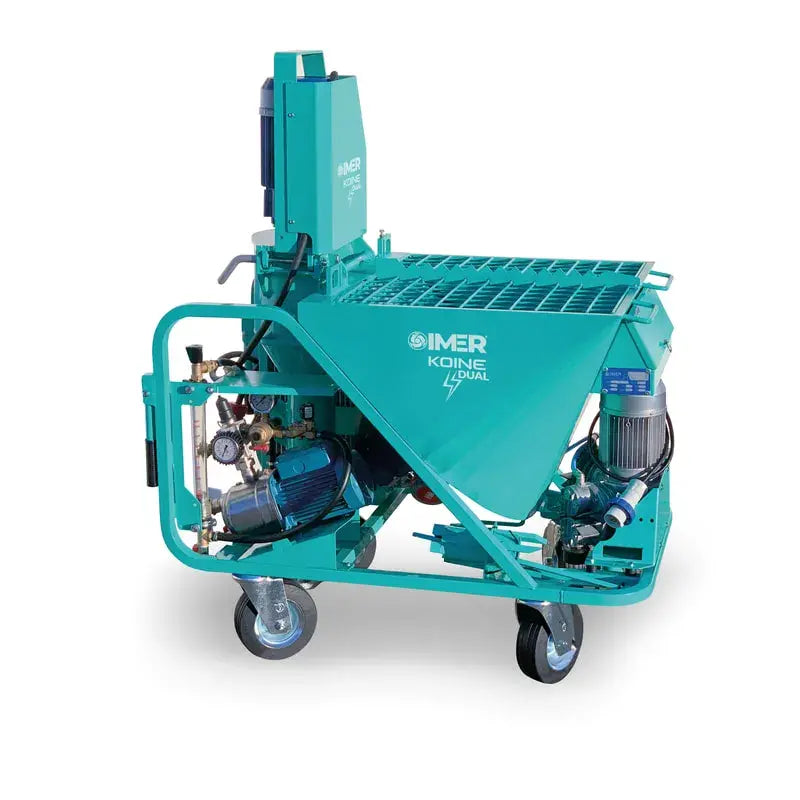

IMER's Koine Dual is a high-flow continuous pump built to mix and pump preblended bagged material -- grouts, underlayments, and similar products -- at up to 275 bags per hour. A 9 HP total system, with a 7.5 HP drive motor, runs on either 208V 3-phase for full power or 240V single-phase up to speed 7 of 8, so the same machine works on either service without a different model to buy.

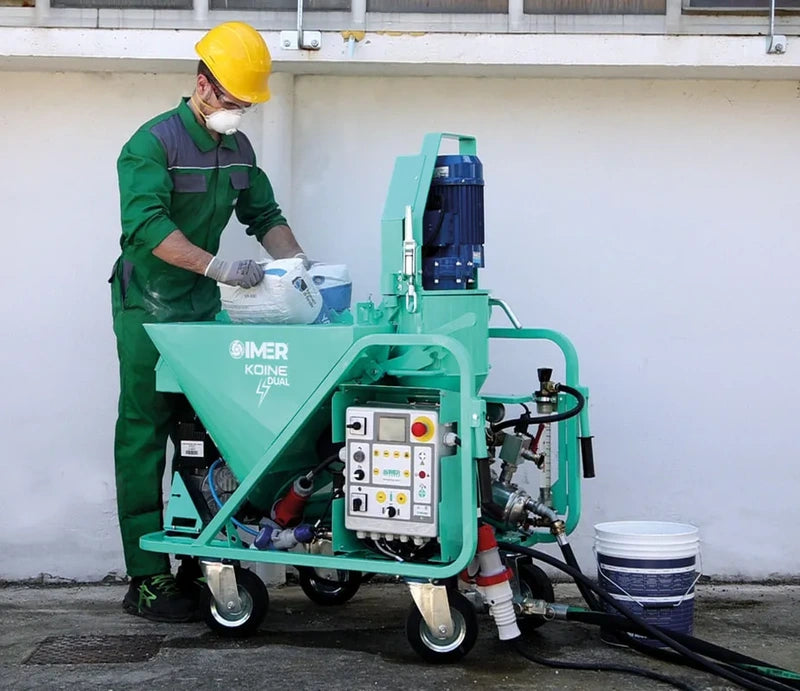

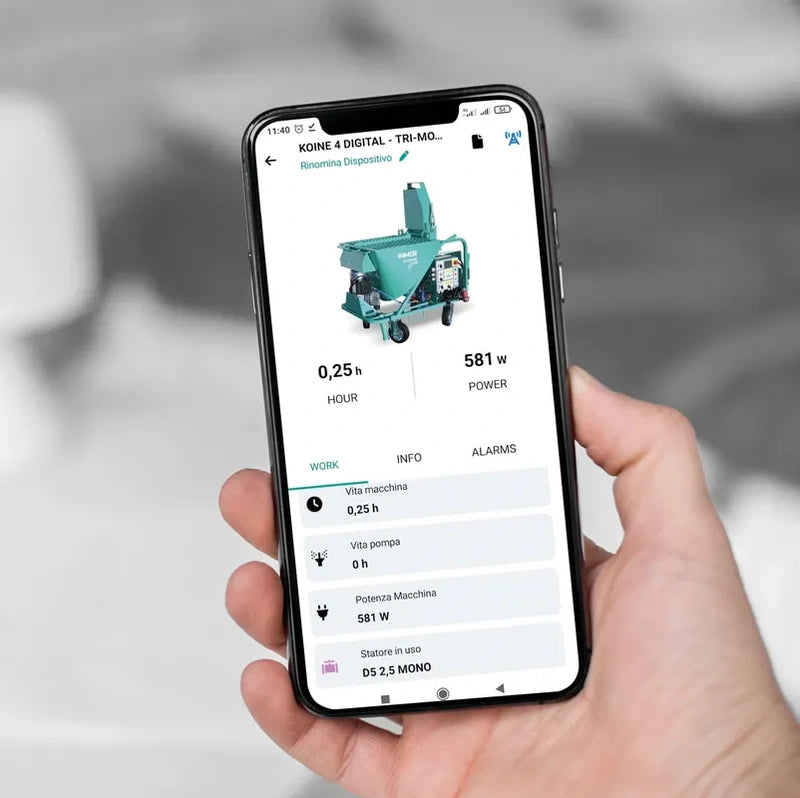

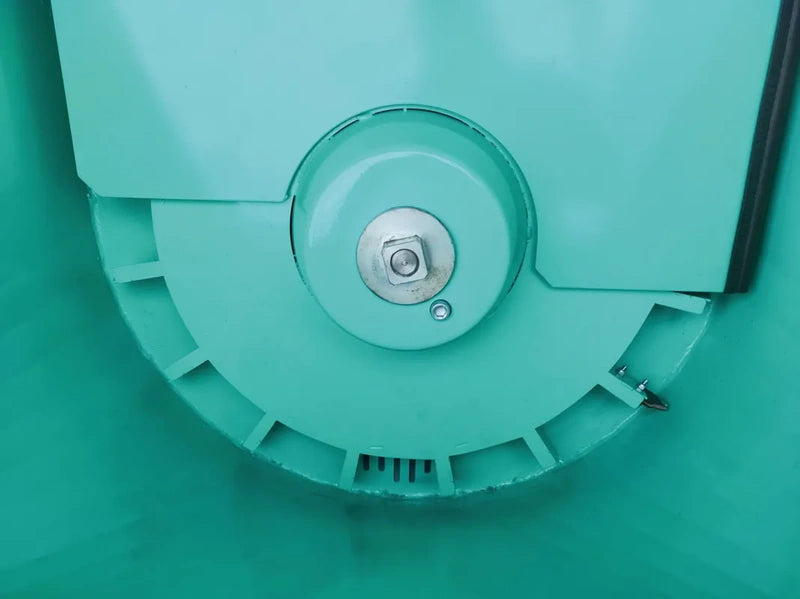

Feeding bagged material directly into the hopper drives the mixing chamber, where a high-shear paddle whips the material before a rotor-driven impeller pushes it into the hose. An included iDust dust grate attaches to a vacuum to pull dust downward and away from the operator, and the control panel connects to IMER's app over Bluetooth to store speed and mix recipes. This is built for crews pumping grouts and underlayments at higher volume than the single-phase Koine 3.1 handles, without being locked into one type of electrical service.

Common Applications

  • Pumping grouts and underlayments at higher volume than a single-phase-only pump
  • Spraying fireproofing, mortar and stucco base coat, or waterproofing and stucco finish coat

Selection Notes

  • Runs on 208V 3-phase (full power, 8 speeds) or 240V single-phase (up to speed 7 of 8) -- one machine covers both electrical services
  • The Koine 3.1 is the smaller, single-phase-only model for lower-volume work
Unit Specifications
Power supply
3-phase or single-phase, 208V/240V
Motor
9 HP total machine power; 7.5 HP drive motor, 1 HP feed impeller motor, 1 HP water pump
Material flow rate
Up to 140 cu ft/hr, up to 275 bags per hour (SLU)
Loading height
36 in
Sound pressure level
Under 76 dB
Country of manufacture
Italy
Build
Components
Self-priming water pump, stainless steel housing, brass impeller; high-shear mixing paddle up to 400 RPM; iDust dust grate with vacuum port; LED backlit status display; Bluetooth app connectivity with recipe storage

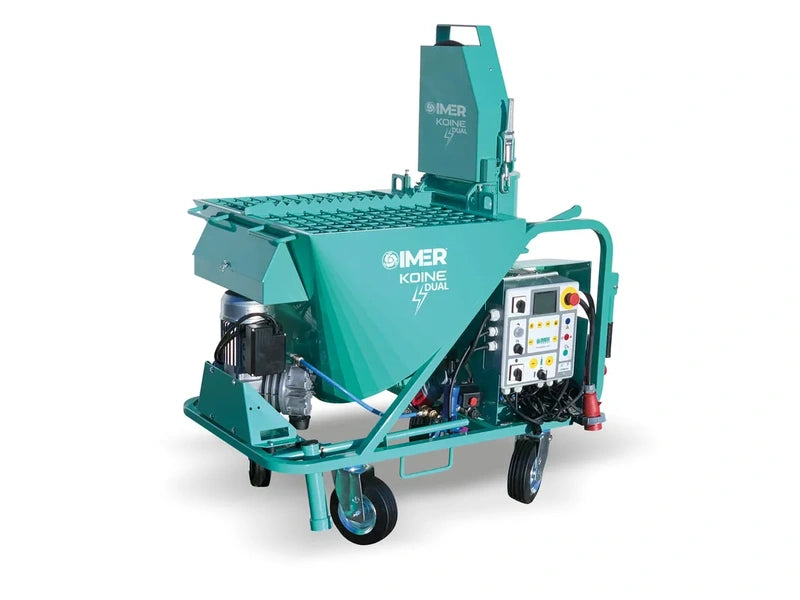

Control panel

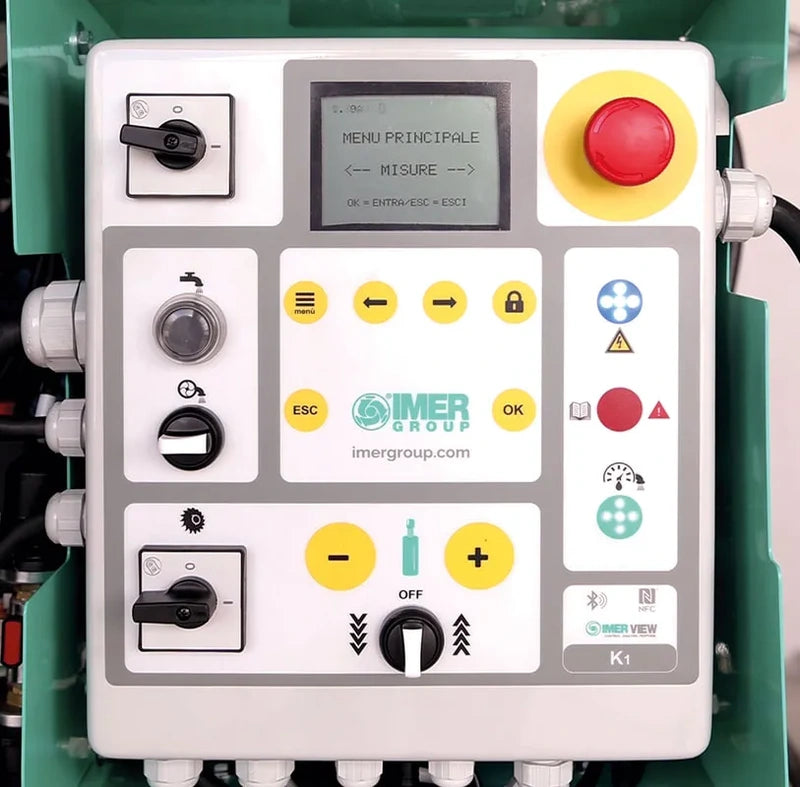

8-speed inverter control panel, 3-phase/single-phase
Standard hoses
133 ft power cord; 133 ft water hose (3/4 in); 33 ft material hose (1-3/8 in)
Warranty
1 year limited
Net weight
574 lb
Accessories (contact support@hardscapeheavy.com to order)

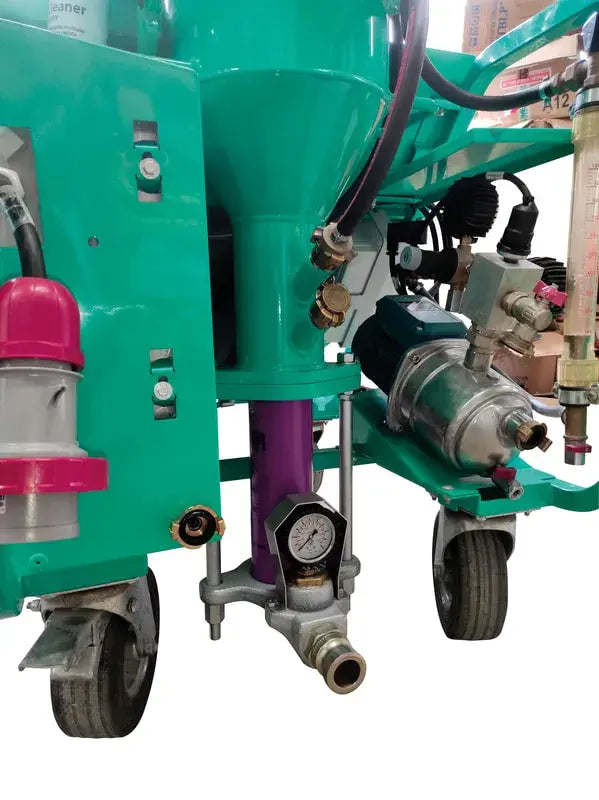

1107005 mortar/stucco/fireproofing gun kit; 1107010 stucco and fine coatings gun kit; 1107664/1107624 R7-1.5 rotor/stator; 1107637 dual-diaphragm compressor, single phase (optional, for spray applications)
iDust dust grate
Attaches to a vacuum to pull dust downward and away from the operator during feeding

Included with Purchase

  • 1 Koine Dual Pump
  • Turbo mixer kit with pressure gauge, dust grate with vacuum port, self-priming water booster pump, water system with flow meter and drainage valves, 133 ft power cord, 133 ft water hose, 33 ft material hose, 3-phase to single-phase adapter, hose cleaning kit with toolbox, mixing chamber clean-out tool

Not Included Unless Stated

  • Compressor (required for spray applications)
  • On-site installation or configuration

Note: Confirm exact included components with supplier at time of order.

Related Equipment

Step-Up 120 Pump | IMER

IMER
Original price $18,999.00 - Original price $18,999.00
Original price
$18,999.00
$18,999.00 - $18,999.00
Current price $18,999.00

Step-Up 120 towable mortar and grout pump, 7.5 HP 3-phase motor, pumps or sprays mortars, stuccos, grouts, and underlayments up to 3/8 in aggregate...

View full details
Original price $18,999.00 - Original price $18,999.00
Original price
$18,999.00
$18,999.00 - $18,999.00
Current price $18,999.00

Mighty Small 50 Pump | IMER

IMER
Original price $9,199.00 - Original price $9,799.00
Original price
$9,199.00 - $9,799.00
$9,199.00 - $9,799.00
Current price $9,199.00

Mighty Small 50 portable mortar and plaster pump, a progressive cavity (screw) pump for pumping and spraying grout, mortar, stucco, and fireproofin...

View full details
Original price $9,199.00 - Original price $9,799.00
Original price
$9,199.00 - $9,799.00
$9,199.00 - $9,799.00
Current price $9,199.00

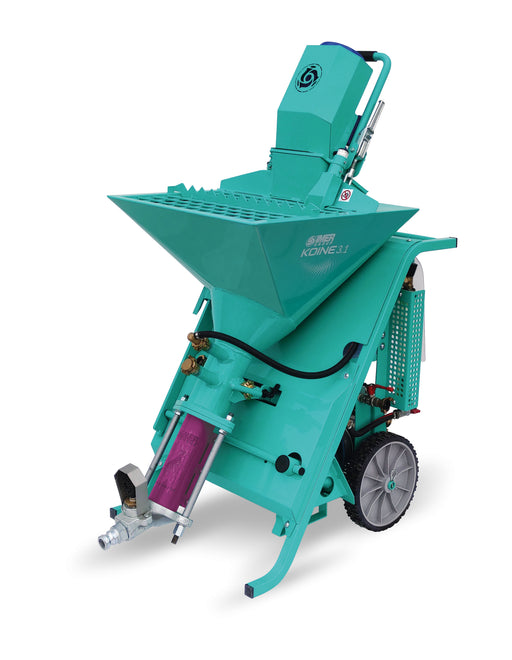

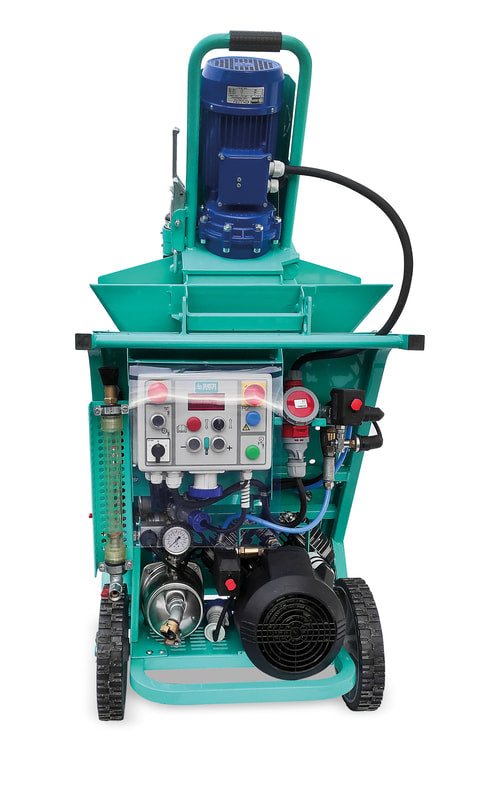

Koine 3.1 Pump | IMER
