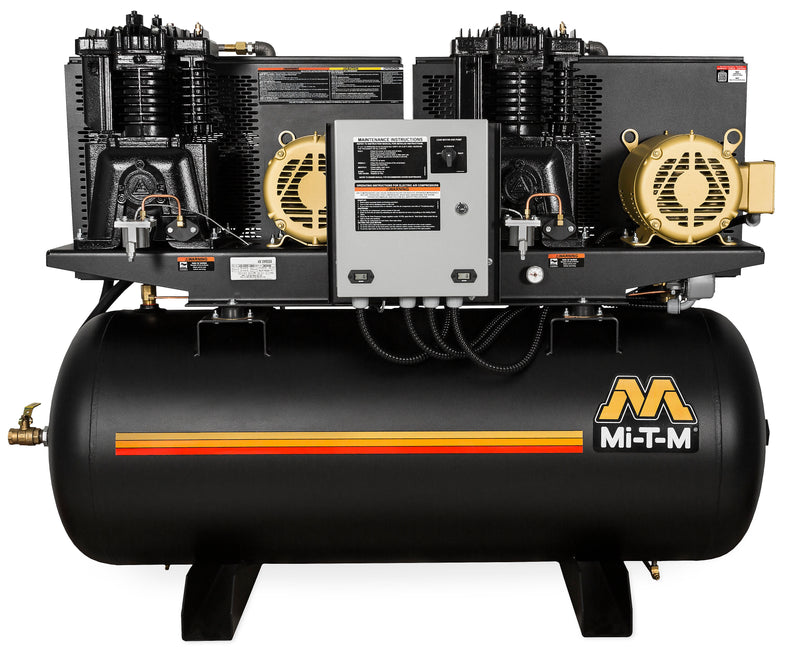

M-Series 120 Gallon Two Stage Electric Duplex Air Compressor | Mi-T-M

Brand Mi-T-MSKU ACD-23105-120HM
Original price $15,220.00 - Original price $27,110.00
Original price
$15,220.00
$15,220.00 - $27,110.00
Current price $15,220.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

M-Series two-stage electric stationary air compressor, duplex (two independent pump/motor assemblies on one 120-gallon ASME tank), with a 3-position switch to run either pump as lead or alternate automatically. 5 to 15 HP; 15 HP is three-phase only. Match HP and voltage/phase to the electrical service on site.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • CFM @ PSI: 36.0 to 93.0 @ 175 depending on HP
  • Motor: 5.0, 7.5, 10.0, or 15.0 HP per pump; 230V single-phase, or 200V/230V/460V three-phase
  • Configuration: Duplex, two independent pump/motor assemblies, 3-position lead/lag switch
  • Tank: 120-gallon ASME receiver
  • Certification: ASME Boiler and Pressure Vessel Code - U
  • Net Weight: 881-1646 lb depending on HP and voltage/phase
  • Retail Price: $15220-$27110 depending on HP and voltage/phase


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

Mi-T-M's M-Series duplex air compressor runs two independent pump/motor assemblies on a single 120-gallon ASME tank, controlled by a 3-position switch: compressor 1 as lead, compressor 2 as lead, or automatic alternating between the two. That gives a shop the option to run on one pump while the other is available as backup or out for service, rather than losing air entirely. Start/stop control covers two separate pressure ranges rather than one, matching the lead/lag operation.

The same four features that set the M-Series simplex line apart carry over here: an air-cooled aftercooler that removes up to 65% of moisture and drops air temperature within 10°F of ambient, a low oil sensor that won't let a pump start if its oil runs low, an automatic tank drain, and vibration isolator pads. HP and voltage/phase are the core decision, same as the simplex line: 5.0 through 15.0 HP per pump, with 15 HP offered in three-phase only.

Common Applications

  • Fixed, high-volume compressed air where uptime matters, since one pump can keep running air while the other is serviced
  • Shops that need more total air capacity than a single-pump simplex unit provides at the same tank size

Selection Notes

  • HP and voltage/phase must match the electrical service available on site; 15 HP is three-phase only, with no single-phase option
  • The 3-position switch lets either pump lead or the two alternate automatically, rather than running as a fixed single unit
  • Replacement pump part numbers are shared with the simplex line (ACS/ADS/AES), matched by HP tier
Unit Specifications
Motor options
5.0, 7.5, 10.0, or 15.0 HP per pump, industrial low RPM motor, magnetic start for thermal overload protection
Voltage/Phase options
230V single-phase, or 200V/230V/460V three-phase; 15 HP is three-phase only
Configuration
Duplex - two independent pump/motor assemblies on one tank
Certification
ASME Boiler and Pressure Vessel Code - U
Build
Compressor pump
Cast iron compressor pump (x2), splash lubricated, stainless-steel braided discharge hose, large cartridge intake filter, oil level sight indicator
Frame
Powder coated ASME receiver tank, 3/16-inch base plate to reduce vibration, powder coated two-piece belt guard, removable base plate offers flexible installation
Components
ASME safety valves, tank pressure gauge, hour meter, large fly wheel, intake filter/silencer, tank shut-off valve, 3-position switch for lead/lag/alternating operation, start/stop control set at 110 to 140 PSI and 145 to 175 PSI
Aftercooler
Air-cooled, removes up to 65% of moisture and drops temperature within 10 degrees F of ambient
Low oil sensor
Prevents startup when oil levels fall below an adequate level
Tank drain
Automatic, drains liquid from the air receiver
Vibration isolation
Isolator pads protect the tank from stress
Warranty
1 year electric motor
HPVoltage/PhaseModelPump RPMShip WeightNet Weight
5.0 HP 230V, 1-Phase, 46.0A ACD-23105-120HM 860 1073 lb 969 lb
5.0 HP 200V, 3-Phase, 32.2A ACD-20305-120HM 860 1013 lb 909 lb
5.0 HP 230V, 3-Phase, 27.6A ACD-23305-120HM 860 985 lb 881 lb
5.0 HP 460V, 3-Phase, 13.8A ACD-46305-120HM 860 985 lb 881 lb
7.5 HP 230V, 1-Phase, 62.0A ACD-23175-120HM 1250 1109 lb 1005 lb
7.5 HP 200V, 3-Phase, 46.0A ACD-20375-120HM 1250 1151 lb 1047 lb
7.5 HP 230V, 3-Phase, 40.0A ACD-23375-120HM 1250 1029 lb 925 lb
7.5 HP 460V, 3-Phase, 20.0A ACD-46375-120HM 1250 1029 lb 925 lb

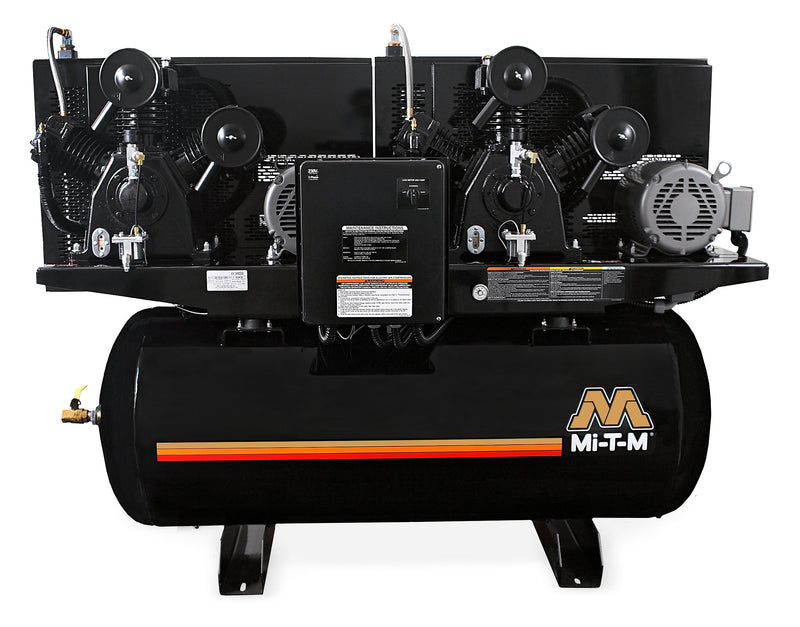

10.0 HP 230V, 1-Phase, 78.0A ADD-23110-120HM 990 1433 lb 1283 lb
10.0 HP 200V, 3-Phase, 61.6A ADD-20310-120HM 990 1393 lb 1243 lb
10.0 HP 230V, 3-Phase, 53.6A ADD-23310-120HM 990 1373 lb 1223 lb
10.0 HP 460V, 3-Phase, 26.8A ADD-46310-120HM 990 1373 lb 1223 lb

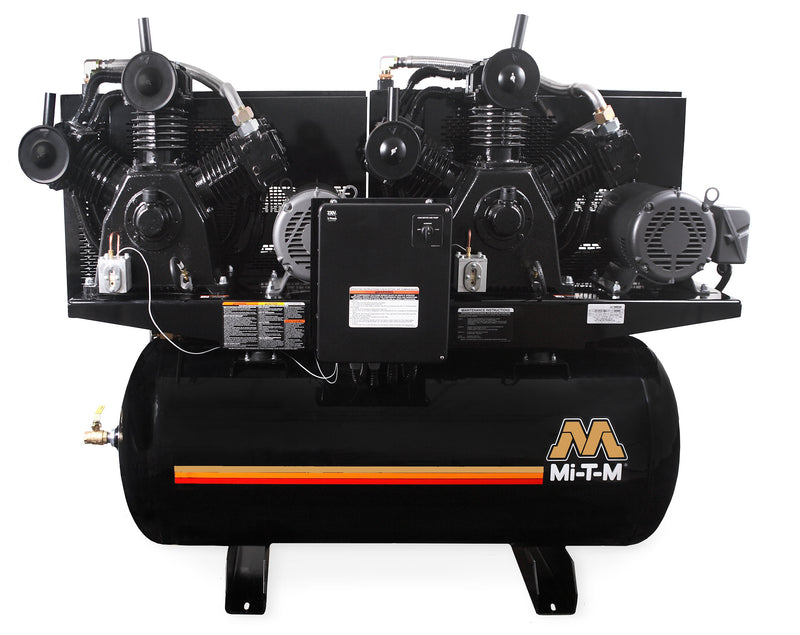

15.0 HP 200V, 3-Phase, 88.0A AED-20315-120HM 810 1796 lb 1646 lb
15.0 HP 230V, 3-Phase, 76.0A AED-23315-120HM 810 1766 lb 1616 lb
15.0 HP 460V, 3-Phase, 38.0A AED-46315-120HM 810 1766 lb 1616 lb
Accessories: To order any of these accessories, contact support@hardscapeheavy.com
Part NumberDescriptionFits
3-0312 Replacement pump ACS models
3-0313 Replacement pump ADS models
3-0314 Replacement pump AES models
3-position lead/lag switch
Runs either pump as lead or alternates automatically between them, so one pump can keep running air while the other is serviced
Air-cooled aftercooler
Removes up to 65% of moisture and drops air temperature within 10 degrees F of ambient before it reaches downstream tools

Included with Purchase

  • 1 M-Series Duplex Air Compressor (HP and voltage/phase as ordered)
  • ASME safety valves, tank pressure gauge, hour meter, automatic tank drain, 3-position lead/lag switch

Not Included Unless Stated

  • On-site installation or electrical hookup

Note: Confirm exact included components with supplier at time of order.
