M-Series 80-120 Gallon Two Stage Electric Simplex Air Compressor | Mi-T-M

Brand Mi-T-MSKU ACS-23105-80HM
Original price $8,541.00 - Original price $15,204.00
Original price
$8,847.00
$8,541.00 - $15,204.00
Current price $8,847.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

M-Series two-stage electric stationary air compressor, single-pump (simplex), 80 or 120-gallon ASME tank. Horizontal orientation spans 5 to 15 HP; vertical orientation is 80-gallon only, up to 7.5 HP, ships in two pieces requiring assembly unless the pre-assembled option is ordered. Match HP and voltage/phase to the electrical service on site.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • CFM @ PSI: 18.0 to 46.5 @ 175 depending on HP, horizontal; 18.0 to 23.5 @ 175, vertical
  • Motor: 5.0, 7.5, 10.0, or 15.0 HP; 230V single-phase, or 200V/230V/460V three-phase
  • Tank: 80-gallon (5.0/7.5 HP) or 120-gallon (10.0/15.0 HP), horizontal only at 120-gallon
  • Certification: ASME Boiler and Pressure Vessel Code - U
  • Net Weight: 542-1058 lb depending on configuration
  • Retail Price: $8541-$15204 depending on configuration


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

Mi-T-M's M-Series simplex air compressor is a single-pump stationary unit built for a fixed installation in a shop or industrial workspace, with a cast iron pump on an ASME-certified receiver tank. Four features set this line apart from Mi-T-M's portable compressors: an air-cooled aftercooler that removes up to 65% of moisture and drops air temperature within 10°F of ambient, a low oil sensor that won't let the unit start if oil runs low, a tank drain that automatically clears liquid from the receiver, and vibration isolator pads that protect the tank from stress.

HP and voltage/phase are the core decision: 5.0 and 7.5 HP models run on an 80-gallon tank, 10.0 and 15.0 HP step up to 120-gallon, and each HP tier is available across a mix of 230V single-phase and 200V/230V/460V three-phase service, except 15 HP, which is three-phase only. Orientation is the second decision: horizontal is available across the full HP range, while vertical tops out at 7.5 HP on the 80-gallon tank and is meant for shops tight on floor space. Vertical models ship in two pieces requiring on-site assembly unless the IX-0070 pre-assembled option is ordered.

Common Applications

  • Fixed, high-volume compressed air for an industrial shop or workspace
  • Vertical orientation for facilities with limited floor space, at 80-gallon capacity and up to 7.5 HP

Selection Notes

  • HP and voltage/phase must match the electrical service available on site; 15 HP is three-phase only, with no single-phase option
  • Vertical orientation is capped at 7.5 HP and 80-gallon tank size; horizontal is the only option at 10 and 15 HP or 120-gallon
  • Vertical models ship in two pieces and require assembly unless the IX-0070 pre-assembled option is ordered with the unit
Unit Specifications
Motor options
5.0, 7.5, 10.0, or 15.0 HP industrial low RPM motor, magnetic start for thermal overload protection
Voltage/Phase options
230V single-phase, or 200V/230V/460V three-phase, varies by HP tier
Certification
ASME Boiler and Pressure Vessel Code - U
Build
Compressor pump
Cast iron compressor pump, splash lubricated, stainless-steel braided discharge hose, large cartridge intake filter, oil level sight indicator
Frame
Powder coated ASME receiver tank, 3/16-inch base plate to reduce vibration, powder coated two-piece belt guard, removable base plate offers flexible installation
Components
ASME safety valves, tank pressure gauge, hour meter, large fly wheel, intake filter/silencer, tank shut-off valve, start/stop control set at 145 to 175 PSI
Aftercooler
Air-cooled, removes up to 65% of moisture and drops temperature within 10 degrees F of ambient
Low oil sensor
Prevents startup when oil levels fall below an adequate level
Tank drain
Automatic, drains liquid from the air receiver
Vibration isolation
Isolator pads protect the tank from stress
Warranty
1 year electric motor
Machine Notes
Vertical model shipping
Shipped in two separate pieces; assembly is required unless the IX-0070 pre-assembled option is ordered with the unit

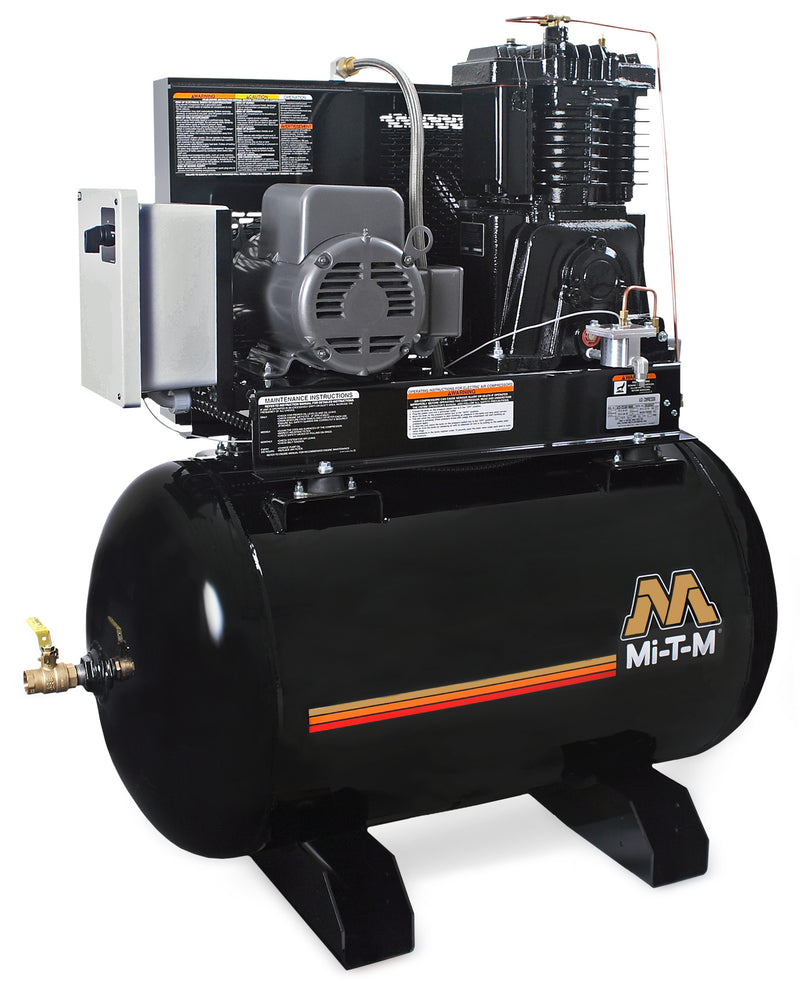

Horizontal Models
HPVoltage/PhaseModelPump RPMTank SizeShip WeightNet Weight
5.0 HP 230V, 1-Phase, 23.0A ACS-23105-80HM 860 80-gallon 690 lb 586 lb
5.0 HP 200V, 3-Phase, 16.1A ACS-20305-80HM 860 80-gallon 660 lb 556 lb
5.0 HP 230V, 3-Phase, 13.8A ACS-23305-80HM 860 80-gallon 646 lb 542 lb
5.0 HP 460V, 3-Phase, 6.9A ACS-46305-80HM 860 80-gallon 646 lb 542 lb

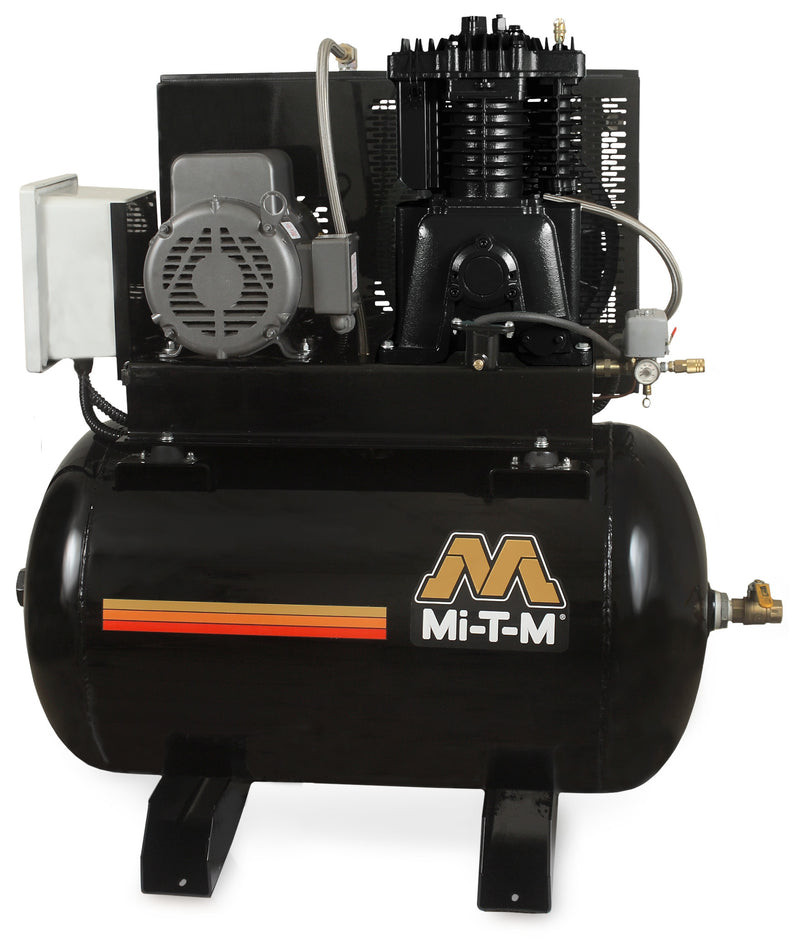

7.5 HP 230V, 1-Phase, 31.0A ACS-23175-80HM 1250 80-gallon 708 lb 604 lb
7.5 HP 200V, 3-Phase, 23.0A ACS-20375-80HM 1250 80-gallon 679 lb 575 lb
7.5 HP 230V, 3-Phase, 20.0A ACS-23375-80HM 1250 80-gallon 668 lb 564 lb
7.5 HP 460V, 3-Phase, 10.0A ACS-46375-80HM 1250 80-gallon 668 lb 564 lb
10.0 HP 230V, 1-Phase, 39.0A ADS-23110-120HM 990 120-gallon 1016 lb 866 lb
10.0 HP 200V, 3-Phase, 30.8A ADS-20310-120HM 990 120-gallon 996 lb 846 lb
10.0 HP 230V, 3-Phase, 26.8A ADS-23310-120HM 990 120-gallon 986 lb 836 lb

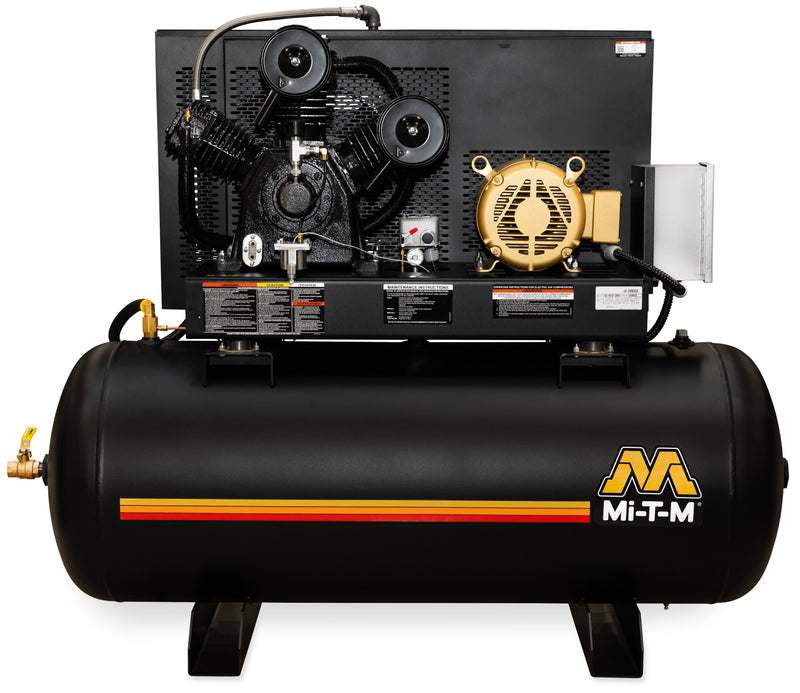

10.0 HP 460V, 3-Phase, 13.4A ADS-46310-120HM 990 120-gallon 986 lb 836 lb

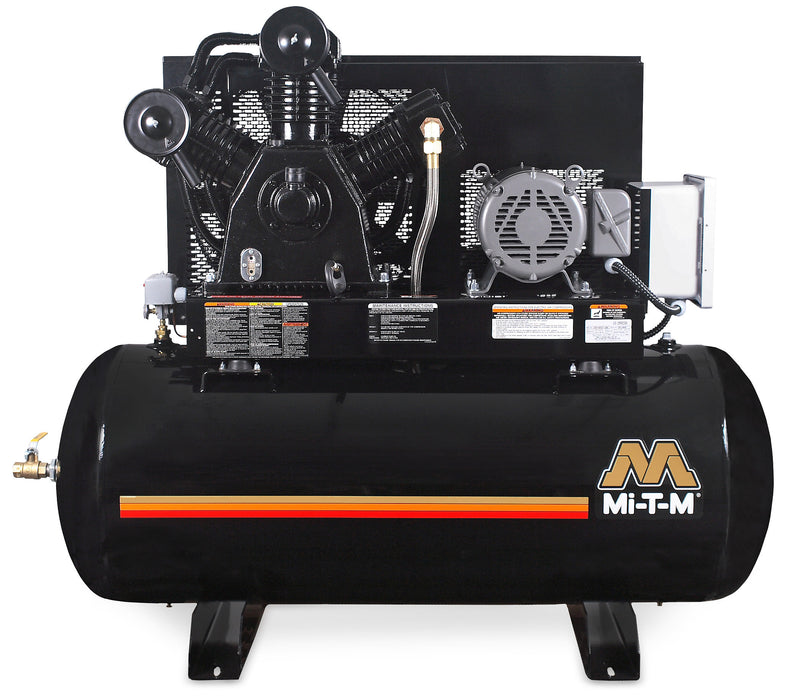

15.0 HP 200V, 3-Phase, 44.0A AES-20315-120HM 810 120-gallon 1208 lb 1058 lb
15.0 HP 230V, 3-Phase, 38.0A AES-23315-120HM 810 120-gallon 1193 lb 1043 lb
15.0 HP 460V, 3-Phase, 19.0A AES-46315-120HM 810 120-gallon 1193 lb 1043 lb

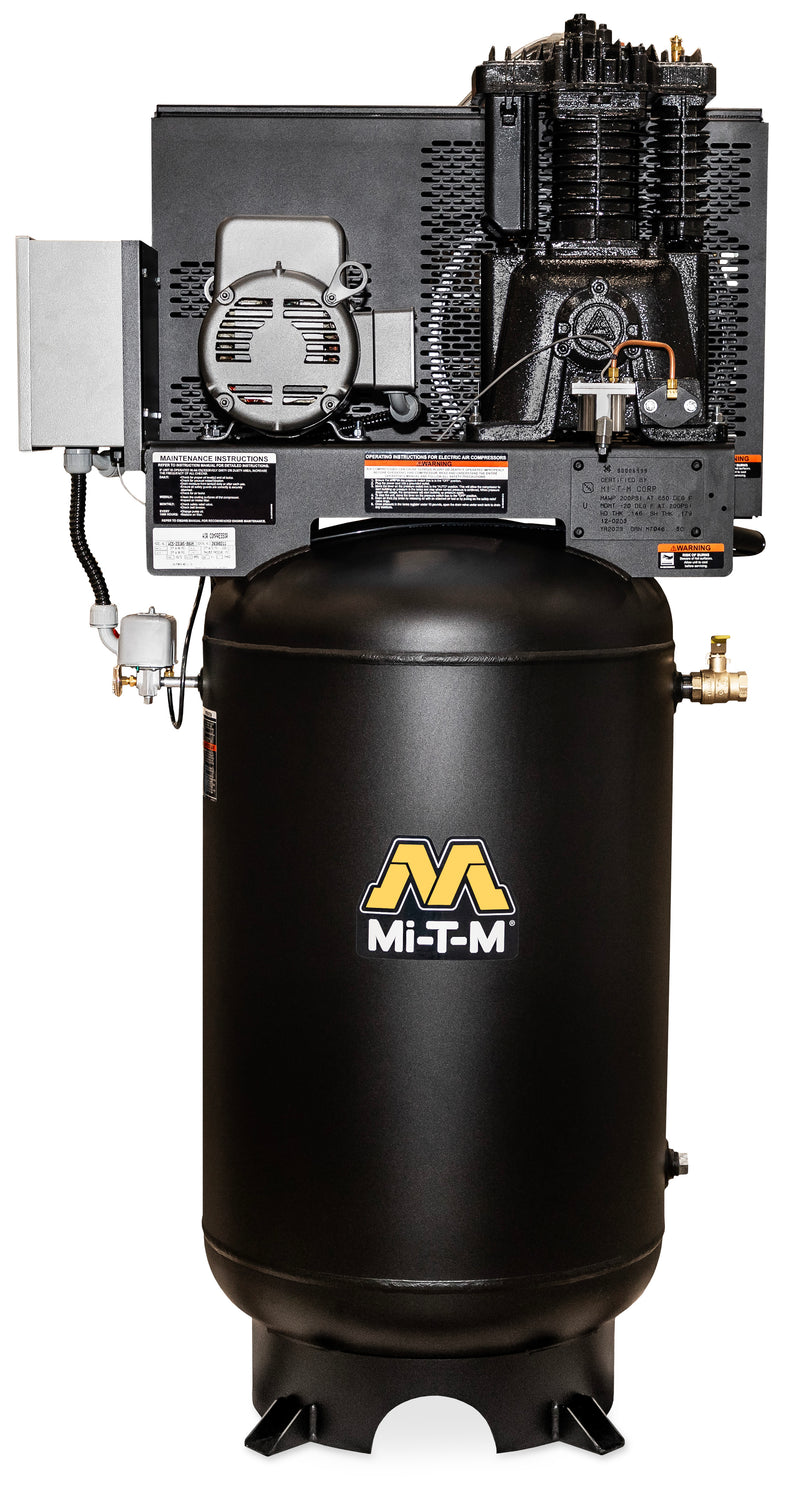

Vertical Models (80-gallon only, ships in two pieces)
HPVoltage/PhaseModelPump RPMShip WeightNet Weight
5.0 HP 230V, 1-Phase, 23.0A ACS-23105-80VM 860 696 lb 589 lb
5.0 HP 200V, 3-Phase, 16.1A ACS-20305-80VM 860 695 lb 588 lb
5.0 HP 230V, 3-Phase, 13.8A ACS-23305-80VM 860 695 lb 588 lb
5.0 HP 460V, 3-Phase, 6.9A ACS-46305-80VM 860 695 lb 588 lb

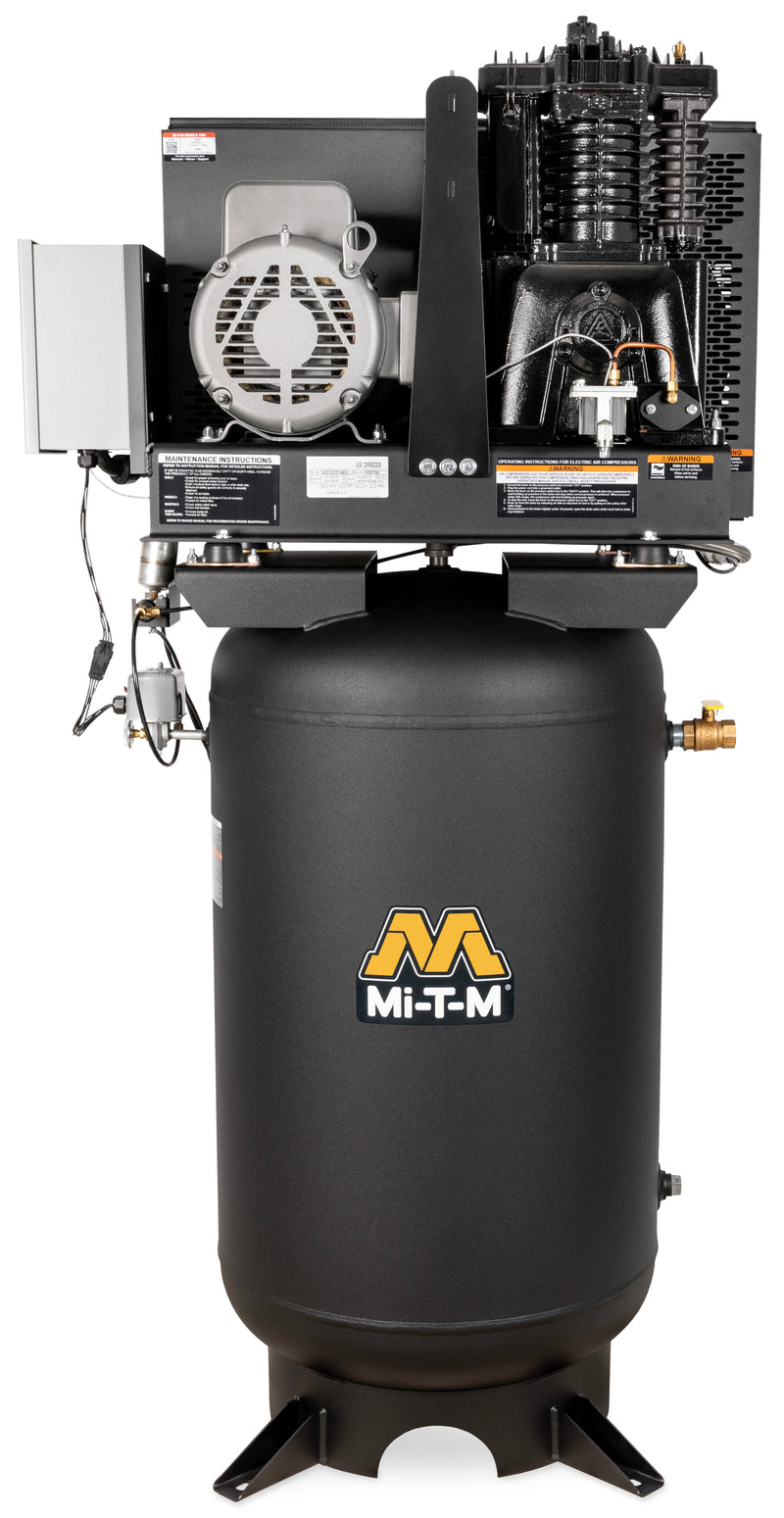

7.5 HP 230V, 1-Phase, 31.0A ACS-23175-80VM 1250 741 lb 634 lb
7.5 HP 200V, 3-Phase, 23.0A ACS-20375-80VM 1250 726 lb 619 lb
7.5 HP 230V, 3-Phase, 20.0A ACS-23375-80VM 1250 725 lb 618 lb
7.5 HP 460V, 3-Phase, 10.0A ACS-46375-80VM 1250 725 lb 618 lb
Accessories: To order any of these accessories, contact support@hardscapeheavy.com
Part NumberDescriptionFits
3-0312 Replacement pump ACS models
3-0313 Replacement pump ADS models
3-0314 Replacement pump AES models
IX-0070 Unit shipped pre-assembled, hat and tank sections combined for a ready-to-use unit (order-time option, cannot be added later) ACS vertical models only
Air-cooled aftercooler
Removes up to 65% of moisture and drops air temperature within 10 degrees F of ambient before it reaches downstream tools
Low oil sensor
Won't let the compressor start with low oil, protecting the pump from running dry

Included with Purchase

  • 1 M-Series Simplex Air Compressor (orientation, HP, and voltage/phase as ordered)
  • ASME safety valves, tank pressure gauge, hour meter, automatic tank drain

Not Included Unless Stated

  • Assembly of vertical models: ships in two pieces unless IX-0070 pre-assembled option is ordered
  • On-site installation or electrical hookup

Note: Confirm exact included components with supplier at time of order.
