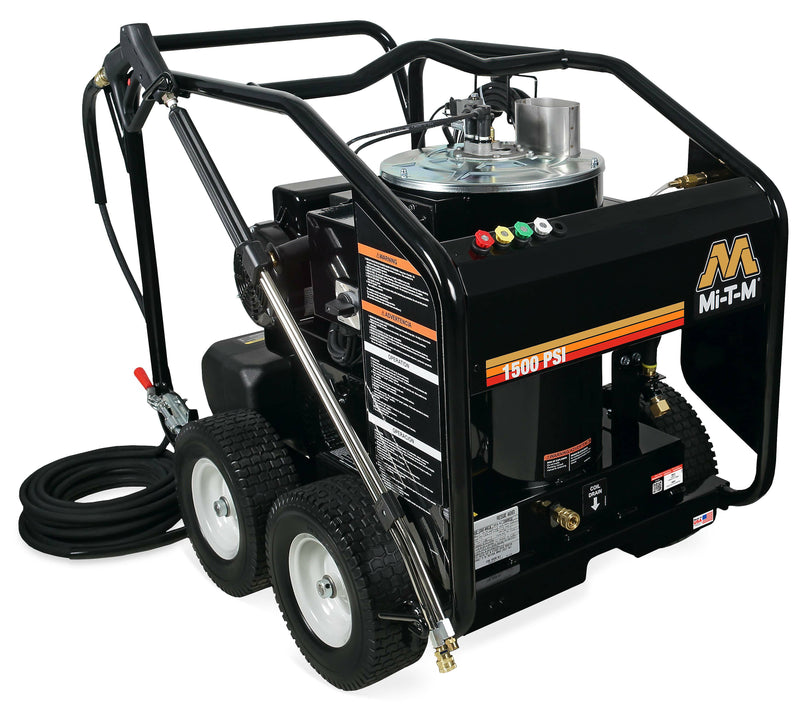

HSE Series Hot Water Pressure Washer | Mi-T-M

Brand Mi-T-MSKU HSE-1002-0MG10
Original price $6,415.00 - Original price $13,071.00
Original price
$6,981.00
$6,415.00 - $13,071.00
Current price $6,981.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

The Mi-T-M HSE Series is a portable electric hot water pressure washer built for melting away greasy residue and debris on construction sites, farms, mining operations, and industrial and commercial worksites. The line covers two drive types: direct-drive models for lower-pressure work, and belt-drive models that step up in pressure and carry more burner fuel for longer runtime between refills.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Type: Electric hot water pressure washer, direct drive or belt drive, portable
  • Pressure: 1000 to 4000 psi by model
  • Flow: 2.0 to 3.5 gpm by model
  • Motor: 1.5 to 10.0 HP; 120V, 230V, or 230 to 460V by model
  • Pump: General or Mi-T-M by model
  • Heat: Top-fired heat exchanger, diesel or kerosene burner, 169,000 to 294,000 BTU per hour by model
  • Temperature rise: 150 degrees F above ambient, up to 225 degrees F outlet
  • Warranty: 1 year motor, 3 year coil, 7 year pump
  • Net Weight: 237 to 631 lb by model


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The Mi-T-M HSE Series is a portable electric hot water pressure washer built for melting away greasy residue and debris on construction sites, farms, mining operations, and industrial and commercial worksites. It is built for crews who need hot water on the move from one job to the next, not a unit fixed to a wash bay.

An electric motor drives the pump and a diesel or kerosene burner heats the water, in a direct-drive line for lower-pressure work or a belt-drive line that steps up in pressure and carries more burner fuel for longer runtime between refills. Within direct drive, the 0MM11 models add a Mi-T-M Pressure Relief Start; within belt drive, the three-phase 0M30 models can be factory-upgraded to run on 460V. This is for crews melting away grease and baked-on residue on-site, not hauling equipment to a fixed wash bay.

Common Applications

  • Melting away grease, oil, and baked-on residue
  • Hot-water cleaning on construction sites, farms, mining, and oil fields
  • Equipment and surface cleaning on industrial and commercial worksites

Selection Notes

  • Two drive types in one line. Direct-drive models run 1000 to 2000 psi at 2.0 to 2.8 gpm (HSE-1002, HSE-1502, HSE-2003). Belt-drive models run 2500 to 4000 psi at 3.2 to 3.5 gpm (HSE-2504, HSE-3004, HSE-3504, HSE-4004) and carry a larger burner fuel tank for longer runtime between refills.
  • Direct-drive models come with a General pump (0MG10) or a Mi-T-M pump (0MM11); the 0MM11 models add a Mi-T-M Pressure Relief Start. Belt-drive models use a General pump and come as a single-phase 230V model (0M10) or a three-phase 230 to 460V model (0M30), with 460V available as a factory option on the three-phase models.
  • The burner runs on No. 1 or No. 2 diesel or kerosene and is not approved for bio-fuel. Temperature rise is 150 degrees F above ambient, up to a 225 degrees F outlet across the range.
Build
Frame
Reinforced powder-coated steel frame with a center-balanced lift and 13 in flat-free tires
Motor
Totally enclosed fan-cooled electric motor with manual thermal overload protection and a 35 ft power cord
Pump
General or Mi-T-M pump with a forged brass manifold and a factory preset unloader; belt drive with an external bypass system on the 2500 to 4000 psi models, direct drive on the 1000 to 2000 psi models; Mi-T-M Pressure Relief Start on the direct-drive 0MM11 models
Relief valve
Thermal relief valve
Detergent injector
High-pressure detergent injector, standard on the belt-drive and direct-drive 0MG10 models and optional on the direct-drive 0MM11 models
Heat exchanger
Energy-efficient top-fired heat exchanger
Burner
No. 1 or No. 2 diesel or kerosene fired burner, not approved for bio-fuel
Burner fuel tank
10.0 gallons on the belt-drive (2500 to 4000 psi) models, 4.0 gallons on the direct-drive (1000 to 2000 psi) models
Country of origin
Made in USA with globally sourced components
Unit Specifications
Water temperature
Hot water; temperature rise 150 degrees F (66 degrees C) above ambient, maximum outlet temperature 225 degrees F
Drive type
Direct drive on the 1000 to 2000 psi models, belt drive on the 2500 to 4000 psi models
Voltage options
The belt-drive three-phase 0M30 models run 230 to 460V; 460V is a factory option (HX-0085 on HSE-2504-0M30, HX-0086 on HSE-3004-0M30, HX-0087 on HSE-3504-0M30 and HSE-4004-0M30)
Certification
ETL Certified for the United States and Canada
Warranty
1 year electric motor, 3 year coil, 7 year General and Mi-T-M pumps
Models
ModelDrivePressureFlowMotorPumpNet Weight

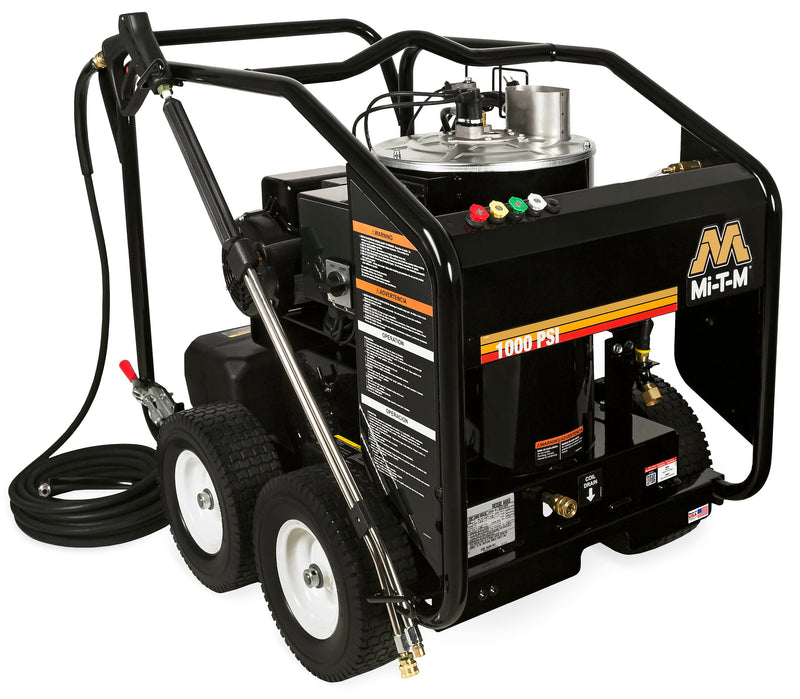

HSE-1002-0MG10 Direct 1000 psi 2.0 gpm 1.5 HP, 120V, 1-phase, 15.0A General 295 lb (134 kg)

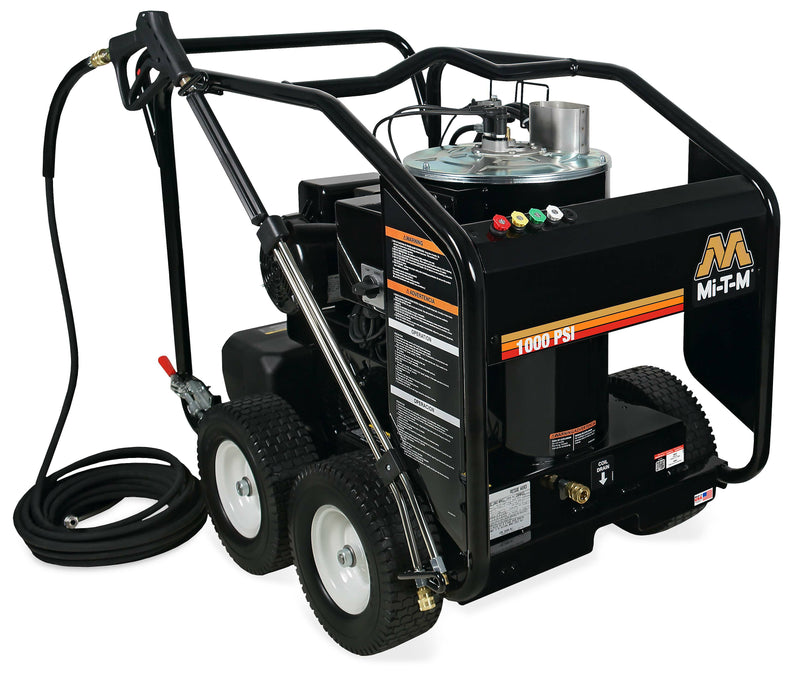

HSE-1002-0MM11 Direct 1000 psi 2.0 gpm 1.5 HP, 120V, 1-phase, 15.0A Mi-T-M 237 lb (108 kg)
HSE-1502-0MG10 Direct 1500 psi 2.0 gpm 2.0 HP, 120V, 1-phase, 19.0A General 299 lb (136 kg)

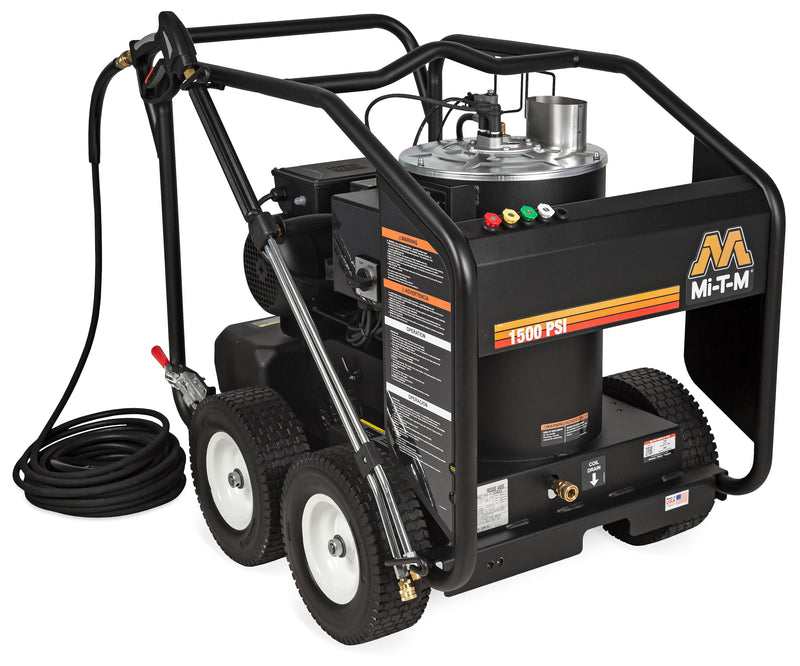

HSE-1502-0MM11 Direct 1500 psi 2.0 gpm 2.0 HP, 120V, 1-phase, 19.0A Mi-T-M 291 lb (132 kg)

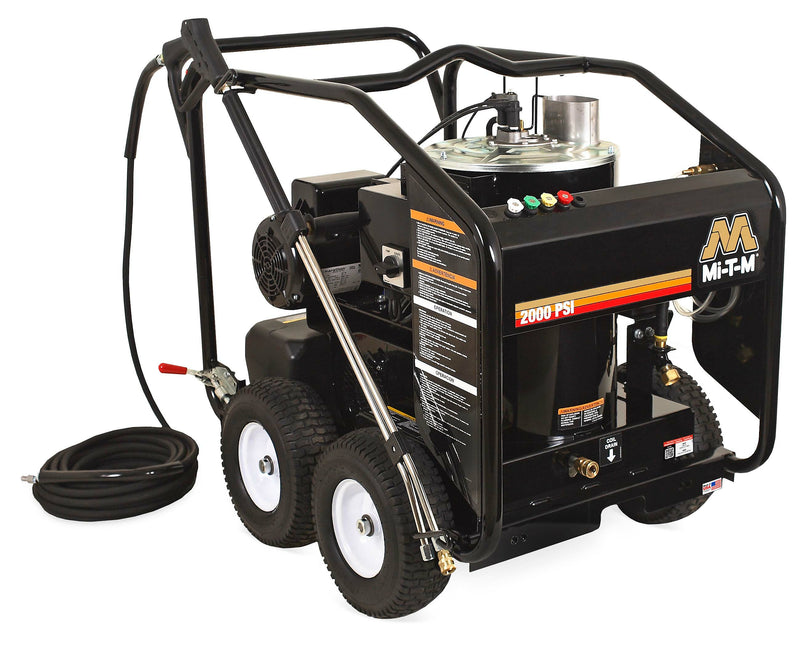

HSE-2003-0MG10 Direct 2000 psi 2.8 gpm 4.0 HP, 230V, 1-phase, 18.0A General 316 lb (143 kg)

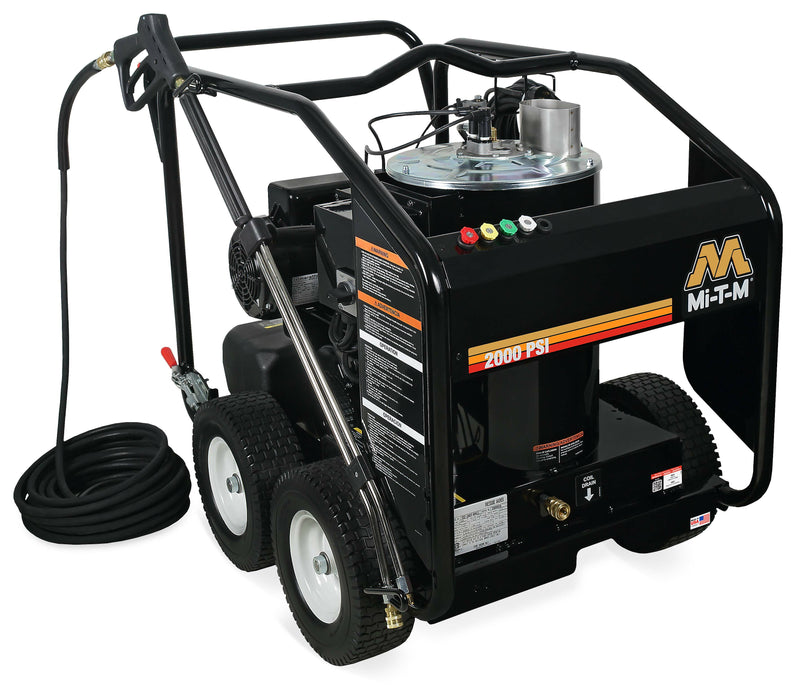

HSE-2003-0MM11 Direct 2000 psi 2.8 gpm 4.0 HP, 230V, 1-phase, 18.0A Mi-T-M 308 lb (140 kg)
HSE-2504-0M10 Belt 2500 psi 3.2 gpm 6.0 HP, 230V, 1-phase, 25.0A General 569 lb (258 kg)
HSE-2504-0M30 Belt 2500 psi 3.2 gpm 6.0 HP, 230-460V, 3-phase, 17.3A General 558 lb (253 kg)

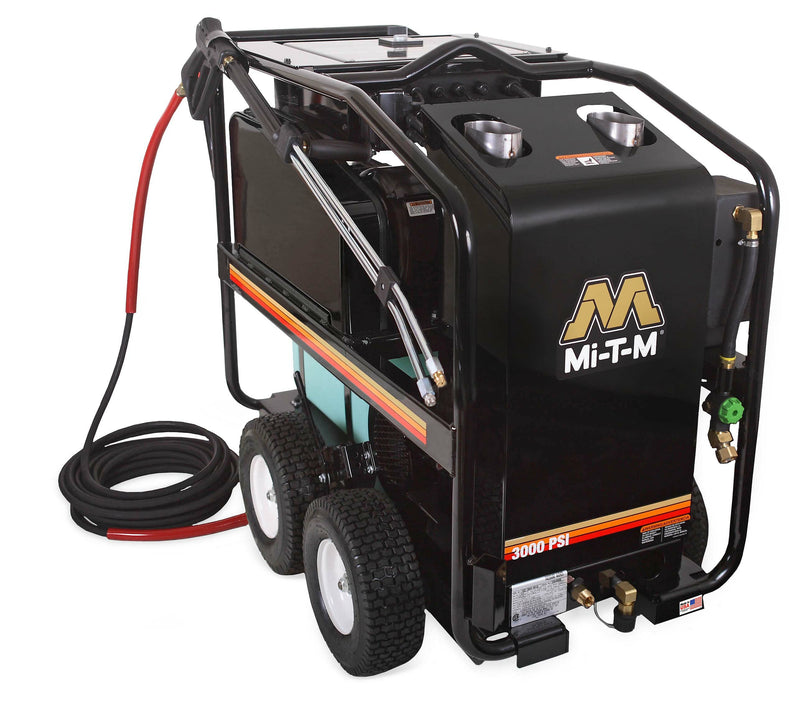

HSE-3004-0M10 Belt 3000 psi 3.5 gpm 8.0 HP, 230V, 1-phase, 36.0A General 607 lb (275 kg)
HSE-3004-0M30 Belt 3000 psi 3.5 gpm 8.0 HP, 230-460V, 3-phase, 24.0A General 602 lb (273 kg)
HSE-3504-0M10 Belt 3500 psi 3.3 gpm 10.0 HP, 230V, 1-phase, 39.0A General 631 lb (286 kg)

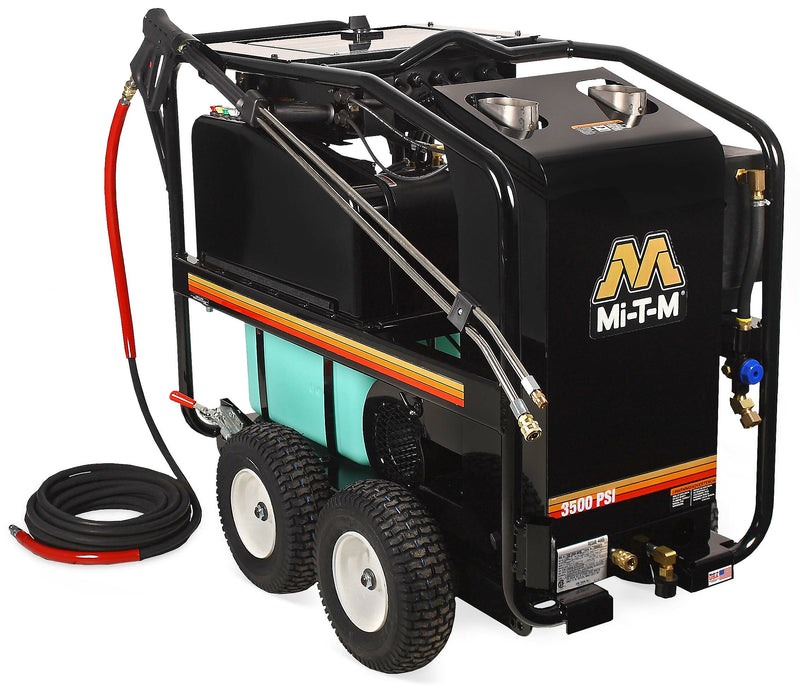

HSE-3504-0M30 Belt 3500 psi 3.3 gpm 10.0 HP, 230-460V, 3-phase, 28.0A General 612 lb (278 kg)

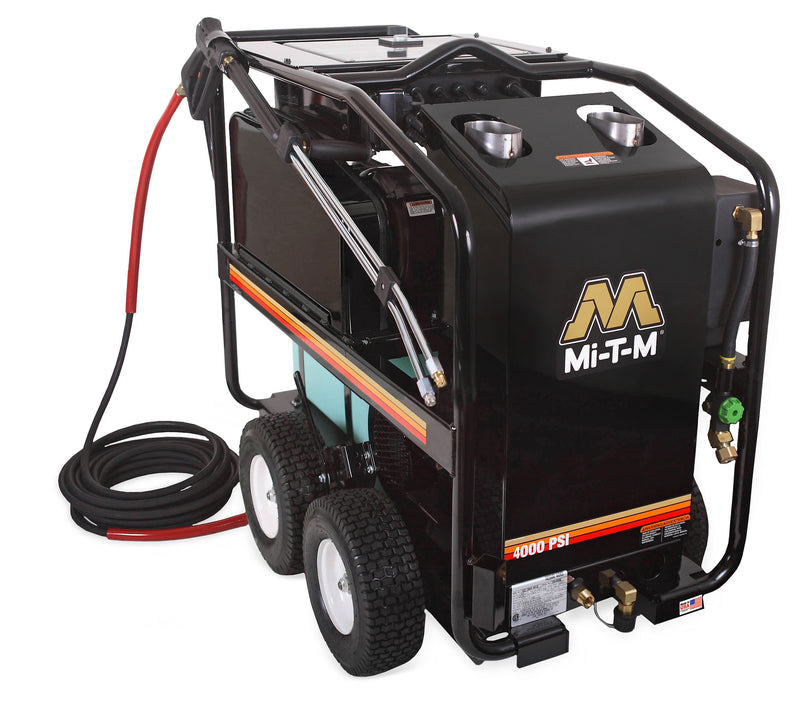

HSE-4004-0M10 Belt 4000 psi 3.5 gpm 10.0 HP, 230V, 1-phase, 39.0A General 631 lb (286 kg)
HSE-4004-0M30 Belt 4000 psi 3.5 gpm 10.0 HP, 230-460V, 3-phase, 28.0A General 612 lb (278 kg)
Burner and Electrical
ModelBTU per hourBurner fuel consumptionPlug type
HSE-1002-0MG10 186,000 1.33 gph NEMA 5-15P
HSE-1002-0MM11 186,000 1.33 gph NEMA 5-15P
HSE-1502-0MG10 169,000 1.21 gph NEMA 5-20P
HSE-1502-0MM11 169,000 1.21 gph NEMA 5-20P
HSE-2003-0MG10 207,200 1.48 gph NEMA 6-20P
HSE-2003-0MM11 207,200 1.48 gph NEMA 6-20P
HSE-2504-0M10 294,000 2.10 gph NEMA 6-30P
HSE-2504-0M30 294,000 2.10 gph NEMA L15-20P
HSE-3004-0M10 294,000 2.10 gph NEMA 6-50P
HSE-3004-0M30 294,000 2.10 gph NEMA L15-30P
HSE-3504-0M10 294,000 2.10 gph NEMA 6-50P
HSE-3504-0M30 294,000 2.10 gph NEMA L15-30P
HSE-4004-0M10 294,000 2.10 gph NEMA 6-50P
HSE-4004-0M30 294,000 2.10 gph NEMA L15-30P
Dimensions and Weights
ModelOverall Dimensions L x W x HShip Weight
HSE-1002-0MG10 43 x 29.5 x 36.5 in (1092 x 749 x 927 mm) 418 lb (190 kg)
HSE-1002-0MM11 43 x 29.5 x 36.5 in (1092 x 749 x 927 mm) 410 lb (186 kg)
HSE-1502-0MG10 43 x 29.5 x 36.5 in (1092 x 749 x 927 mm) 422 lb (191 kg)
HSE-1502-0MM11 43 x 29.5 x 36.5 in (1092 x 749 x 927 mm) 414 lb (188 kg)
HSE-2003-0MG10 43 x 29.5 x 36.5 in (1092 x 749 x 927 mm) 439 lb (199 kg)
HSE-2003-0MM11 43 x 29.5 x 36.5 in (1092 x 749 x 927 mm) 431 lb (195 kg)
HSE-2504-0M10 49.5 x 28 x 40.5 in (1257 x 711 x 1029 mm) 699 lb (317 kg)
HSE-2504-0M30 49.5 x 28 x 40.5 in (1257 x 711 x 1029 mm) 688 lb (312 kg)
HSE-3004-0M10 49.5 x 28 x 40.5 in (1257 x 711 x 1029 mm) 737 lb (334 kg)
HSE-3004-0M30 49.5 x 28 x 40.5 in (1257 x 711 x 1029 mm) 732 lb (332 kg)
HSE-3504-0M10 49.5 x 28 x 40.5 in (1257 x 711 x 1029 mm) 761 lb (345 kg)
HSE-3504-0M30 49.5 x 28 x 40.5 in (1257 x 711 x 1029 mm) 742 lb (337 kg)
HSE-4004-0M10 49.5 x 28 x 40.5 in (1257 x 711 x 1029 mm) 761 lb (345 kg)
HSE-4004-0M30 49.5 x 28 x 40.5 in (1257 x 711 x 1029 mm) 742 lb (337 kg)
Hot water on a portable frame
Melts away grease and oil, and rolls where the work is
Direct drive or belt drive in one line
Lower-pressure direct-drive models and higher-pressure belt-drive models under one series

Included with Purchase

  • 1 Mi-T-M HSE Series Hot Water Pressure Washer (variant/model as ordered)
  • Quick connect nozzles: 0 degree, 15 degree, 25 degree, and 40 degree
  • 50-foot x 3/8-inch steel wire-braided hose
  • Adjustable-pressure insulated dual lance with trigger gun

Not Included Unless Stated

  • Burner fuel, steam and auto start/stop options, adjustable thermostat, hour meter, 460V and skid-feet options, and the detergent injector on direct-drive 0MM11 models (available separately)
  • On-site installation, electrical hookup, or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
