Mini Excavator Bucket | Arrow

Original price $737.04 - Original price $1,037.04
Original price
$737.04
$737.04 - $1,037.04
Current price $737.04
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

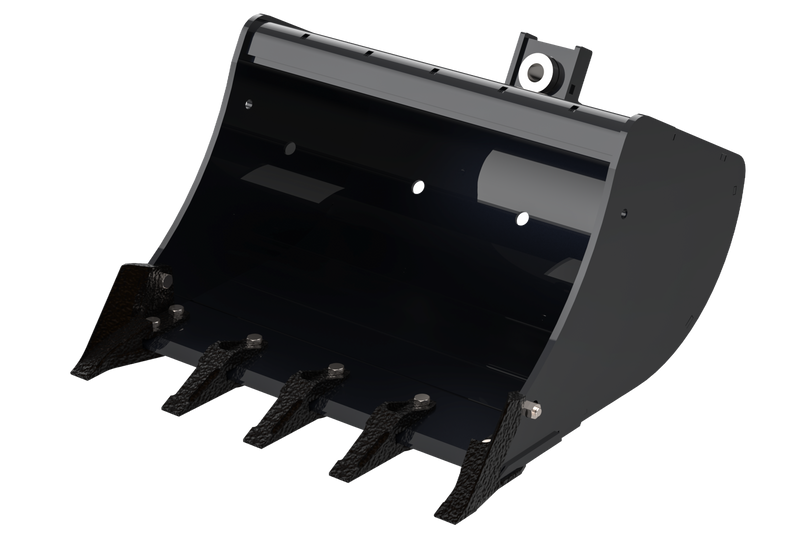

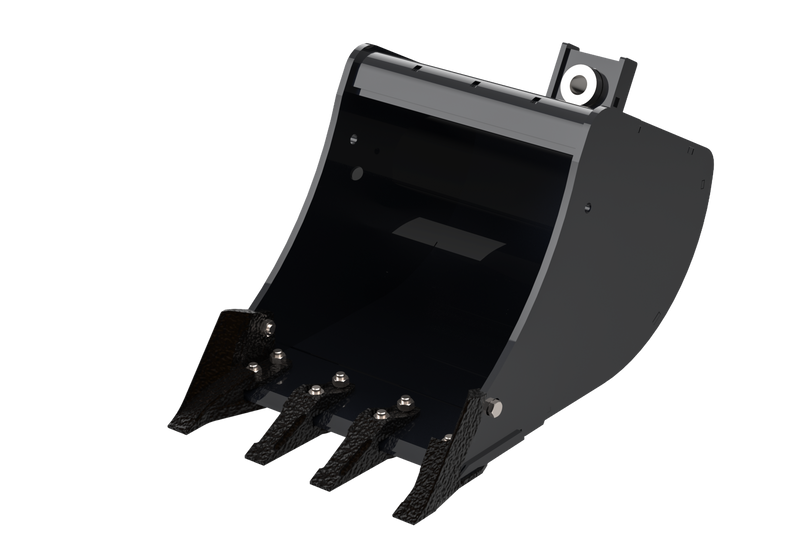

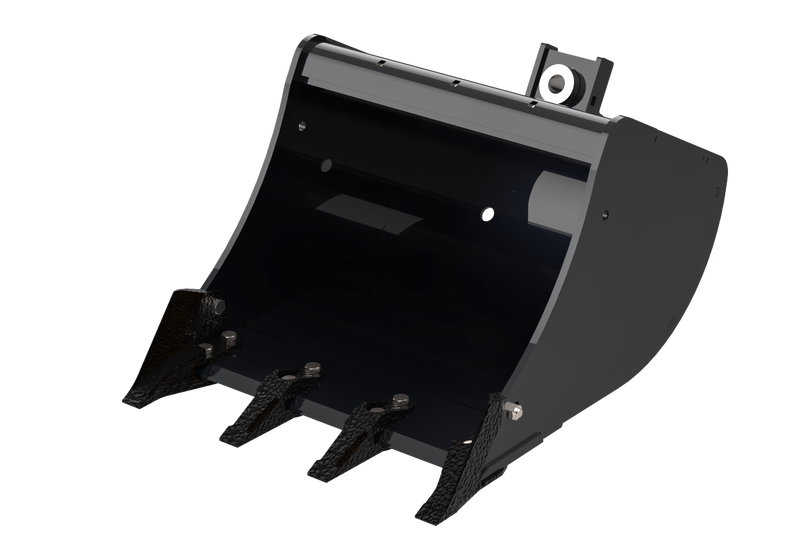

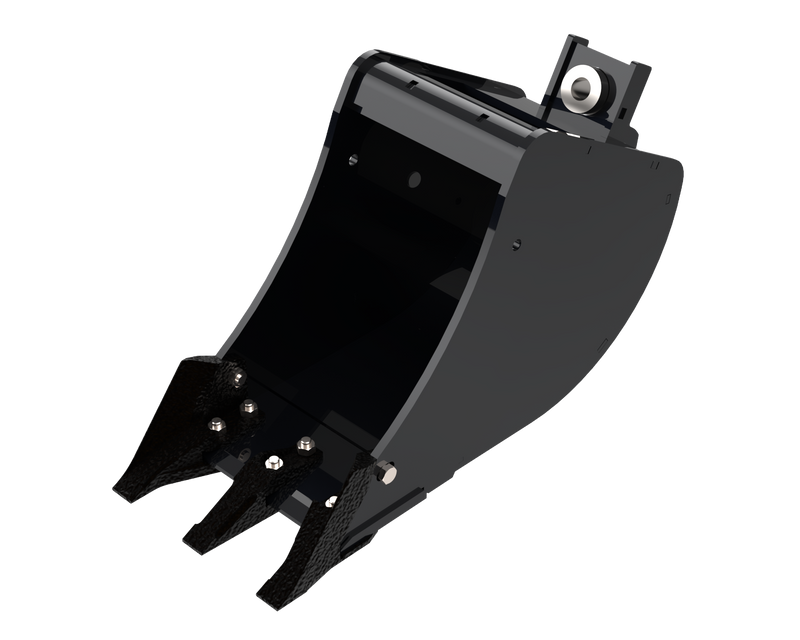

Arrow Mini Excavator Buckets in four widths on a quick coupler taking a 1.25 in pin. Bolt-on teeth and bolt-on side cutters let an operator switch from aggressive digging to trench finishing without changing buckets. Welded wear straps and a heavy duty top tube reinforce the high-wear areas.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Widths: 12 in, 18 in, 24 in, 30 in
  • Teeth: 3 on the 12 in, 4 on the 18 in and 24 in, 5 on the 30 in
  • Teeth Type: bolt-on, removable
  • Side Cutters: bolt-on, removable
  • Wear Straps: welded, in high-wear areas
  • Top Tube: heavy duty, reinforces the bucket structure under load
  • Weight: 129 lb to 231 lb by width

Fitment / Machine Requirements

  • Mount: quick coupler with a 1.25 in pin
  • Carriers: mini excavators
  • Other Coupler Options: available
  • Minimum Carrier Rated Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The Arrow Mini Excavator Buckets are the digging end of a compact machine for contractors running service lines, footings and drainage in tight ground. Four widths cover the work a mini excavator is actually put to, from a narrow trench to a cleanup pass. The bucket is built to keep a small machine productive rather than to be the cheapest steel on the coupler.

What separates it is that the wear parts come off. Teeth bolt on rather than weld on, so an operator running an aggressive digging profile in the morning can pull them and finish a trench smooth in the afternoon, and the side cutters bolt on the same way to protect the bucket corners, which is where edges tear first. Welded wear straps take the abrasion on the faces that drag, and a heavy duty top tube stiffens the shell where a loaded bucket wants to flex. Crews who dig every day and cannot afford a machine standing still are who this is put together for.

Common Applications

  • Trenching for water, gas, electrical and drainage service lines
  • Digging footings and small foundations
  • Grading and cleaning up the bottom of a trench
  • Loading spoil and backfilling around utility work

Selection Notes

  • Tooth count rises with width, from three on the narrowest to five on the widest
  • Teeth and side cutters bolt on, so a digging profile changes without changing buckets
  • Replacement side cutters and centre teeth are available as parts
  • Coupler options other than the 1.25 in pin build are available from the supplier
  • Confirm carrier rated operating capacity with supplier
Build
Teeth
Bolt-on, removable
Side cutters
Bolt-on, removable, adding cutting width and protecting the bucket edges
Wear straps
Welded, in high-wear areas
Top tube
Heavy duty, reinforcing the bucket structure under load
Mount & Interface
Mount
Quick coupler with a 1.25 in (32 mm) pin
Other coupler options
Available from the supplier
Accessories: To order any of these accessories, contact support@hardscapeheavy.com
Part 430-66L
Left hand side cutter, with nuts and bolts
Part 430-66R
Right hand side cutter, with nuts and bolts
Part 430-67C
Centre tooth, with nuts and bolts
Bucket WidthNumber of teethWeight
12 in (305 mm) 3 129 lb (59 kg)
18 in (457 mm) 4 163 lb (74 kg)
24 in (610 mm) 4 195 lb (88 kg)
30 in (762 mm) 5 231 lb (105 kg)
Bolt-on teeth
An operator switches from aggressive digging to a smooth trench finish without changing buckets
Bolt-on side cutters
Add cutting width and take the wear at the bucket corners, where edges tear first
Welded wear straps
Put the sacrificial steel on the faces that drag, so the shell lasts longer

Included with Purchase

  • 1 Arrow Mini Excavator Bucket (variant/model as ordered)
  • Bolt-on teeth
  • Bolt-on side cutters
  • Welded wear straps

Not Included Unless Stated

  • Replacement teeth or side cutters
  • Coupler options other than the 1.25 in pin build
  • Mini excavator
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.

Related Equipment

Mini Excavator Bucket | Star Industries

Star Industries
Original price $615.00 - Original price $1,986.00
Original price
$615.00 - $1,986.00
$615.00 - $1,986.00
Current price $615.00

The Star Industries Mini Excavator Bucket digs tough clay and dirt with rock scattered through it, sized 10 to 36 in for mini excavators. Choose a ...

View full details
Original price $615.00 - Original price $1,986.00
Original price
$615.00 - $1,986.00
$615.00 - $1,986.00
Current price $615.00

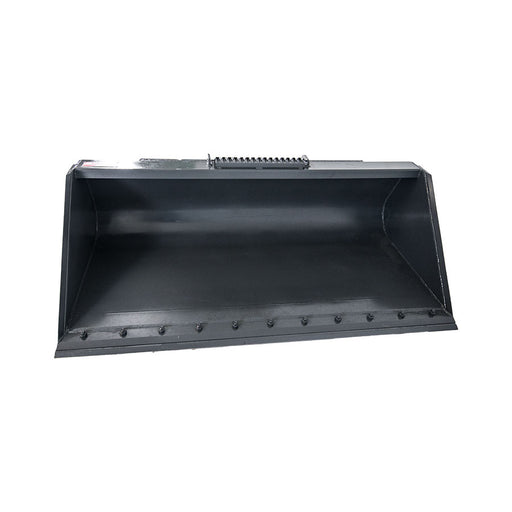

Skid Steer Buckets | Arrow
