Mini Skid Steer Buckets | Arrow

Brand Arrow Material Handling ProductsSKU 1303663W4140
Original price $1,094.44 - Original price $1,675.00
Original price
$1,094.44
$1,094.44 - $1,675.00
Current price $1,094.44
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

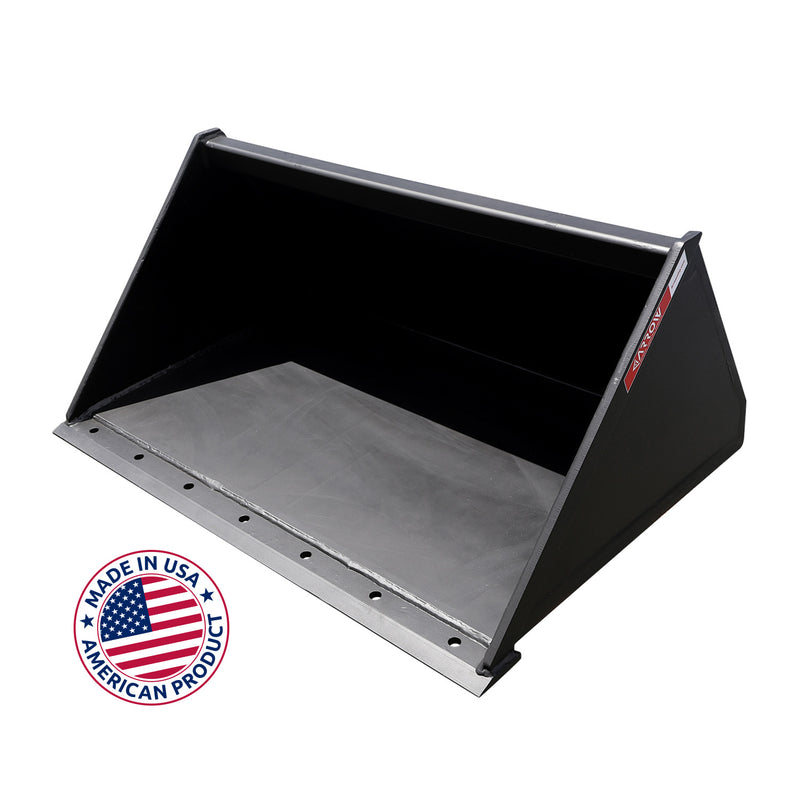

Arrow Mini Skid Steer Buckets for walk-behind and mini track loaders, in four widths on a mini universal or Bobcat mount. Quarter inch shell and end plates, half inch cutting edge pre-drilled for a bolt-on reversible edge, and half inch bottom wear strips. Weld-on or bolt-on edge, with optional flush mount teeth.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Widths: 36 in, 42 in, 44 in, 48 in
  • Heaped Capacity: 6.3 cu ft to 8.3 cu ft heaped by width
  • Bucket Shell and End Plates: 1/4 in thick, fully welded
  • Cutting Edge: 1/2 in thick, pre-drilled to accept a bolt-on reversible edge
  • Edge Reinforcements: 1/2 in thick
  • Wear Strips: 1/2 in thick
  • Top Tube: heavy duty reinforcement
  • Depth: 27.38 in
  • Height: 18.21 in
  • Teeth: 5 on the 36 in and 42 in, 7 on the 44 in and 48 in, on toothed builds
  • Weight: 228 lb to 326.55 lb by width and mount
  • Country of Manufacture: made in the USA

Fitment / Machine Requirements

  • Mount: mini universal quick attach or Bobcat, selected per build
  • Carriers: mini skid steers and walk-behind loaders
  • Minimum Carrier Rated Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

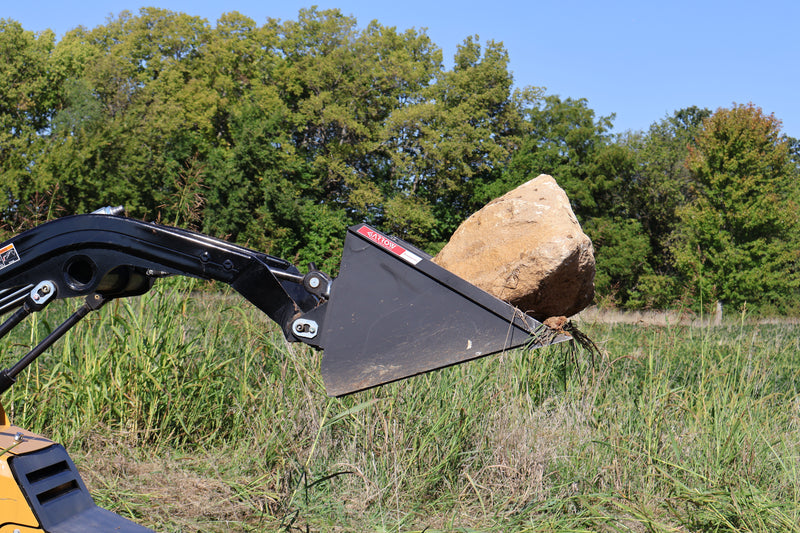

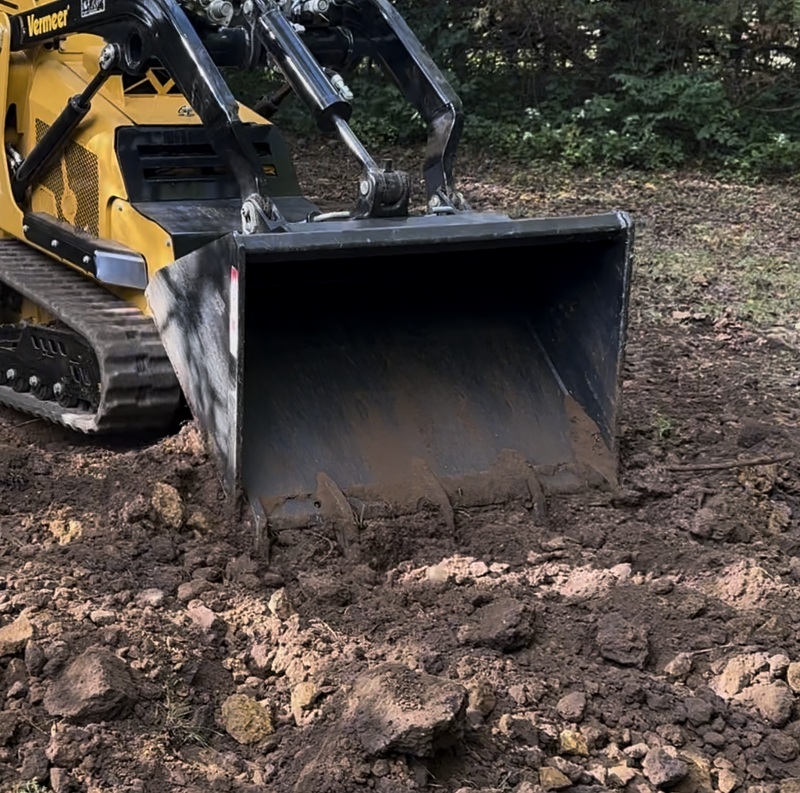

The Arrow Mini Skid Steer Buckets bring a full-size bucket build down to a walk-behind machine, for crews doing tight-access dirt work where a full skid steer cannot reach. These are the buckets for grading a tight lot, cleaning up around utility work and hauling material through a gate, and they are built to be worked rather than nursed. Four widths cover the usual mini loader tasks without over-buckets on a small carrier.

Construction is where the difference shows. The shell and end plates are quarter inch steel fully welded, the cutting edge is half inch and comes pre-drilled so a bolt-on reversible edge can be added later, and half inch wear strips run under the floor where a bucket actually wears out. A heavy duty top tube reinforces the back edge, and each bucket is offered with a plain weld-on edge, a bolt-on edge or flush mount teeth. Two mounts are offered because mini loaders are not standardised, so a contractor running Bobcat mini track machines and one running a universal-coupler carrier both get a bucket that fits.

Common Applications

  • Grading and backfilling in tight access where a full skid steer will not fit
  • Moving spoil, gravel and topsoil through gates and between structures
  • Digging and cleaning up around utility and irrigation work
  • Back-dragging and levelling soil on landscape jobs

Selection Notes

  • Mount is a build choice, mini universal quick attach or Bobcat, and it is not field-swapped
  • Bolt-on edge builds are offered in the 36 in and 42 in widths

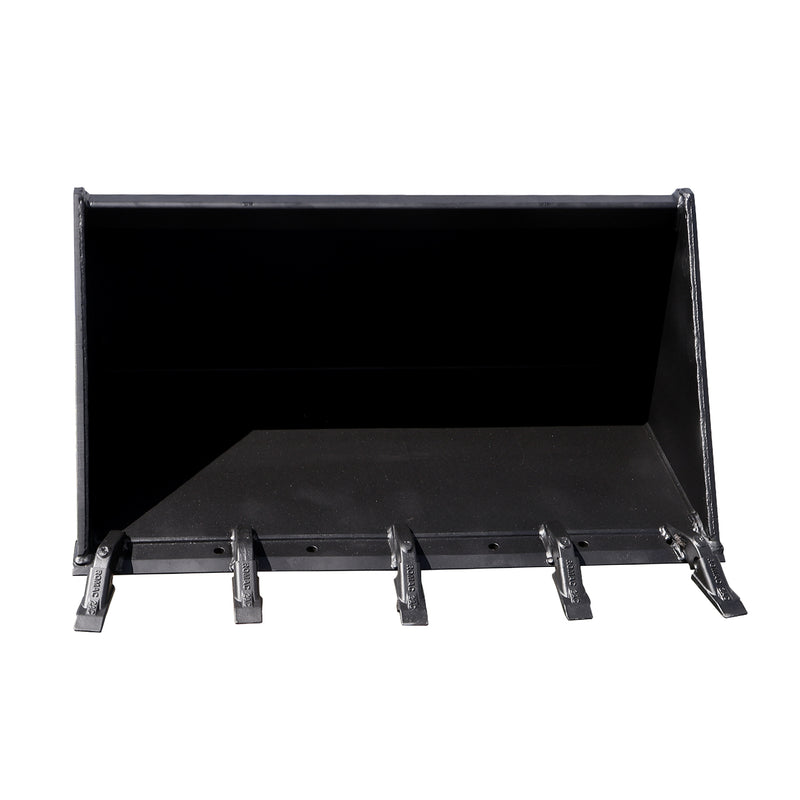

  • Toothed builds are weld-on edge, with 5 teeth at 36 in and 42 in and 7 teeth at 44 in and 48 in
  • Every plain edge is pre-drilled, so a bolt-on reversible edge can be added after purchase
  • The Bobcat mount adds roughly 18.55 lb over the mini universal mount at the same width
  • Confirm carrier rated operating capacity with supplier
Build
Bucket shell and end plates
1/4 in (6 mm) thick, fully welded
Cutting edge
1/2 in (13 mm) thick, pre-drilled to accept a bolt-on reversible edge
Edge reinforcements
1/2 in (13 mm) thick
Wear strips
1/2 in (13 mm) thick, bottom mounted and fully welded
Top tube
Heavy duty top tube reinforcement
Country of manufacture
Made in the USA
Mount & Interface
Mount options
Mini universal quick attach, or Bobcat
Bucket type
Utility on plain builds, digging on toothed builds
Dimensions & Weights
Depth
27.38 in (695 mm), all widths
Height
18.21 in (463 mm), all widths
Bucket WidthOutside widthMount TypeCutting EdgeTeethHeaped capacityWeight
36 in (914 mm) 36.63 in (930 mm) Mini Universal Weld on 0 6.3 cu ft heaped 228 lb (103 kg)
36 in (914 mm) 36.63 in (930 mm) Mini Universal Bolt on 0 6.3 cu ft heaped 254 lb (115 kg)
36 in (914 mm) 36.63 in (930 mm) Mini Universal Weld on 5 6.3 cu ft heaped 247 lb (112 kg)
42 in (1067 mm) 42.63 in (1083 mm) Mini Universal Weld on 0 7.3 cu ft heaped 251 lb (114 kg)
42 in (1067 mm) 42.63 in (1083 mm) Mini Universal Bolt on 0 7.3 cu ft heaped 281 lb (127 kg)
42 in (1067 mm) 42.63 in (1083 mm) Mini Universal Weld on 5 7.3 cu ft heaped 270 lb (122 kg)
44 in (1118 mm) 44.63 in (1134 mm) Mini Universal Weld on 0 7.6 cu ft heaped Confirm with supplier
44 in (1118 mm) 44.63 in (1134 mm) Mini Universal Weld on 7 7.6 cu ft heaped 293 lb (133 kg)
48 in (1219 mm) 48.63 in (1235 mm) Mini Universal Weld on 0 8.3 cu ft heaped 274 lb (124 kg)
48 in (1219 mm) 48.63 in (1235 mm) Mini Universal Weld on 7 8.3 cu ft heaped 308 lb (140 kg)
36 in (914 mm) 36.63 in (930 mm) Bobcat Weld on 0 6.3 cu ft heaped 246.55 lb (112 kg)
36 in (914 mm) 36.63 in (930 mm) Bobcat Bolt on 0 6.3 cu ft heaped 272.55 lb (124 kg)
36 in (914 mm) 36.63 in (930 mm) Bobcat Weld on 5 6.3 cu ft heaped 265.55 lb (120 kg)
42 in (1067 mm) 42.63 in (1083 mm) Bobcat Weld on 0 7.3 cu ft heaped 269.55 lb (122 kg)
42 in (1067 mm) 42.63 in (1083 mm) Bobcat Bolt on 0 7.3 cu ft heaped 299.55 lb (136 kg)
42 in (1067 mm) 42.63 in (1083 mm) Bobcat Weld on 5 7.3 cu ft heaped 288.55 lb (131 kg)
44 in (1118 mm) 44.63 in (1134 mm) Bobcat Weld on 7 7.6 cu ft heaped 311.55 lb (141 kg)
48 in (1219 mm) 48.63 in (1235 mm) Bobcat Weld on 0 8.3 cu ft heaped 292.55 lb (133 kg)
48 in (1219 mm) 48.63 in (1235 mm) Bobcat Weld on 7 8.3 cu ft heaped 326.55 lb (148 kg)
Pre-drilled cutting edge
A bolt-on reversible edge can be added after purchase without returning the bucket to a shop

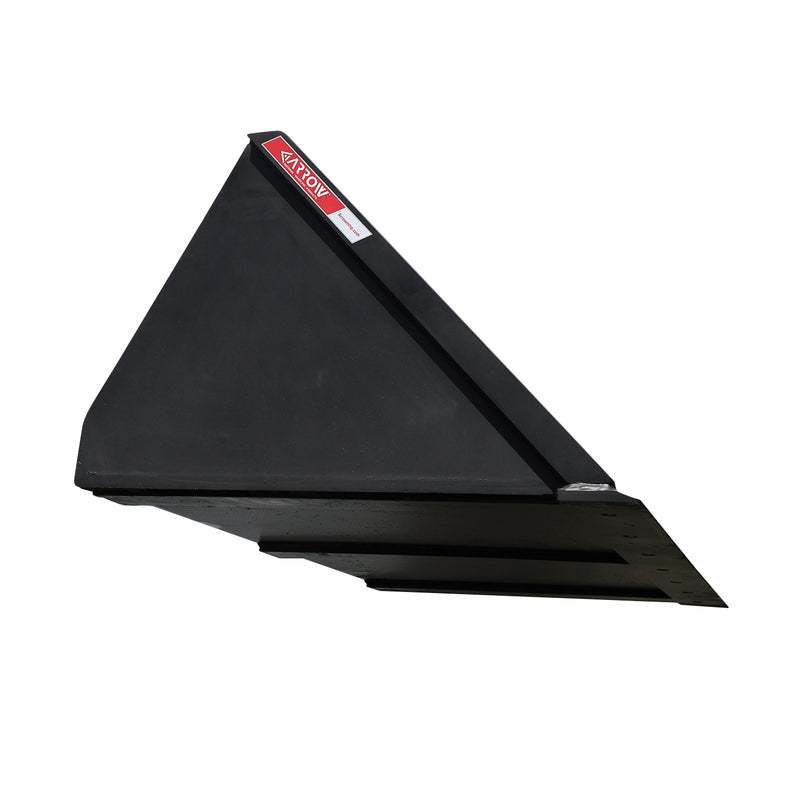

Half inch bottom wear strips
Puts the thickest steel where a bucket that back-drags actually wears through
Two mount options
Fits a Bobcat mini track machine or a universal-coupler carrier without an adapter

Included with Purchase

  • 1 Arrow Mini Skid Steer Bucket (variant/model as ordered)
  • Cutting edge pre-drilled for a bolt-on reversible edge
  • Bottom wear strips
  • Flush mount teeth on toothed builds

Not Included Unless Stated

  • Bolt-on reversible cutting edge
  • Replacement teeth or side cutters
  • Mini skid steer
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.

Related Equipment

Skid Steer Buckets | Arrow

Arrow Material Handling Products
Original price $2,348.61 - Original price $4,718.06
Original price
$2,348.61 - $4,718.06
$2,348.61 - $4,718.06
Current price $2,348.61

Arrow Skid Steer Buckets in four widths on a universal quick attach mount, with a smooth welded or bolt-on cutting edge. Radiused bottom with a squ...

View full details
Original price $2,348.61 - Original price $4,718.06
Original price
$2,348.61 - $4,718.06
$2,348.61 - $4,718.06
Current price $2,348.61

General Purpose Bucket | Maxx

Maxx Attachments
Original price $1,785.00 - Original price $2,980.00
Original price
$1,785.00 - $2,980.00
$1,785.00 - $2,980.00
Current price $1,785.00

The Maxx Attachments General Purpose Bucket is a heavy-duty loading bucket for skid steers and small wheel loaders, built with A-572 steel, A-514 w...

View full details
Original price $1,785.00 - Original price $2,980.00
Original price
$1,785.00 - $2,980.00
$1,785.00 - $2,980.00
Current price $1,785.00

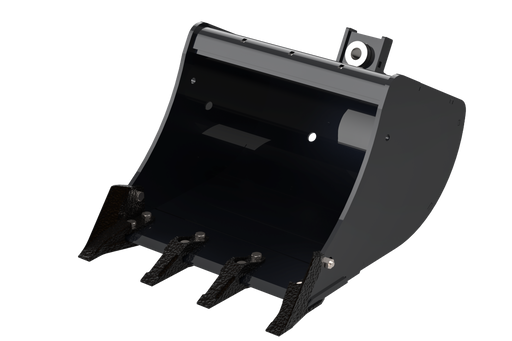

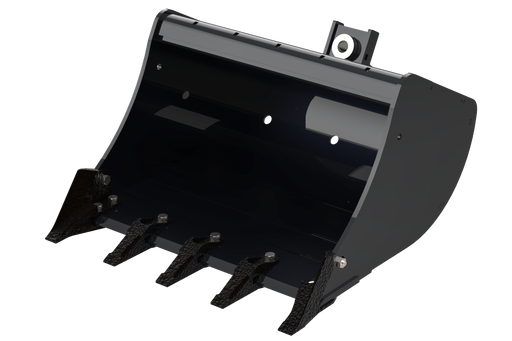

Mini Excavator Bucket | Arrow
