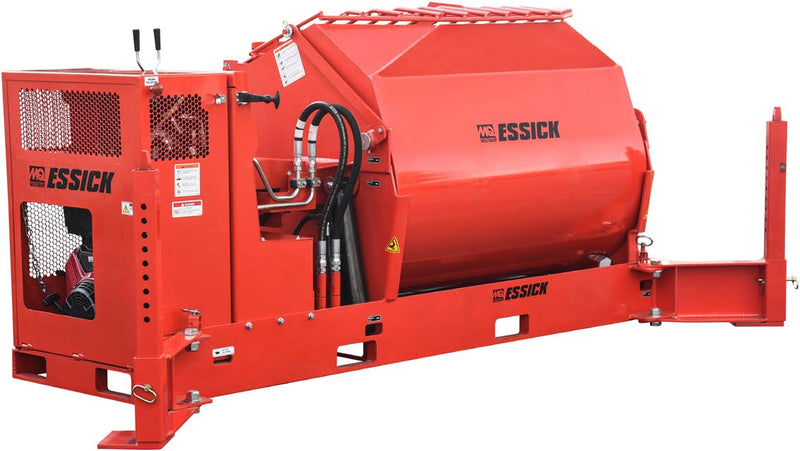

PRO20 Essick Plaster and Mortar Mixer | Multiquip

Brand MultiquipSKU PRO20
Original price $20,394.00 - Original price $20,394.00
Original price
$20,394.00
$20,394.00 - $20,394.00
Current price $20,394.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

The PRO20 is Essick's 20 cu ft hydraulic-drive plaster and mortar mixer, the largest in the range, taking six to seven bags a batch behind an 18 HP Vanguard engine. A high-torque hydraulic motor with integral relief turns the paddles, and an over-center dump discharges at an adjustable height between 23 and 43 in.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Shipping Weight: 2004 lbs
  • Drum Capacity: 20 cu ft (566 L), 6 to 7 bags
  • Max Aggregate Size: 1 in (25.4 mm)
  • Drive System: Hydraulic, high-torque motor with integral relief
  • Dump Action: Hydraulic, over-center
  • Discharge Height: adjustable, 23 to 43 in
  • Engine: Vanguard, 18 HP, recoil and electric start, gasoline
  • Operating Weight: confirm with supplier
  • Lead Time: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

Batch size is the constraint that decides how many people a mixer can keep working, and at six to seven bags this is the machine for the crew that would otherwise be running two smaller ones. Essick puts an 18 HP Vanguard engine behind a high-torque hydraulic motor with integral relief, so the drive stalls on a relief valve rather than on the engine when a batch goes stiffer than planned. The drum wrap is quarter-inch plate with three-eighths ends, which is the heaviest specification in the range.

Loading is at waist level and discharge is over-center at a height the operator sets, so the material moves up and out without anyone lifting a shovel above the shoulder. The legs retract for transport and the machine fits a pickup bed closed up, forklift pockets open from any side, and the drive and dump controls sit above the engine cowling within reach of where the operator loads. This is built for the plastering and masonry contractors whose batch size, not their mixing speed, is what holds the crew up.

Common Applications

  • Mixing large batches of mortar, plaster and stucco on commercial work
  • Mixing stiff mix designs where a lighter drive would stall
  • Mixing material containing aggregate up to 1 in
  • Discharging into large mud tubs at an adjustable height

Selection Notes

  • Choose this over the PRO12 where the batch wanted is six to seven bags rather than three to four; the drum and the engine are what change, and the dump and drive layout carry over
  • The engine offers both recoil and electric start, so cold-morning starting does not depend on the pull cord
  • The machine transports with the legs retracted at 95.7 x 44.9 x 58 in, which is what puts it in a pickup bed rather than on a trailer
Capacity
Drum capacity
20 cu ft (566 L)
Batch size
6 to 7 bags
Max aggregate size
1 in (25.4 mm)
Adjustable drum discharge height
23 to 43 in
Build
Drum wrap
1/4 in steel wrap with 3/8 in ends
Handling
Forklift pockets accessible from any side
Spill plate
Built in, directs excess material back into the tub
Transport footprint
95.7 x 44.9 x 58 in (2431 x 1140 x 1473 mm) with legs retracted
Unit Specifications
Drive system
Hydraulic, high-torque motor with integral relief
Dump action
Hydraulic, over-center
Loading height
Waist level
Controls
Drive and dump controls above the engine cowling
Engine make and model
Vanguard
Engine power
18 HP
Start method
Recoil and electric, battery included
Fuel type
Gasoline
Hydraulics
Hydraulic flow
Confirm with supplier Confirm with supplier
Hydraulic pressure
Confirm with supplier Confirm with supplier
Dimensions & Weights
Shipping dimensions
95.7 x 44.9 x 58 in (2431 x 1140 x 1473 mm)
Shipping weight
2004 lb (909 kg)
Operating weight
Confirm with supplier Confirm with supplier
High-torque hydraulic motor with integral relief
A batch stiffer than planned trips a relief valve instead of loading the engine to a stall
Quarter-inch drum wrap with three-eighths ends
The wall the paddles work against is the heaviest specified anywhere in this range
Retracting legs
The largest mixer in the range still travels in a pickup bed rather than needing a trailer

Included with Purchase

  • 1 PRO20 Essick Plaster and Mortar Mixer (variant/model as ordered)
  • Battery

Not Included Unless Stated

  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
