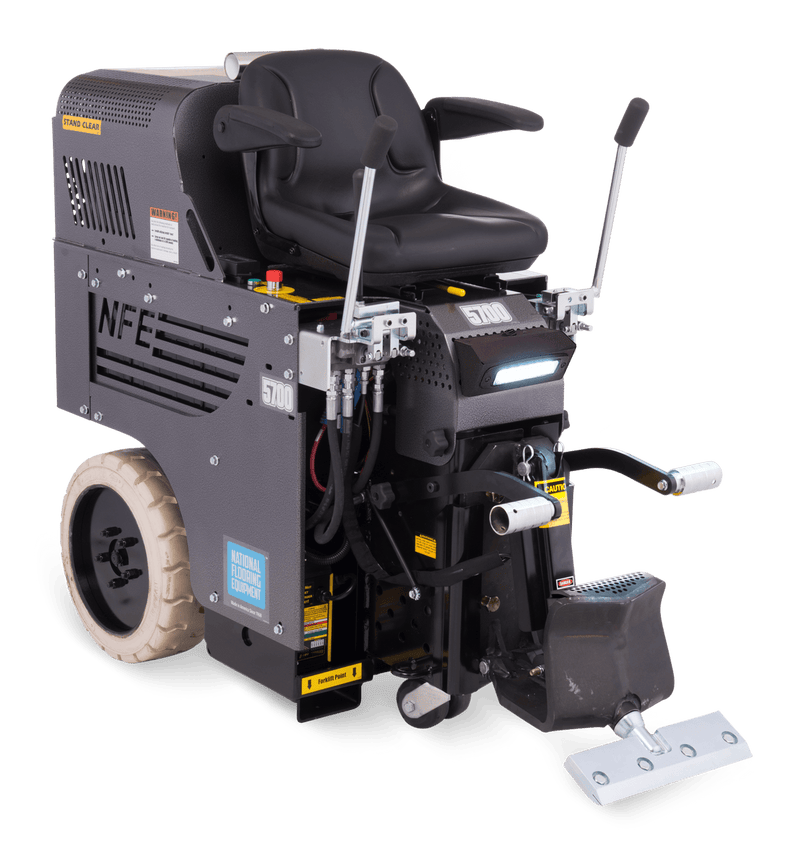

5700 ride-on scraper with NFE side panel, a single lift lever and front blade head
5700 Ride-On Scraper | National Flooring Equipment
5700 ride-on scraper with NFE side panel, a single lift lever and front blade head

5700 Ride-On Scraper | National Flooring Equipment

$47,370.75 - $54,830.13
$47,370.75
$47,370.75 - $54,830.13
$47,370.75
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

The 5700 is National's best selling ride-on scraper, narrow enough at 24.5 in to pass through a residential doorway and heavy enough at 2,244 lb to hold a blade into commercial flooring. Twelve AGM 180-amp hour batteries run it, and it carries an ergonomic seat and a swivel-head blade holder. It is ordered in two configurations, standard and high speed.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Speed: up to 120 ft/min (up to 36.6 m/min) standard, 160 ft/min (48.8 m/min) high speed
  • Weight: 2,244 lb (1,017.9 kg)
  • Weight, machine only: 2,059 lb (933.9 kg)
  • Power Supply: Battery
  • Voltage: 115 V
  • Width: 24.5 in (62 cm)


Need full technical detail? See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The 5700 is the machine most of National's ride-on customers end up buying, and the reason is a pair of numbers that usually pull against each other. It is narrow enough to go through a residential doorway, and it weighs over a ton, so it holds a blade down into commercial flooring that lighter riders skate over.

Twelve AGM 180-amp hour batteries supply it. That is a large pack for a machine this size, and it is what lets the weight be used rather than conserved: torque is available for the whole shift instead of being rationed toward the end of it.

The operator details are where the day is actually spent. The seat is built for a full shift rather than for a specification list, and the blade holder swivels, so the head follows what the floor is doing instead of fighting it. The machine is CE marked to the Machine Directive and the EMC Directive.

Common Applications

  • Commercial flooring removal that a lighter rider cannot hold a blade into
  • Buildings where the machine has to pass through residential-width doorways
  • Full-shift removal work on a single battery charge

Selection Notes

  • Two configurations, standard and high speed; the supplier's own ordering descriptions differ only in the travel speed, at the same voltage and the same manual lift
  • Fixed front end; step to the 5700DL for blade angle and pitch from the seat
  • Published width and length are without tooling attached
  • Ships with the 5175 kit, transport wheels, wrench and extension cord
Capacity
Speed
up to 120 ft/min (up to 36.6 m/min) on the standard configuration, 160 ft/min (48.8 m/min) on the high speed configuration
Materials
Hard and soft goods
Unit Specifications
Power supply
Battery
Batteries
Twelve AGM 180-amp hour
Voltage
115 V Confirm with supplier
Frequency
60 Hz
Build
Seat
Ergonomic
Blade holder
Swivel head
Compliance
Machine Directive 2006/42/EC and EMC Directive 2004/108/EC, CE marked
Accessories
Kit 5175, self-scoring blade
6277-BU, 45 degree, 3 in x 12 in, bevel up
Kit 5175, heavy-duty blade
6284, 3 in x 12 in
Kit 5175, head
7050-12, 12 in
Kit 5175, angle shank
7079-2, 2 in x 6 in, carbide tip
Transport wheels
5110-100
Wrench
402929, 3/4 x 1-1/8
Extension cord
73507-1, 7 ft
Dimensions & Weights
Weight
2,244 lb (1,017.9 kg)
Removable weight, front
185 lb (83.9 kg)
Weight, machine only
2,059 lb (933.9 kg)
Width
24.5 in (62 cm)
Height
50 in (127 cm)
Length
58 in (147.32 cm)
SpeedModelTravel speedWeight
Standard 5700 up to 120 ft/min (up to 36.6 m/min) 2,244 lb (1,017.9 kg)
High speed 5700hs 160 ft/min (48.8 m/min) 2,244 lb (1,017.9 kg)
Over a ton on a 24.5 in width
Blade pressure for commercial flooring still fits through a residential doorway
Twelve AGM 180-amp hour batteries
Torque is available across the shift instead of rationed toward the end
Swivel-head blade holder
The head follows the floor's contour instead of fighting it

Included with Purchase

  • 1 5700 Ride-On Scraper (variant/model as ordered)
  • Kit 5175: 6277-BU self-scoring blade, 6284 heavy-duty blade, 7050-12 head, 7079-2 angle shank
  • 5110-100 transport wheels
  • 402929 wrench
  • 73507-1 extension cord
  • One-year manufacturer's warranty on parts and labor

Not Included Unless Stated

  • Additional blades, shanks and wear parts
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
