5700DL Ride-On Scraper | National Flooring Equipment

Original price $49,630.78 - Original price $49,630.78
Original price
$49,630.78
$49,630.78 - $49,630.78
Current price $49,630.78
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

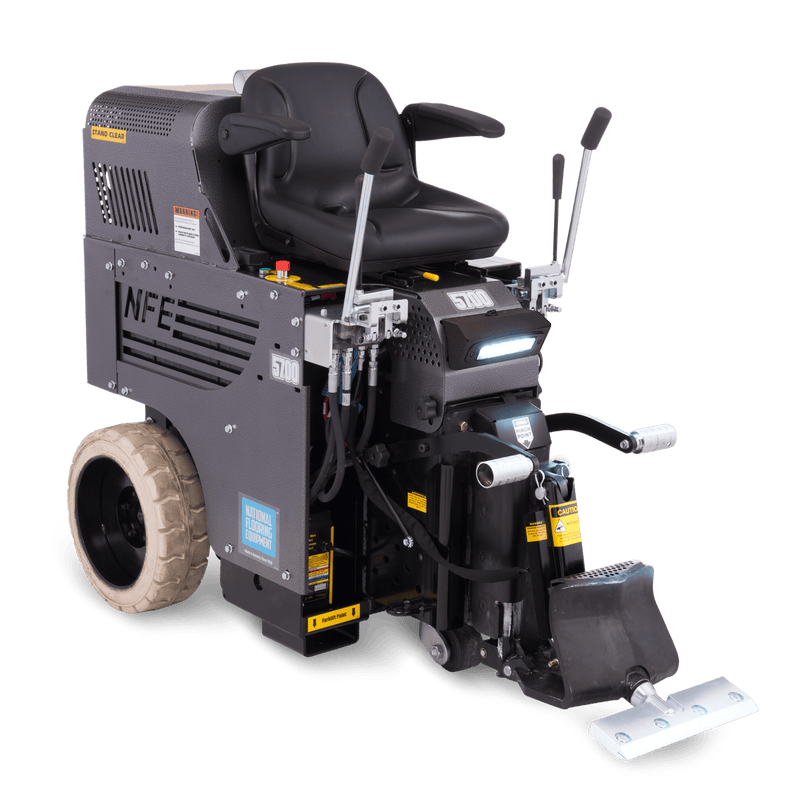

The 5700DL is the 5700 carrying National's patented Dual-Lift front end, setting blade angle and pitch from the seat while the machine works. It weighs 2,407 lb on twelve AGM 180-amp hour batteries, fits over 100 varieties of tooling, and is made in America.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Speed: up to 120 ft/min (up to 36.6 m/min)
  • Weight: 2,407 lb (1,091 kg)
  • Weight, machine only: 2,222 lb (1,007 kg)
  • Power Supply: Battery
  • Voltage: 115 V
  • Width: 24.5 in (62 cm)


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The 5700DL is the most capable machine in National's battery rider line and the one built around tooling range. It fits over a hundred different varieties of tooling, which is the number that decides whether a contractor can quote a building or has to quote a floor.

Dual-Lift is what makes that range usable. Blade angle and pitch adjust infinitely without the operator leaving the seat, so moving from carpet to tile to adhesive residue is a control movement rather than a dismount, a tool change and a restart. On a mixed building the machine spends its day working instead of being reconfigured.

Underneath it is the 5700: twelve AGM 180-amp hour batteries, the same 24.5 in width through a doorway, the same compact frame. It runs 163 pounds heavier for the front end, and lifting arms are available as an addition, steel arms built into the frame giving three points of contact for moving the machine on chains.

Common Applications

  • Mixed-material removal across a whole building rather than one floor type
  • Commercial and industrial flooring where tooling changes through the job
  • Work in buildings needing a rider through residential-width doorways

Selection Notes

  • Dual-Lift adjusts blade angle and pitch from the seat
  • Lifting arms are available as an addition for moving the machine on chains
  • One-inch blades for VCT and adhesive removal require a razor blade holder
Capacity
Speed
up to 120 ft/min (up to 36.6 m/min)
Materials
Hard and soft goods
Tooling range
Over 100 varieties of tooling
Unit Specifications
Power supply
Battery
Batteries
Twelve AGM 180-amp hour
Voltage
115 V Confirm with supplier
Frequency
60 Hz
Build
Front end
Patented Dual-Lift, infinite blade angle and pitch adjustment from the seat
Origin
Made in America
Compliance
Machine Directive 2006/42/EC and EMC Directive 2004/108/EC, CE marked
Accessories
Lifting arms
Steel arms built into the frame, three points of contact for moving on chains
One-inch blades
For VCT and adhesive removal, require a razor blade holder
Kit 5175, self-scoring blade
6277-BU, 45 degree, 3 in x 12 in, bevel up
Kit 5175, heavy-duty blade
6284, 3 in x 12 in
Transport wheels
5110-100
Wrench
402929, 3/4 x 1-1/8
Extension cord
73507-1, 7 ft
Dimensions & Weights
Weight
2,407 lb (1,091 kg)
Removable weight, front
185 lb (84 kg)
Weight, machine only
2,222 lb (1,007 kg)
Width
24.5 in (62 cm)
Height
50 in (127 cm)
Length
63 in (160 cm)
Over 100 tooling varieties
One machine quotes a whole building instead of a single floor type
Dual-Lift adjustment from the seat
Changing material costs a control movement instead of a dismount and a tool change
Optional built-in lifting arms
Three chain points are part of the frame rather than a bolt-on rigging problem

Included with Purchase

  • 1 5700DL Ride-On Scraper (variant/model as ordered)
  • Kit 5175: 6277-BU self-scoring blade, 6284 heavy-duty blade, and head
  • 5110-100 transport wheels
  • 402929 wrench
  • 73507-1 extension cord

Not Included Unless Stated

  • Lifting arms
  • Razor blade holder for one-inch blades
  • Additional blades, shanks and wear parts
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
