Fork Mounted Buckets | Arrow

Original price $3,769.44 - Original price $5,487.50
Original price
$3,769.44
$3,769.44 - $5,487.50
Current price $3,769.44
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

Arrow Fork Mounted Buckets slide directly onto existing pallet forks and pin behind them, turning a fork carriage into a loading bucket without a second attachment. Three widths with a welded or bolt-on cutting edge. Accepts forks up to 2.5 in thick and 7 in wide.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Widths: 60 in, 72 in, 96 in outside width
  • Inside Widths: 58.5 in, 70.5 in, 94.5 in
  • Heaped Capacity: 1.5 cu yd to 2.5 cu yd heaped by width
  • Struck Capacity: 1.1 cu yd to 1.9 cu yd struck by width
  • Height: 29 in
  • Depth: 54 in
  • Cutting Edge: welded, or bolt on
  • Fork Capacity: accepts forks up to 2.5 in thick and 7 in wide
  • Retention: safety retaining pins keep the bucket in place
  • Weight: confirm with supplier

Fitment / Machine Requirements

  • Mount: slides over existing forks and pins behind them
  • Carriers: telehandlers
  • Minimum Carrier Rated Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

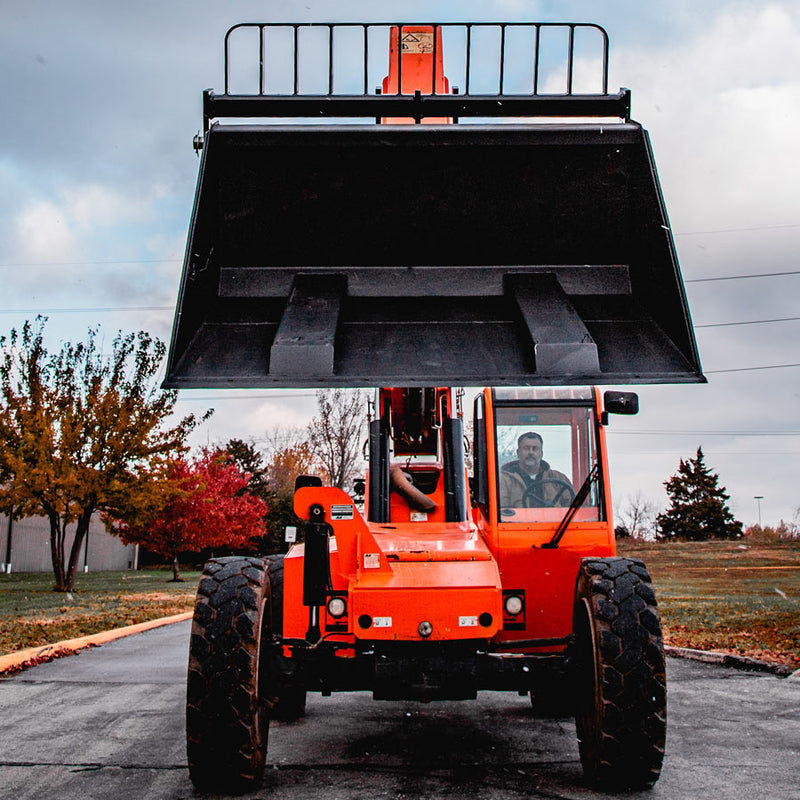

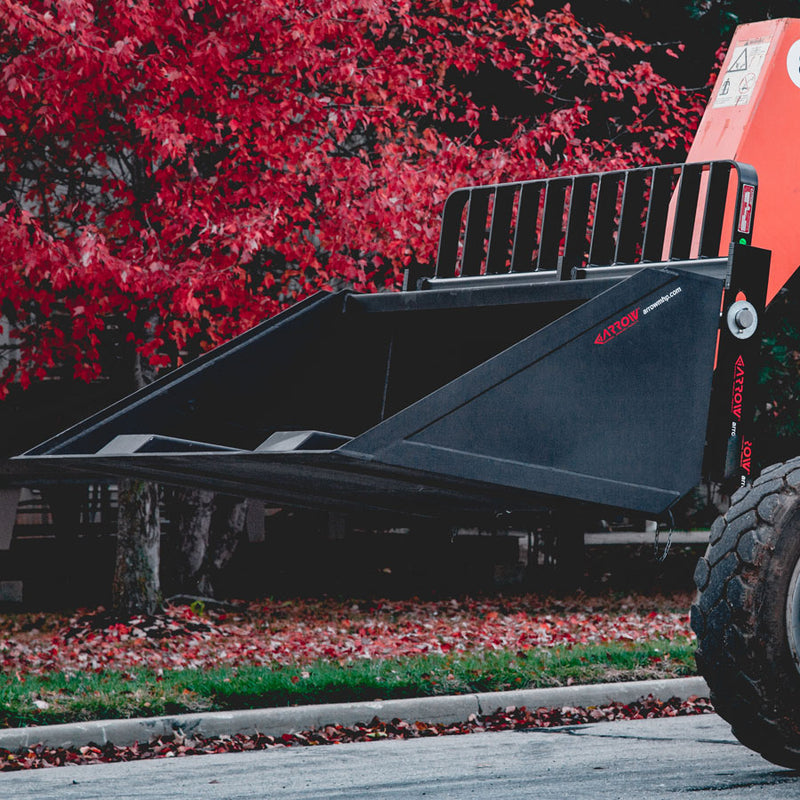

The Arrow Fork Mounted Buckets give a telehandler operator a loading bucket without taking the forks off the machine. The bucket slides straight over the fork tines and pins behind them, so a crew that has just set material on a deck can be moving loose stock a minute later. That matters most on jobs where the machine is the only one on site and swapping attachments costs the whole crew time.

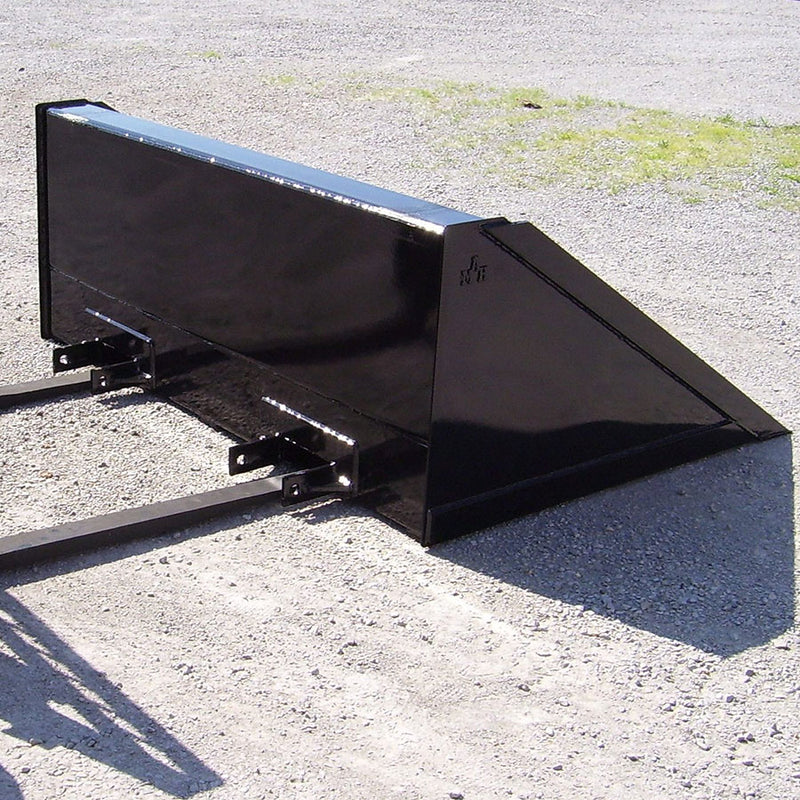

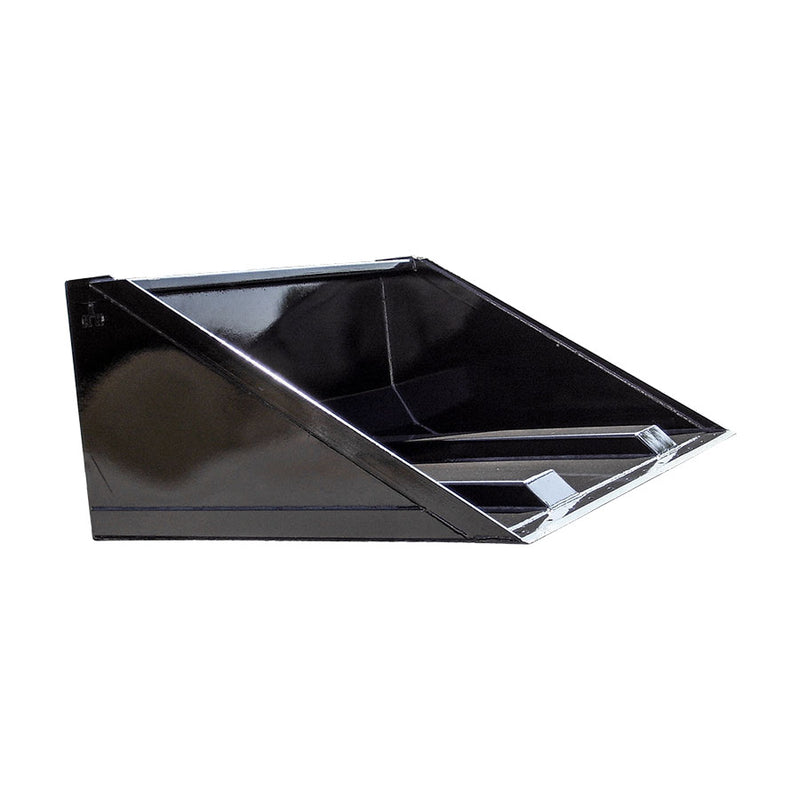

The build is a reinforced bucket rather than a light hopper, because a telehandler places loads at height where a flexing shell is a problem. Two open pockets run across the underside and take the tines, and safety retaining pins hold the bucket on so it cannot walk forward off the forks when the carriage tilts. Three widths are offered against a welded or a bolt-on cutting edge, and the pockets accept forks across the common sizes rather than one fixed tine. Crews collecting material from high, hard to reach places are who this one is built around.

Common Applications

  • Collecting loose material at height from a telehandler
  • Moving sand, gravel and aggregate without swapping off the forks
  • Site cleanup and debris collection on a fork-equipped machine
  • Loading and placing bulk material from a stockpile

Selection Notes

  • The bucket mounts on forks the machine already has, so no carriage change is needed
  • Cutting edge is a build choice: welded, or bolt on
  • Fork pockets accept tines up to 2.5 in thick and 7 in wide
  • Safety retaining pins are part of the mount, not an accessory
  • Confirm unit weight and carrier rated operating capacity with supplier
Build
Construction
Reinforced bucket shell
Cutting edge options
Welded, or bolt on
Height
29 in (737 mm), all widths
Depth
54 in (1372 mm), all widths
Mount & Interface
Mount
Slides directly onto existing forklift or pallet forks
Retention
Safety retaining pins behind the forks
Fork capacity
Accepts forks up to 2.5 in (64 mm) thick and 7 in (178 mm) wide
Bucket WidthInside widthCutting EdgeHeaped capacityStruck capacityWeight
60 in (1524 mm) 58.5 in (1486 mm) Welded 1.5 cu yd heaped 1.1 cu yd struck Confirm with supplier
60 in (1524 mm) 58.5 in (1486 mm) Bolt on 1.5 cu yd heaped 1.1 cu yd struck Confirm with supplier
72 in (1829 mm) 70.5 in (1791 mm) Welded 1.8 cu yd heaped 1.4 cu yd struck Confirm with supplier
72 in (1829 mm) 70.5 in (1791 mm) Bolt on 1.8 cu yd heaped 1.4 cu yd struck Confirm with supplier
96 in (2438 mm) 94.5 in (2400 mm) Welded 2.5 cu yd heaped 1.9 cu yd struck Confirm with supplier
96 in (2438 mm) 94.5 in (2400 mm) Bolt on 2.5 cu yd heaped 1.9 cu yd struck Confirm with supplier
Mounts on existing forks
Turns a fork carriage into a loading bucket without changing the carriage or adding a second attachment
Safety retaining pins
Hold the bucket on the tines so it cannot walk forward when the carriage tilts
Wide fork acceptance
Fits the tine sizes a mixed fleet already runs rather than one fixed fork

Included with Purchase

  • 1 Arrow Fork Mounted Bucket (variant/model as ordered)
  • Safety retaining pins

Not Included Unless Stated

  • Pallet forks or fork carriage
  • Bolt-on replacement cutting edge
  • Telehandler
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
