Heavy Duty Skid Steer Bucket | Star Industries

Brand Star IndustriesSKU LP22A-60
Original price $1,370.00 USD - Original price $2,483.00 USD
Original price
$1,370.00 USD
$1,370.00 USD - $2,483.00 USD
Current price $1,370.00 USD
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

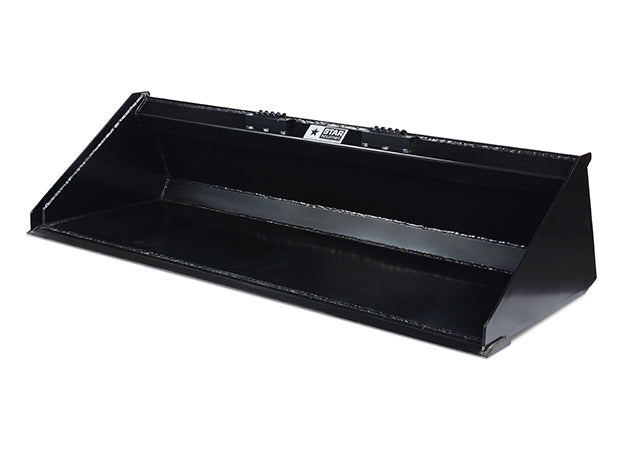

The Star Industries Heavy Duty Skid Steer Bucket is a low profile dirt bucket in five widths from 60 in to 84 in, 15.0 to 21.0 cubic feet heaped, with fully welded seams, a reinforced hat section and steel side blades. Order it with a plain punched blade, a reversible bolt-on blade or pin-on teeth.

Need fitment or freight help before you order? Contact us.

Shipping & Freight

We ship to the 48 contiguous states. We do not ship to Alaska, Hawaii, US territories, military (APO/FPO/DPO) addresses or outside the United States.

Smaller items ship by parcel carrier, priced by weight. Larger items and heavy equipment ship by LTL freight, priced by your ZIP code and the delivery type you choose: terminal pickup and dock delivery cost the least, and commercial liftgate, residential liftgate and jobsite delivery each add the carrier’s fee. Your shipping cost is shown at checkout before you pay.

The best way to get a shipping quote or ask a freight question is the Get a Freight Quote button on this page. You can also call (805) 398-6165.

Delivery types, delivery times, terminal pickup, liftgate service and damage inspection are covered in our Shipping Policy.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Widths: 60 in, 66 in, 72 in, 78 in and 84 in inside
  • Heaped Capacity: 15.0 to 21.0 cu ft by width
  • Cutting Edge: bevelled hard carbon steel punched blade, 1/2 in x 6 in or 3/4 in x 6 in by width
  • Scuff Bars: 1/2 in x 3 in, three to five bars by width
  • Height and Depth: 20-1/4 in high x 34 in deep, all widths
  • Empty Weights: 435 lb to 715 lb by width and edge
  • Warranty: 5 year
  • Origin: made in USA

Fitment / Machine Requirements

  • Mount: universal quick-tach, 3/8 in plate steel
  • Bucket Profile: built to the specific make and model of skid-steer loader
  • Minimum Carrier Rated Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns: within 30 days of delivery if unused and complete, with a restocking fee of up to 25% plus return freight. Returns need the manufacturer's agreement to take the item back; if they won't, the sale is final. Custom and made-to-order items are final sale. Full terms: Refund Policy.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

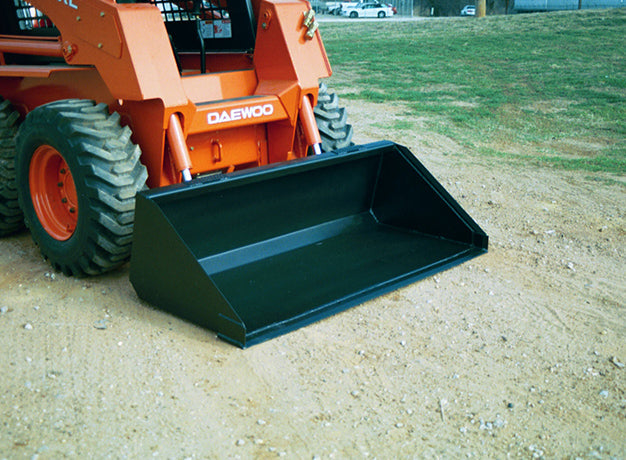

The Star Industries Heavy Duty Skid Steer Bucket is the low profile dirt bucket in Star's skid steer range. The bottom sets close to the ground so an operator can back-drag to level in the same pass, and the low profile keeps the leading edge in view from the seat, which is the difference between levelling by feel and levelling by eye.

Seams are welded continuously inside and outside, a reinforced hat section runs the full width across the top, and steel side blades strengthen and protect the sides. Three to five load-transfer scuff bars, depending on width, reinforce the bucket bottom against wear. An integrated safety step is built in. The edge is a buyer choice rather than a fixed build: a bevelled punched blade as standard, a reversible 5/8 in by 8 in bolt-on blade the supplier states gives three times the wear, or pin-on series 23 teeth at 2-1/4 in across the point. This is for landscape, sitework and rental crews who need one bucket to load and to finish.

Common Applications

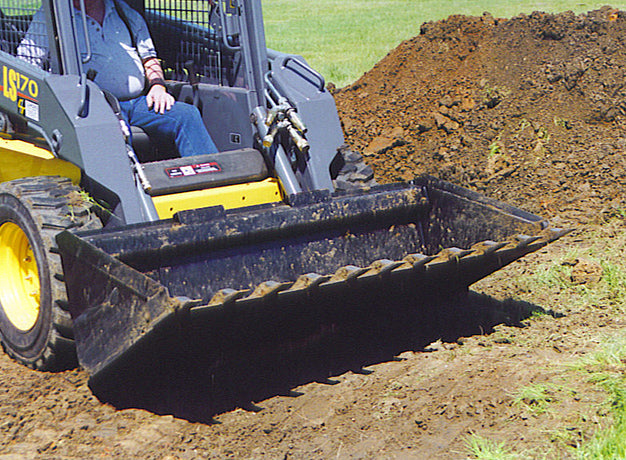

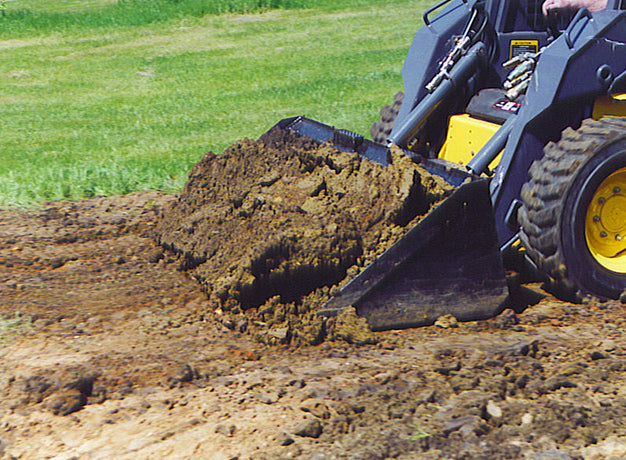

  • Loading and moving soil, sand and aggregate
  • Back-dragging and levelling in a single pass
  • Site clean-up and stockpile work
  • General rental-fleet loading duty

Selection Notes

  • Five widths crossed with three edge builds, fifteen orderable models
  • The bolt-on blade is reversible and is the option to take where the edge is the wearing part
  • Bolt-on side cutters are a supplier option and are not a variant of this bucket
  • Buckets are built to the profile of the specific loader make and model, so state yours when ordering
  • Confirm your carrier's rated operating capacity before ordering
Build
Profile

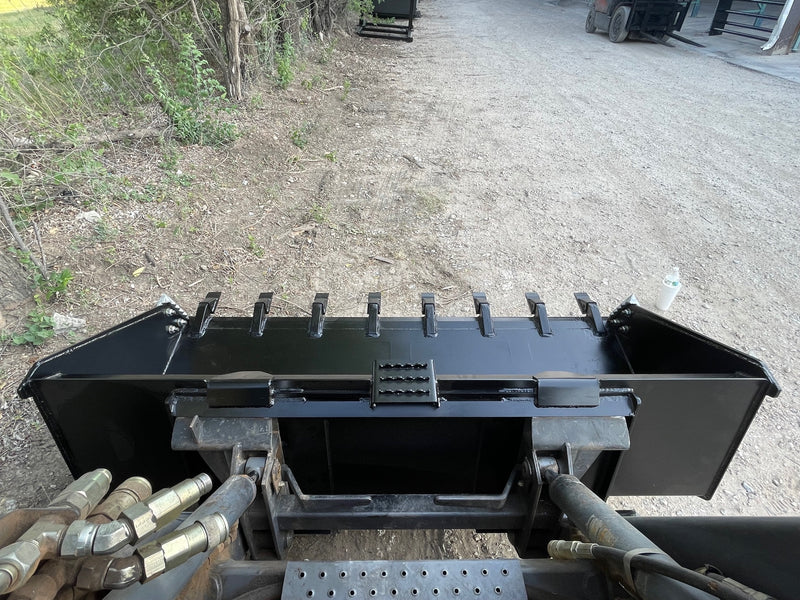

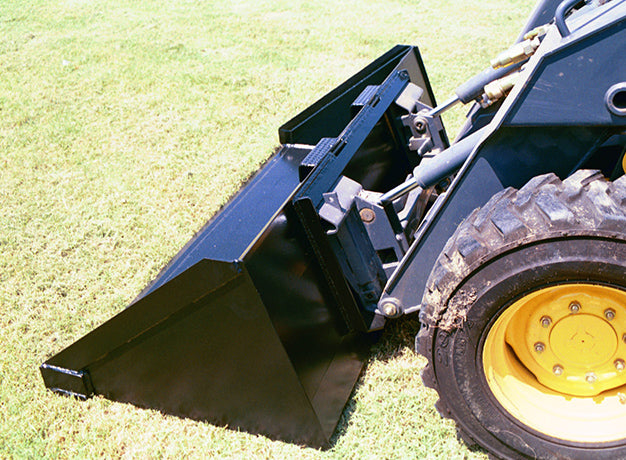

Low profile dirt, leading edge visible from the seat
Cutting edge
Bevelled hard carbon steel punched blade, 1/2 in x 6 in or 3/4 in x 6 in depending on bucket width
Scuff bars
Load transfer, 1/2 in x 3 in, three to five bars depending on width
Hat section
Reinforced, full width across the top of the bucket
Side blades
Steel, strengthening and protecting the bucket sides
Seams
Continuous weld inside and outside the shell seams
Bottom
Set close to the ground for level back-dragging
Safety step
Integrated
Warranty
5 year
Origin
Made in USA
Mount & Interface
Mount
Universal quick-tach
Quick-tach plate
3/8 in plate steel
Loader fit
Built to match the specific make and model of skid-steer loader
Accessories

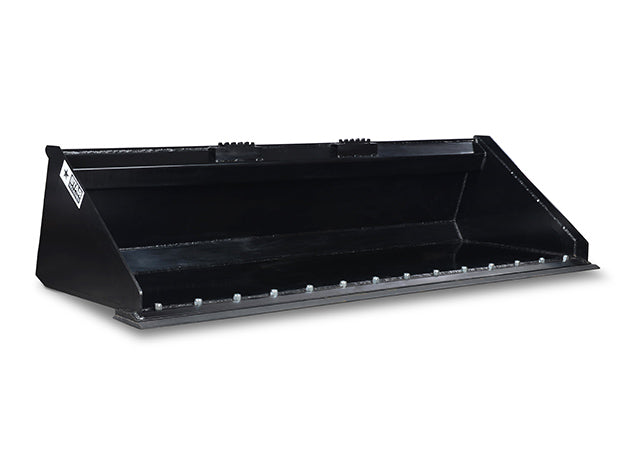

Bolt-on blade
Reversible 5/8 in x 8 in punched blade, stated by the supplier to give three times the wear. Ordered as the BOB model rather than added later

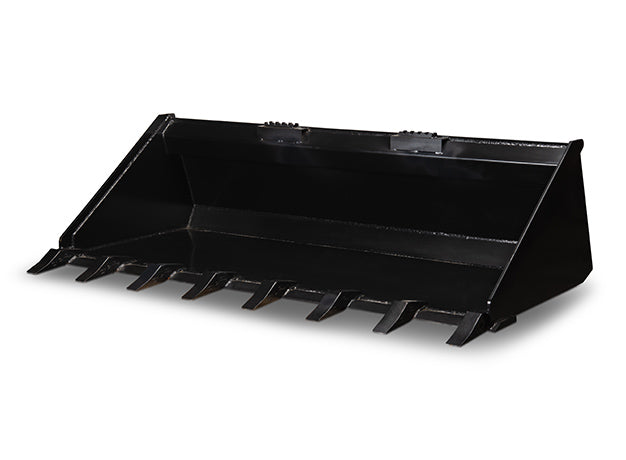

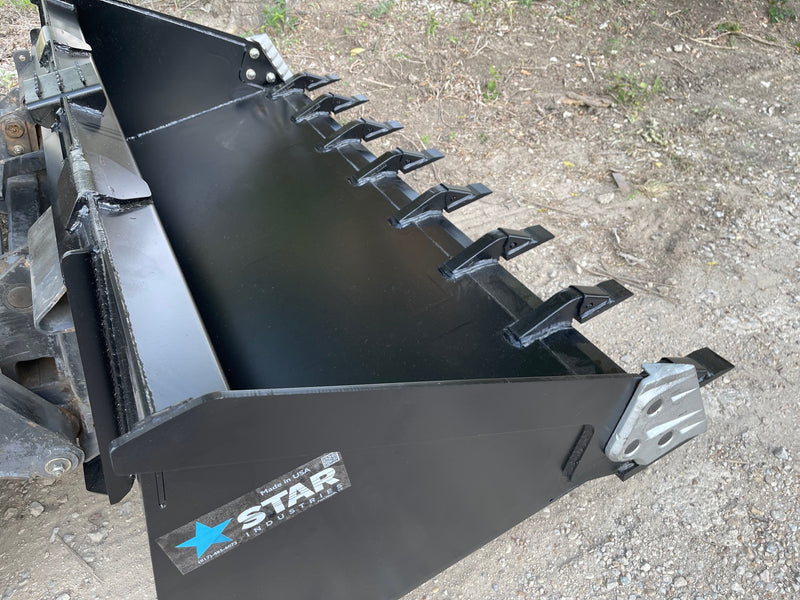

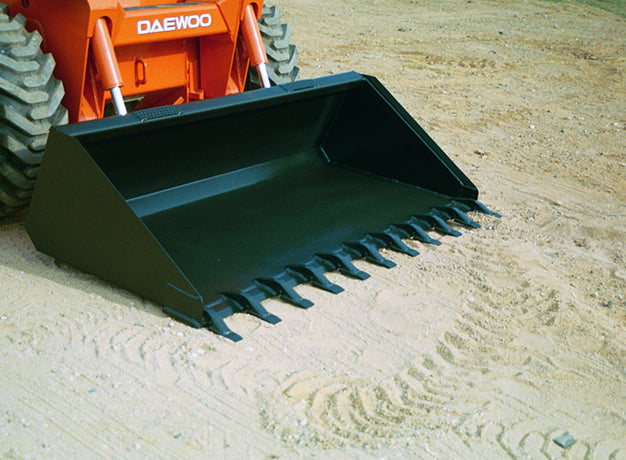

Teeth
Pin-on series 23 teeth measuring 2-1/4 in across the point. Ordered as the T model

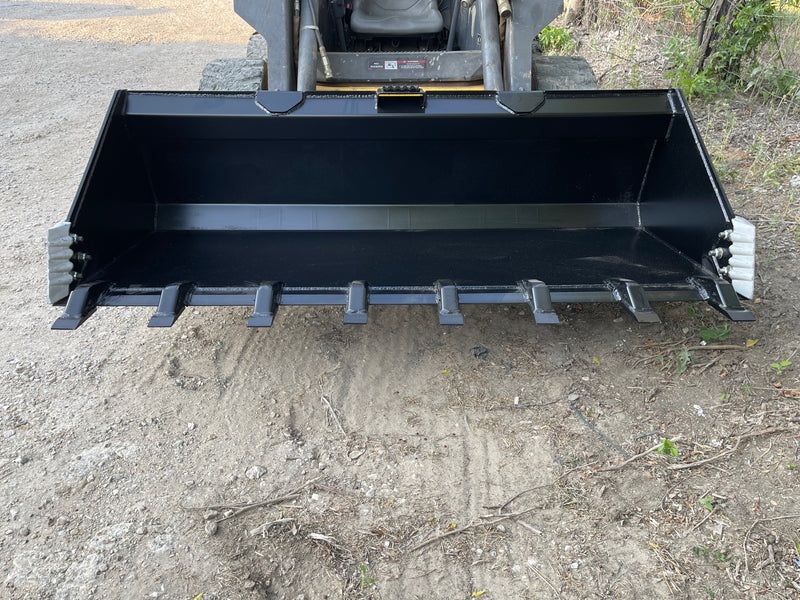

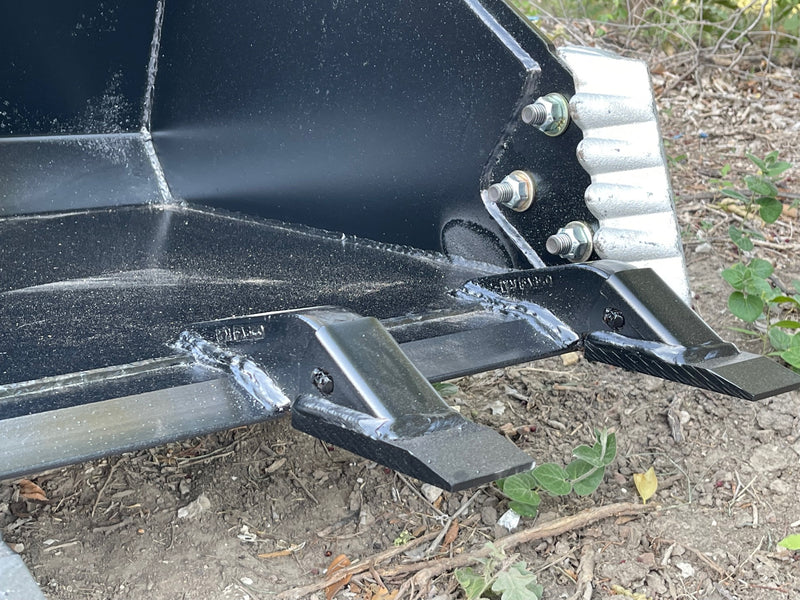

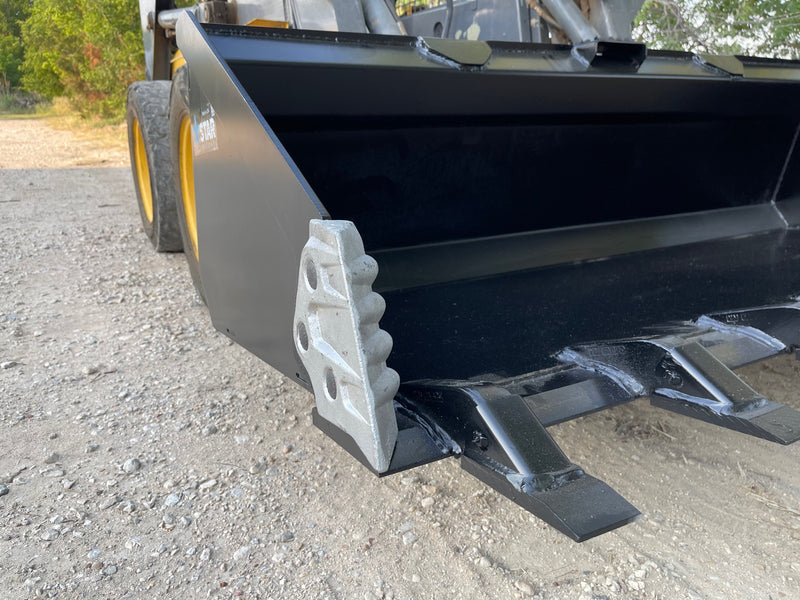

Side cutters
Bolt-on, a supplier option and not a variant of this bucket
WidthEdgeModelWidth ODHeight ODDepth ODHeaped capacityWeight
60 in (1524 mm)StandardLP22A-6062-3/8 in20-1/4 in34 in15.0 cu ft435 lb (197 kg)
66 in (1676 mm)StandardLP22A-6668-3/8 in20-1/4 in34 in16.5 cu ft510 lb (231 kg)
72 in (1829 mm)StandardLP22A-7274-3/8 in20-1/4 in34 in18.0 cu ft560 lb (254 kg)
78 in (1981 mm)StandardLP22A-7880-3/8 in20-1/4 in34 in19.6 cu ft565 lb (256 kg)
84 in (2134 mm)StandardLP22A-8486-3/8 in20-1/4 in34 in21.0 cu ft600 lb (272 kg)
60 in (1524 mm)Bolt-On BladeLP22A-60BOB62-3/8 in20-1/4 in34 in15.0 cu ft516 lb (234 kg)
66 in (1676 mm)Bolt-On BladeLP22A-66BOB68-3/8 in20-1/4 in34 in16.5 cu ft600 lb (272 kg)
72 in (1829 mm)Bolt-On BladeLP22A-72BOB74-3/8 in20-1/4 in34 in18.0 cu ft658 lb (298 kg)
78 in (1981 mm)Bolt-On BladeLP22A-78BOB80-3/8 in20-1/4 in34 in19.6 cu ft673 lb (305 kg)
84 in (2134 mm)Bolt-On BladeLP22A-84BOB86-3/8 in20-1/4 in34 in21.0 cu ft715 lb (324 kg)
60 in (1524 mm)TeethLP22A-60T62-3/8 in20-1/4 in34 in15.0 cu ft479 lb (217 kg)
66 in (1676 mm)TeethLP22A-66T68-3/8 in20-1/4 in34 in16.5 cu ft560 lb (254 kg)
72 in (1829 mm)TeethLP22A-72T74-3/8 in20-1/4 in34 in18.0 cu ft610 lb (277 kg)
78 in (1981 mm)TeethLP22A-78T80-3/8 in20-1/4 in34 in19.6 cu ft621 lb (282 kg)
84 in (2134 mm)TeethLP22A-84T86-3/8 in20-1/4 in34 in21.0 cu ft662 lb (300 kg)
Edge chosen at order
Punched blade, reversible bolt-on blade or pin-on teeth, so the bucket matches the material instead of being adapted later

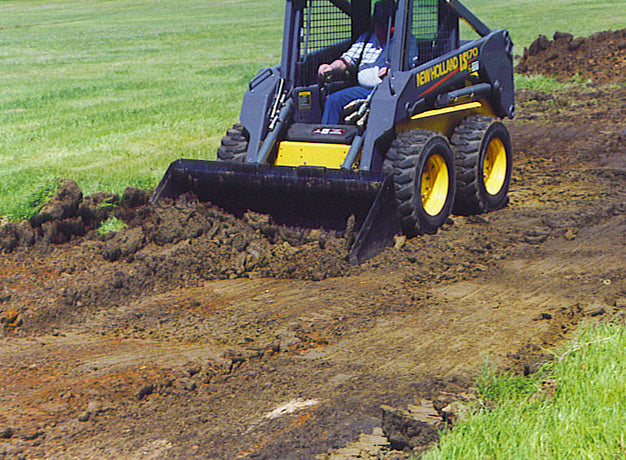

Bottom set close to the ground
Back-drag to level in the same pass rather than coming back with a second attachment
Load transfer scuff bars
Three to five bars carry the wear off the bucket bottom on abrasive material

Included with Purchase

  • 1 Heavy Duty Skid Steer Bucket (variant/model as ordered)

Not Included Unless Stated

  • Skid steer loader
  • Bolt-on side cutters
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.

Related Equipment

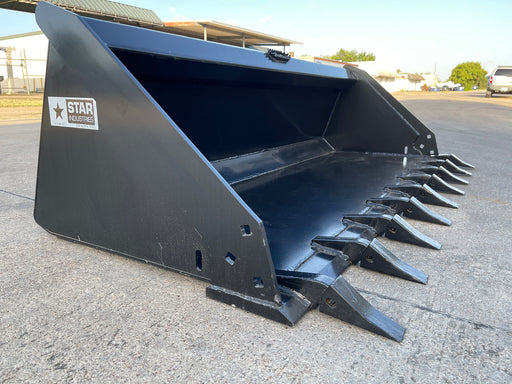

Extreme Duty Skid-Steer Bucket | Star Industries
