JS-160 Propane Joint Clean-Out Saw | U.S. Saws

Brand U.S. SawsSKU SX77160
Original price $10,248.50 - Original price $10,248.50
Original price
$10,248.50
$10,248.50 - $10,248.50
Current price $10,248.50
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

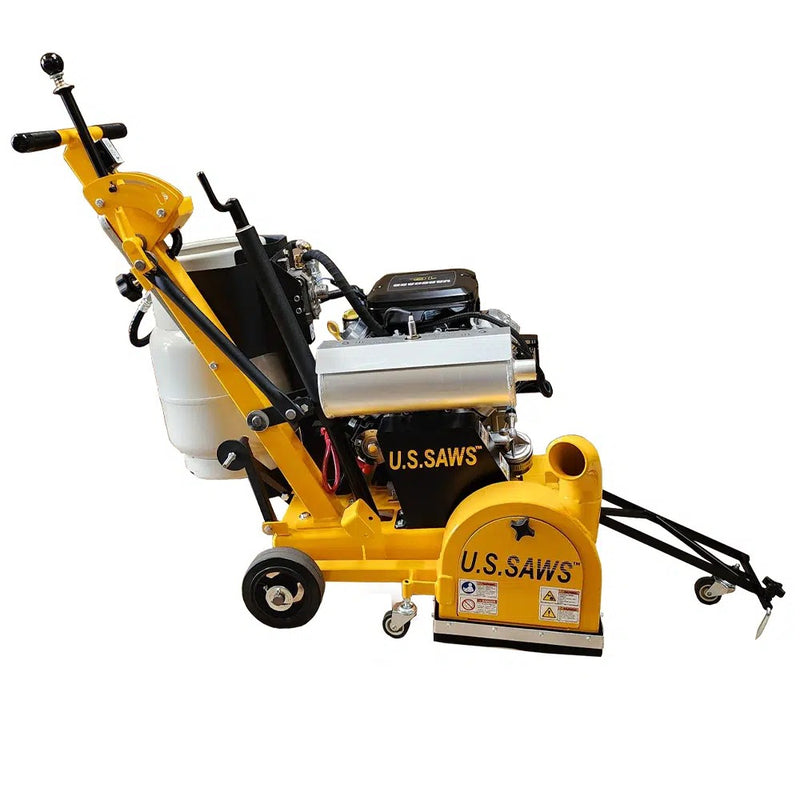

The JS-160P is a certified-propane walk-behind joint clean-out saw that mills existing control joints for new fill or removes failed polyurea, epoxy, and polyurethane joint material. It cuts 3 in deep, runs blade widths from .095 to .500 in, and carries a 479cc Vanguard V-Twin propane engine with electric start.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Weight: 240 lbs
  • Engine: 16 HP Vanguard V-Twin, 479cc, certified propane, electric start
  • Fuel Capacity: 14 lbs propane, 3 to 4 hour run time
  • Blade Shaft Speed: 5,850 RPM
  • Max Depth of Cut: 3 in
  • Blade Widths: .095, .110, .125, .187, .250, .375, .500 in
  • Max Blade Width: .500 in single blade, 1.5 in multiple blades
  • Blade Diameter: 8 in, 10 in
  • Blade Arbor: 1 in with drive pin hole
  • Recommended Dust Collector: 350+ CFM


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

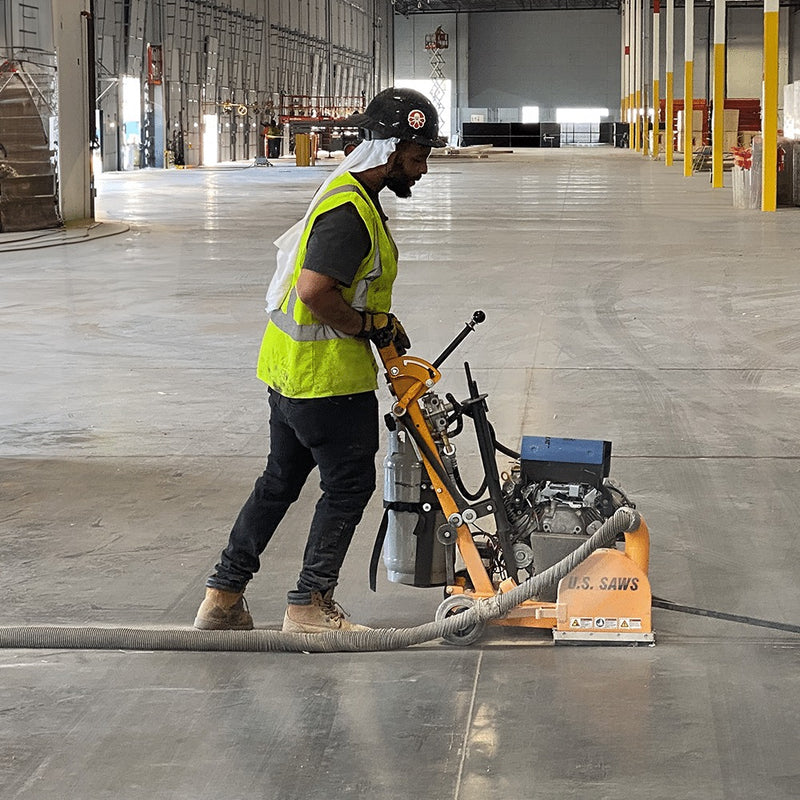

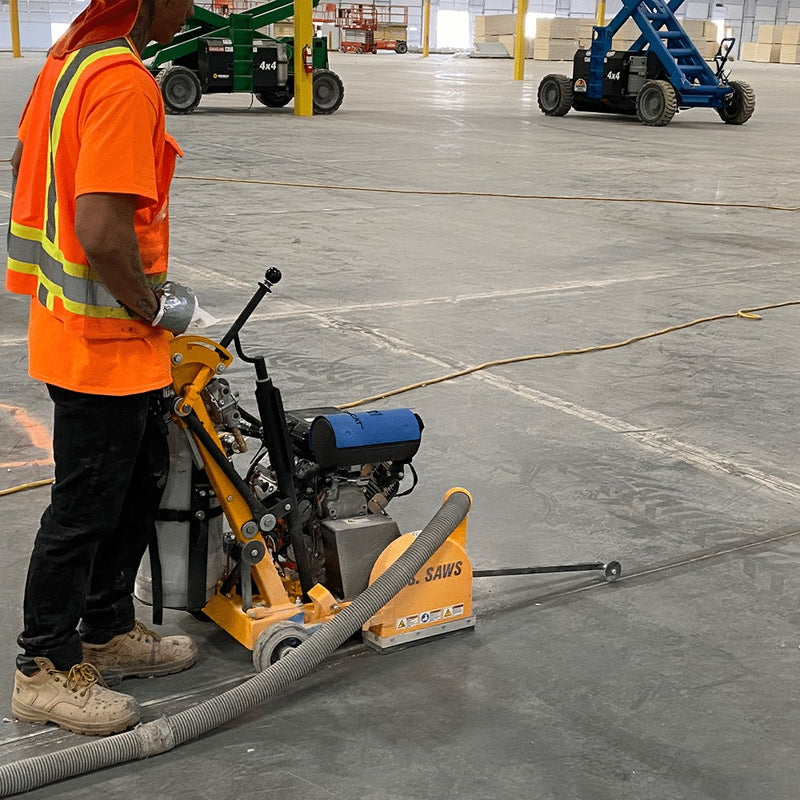

The JS-160P cleans out existing control joints ahead of new joint fill and removes failing polyurea, epoxy, and polyurethane material on large clean-out projects. It is the certified-propane joint saw in the line, built for enclosed slabs and occupied facilities where a propane engine is required and gas or cord-electric is not an option.

The 479cc Vanguard V-Twin runs a twin-cylinder design that cuts vibration at the handle, with electric start and a CO monitor on board. Up-cut blade rotation ejects debris and old fill toward the vacuum port, polyurethane guard seals contain the dust, and a screw jack sets depth while a quick-lift handle retracts the blade between joints. A redesigned belt drive opens up for easier maintenance and longer wear life. This is the saw for flooring contractors running joint clean-out as production work inside warehouses and food-grade plants.

Common Applications

  • Joint clean-out ahead of new joint fill installation
  • Removing failed polyurea, epoxy, and polyurethane joint fill
  • Concrete cutting on enclosed slabs where propane power is specified

Selection Notes

  • Blade stacking runs from a single .095 in kerf up to 1.5 in of milled width for wider joints
  • Gas-preferred sites run the same frame as the JS-131; propane-specified sites belong on this machine
  • Plan dust collection around a 350+ CFM extractor such as the Ultra Vac 1250-P
Unit Specifications
Engine
16 HP Vanguard V-Twin, 479cc, certified propane
Starter
Electric start
Fuel capacity
14 lbs propane, 3 to 4 hour run time
Blade shaft speed
5,850 RPM
CO monitor
Equipped
Cutting Capacity
Max depth of cut
3 in
Blade widths
.095, .110, .125, .187, .250, .375, .500 in
Max blade width
.500 in single blade, 1.5 in multiple blades
Blade diameter
8 in, 10 in
Blade arbor
1 in with drive pin hole
Build
Depth control

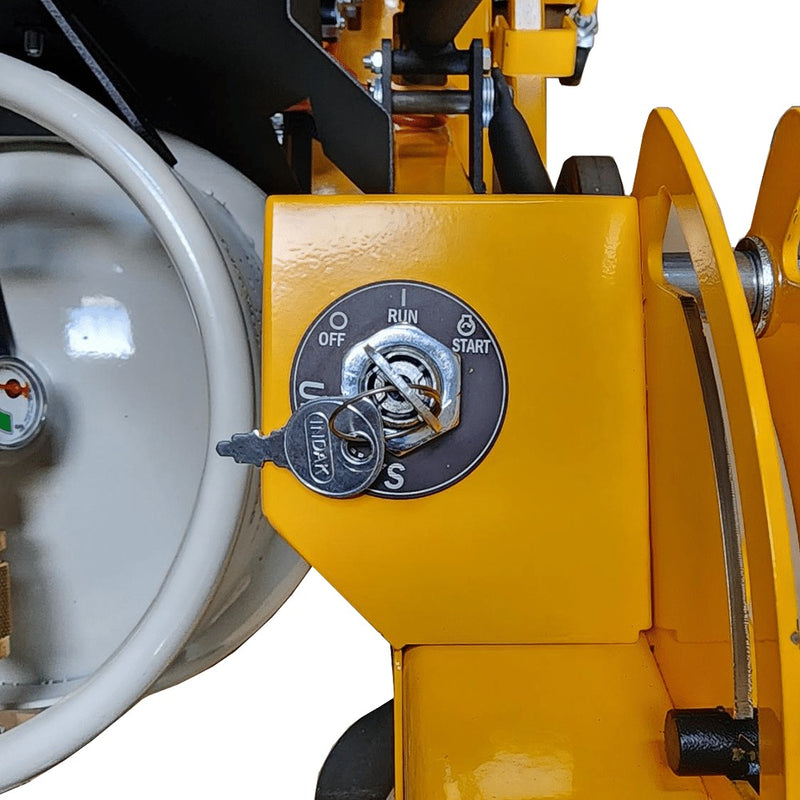

Screw jack adjustment with quick-lift blade retraction handle
Guard seals
Polyurethane, dust-containing
Belt drive
Redesigned for easier maintenance and longer wear life
Guides
Front and rear pointer guides
Machine Notes
Dust collection
350+ CFM extractor recommended
Country of manufacture
American-made
Dimensions & Weights
Weight
240 lb (109 kg)
Certified propane V-Twin with CO monitor
Runs inside occupied and food-grade facilities where gas engines are barred
Up-cut blade rotation
Throws old fill and debris up toward the vacuum port instead of packing the joint
Screw jack depth with quick-lift retraction
Holds a set depth through the cut and lifts clear between joints

Included with Purchase

  • 1 JS-160 Propane Joint Clean-Out Saw (variant/model as ordered)

Not Included Unless Stated

  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.

Related Equipment

Mark-IV Dust Buggy Joint Clean-Out Saw | U.S. Saws

U.S. Saws
Original price $2,042.50 - Original price $2,042.50
Original price
$2,042.50
$2,042.50 - $2,042.50
Current price $2,042.50

The Mark-IV Dust Buggy is an electric walk-behind saw for cleaning out control joints, removing old joint filler, and making straight cuts in concr...

View full details
Original price $2,042.50 - Original price $2,042.50
Original price
$2,042.50
$2,042.50 - $2,042.50
Current price $2,042.50

JS-131 Gas Joint Clean-Out Saw | U.S. Saws

U.S. Saws
Original price $4,774.25 - Original price $4,774.25
Original price
$4,774.25
$4,774.25 - $4,774.25
Current price $4,774.25

The JS-131 is a gas walk-behind joint clean-out saw for milling control joints, concrete sawing, and trench cutting. It runs dry diamond blades to ...

View full details
Original price $4,774.25 - Original price $4,774.25
Original price
$4,774.25
$4,774.25 - $4,774.25
Current price $4,774.25

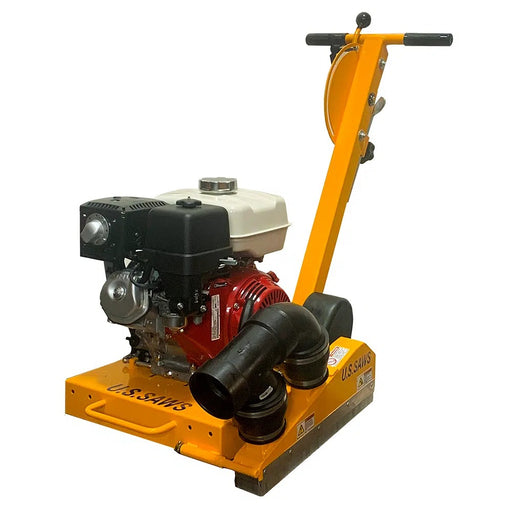

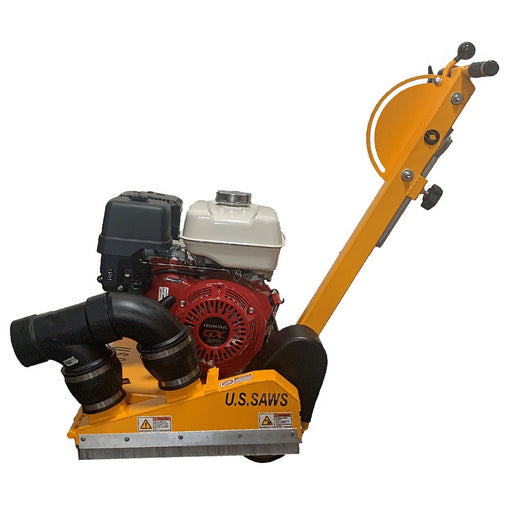

CC-100 Walk Behind Crack Chasing Saw | U.S. Saws
