MC-800 Propane Joint Hog Milling Machine | U.S. Saws

Brand U.S. SawsSKU SX77160WC
Original price $10,815.00 - Original price $10,815.00
Original price
$10,815.00
$10,815.00 - $10,815.00
Current price $10,815.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

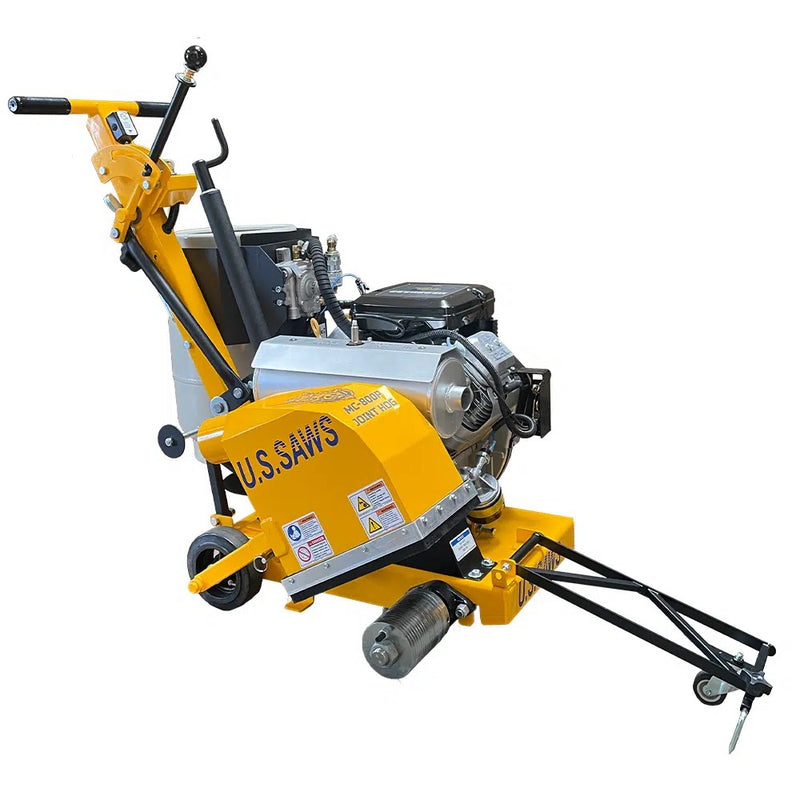

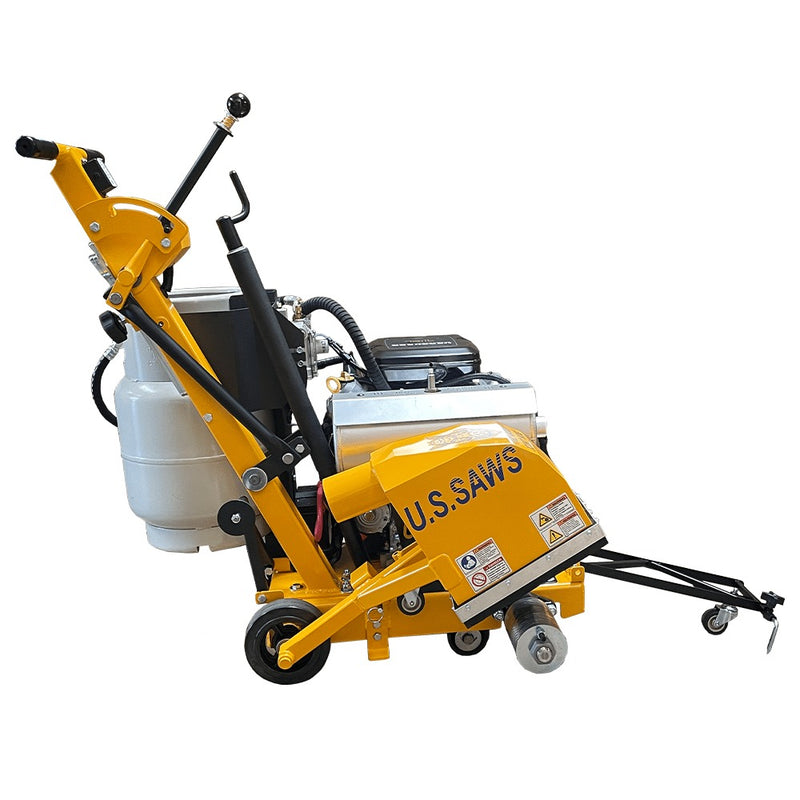

The MC-800P Joint Hog is a walk-behind propane milling machine that removes spalled concrete joints up to 4 in wide and 1.75 in deep using closely spaced diamond blades. It also handles grooving, inlay cutting, and floor prep for permanent line striping, and runs a 16 HP Vanguard V-Twin certified propane engine with electric start.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Weight: 300 lbs

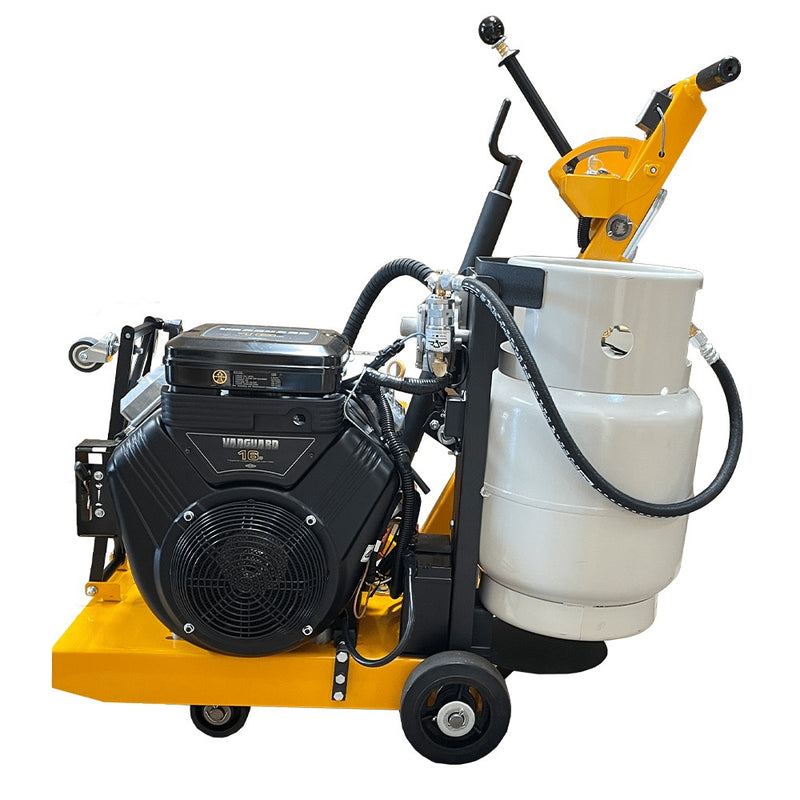

  • Engine: 16 HP Vanguard V-Twin, certified propane, electric start
  • Fuel Capacity: 20 lbs propane
  • Blade Shaft Speed: 5,850 RPM
  • Max Depth of Cut: 1.75 in with 8 in blades, fully adjustable
  • Max Cutting Width: up to 4 in
  • Cutting Speed: 2.5 ft per minute at 2 in wide by 1 in deep, full mill
  • Blade Diameter: 8 in
  • Blade Arbor: 1 in with drive pin hole
  • Recommended Dust Collector: 400+ CFM


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

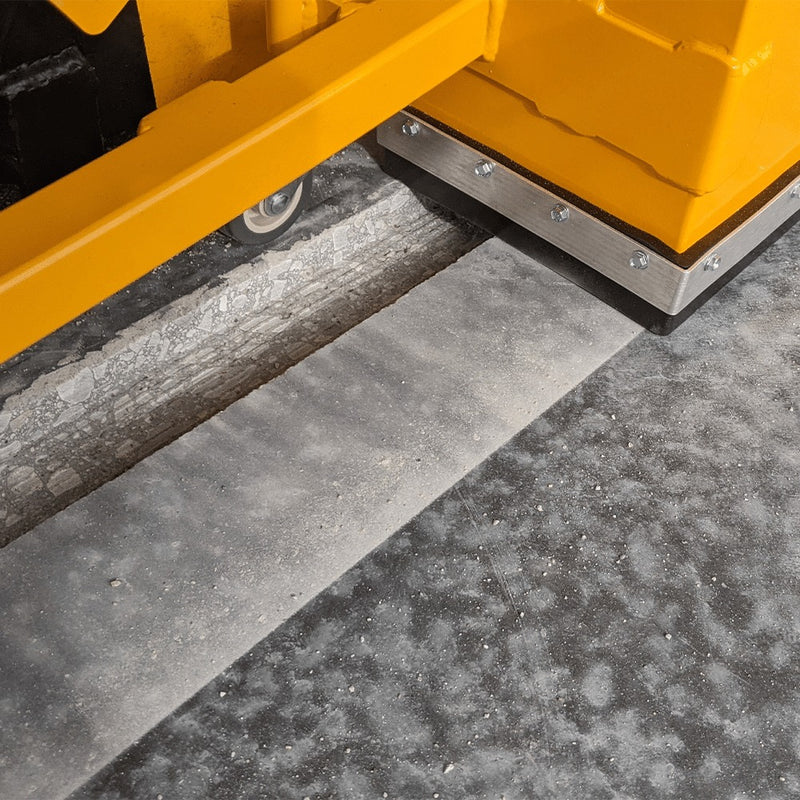

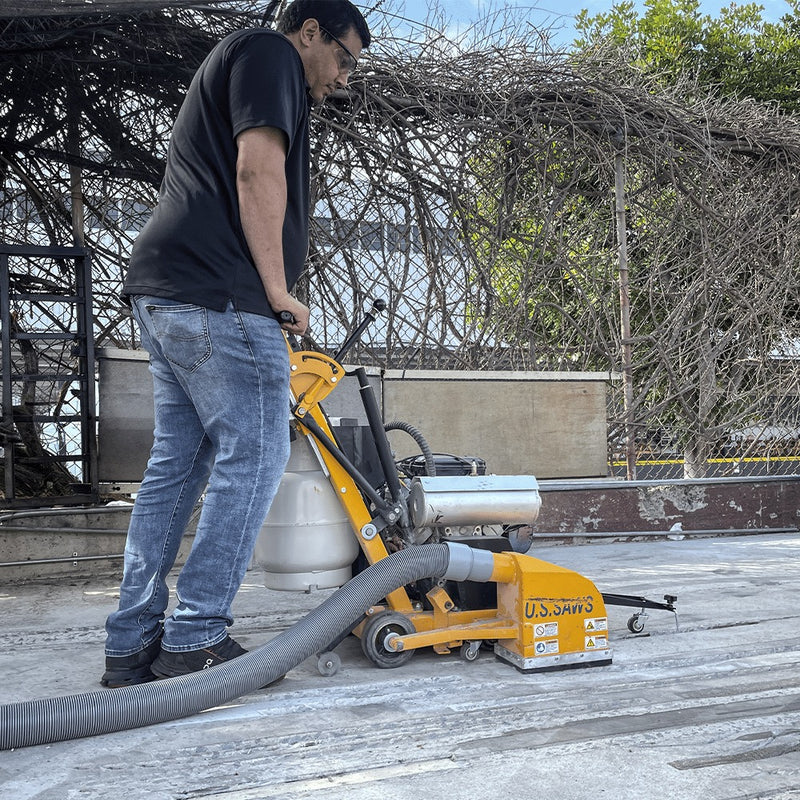

The MC-800P Joint Hog mills out spalled and deteriorated concrete joints for repair, and preps floors for grooving, inlays, and permanent line striping. Closely spaced diamond blades remove the failed concrete and leave a textured surface that is ready for fill material without further prep.

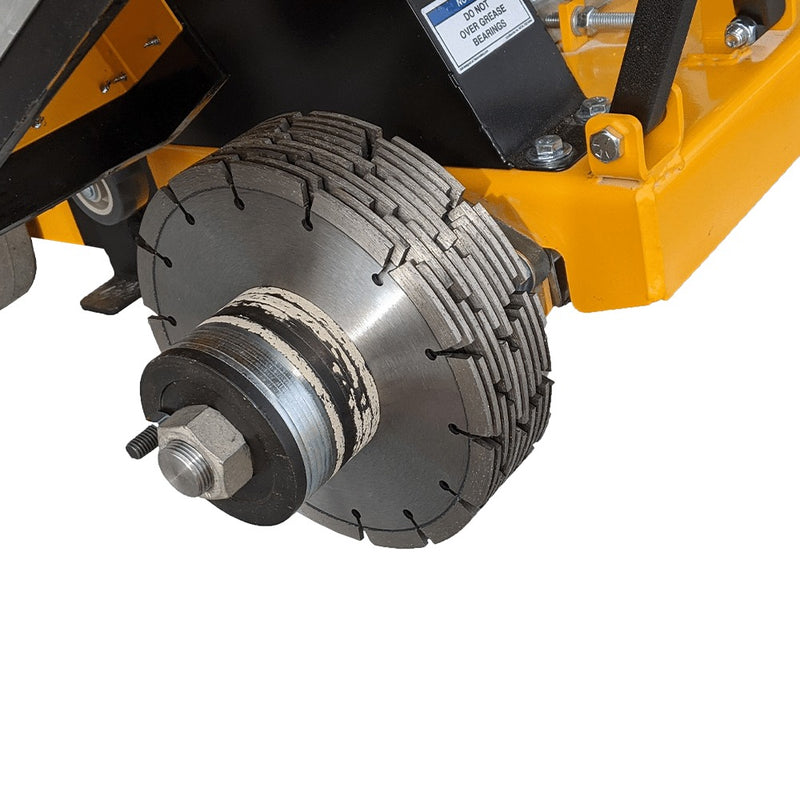

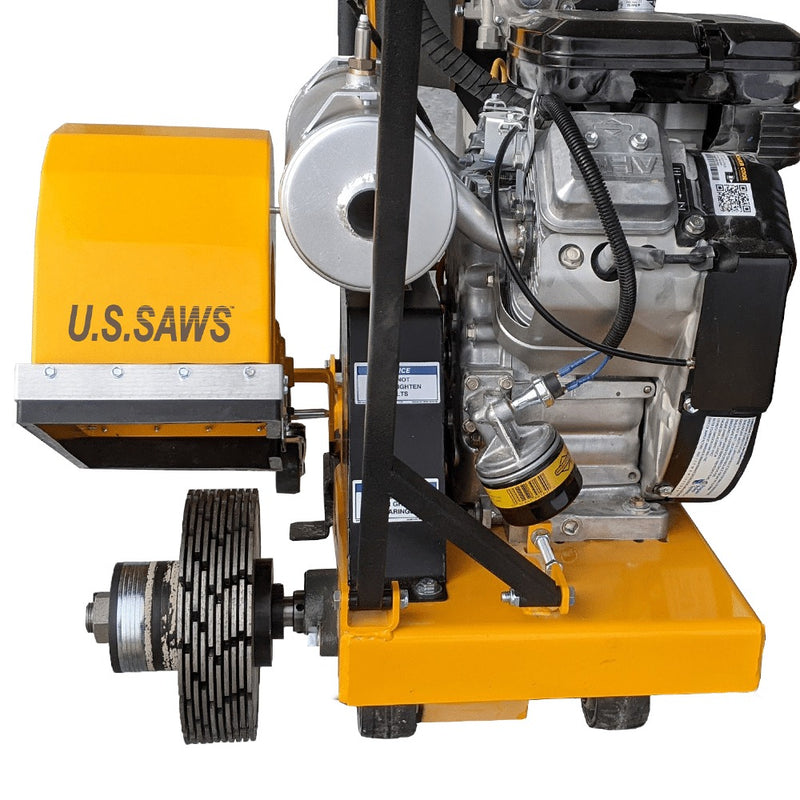

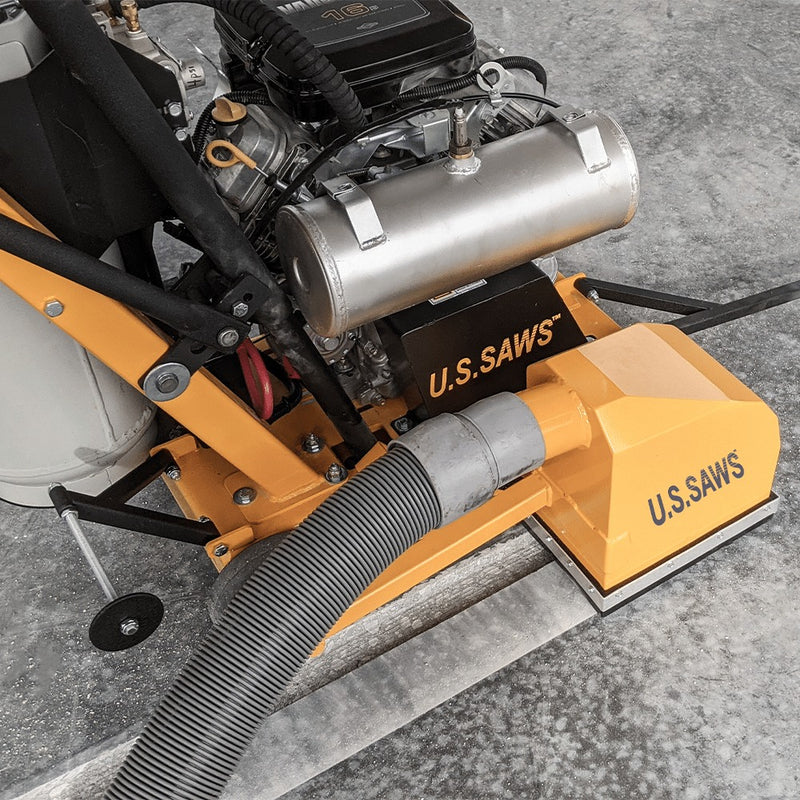

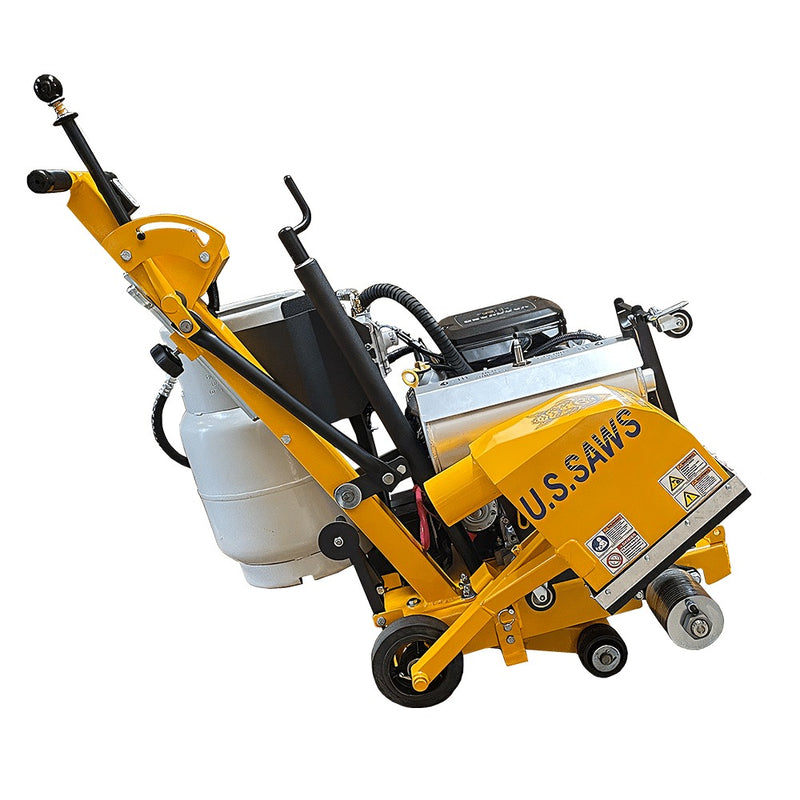

The machine stacks blades to match the job: eight blades mill a two-inch width, sixteen blades take the full four-inch width, and other spacings run for custom repairs. The blades cut in an up-cut direction and eject the millings into a vacuum plenum blade guard, and the certified propane V-Twin with a CO monitor keeps it legal to run on enclosed slabs. It rides on the same fully box-welded heavy gauge steel frame as the JS series joint saws, with a solid rear axle that doubles as the lifting pivot. This is the machine for concrete repair contractors who restore spalled joints and stripe-prep floors as production work.

Common Applications

  • Milling out spalled and deteriorated concrete joints for repair
  • Grooving and cutting inlays in concrete floors
  • Surface prep for permanent line striping

Selection Notes

  • Blade count sets the milled width: eight blades for narrow joint repair, sixteen for the full width
  • Wall clearance runs tight: the head mills within a few inches of walls at the front and side
  • Plan dust collection around a 400+ CFM extractor such as the Ultra Vac 1250-P
Unit Specifications
Engine
16 HP Vanguard V-Twin, certified propane, electric start
Fuel type
Propane
Fuel capacity
20 lbs
Blade shaft speed
5,850 RPM
CO monitor
Equipped
Cutting Capacity
Max depth of cut
1.75 in with 8 in blades, fully adjustable
Max cutting width
up to 4 in (16-blade configuration)
Cutting speed
2.5 ft per minute at 2 in wide by 1 in deep, full mill
Blade widths
.125 in, .150 in
Blade diameter
8 in
Blade arbor
1 in with drive pin hole
Build
Frame
Fully box-welded heavy gauge steel, JS series platform
Rear axle
Solid, serves as the lifting pivot point
Min wall clearance
7 in front, 3 in side
Machine Notes
Dust collection
400+ CFM extractor recommended
Country of manufacture
American-made
Dimensions & Weights
Weight
300 lb (136 kg)
Up-cut milling into a vacuum plenum guard
Captures millings and dust at the blade instead of scattering them
Certified propane engine with CO monitor
Runs on enclosed and occupied slabs where gas engines are barred
Box-welded JS series frame
A rigid platform that holds blade depth consistent across long runs

Included with Purchase

  • 1 MC-800 Propane Joint Hog Milling Machine (variant/model as ordered)

Not Included Unless Stated

  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.

Related Equipment

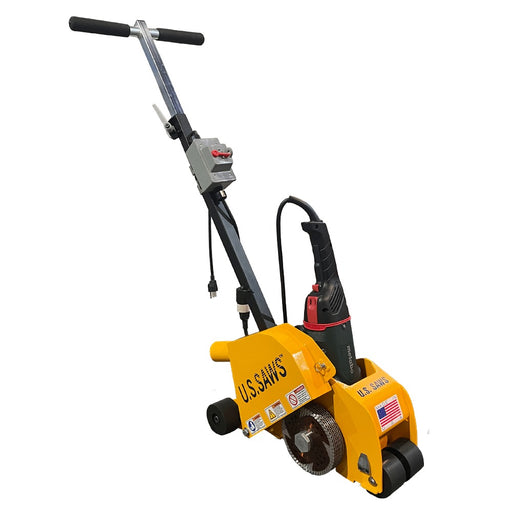

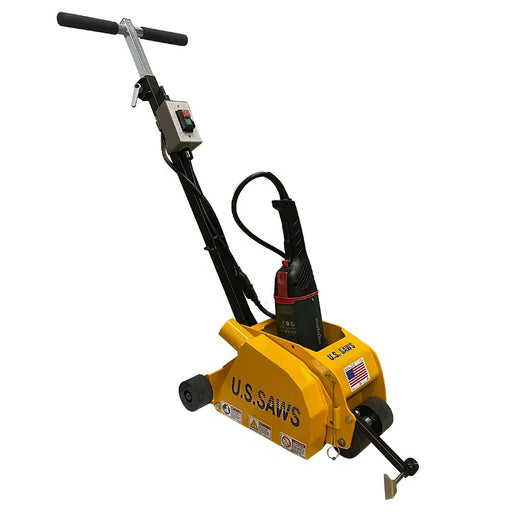

MC-60 Concrete Milling Machine | U.S. Saws

U.S. Saws
Original price $2,467.00 - Original price $2,467.00
Original price
$2,467.00
$2,467.00 - $2,467.00
Current price $2,467.00

The MC-60 is a portable electric milling machine for removing spalled concrete joints and surface repair work. A 15-amp Metabo W26-230 grinder driv...

View full details
Original price $2,467.00 - Original price $2,467.00
Original price
$2,467.00
$2,467.00 - $2,467.00
Current price $2,467.00

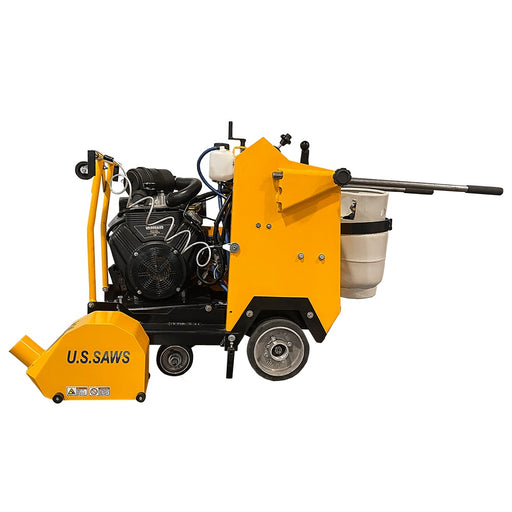

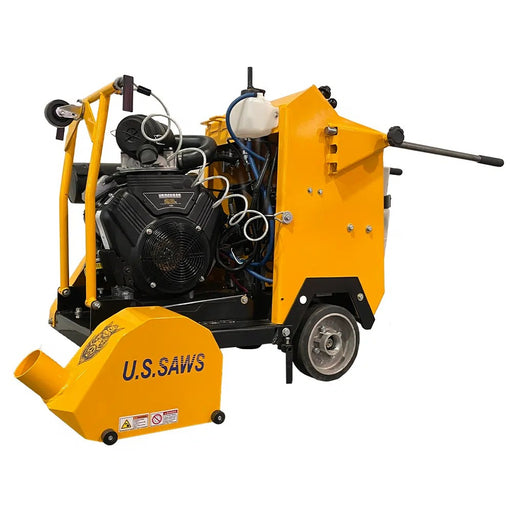

MC-1000 Propane Milling Machine | U.S. Saws

U.S. Saws
Original price $22,660.00 - Original price $22,660.00
Original price
$22,660.00
$22,660.00 - $22,660.00
Current price $22,660.00

The MC-1000 is a self-propelled, certified-propane joint clean-out saw and milling machine for removing failed joint fill and spalled concrete join...

View full details
Original price $22,660.00 - Original price $22,660.00
Original price
$22,660.00
$22,660.00 - $22,660.00
Current price $22,660.00

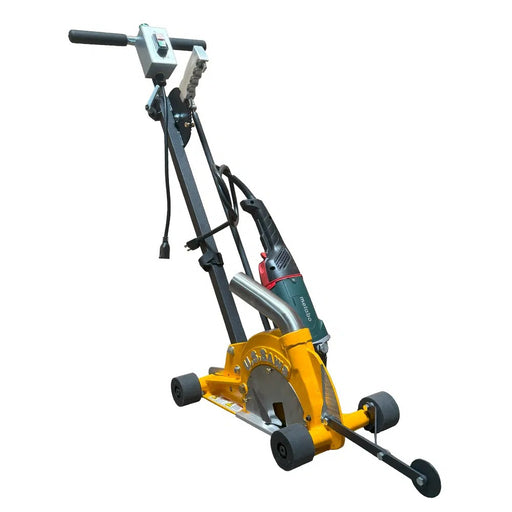

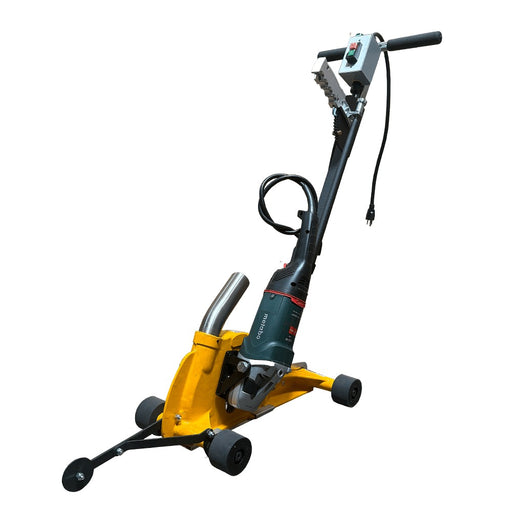

Mark-IV Dust Buggy Joint Clean-Out Saw | U.S. Saws

U.S. Saws
Original price $2,042.50 - Original price $2,042.50
Original price
$2,042.50
$2,042.50 - $2,042.50
Current price $2,042.50

The Mark-IV Dust Buggy is an electric walk-behind saw for cleaning out control joints, removing old joint filler, and making straight cuts in concr...

View full details
Original price $2,042.50 - Original price $2,042.50
Original price
$2,042.50
$2,042.50 - $2,042.50
Current price $2,042.50

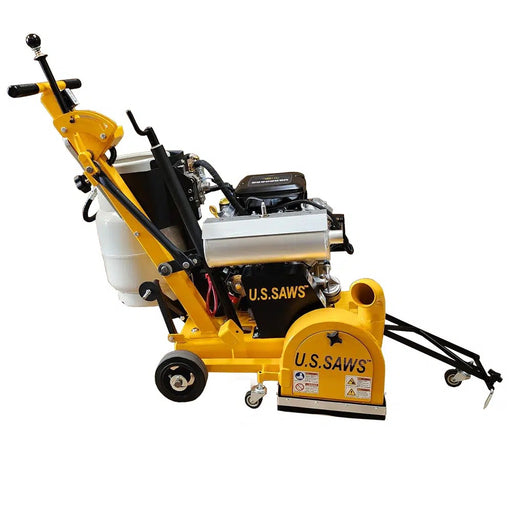

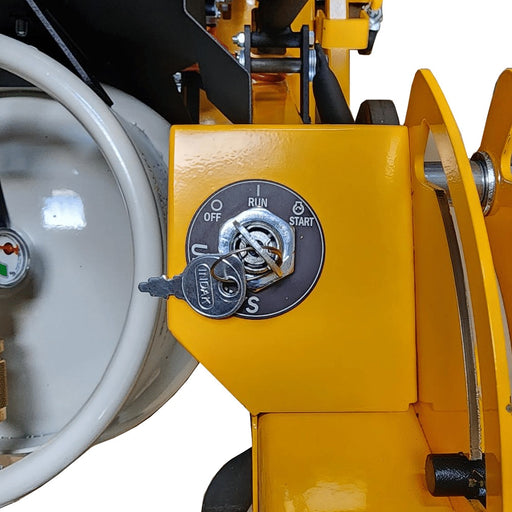

JS-160 Propane Joint Clean-Out Saw | U.S. Saws

U.S. Saws
Original price $10,248.50 - Original price $10,248.50
Original price
$10,248.50
$10,248.50 - $10,248.50
Current price $10,248.50

The JS-160P is a certified-propane walk-behind joint clean-out saw that mills existing control joints for new fill or removes failed polyurea, epox...

View full details
Original price $10,248.50 - Original price $10,248.50
Original price
$10,248.50
$10,248.50 - $10,248.50
Current price $10,248.50

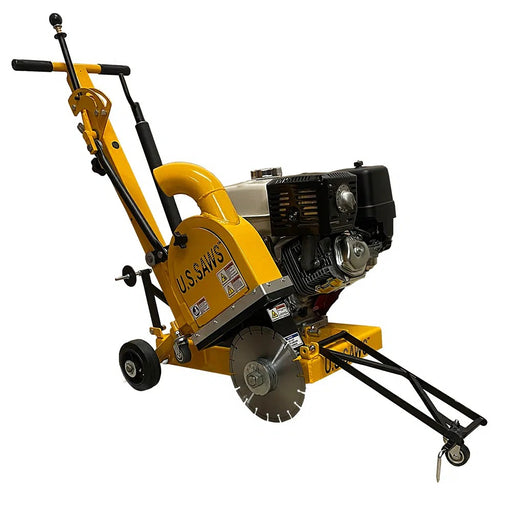

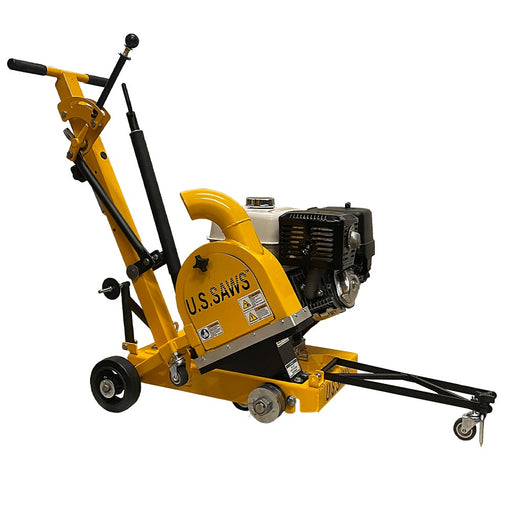

JS-131 Gas Joint Clean-Out Saw | U.S. Saws
