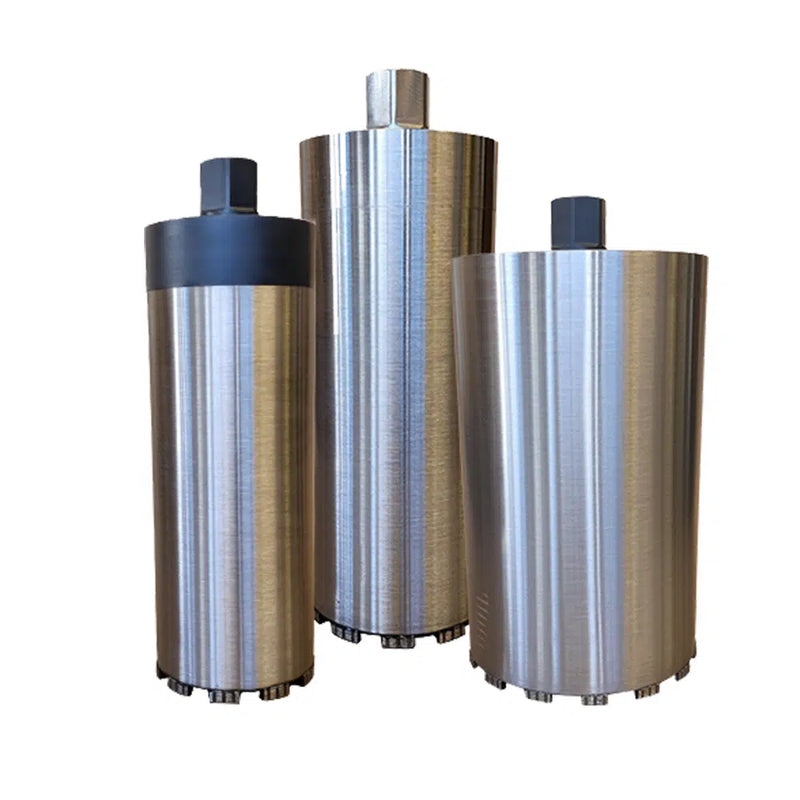

Three brushed steel core barrels standing upright on a white background in three diameters, each with a hex threaded connector at the top and a ring of segmented cutting crown at the base, the narrowest carrying a dark collar below its connector

Premium Core Bits | U.S. Saws

Brand U.S. SawsSKU CBA030031P20W
$200.90 - $1,685.50
$200.90
$200.90 - $1,685.50
$200.90
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

These are the wet core barrels built for hand-held and stand-mounted core drills, published in eleven diameters from 3 in through 16 in. Every size takes the same 1-1/4-7 thread and cuts to a 12 in depth, and none of them fits the Core EZ system, which runs a separate bit line of its own.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Bit Sizes: 3 in, 4 in, 5 in, 6 in, 7 in, 8 in, 9 in, 10 in, 12 in, 14 in, 16 in
  • Thread Size: 1-1/4-7
  • Cutting Depth: 12 in
  • Wet or Dry: wet
  • Weight: confirm with supplier

Fitment / Machine Requirements

  • Machine: hand-held and stand-mounted core drills
  • Not Compatible With: the Core EZ system


Need full technical detail? See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

These are the barrels a coring crew fits when the hole goes through concrete and the water is running. U.S. Saws builds them for its hand-held drills and for its stand-mounted rigs, and publishes eleven diameters against the ten its Core EZ line carries, reaching further at the top end. This is the line for the mechanical, electrical and plumbing contractor whose rig is a hand-held drill or a drill on a stand.

One thread runs the whole range, so the machine end never changes and the only thing the size decision moves is the diameter of the hole and the price of the barrel. Depth of cut is the same on every diameter, which means a size is chosen for the penetration it has to make and not for how deep the barrel will reach. The one thing to get right before ordering is the rig: U.S. Saws states these are not for the Core EZ system, so a crew running that machine is buying the wrong line here and should be looking at the Core EZ bits instead.

Common Applications

  • Coring concrete for pipe, conduit and duct penetrations with a hand-held drill
  • Coring concrete from a stand-mounted rig where the hole has to be held true
  • Wet cutting core holes in the 3 in to 16 in diameter band

Selection Notes

  • These bits do not fit the Core EZ system; the Core EZ has its own bit line and the two do not interchange
  • Eleven diameters are published, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14 and 16 in, and the range runs six inches wider at the top than the Core EZ line
  • The thread is 1-1/4-7 on every size in the line, so the connection is the same barrel to barrel
  • All eleven are wet bits and are published for wet use only
  • Sizes outside the published eleven are available on request
  • No usable weight is published; one figure covers every size and is withheld
Build
Design
Wet core barrel
Thread size
1-1/4-7
Wet or dry
Wet
Cutting Capacity
Cutting depth
12 in
Diameter range
3 in to 16 in
Machine Notes
Machine
Hand-held and stand-mounted core drills
Not compatible with
Core EZ system
Dimensions & Weights
Weight
Confirm at ordering Confirm with supplier
SizePart numberWeight
3 in CBA030031P20W Confirm at ordering
4 in CBA040031P20W Confirm at ordering
5 in CBA050031P20W Confirm at ordering
6 in CBA060031P20W Confirm at ordering
7 in CBA070031P20W Confirm at ordering
8 in CBA080031P20W Confirm at ordering
9 in CBA090031P20W Confirm at ordering
10 in CBA100031P20W Confirm at ordering
12 in CBA120031P20W Confirm at ordering
14 in CBA140031P20W Confirm at ordering
16 in CBA160031P20W Confirm at ordering
One thread across the range
The machine end is the same barrel to barrel, so only the hole diameter changes with the size
Same depth every diameter
A size is chosen for the hole it has to make, not for how deep the barrel reaches
Two machine types
One bit line covers a hand-held drill and a stand-mounted rig
Eleven diameters
The published band reaches 16 in, six inches past the Core EZ bit line

Included with Purchase

  • 1 Core Bit (variant/model as ordered)

Not Included Unless Stated

  • Core drill or drill stand
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
