Step-Up 120 Pump | IMER

Brand IMERSKU 1106181
Original price $18,999.00 - Original price $18,999.00
Original price
$18,999.00
$18,999.00 - $18,999.00
Current price $18,999.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

Step-Up 120 towable mortar and grout pump, 7.5 HP 3-phase motor, pumps or sprays mortars, stuccos, grouts, and underlayments up to 3/8 in aggregate. 2-speed control, pivoting tow bar, remote-control ready.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Motor: 7.5 HP, 3-phase, 2-speed, 100% duty-cycle
  • Mixer Power: 2 HP
  • Max Aggregate Size: 3/8 in
  • Hopper Capacity: 4.25 cu ft
  • Net Weight: 616 lb
  • Retail Price: $18999


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

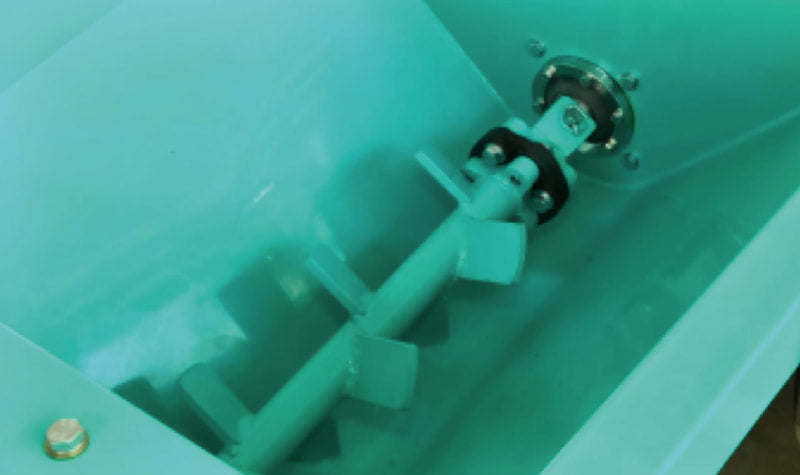

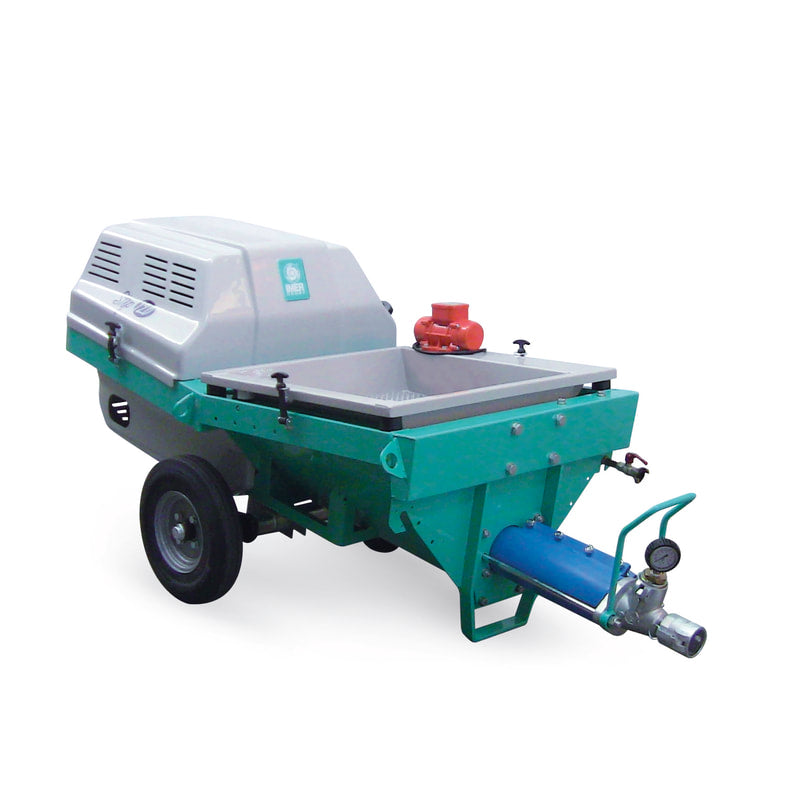

IMER's Step-Up 120 is a towable progressive-cavity pump built to pump or spray mortars, stuccos, grouts, restoration mortars, underlayments, fireproofing, and waterproofing materials. A 7.5 HP, 3-phase motor drives the pump through a swappable rotor/stator (2L6, IM25L, 60.12, or L7, chosen to match the material and job), while a separate 2 HP motor runs the built-in mixer feeding the hopper.

Two speed settings give finer control over pressure and flow than a single-speed pump, and the 3-phase power lets it push material further and grout aggregate up to 3/8 in. Torsion bar suspension and an pivoting tow bar make it easy to tow between jobs, and it ships remote-control ready. This is built for crews spraying or pumping premixed materials at a scale beyond what a hand-fed pump handles, not a light-duty occasional-use tool.

Common Applications

  • Pumping grouts and self-leveling underlayments, spraying fireproofing or low-volume shotcrete, and grouting up to 3/8 in aggregate
  • Decorative overlay work requiring precise material flow control

Selection Notes

  • Rotor/stator choice (2L6, IM25L, 60.12, or L7) is matched to the material and application; the standard 3-phase configuration ships with a 60.12 rotor/stator
  • An optional piston compressor and accessory hoses/guns extend it to spraying and shotcrete work; confirm the accessory package needed for your application with supplier
Unit Specifications
Motor
7.5 HP, 3-phase, 2-speed, 100% duty-cycle
Mixer motor
2 HP

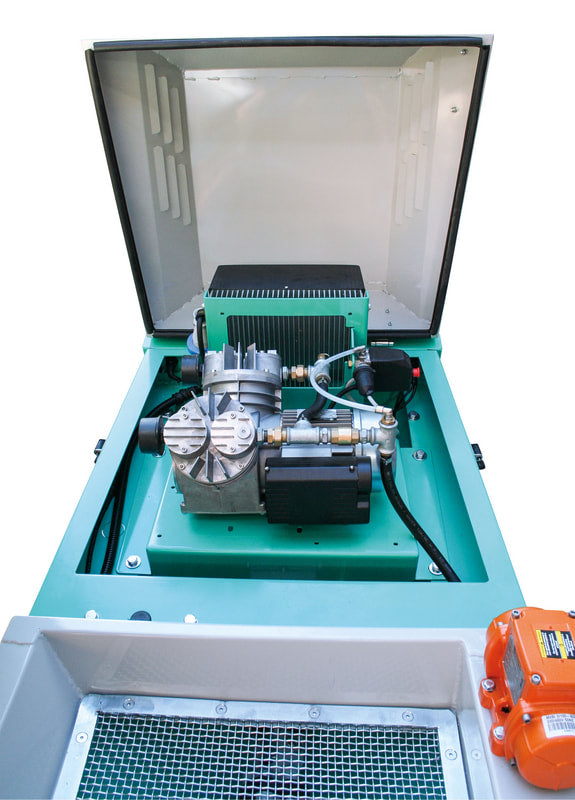

Electric compressor option
3 HP / 11 CFM
Max aggregate size
3/8 in
Hopper capacity
4.25 cu ft
Noise level
Under 79 dB
Country of manufacture
Italy
Build
Frame

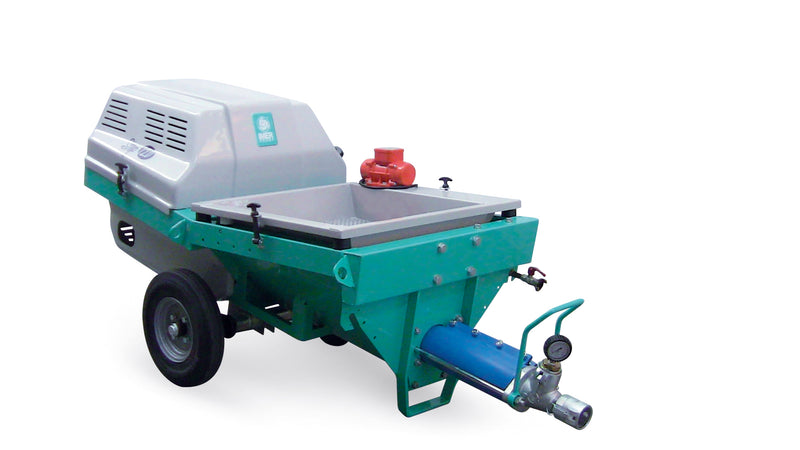

Torsion bar suspension, pivoting tow bar
Controls

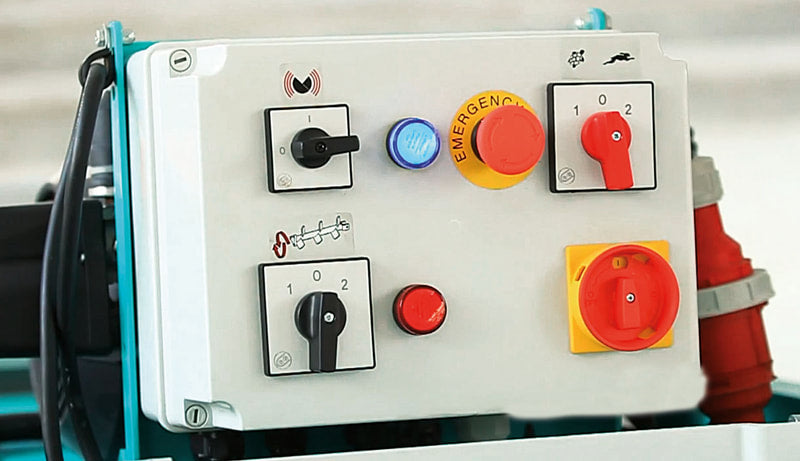

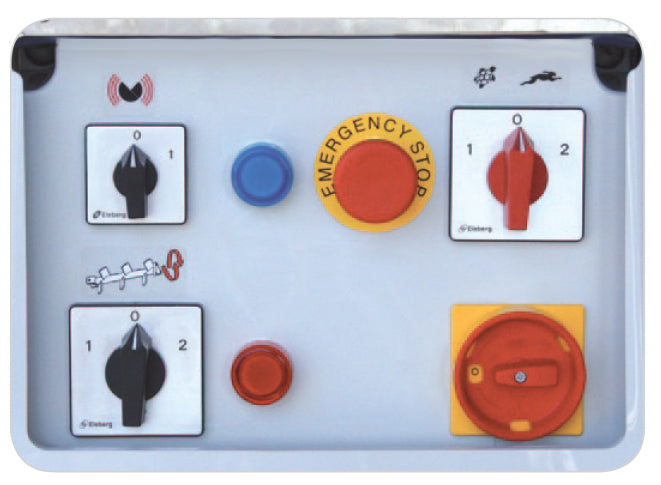

2-speed control panel: on/off, current supply light, emergency stop, rotor/stator forward/reverse, vibrating grate switch, fault indicator light, speed control switch
Standard equipment

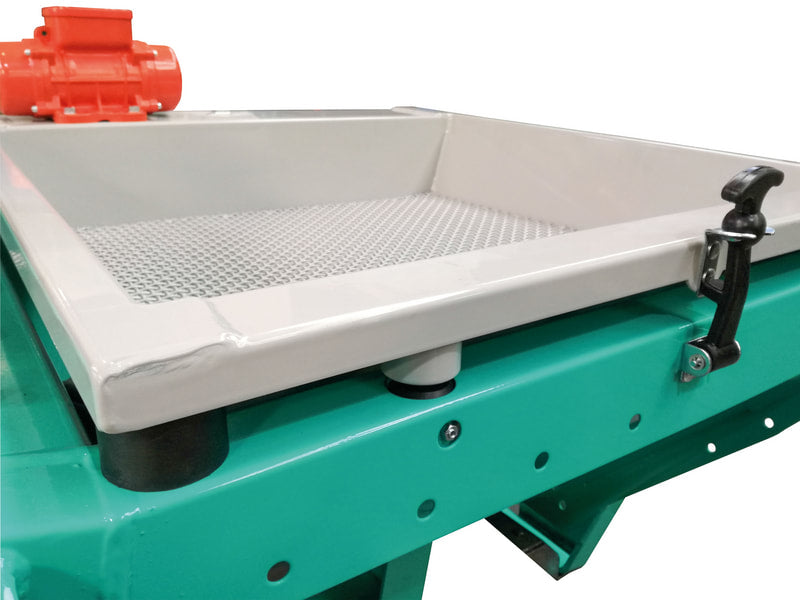

60.12 rotor/stator, 66 ft power cord, grate for premixed materials, tow kit, remote-control ready, accessory toolbox
Warranty
1 year limited
Swappable rotor/stator
Matches the pump to the material and job (2L6, IM25L, 60.12, or L7) instead of a fixed one-size setup

Included with Purchase

  • 1 Step-Up 120 Pump, standard 3-phase configuration (60.12 rotor/stator, 66 ft power cord, grate, tow kit)

Not Included Unless Stated

  • Remote control, compressor, spray guns, and material hoses (available as accessories)
  • On-site installation or configuration

Note: Confirm exact included components with supplier at time of order.
