Air Powered Belly Saw 8 to 24 Inch | U.S. Saws

Brand U.S. SawsSKU US60278
Original price $3,954.60 - Original price $3,954.60
Original price
$3,954.60
$3,954.60 - $3,954.60
Current price $3,954.60
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

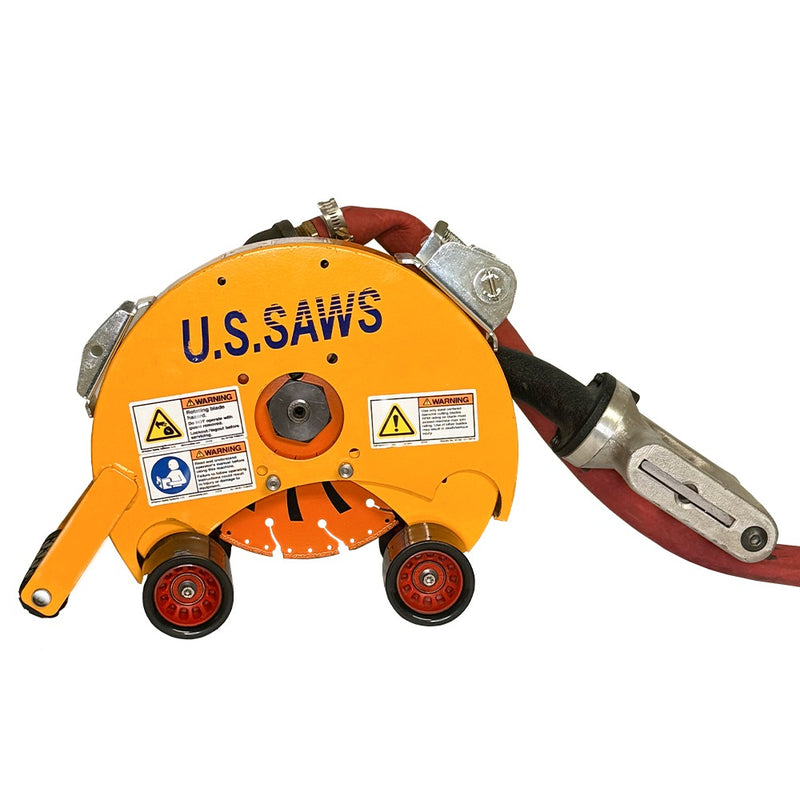

The Air Powered Belly Saw straps to pipes from 8 to 24 in diameter and guides around the circumference for a straight, controlled cut, including the underside. It runs a direct-drive air motor on 90 CFM at 90 PSI and ships with an 8 in Tiger Tooth blade that cuts PVC, HDPE, ductile iron, and cast iron.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Weight: 30 lbs
  • Dimensions: 8.5 x 21 x 10.5 in

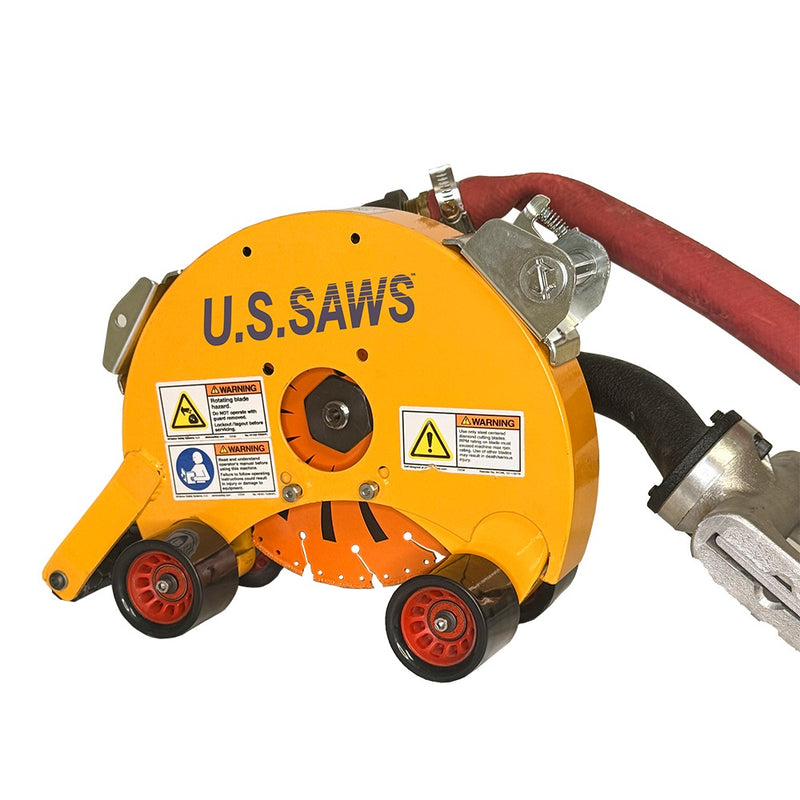

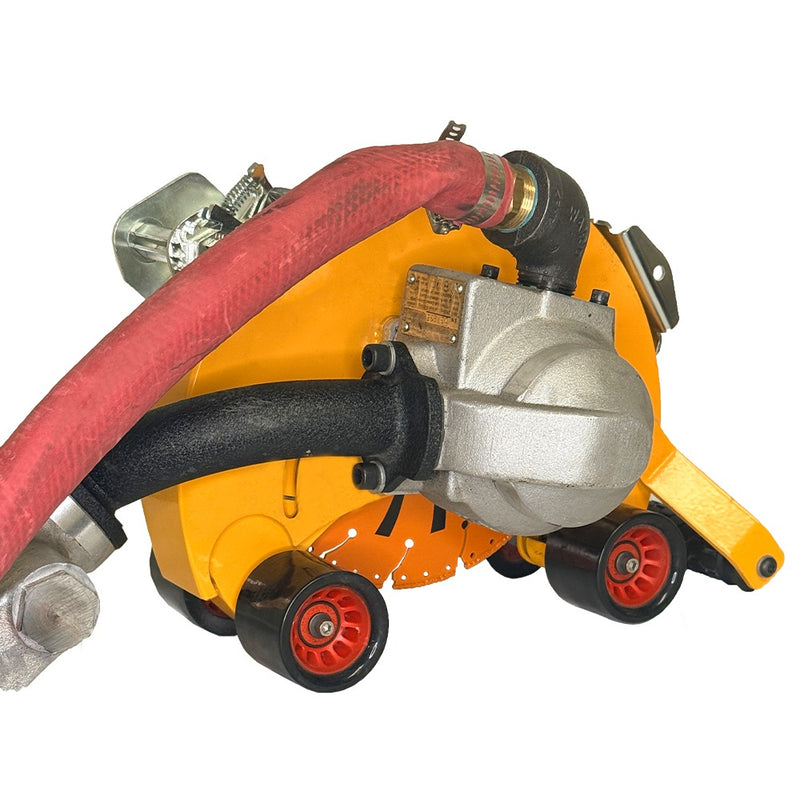

  • Drive: direct-drive air motor
  • Air Flow Requirement: 90 CFM at 90 PSI
  • Speed: 6,000 RPM
  • Pipe Range: 8 to 24 in diameter
  • Blade: 8 in diameter, .125 in max width
  • Strap Assembly: 8 to 24 in


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

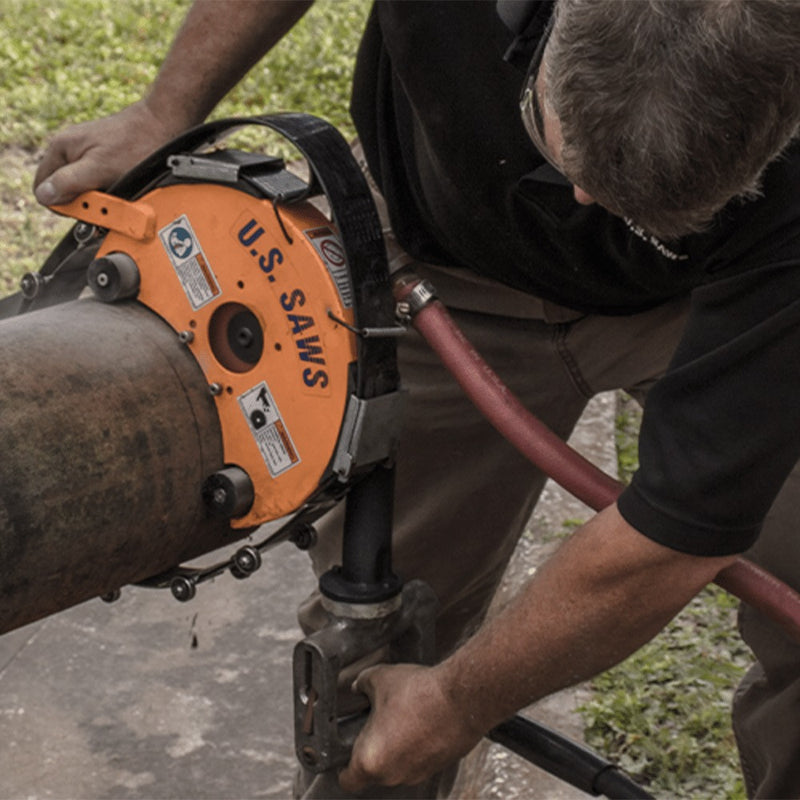

The Belly Saw cuts pipe in the trench, including the underside, which is the cut that traditionally forces over-excavation or puts an operator in a bad position under the pipe. The saw straps to the pipe and is guided around its circumference, so the cut comes out straight and square with the operator's hands on the tool, not under the load.

A clamshell guard shields the blade until it contacts the pipe, and four spring-loaded wheels track the saw around the barrel to hold the cut line. The direct-drive air motor spins the Tiger Tooth blade through PVC, HDPE, ductile iron, and cast iron, with no engine exhaust in the trench. This is built for the water and sewer crews cutting live-trench pipe every week, where a square cut and a safe position are the whole job.

Common Applications

  • Cutting water and sewer main in the trench, 8 to 24 in diameters
  • Bottom-side pipe cuts with minimal excavation
  • Cutting PVC, HDPE, ductile iron, and cast iron pipe

Selection Notes

  • Sized for 8 to 24 in pipe; the Big Belly Saw covers 24 to 72 in
  • Requires a 90 CFM at 90 PSI air source in the trench
  • Hydraulic-circuit crews run the Hydraulic Belly Saw in the same pipe range
Unit Specifications
Drive
Direct-drive air motor
Air flow requirement
90 CFM
Air pressure requirement
90 PSI
Speed
6,000 RPM
Cutting Capacity
Pipe range
8 to 24 in diameter
Blade diameter
8 in
Max blade width
.125 in
Strap assembly
8 to 24 in
Build
Guard
Clamshell design, shields the blade until the cut
Guide wheels
Four spring-loaded wheels track the cut line
Dimensions & Weights
Weight
30 lb (14 kg)
Dimensions
8.5 x 21 x 10.5 in
Strap-and-guide cutting
A straight, square pipe cut with the operator beside the pipe, not under it

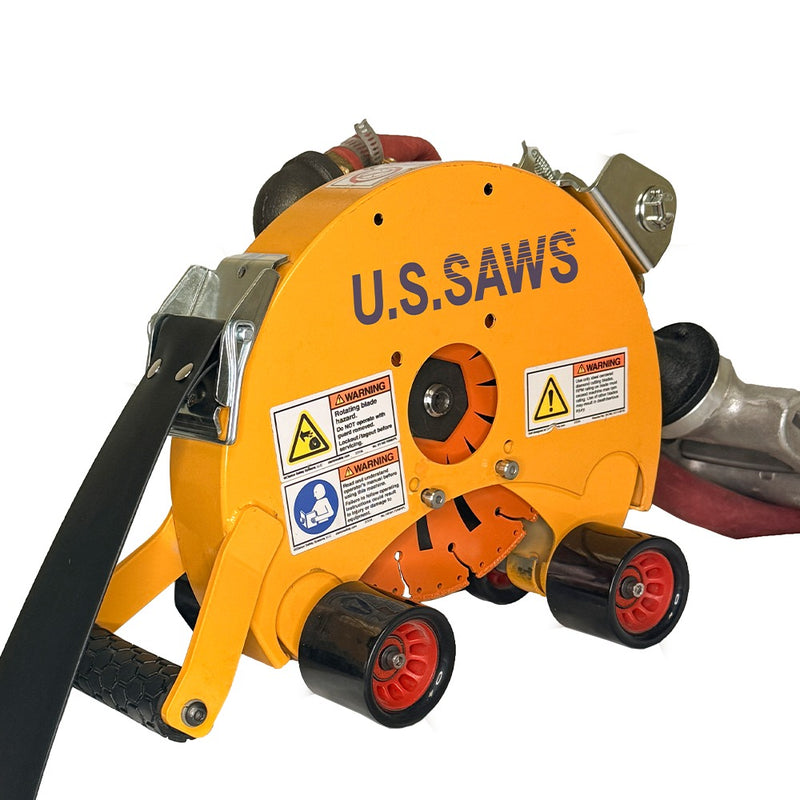

Clamshell blade guard
The blade stays covered until the moment it meets the pipe
Tiger Tooth blade compatibility
One saw cuts PVC, HDPE, ductile, and cast iron in the same trench

Included with Purchase

  • 1 Belly Saw with high-output air motor, 8 to 24 in
  • 8 in guard
  • 8 in Tiger Tooth blade

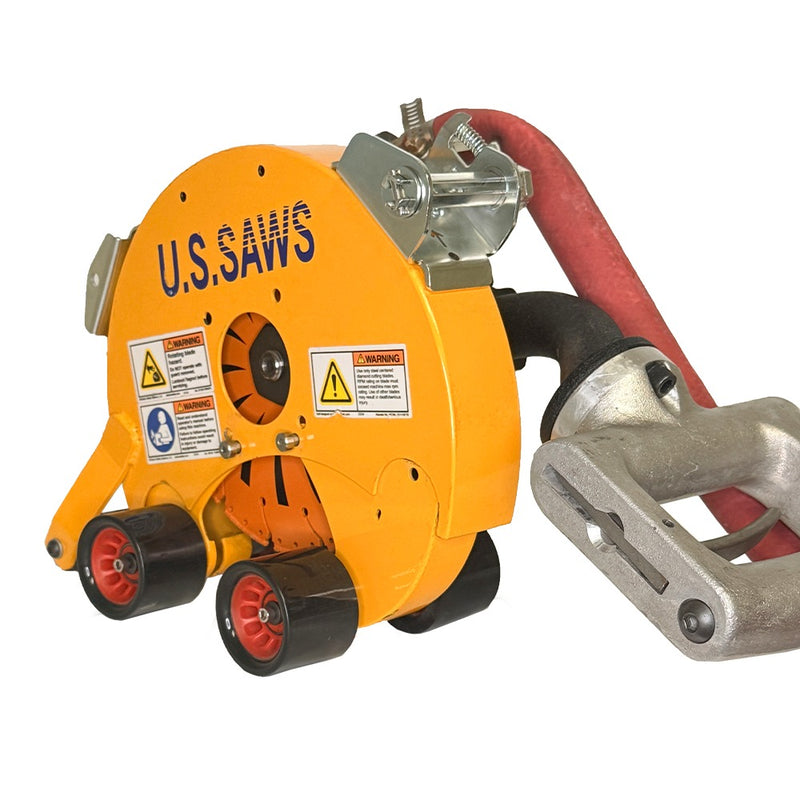

  • 24 in strap assembly

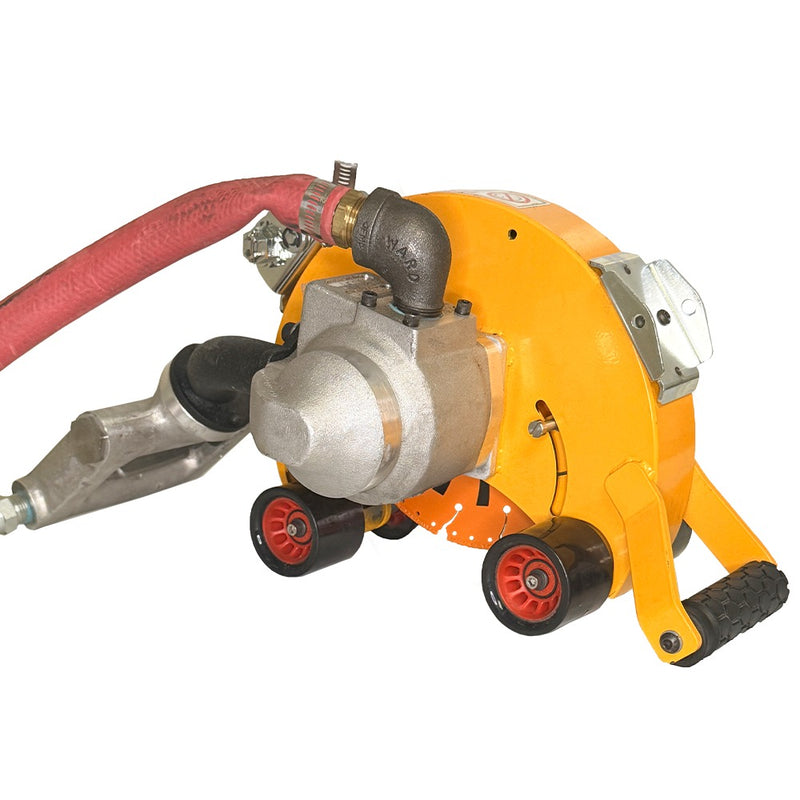

  • 6 ft whip hose with oiler
  • 2 wrenches
  • 1 quart Ice Free air tool oil

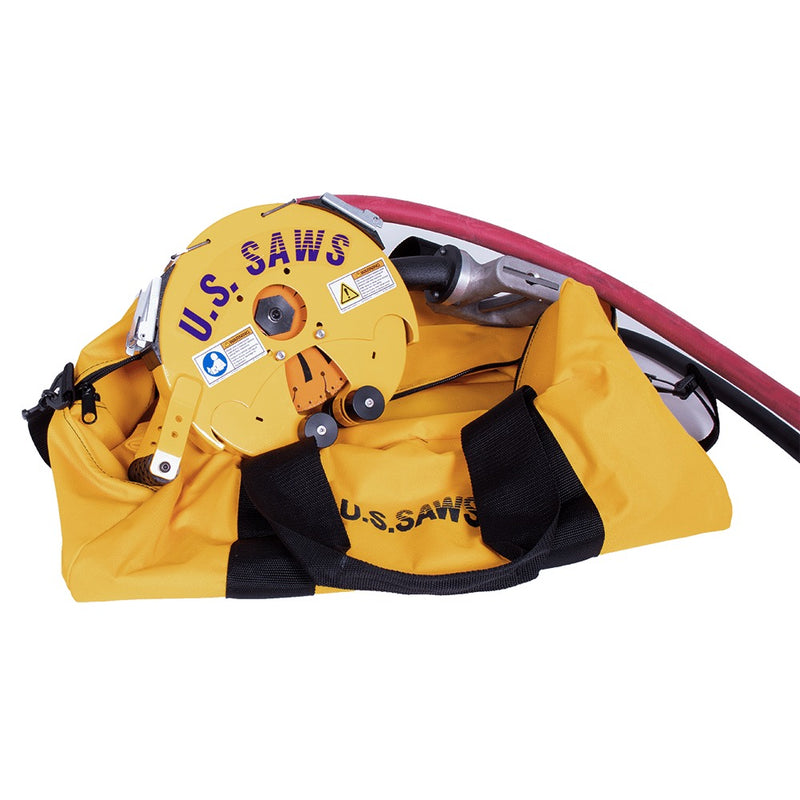

  • Storage bag

Not Included Unless Stated

  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.

Related Equipment

Hydraulic Belly Saw | U.S. Saws

U.S. Saws
Original price $5,400.00 - Original price $5,400.00
Original price
$5,400.00
$5,400.00 - $5,400.00
Current price $5,400.00

The Hydraulic Belly Saw straps to pipes from 8 to 24 in diameter and pulls around the circumference for a straight, controlled cut on 5 to 7 GPM hy...

View full details
Original price $5,400.00 - Original price $5,400.00
Original price
$5,400.00
$5,400.00 - $5,400.00
Current price $5,400.00

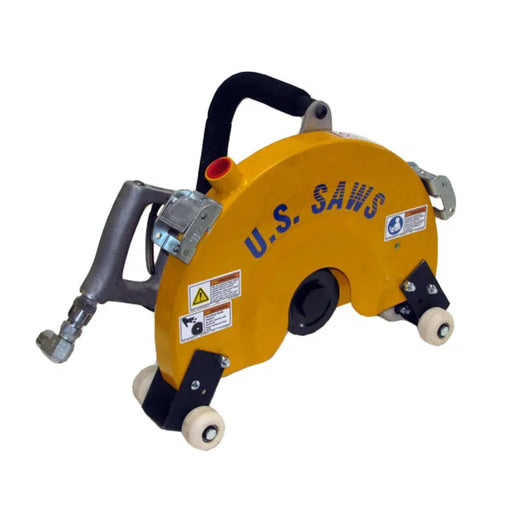

Air Powered Big Belly Saw 24 to 72 Inch | U.S. Saws
