Air Powered Big Belly Saw 24 to 72 Inch | U.S. Saws

Brand U.S. SawsSKU US60280
Original price $4,929.30 - Original price $5,597.60
Original price
$4,929.30
$4,929.30 - $5,597.60
Current price $4,929.30
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

The Big Belly Saw straps to large-diameter pipe and guides around the barrel for straight, controlled cuts, in two strap ranges covering 24 to 48 in and 48 to 72 in pipe. A direct-drive air motor on 90 CFM at 90 PSI spins a 12 in Tiger Tooth blade through PVC, HDPE, ductile iron, and cast iron.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Weight: 50 lbs
  • Drive: direct-drive air motor
  • Air Flow Requirement: 90 CFM at 90 PSI
  • Speed: 5,250 RPM
  • Pipe Ranges: 24 to 48 in, or 48 to 72 in strap assembly
  • Blade: 12 in diameter, .125 in max width


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

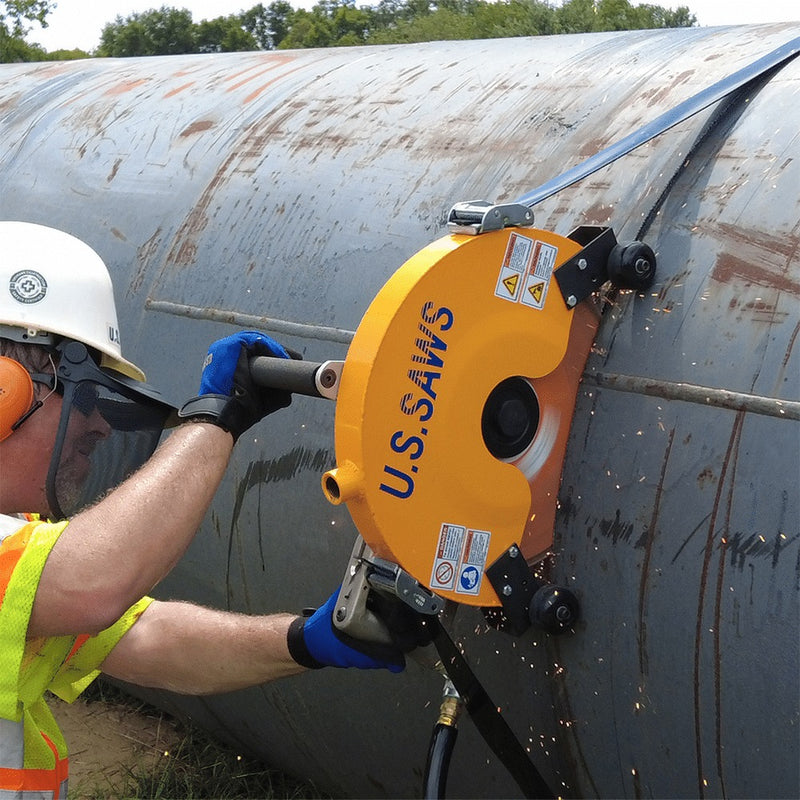

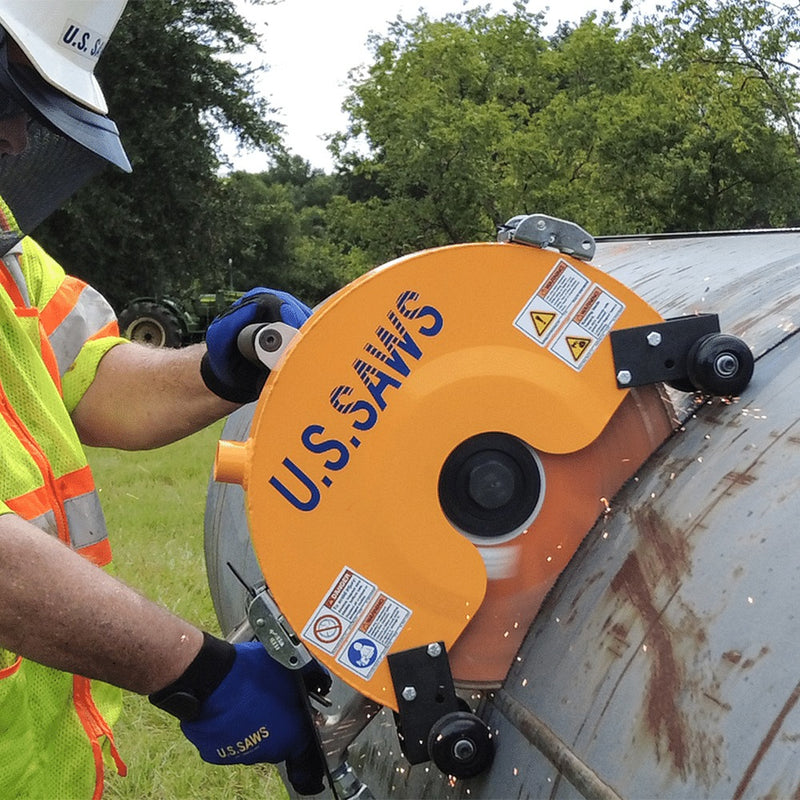

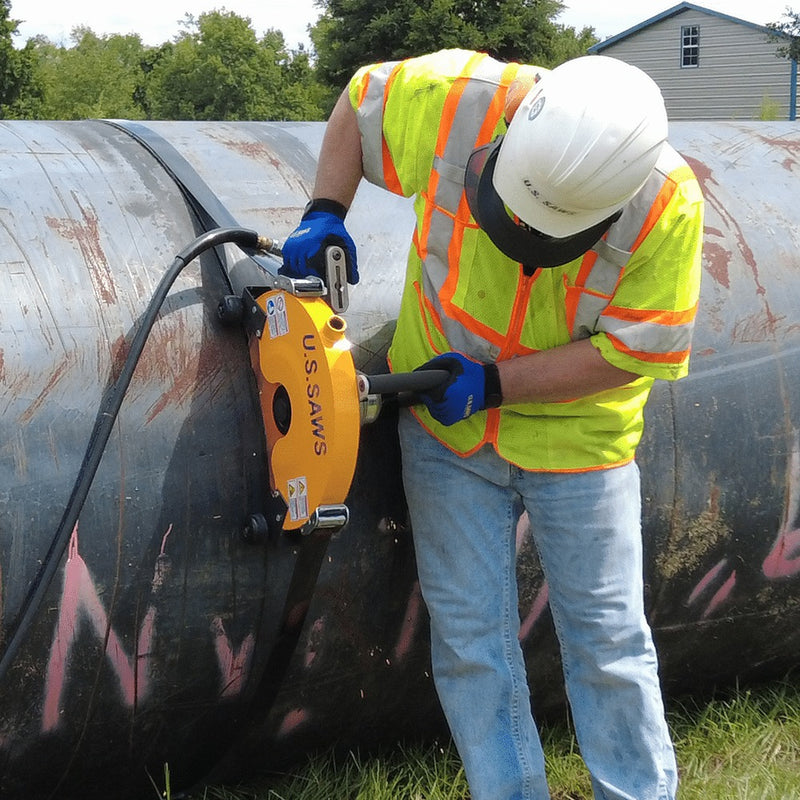

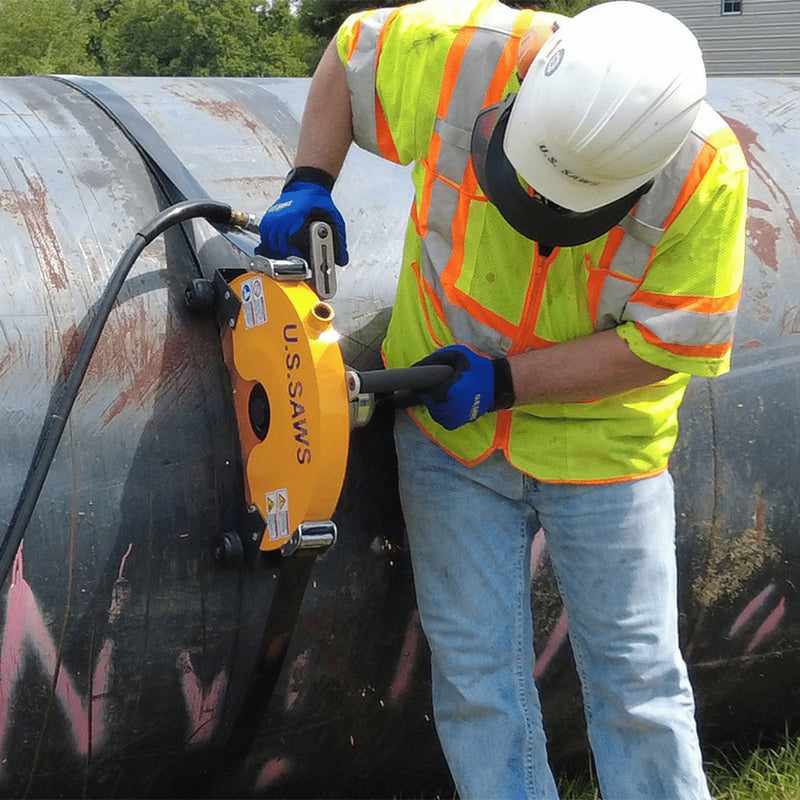

The Big Belly Saw cuts large-diameter main in the trench, the 24 to 72 inch pipe where a hand saw has no business and lifting the pipe for a bottom cut is not an option. The saw straps to the barrel and is guided around the circumference, so the cut stays square around a pipe taller than the operator, undersides included.

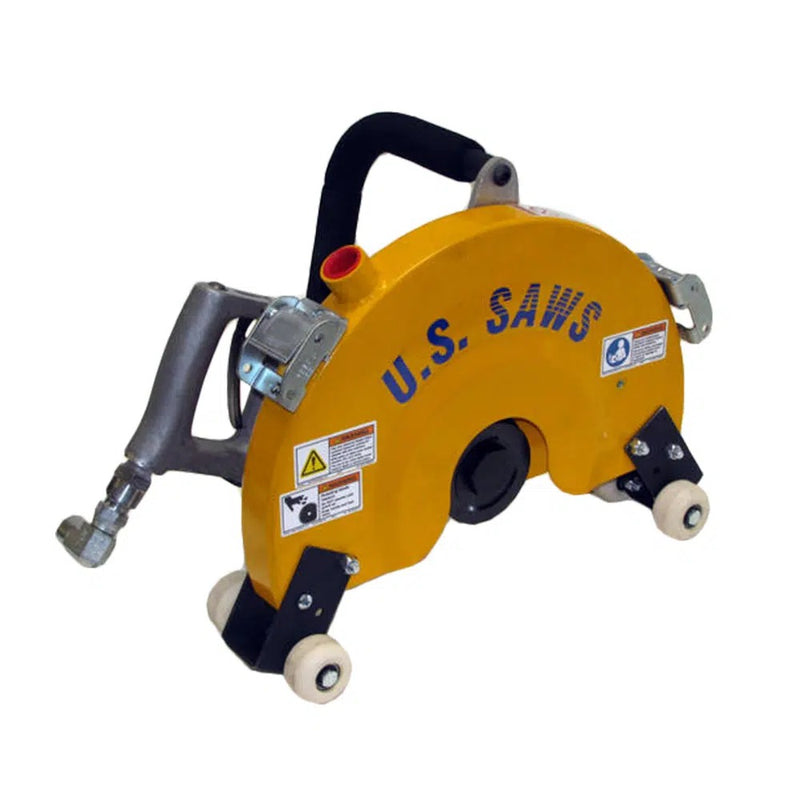

The clamshell guard keeps the 12 in Tiger Tooth blade covered until it meets the pipe, and four spring-loaded wheels ride the barrel to hold the line through the long travel a large diameter demands. The direct-drive air motor keeps engine exhaust out of the trench. Two configurations set the strap and guide reach: 24 to 48 in, and 48 to 72 in. This is for the utility contractors on transmission main and interceptor work, where every cut is a big one.

Common Applications

  • Cutting large-diameter water transmission main in the trench
  • Cutting sewer interceptor pipe, 24 to 72 in diameters
  • Bottom-side cuts on large pipe with minimal excavation

Selection Notes

  • Choose the strap range by the pipe on the job: 24 to 48 in, or 48 to 72 in; the saw and blade are common to both
  • Pipe from 8 to 24 in runs the standard Belly Saw instead
  • The 24 to 48 in configuration is listed by the supplier as special order; confirm lead time at ordering
Unit Specifications
Drive
Direct-drive air motor
Air flow requirement
90 CFM
Air pressure requirement
90 PSI
Speed
5,250 RPM
Cutting Capacity
Blade diameter
12 in
Max blade width
.125 in
Build
Guard
Clamshell design with 12 in guard, shields the blade until the cut
Guide wheels
Four spring-loaded wheels track the cut line
Pipe RangeModelStrap CoverageWeight
24 to 48 in US60280 24 to 48 in (610 to 1219 mm) strap 50 lb (23 kg)
48 to 72 in US60290 48 to 72 in (1219 to 1829 mm) strap 50 lb (23 kg)
Strap-and-guide cutting at large diameters
A square cut around pipe taller than the operator, without lifting it
Clamshell blade guard
The blade stays covered until the moment it meets the pipe
Two strap ranges, one saw
The same head covers 24 to 72 in pipe by configuration

Included with Purchase

  • 1 Big Belly Saw with 12 in guard (pipe range as ordered)
  • 12 in Tiger Tooth blade
  • Strap assembly matching the ordered range
  • 6 ft whip hose with oiler
  • 2 wrenches
  • 1 quart Ice Free air tool oil
  • Storage bag

Not Included Unless Stated

  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
