Hydraulic Belly Saw | U.S. Saws

Brand U.S. SawsSKU US60250
Original price $5,400.00 - Original price $5,400.00
Original price
$5,400.00
$5,400.00 - $5,400.00
Current price $5,400.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

The Hydraulic Belly Saw straps to pipes from 8 to 24 in diameter and pulls around the circumference for a straight, controlled cut on 5 to 7 GPM hydraulic flow. An 8 in Tiger Tooth blade at up to 5,000 RPM cuts ductile iron and PVC, with a water kit available for steel pipe and spark suppression.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Weight: 30 lbs
  • Drive: hydraulic
  • Hydraulic Flow: 5 to 7 GPM maximum
  • Hydraulic Pressure: 2,500 PSI maximum
  • Speed: up to 5,000 RPM
  • Pipe Range: 8 to 24 in diameter
  • Blade: 8 in diameter, .125 in max width
  • Strap Assembly: 8 to 24 in


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The Hydraulic Belly Saw cuts pipe in the trench from a hydraulic circuit, for the crews whose trucks carry power packs rather than compressors. It straps to the pipe and pulls around the circumference, so 8 to 24 inch main comes apart square, undersides included, with roughly seven inches of clearance under the pipe.

The clamshell guard covers the blade before and during operation, rollers guide the cut straight around the barrel, and with the strap fitted the cut becomes a low-effort pull rather than a fight. The 8 in Tiger Tooth blade handles ductile iron and PVC, and a water kit is available for steel pipe and spark suppression. This is the belly saw for utility crews standardized on hydraulic tools, running the same circuit that drives their pumps and breakers.

Common Applications

  • Cutting water main in the trench from a hydraulic circuit
  • Bottom-side pipe cuts with minimal clearance
  • Cutting ductile iron and PVC pipe, 8 to 24 in diameters

Selection Notes

  • Runs on 5 to 7 GPM at up to 2,500 PSI; check the power pack's flow band before ordering
  • Order the water kit for steel pipe and anywhere spark suppression is required
  • Compressor crews run the Air Powered Belly Saw in the same pipe range
Unit Specifications
Drive
Hydraulic
Hydraulic flow
5 to 7 GPM maximum
Hydraulic pressure
2,500 PSI maximum
Speed
up to 5,000 RPM
Cutting Capacity
Pipe range
8 to 24 in diameter
Underside clearance
7 in required to cut the pipe bottom
Blade diameter
8 in
Max blade width
.125 in
Strap assembly
8 to 24 in
Build
Guard
Clamshell design, covers the blade before and during operation
Rollers
Guide the saw for straight cuts
Water kit
Available for steel pipe and spark suppression
Dimensions & Weights
Weight
30 lb (14 kg)
Dimensions
10.5 x 24 x 12 in
Strap-and-pull cutting
A square cut with the operator beside the pipe and seven inches of clearance beneath it
Clamshell blade guard
The blade stays covered before and during the cut
Water kit option
Extends the saw to steel pipe and spark-sensitive environments

Included with Purchase

  • 1 Hydraulic Belly Saw
  • 8 in Tiger Tooth blade
  • 24 in strap assembly
  • 1 wrench

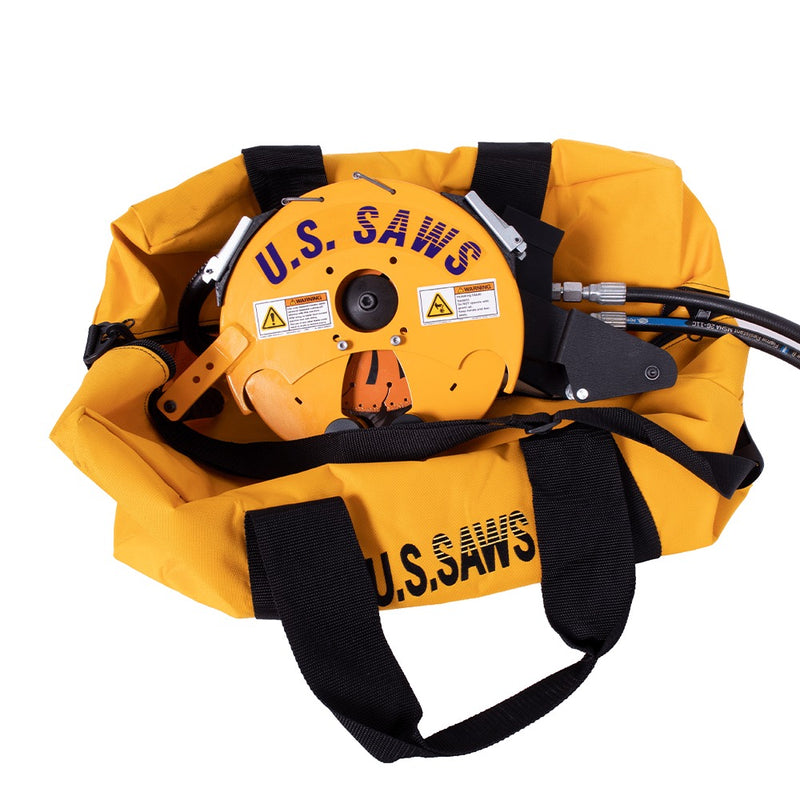

  • Storage bag

Not Included Unless Stated

  • Hydraulic power pack and hoses
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
