Colonel Concrete Blade | U.S. Saws

Brand U.S. SawsSKU STA12125
Original price $200.90 - Original price $477.90
Original price
$200.90
$200.90 - $477.90
Current price $200.90
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

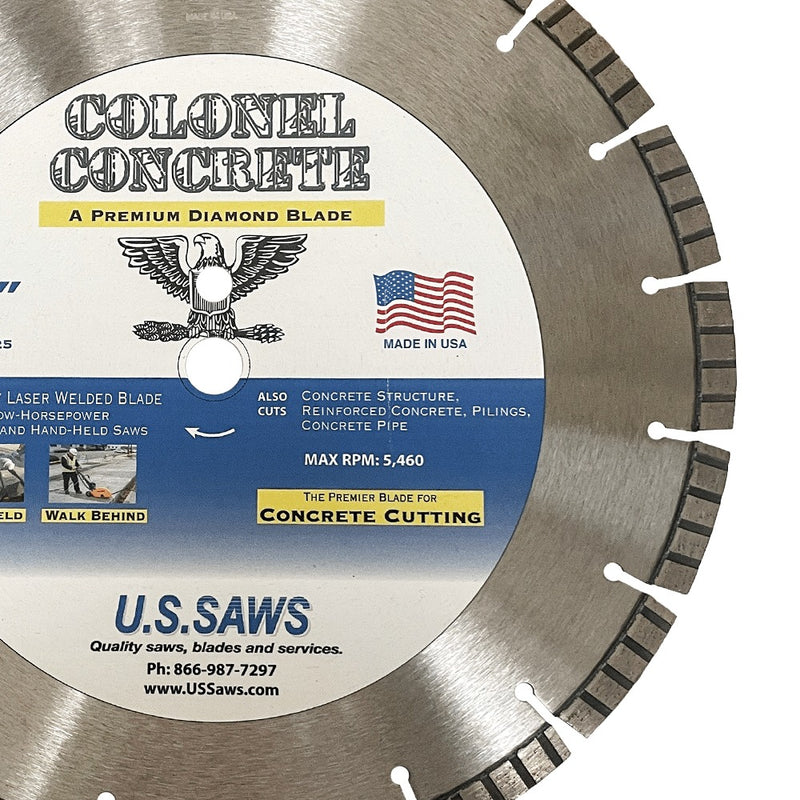

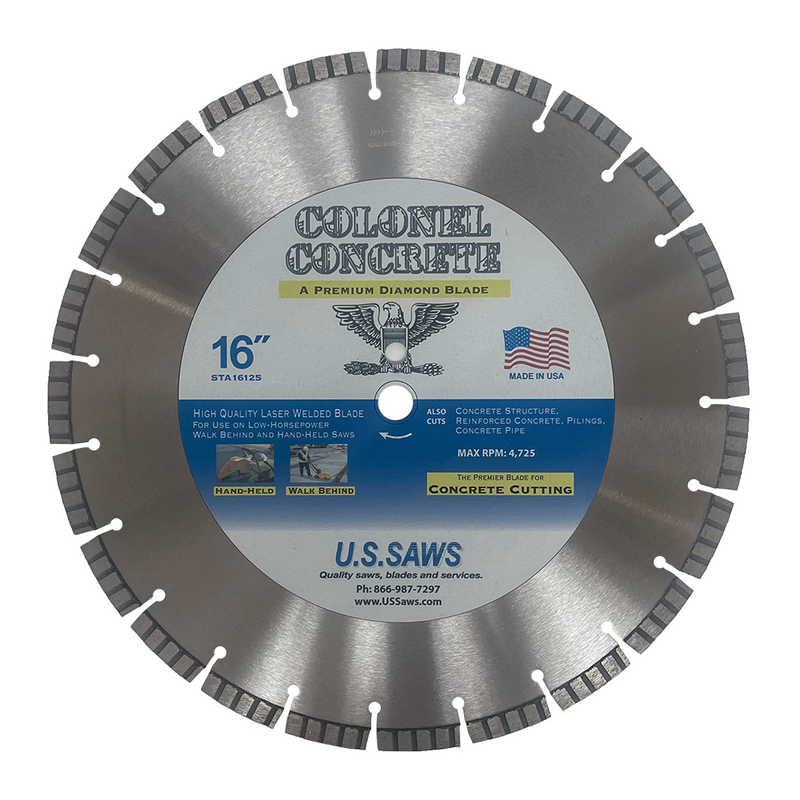

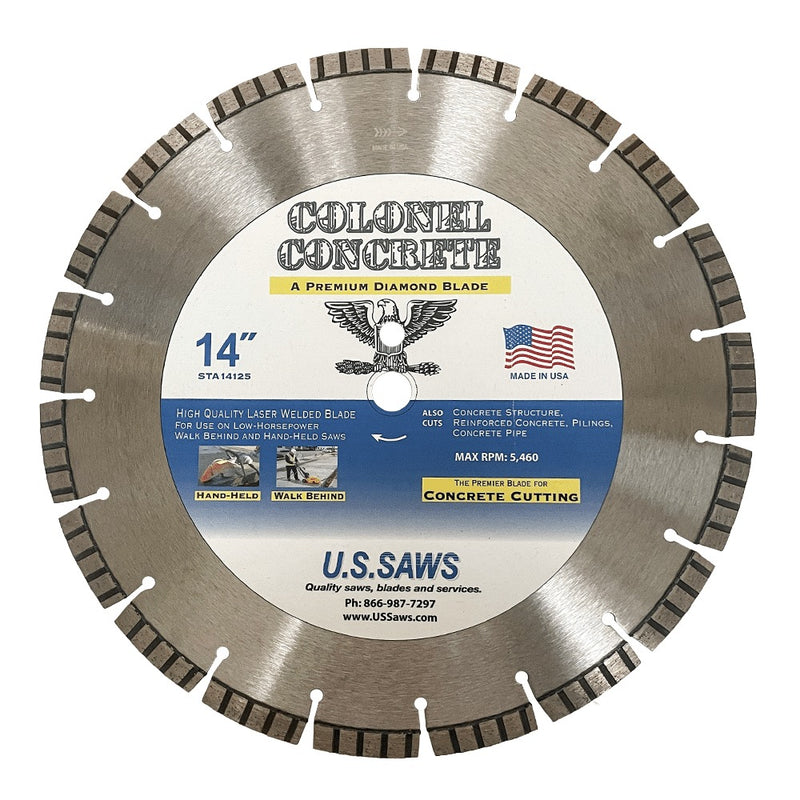

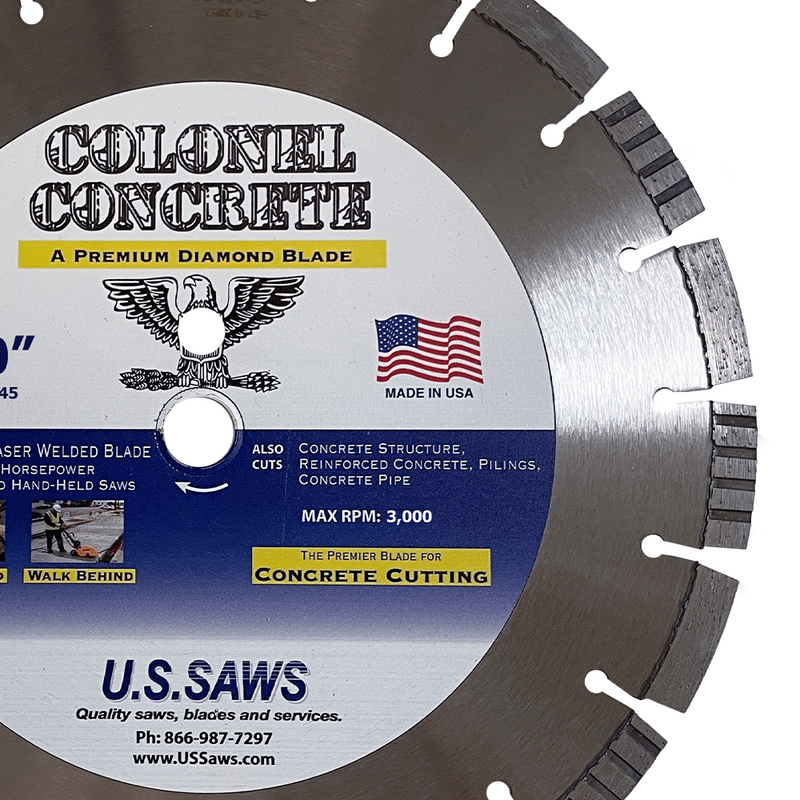

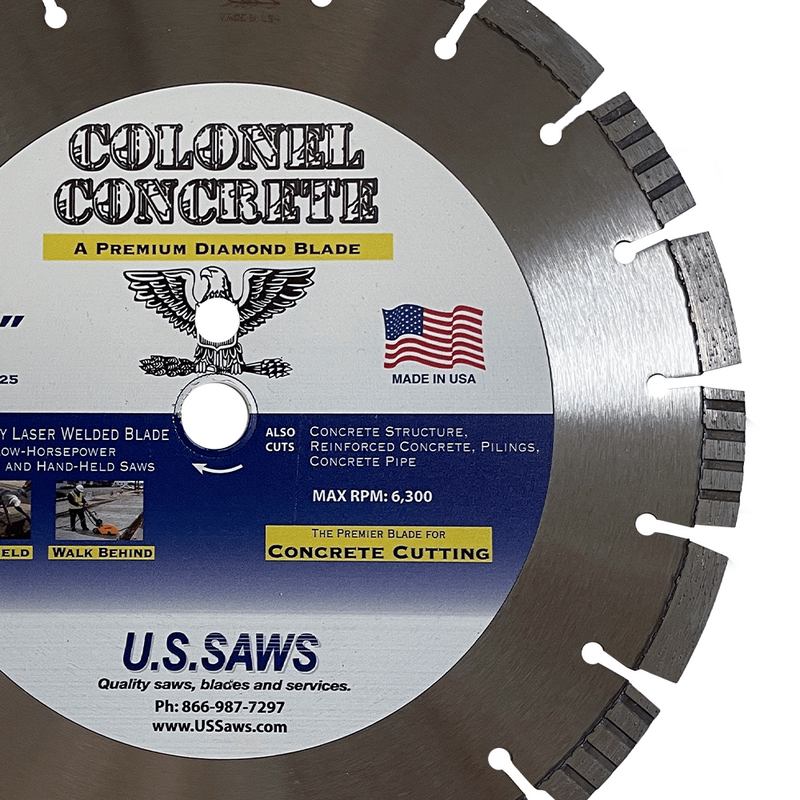

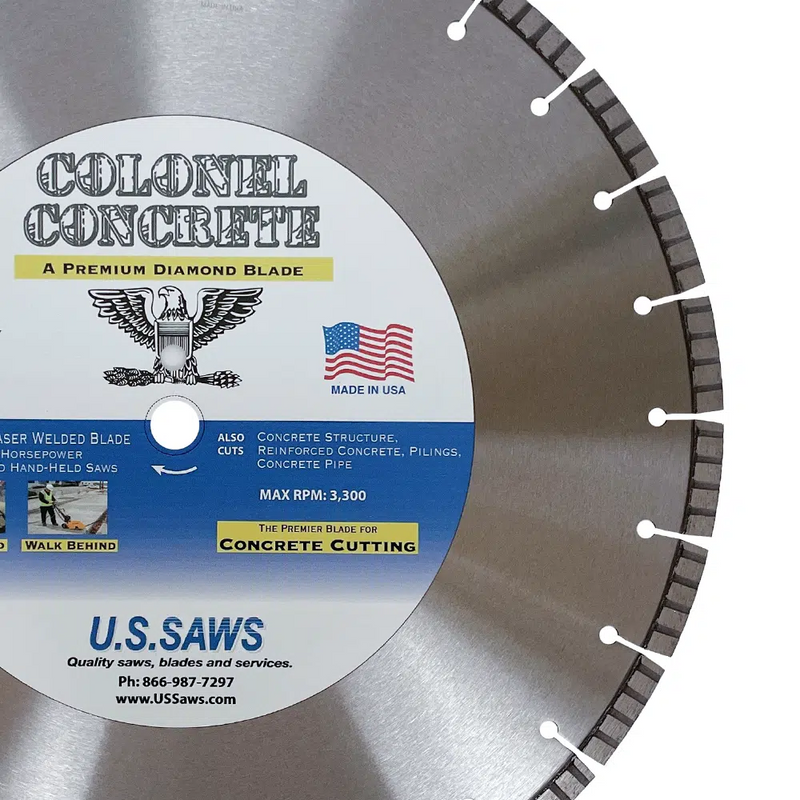

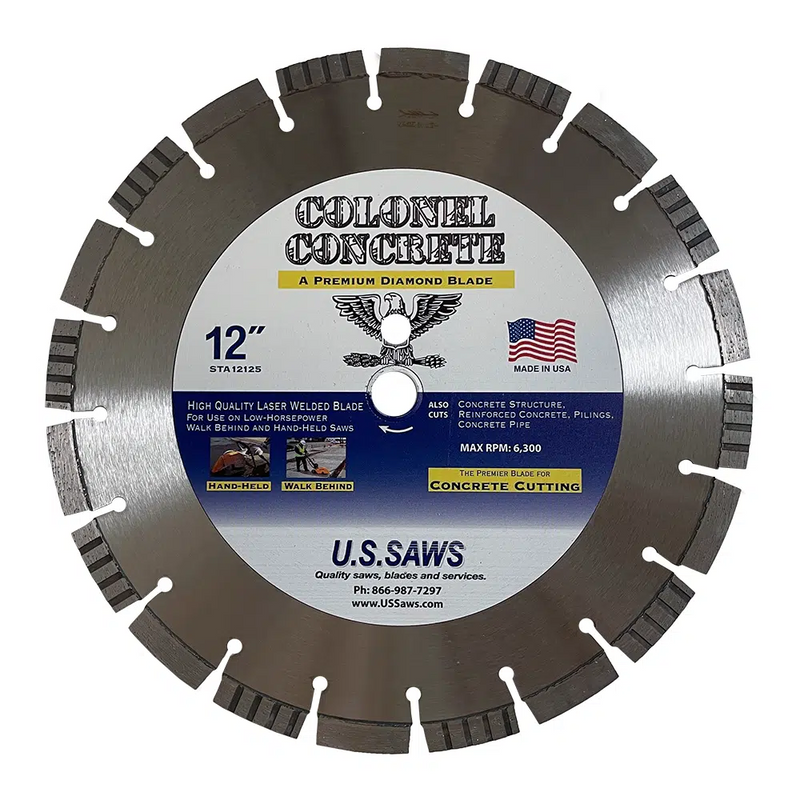

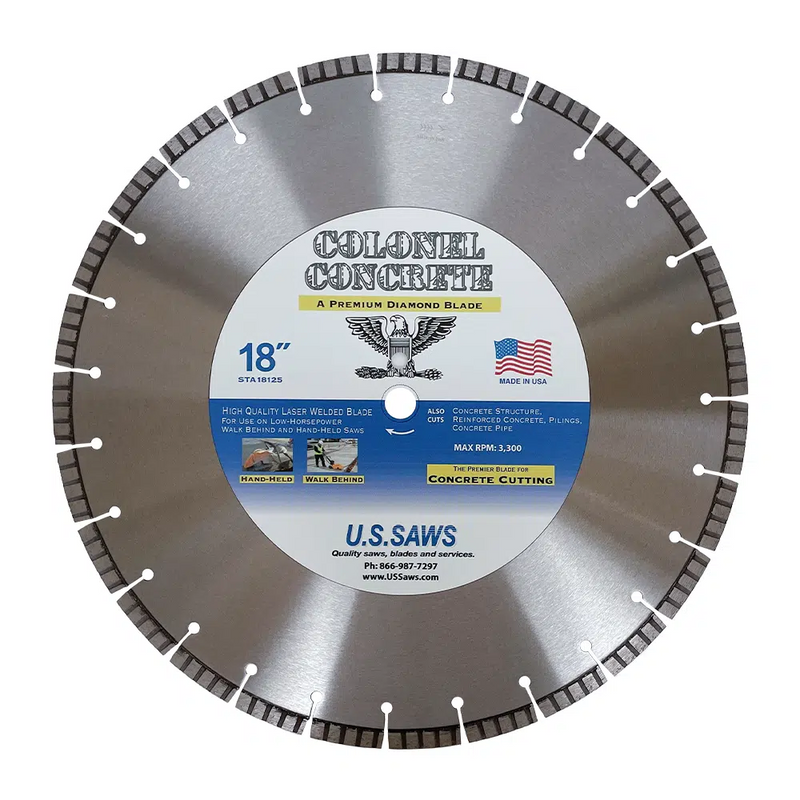

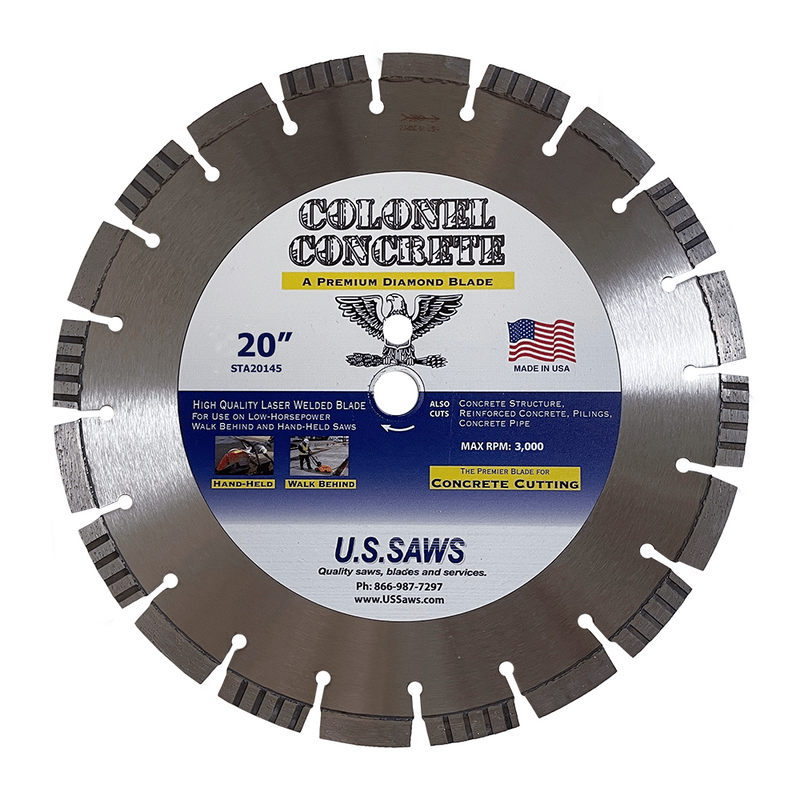

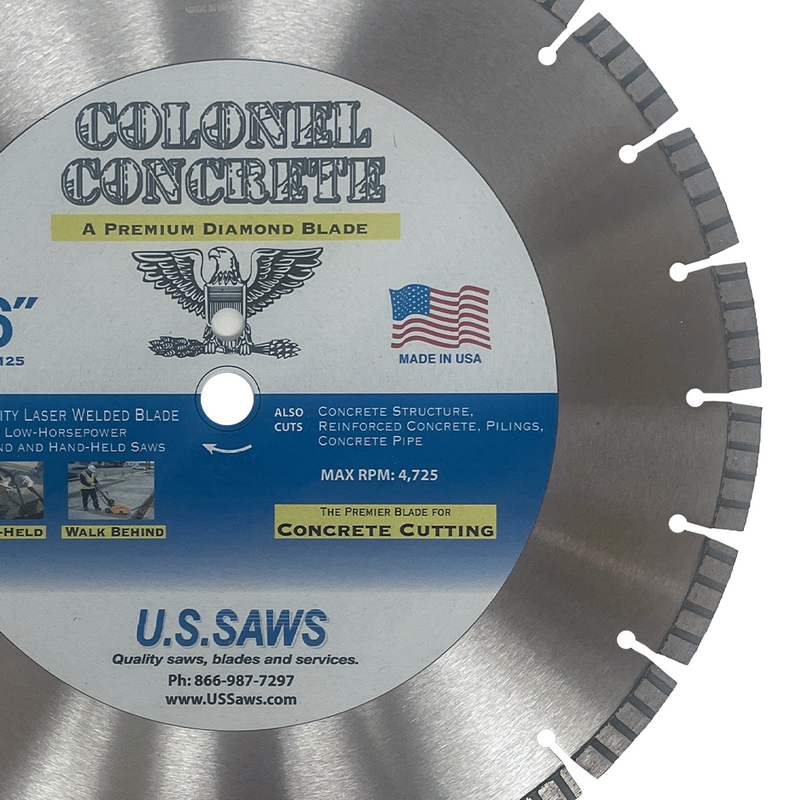

The Colonel Concrete is a laser welded turbo segment blade for cured concrete, published in 12, 14, 16, 18 and 20 in. Thickness steps up with diameter from .125 in to .145 in, the 14 in is offered in both a 1 in arbor and a 20 mm solid bore, and the line is rated for saws of 20 HP or less.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Blade Diameter: 12 in, 14 in, 16 in, 18 in, 20 in
  • Thickness: .125 in at 12 to 16 in, .135 in at 18 in, .145 in at 20 in
  • Construction: laser welded
  • Segments: turbo segments
  • Weight: 4 to 7 lbs by diameter

Fitment / Machine Requirements

  • Arbor: 1 in with 20 mm bushing, or 20 mm solid bore at 14 in
  • Machine Rating: handheld saws, chop saws and walk behind saws of 20 HP or less


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The Colonel Concrete is the general cured concrete blade in this range, and its defining number is the horsepower ceiling rather than the diameter. U.S. Saws rates the whole line for saws of 20 HP or less, which puts it on hand-held saws, chop saws and the smaller walk behind machines rather than on a self-propelled flat saw.

The construction is laser welded with turbo segments. Laser welding is what lets a segmented blade run dry without the segment bond giving up, and the turbo profile is a continuous stepped rim that clears faster than a plain flat segment in cured material. Thickness climbs with diameter, .125 in through 16 in, then .135 in at 18 in and .145 in at 20 in, which keeps the blade stiff enough for the larger cut rather than marking a change of grade. Concrete pipe, cured concrete, brick and block are the published materials.

Common Applications

  • Cutting cured concrete on hand-held and walk behind saws
  • Cutting concrete pipe, brick and block
  • Concrete cutting on machines rated at 20 HP or less

Selection Notes

  • Confirm the saw is 20 HP or less; this line is not published for self-propelled saws above that rating
  • The 14 in is the only diameter offered with a 20 mm solid bore, at the same price as the 1 in arbor
  • Thickness rises with diameter, so an 18 or 20 in blade cuts a wider kerf than the 12 to 16 in sizes
Build
Construction
Laser welded
Segments
Turbo segments
Cutting Capacity
Materials
Concrete pipe, cured concrete, brick, block
Machine Notes
Saw types
Handheld saws, chop saws, walk behind saws
Machine rating
20 HP or less
SizeBlade DiameterThicknessArborWeight
12 in, 1 in arbor with 20 mm bushing 12 in (305 mm) .125 in 1 in with 20 mm bushing 4 lb (1.8 kg)
14 in, 1 in arbor with 20 mm bushing 14 in (356 mm) .125 in 1 in with 20 mm bushing 5 lb (2.3 kg)
14 in, 20 mm solid bore 14 in (356 mm) .125 in 20 mm solid bore 5 lb (2.3 kg)
16 in, 1 in arbor with 20 mm bushing 16 in (406 mm) .125 in 1 in with 20 mm bushing 6 lb (2.7 kg)
18 in, 1 in arbor with 20 mm bushing 18 in (457 mm) .135 in 1 in with 20 mm bushing 7 lb (3.2 kg)
20 in, 1 in arbor with 20 mm bushing 20 in (508 mm) .145 in 1 in with 20 mm bushing 7 lb (3.2 kg)
Laser welded core
Holds the segment bond in dry cutting where a brazed joint would not
Turbo segments
Clears cured material faster than a plain flat segment
Two bores at 14 in
One diameter covers both imperial and metric arbor saws at the same price

Included with Purchase

  • 1 Colonel Concrete Blade (variant/model as ordered)

Not Included Unless Stated

  • Saw, arbor hardware, or bushings
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
