Dos Seggie Blade | U.S. Saws

Brand U.S. SawsSKU DXX12125
Original price $211.70 - Original price $312.10
Original price
$211.70
$211.70 - $312.10
Current price $211.70
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

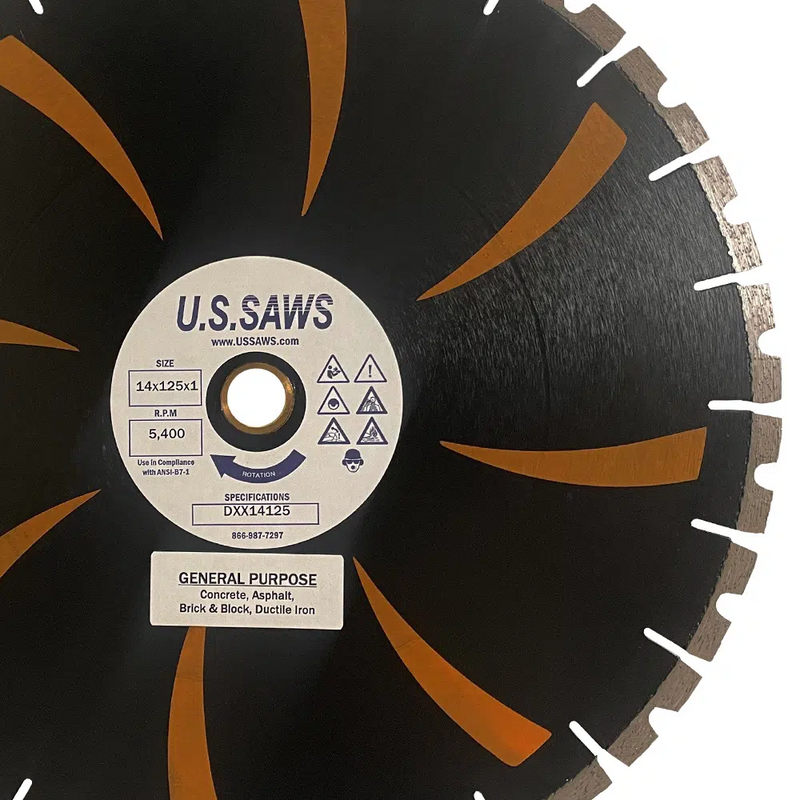

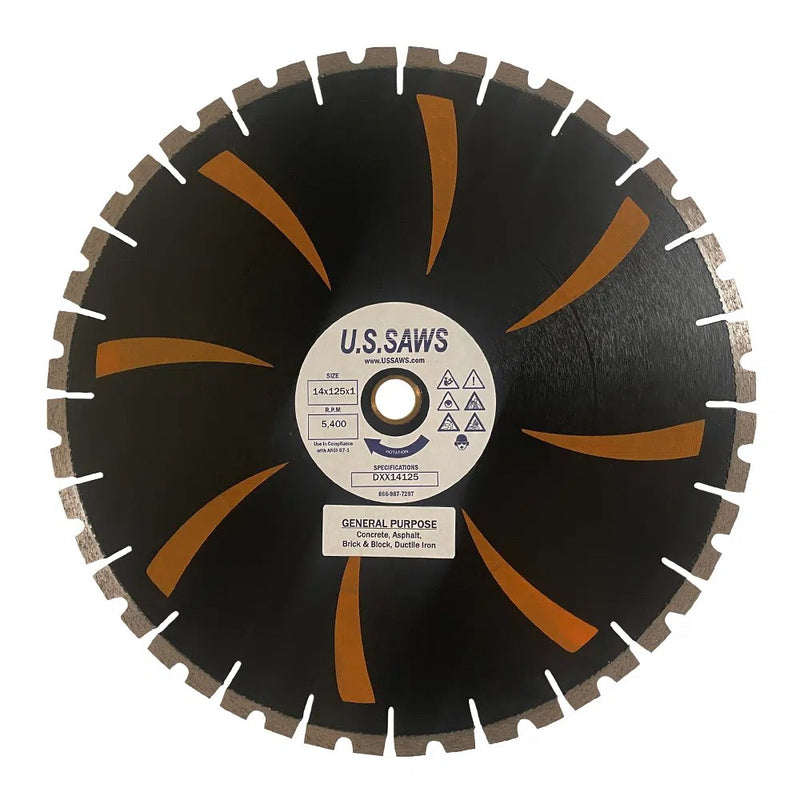

The Dos Seggie is a multipurpose diamond blade for concrete, asphalt and pipe, in four configurations from 12 to 16 in. The 14 in size is published with either a 1 in arbor or a solid metric bore.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Blade Diameter: 12 in, 14 in, 16 in
  • Segment Thickness: .125 in
  • Arbor: 1 in with 20 mm knockout; 20 mm solid bore at 14 in
  • Weight: 4 to 7 lbs by diameter
  • Materials: ductile iron pipe, plastic pipe, asphalt, concrete

Fitment / Machine Requirements

  • Saw Types: handheld saws, chop saws


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The Dos Seggie is the one-blade answer for a crew whose material list will not sit still. Concrete, asphalt and pipe all come off the same segment, which is what a utility crew wants when the trench crosses a road and then a service line inside an hour.

The bond is set to cover the middle of that range rather than to specialise at either end, so it cuts ductile iron and plastic pipe as readily as it cuts asphalt and concrete. All four configurations run the same segment thickness, so the difference between them is the saw and the depth of cut rather than a different blade. This is for crews who would rather carry one blade that does everything on the truck than three that each do one thing well.

Common Applications

  • Cutting ductile iron and plastic pipe on a service line
  • Cutting asphalt where a trench crosses a road
  • Cutting concrete on the same run without a blade change

Selection Notes

  • Choose the bore to match the saw: the 20 mm solid bore is a separate part number at 14 in, and it is not a knockout
  • Where one material dominates a job, a blade set for that material will outlast this one on it
  • Segment thickness is the same across the line, so size selection is about the saw and the depth of cut
Build
Blade type
Segmented diamond blade, multipurpose bond
Bore options
1 in arbor with 20 mm knockout, or 20 mm solid bore
Cutting Capacity
Materials
Ductile iron pipe, plastic pipe, asphalt, concrete
Machine Notes
Saw types
Handheld saws, chop saws
SizeBlade DiameterSegment ThicknessArborWeight
12 in, 1 in arbor 12 in (305 mm) .125 in 1 in with 20 mm knockout 4 lb (1.8 kg)
14 in, 1 in arbor 14 in (356 mm) .125 in 1 in with 20 mm knockout 5 lb (2.3 kg)
14 in, 20 mm solid bore 14 in (356 mm) .125 in 20 mm solid bore 5 lb (2.3 kg)
16 in, 1 in arbor 16 in (406 mm) .125 in 1 in with 20 mm knockout 7 lb (3.2 kg)
One segment across four materials
Pipe, asphalt and concrete come off the same blade with no change on the truck
Two bores published at 14 in
Fits saw fleets on either the 1 in or the 20 mm standard

Included with Purchase

  • 1 Dos Seggie Blade (variant/model as ordered)

Not Included Unless Stated

  • Saw, arbor hardware, or bushings
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
