Excavator Bucket Storage Rack | Star Industries

Brand Star IndustriesSKU 910B-1L
Original price $1,025.00 - Original price $2,867.00
Original price
$1,025.00
$1,025.00 - $2,867.00
Current price $1,025.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

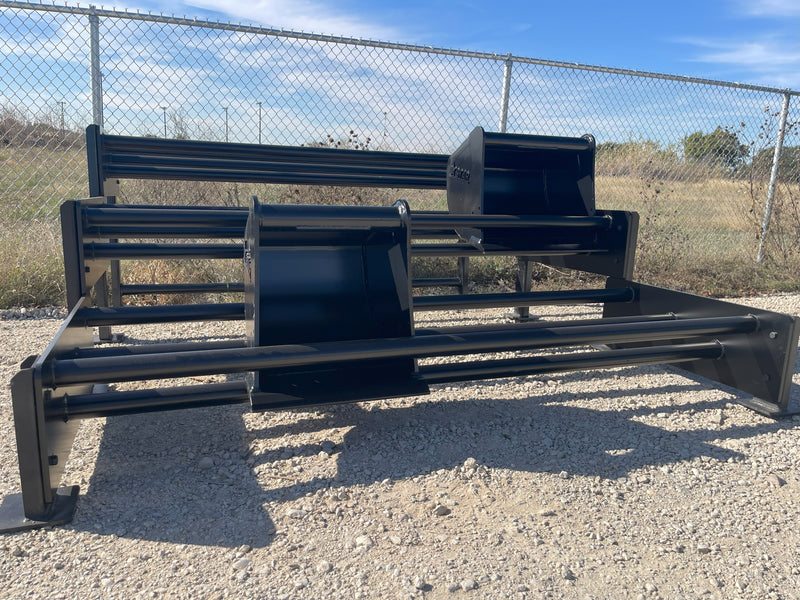

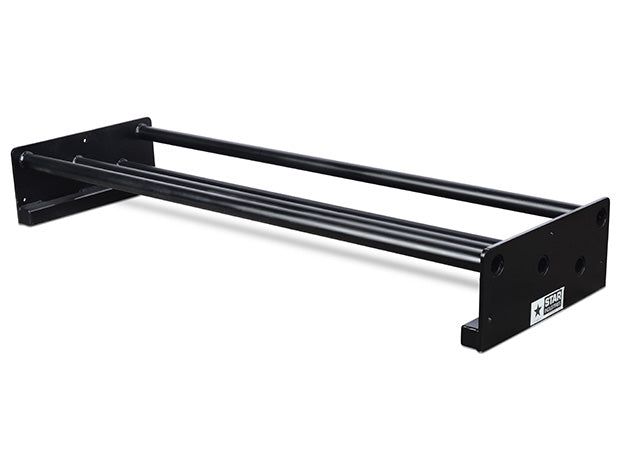

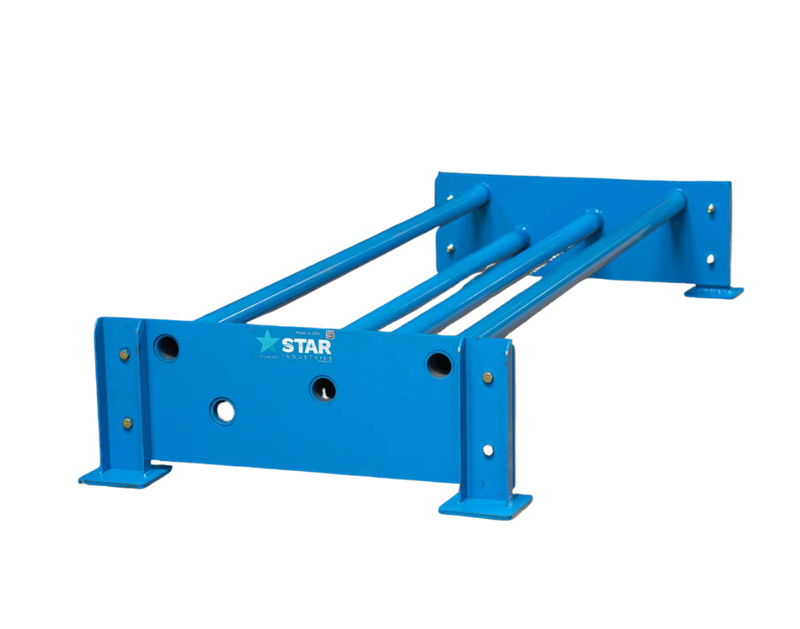

The Star Industries Excavator Bucket Storage Rack stands buckets upright on sloped tubes so they drain, stay off the dirt and sit at the angle the machine picks them up from. One, two or three levels, 84 in wide, and racks bolt together to make a longer run.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Models: 910B-1L, 910B-2L and 910B-3L
  • Levels: 1, 2 or 3
  • Width: 84 in (2134 mm), all models
  • Lengths: 35 in, 62 in and 96 in by model
  • Tubes: 2.375 in diameter, set on a 15 degree slope
  • Storage per Level: six 12 in buckets
  • Weights: 294 lb (133 kg), 622 lb (282 kg) and 961 lb (436 kg) by model

Fitment / Machine Requirements

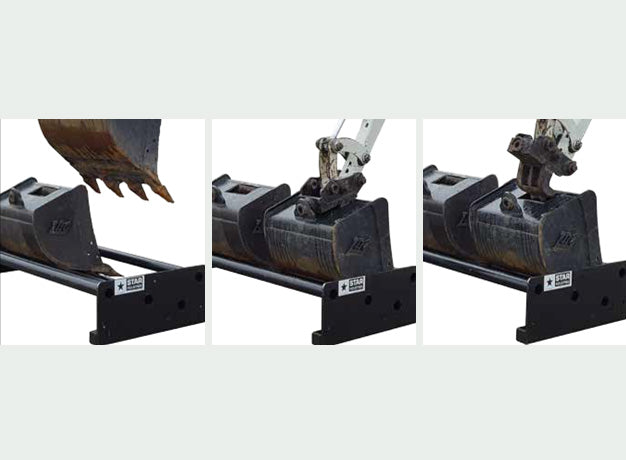

  • Loading: excavator sets the bucket upright into the rack
  • Retention: bucket teeth or blade locks in between the lower and upper tube
  • Extending: racks bolt together for a longer run

Ordering

  • Lead Time: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

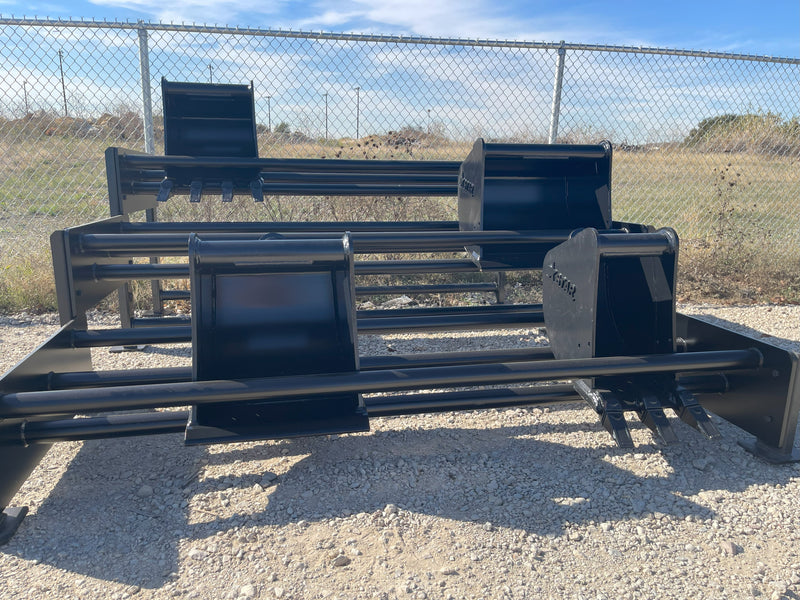

The Star Industries Excavator Bucket Storage Rack takes the bucket pile off the yard floor. Buckets stand upright in the position the machine picks them up from, so an operator swaps attachments without a groundsman rolling steel over on its back first.

The tubes are 2.375 in and sit on a fifteen degree slope, which sheds rain rather than holding it in the cutting edge, and it is also what keeps a bucket from freezing to the ground over a wet week. The teeth or the blade drop between the lower and upper tube so the bucket locks itself in place instead of leaning, and each level takes six twelve inch buckets. Racks bolt together end to end, so a yard buys the run it needs now and adds to it later. This is for rental yards and earthworks contractors with more buckets than machines.

Common Applications

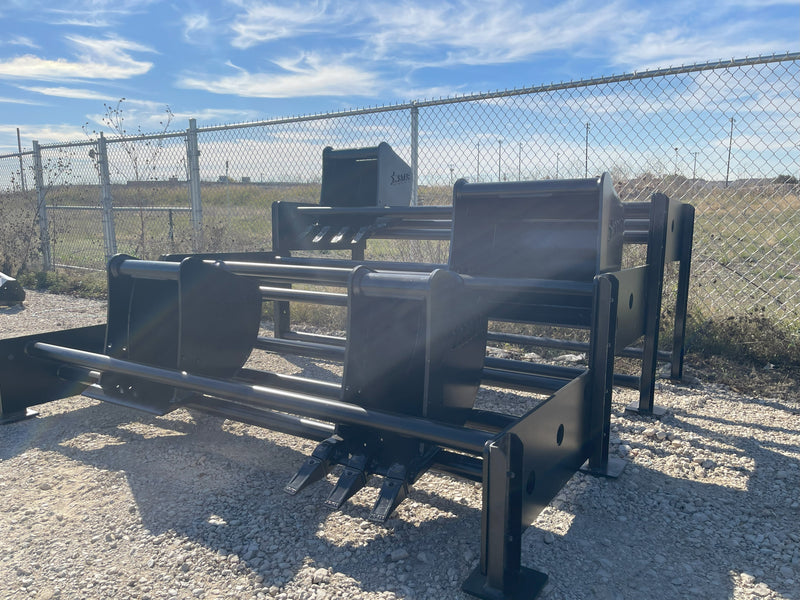

  • Storing excavator and mini excavator buckets upright in a rental yard
  • Keeping buckets off wet ground through winter
  • Presenting buckets at pick-up angle for faster attachment swaps
  • Building a longer storage run by bolting racks together

Selection Notes

  • All three racks are 84 in wide; the levels change the length and the weight
  • Each level takes six twelve inch buckets, so a three-level rack holds eighteen
  • The slope is what drains the rack, so it is set at build and is not adjustable
  • Racks bolt together, which also stiffens a long run
Build
Tubes
2.375 in (60 mm) diameter heavy steel
Tube slope
15 degrees, for bucket drainage
Retention
Bucket teeth or blade locks in between the lower and upper tube
Extending
Racks bolt together for unlimited storage runs
Capacity
Buckets per level
Six 12 in (305 mm) buckets
Levels available
1, 2 or 3
Machine Notes
Loading carrier
Excavator or mini excavator
Storage position
Upright, at attachment angle
LevelsModelWidthLengthWeight

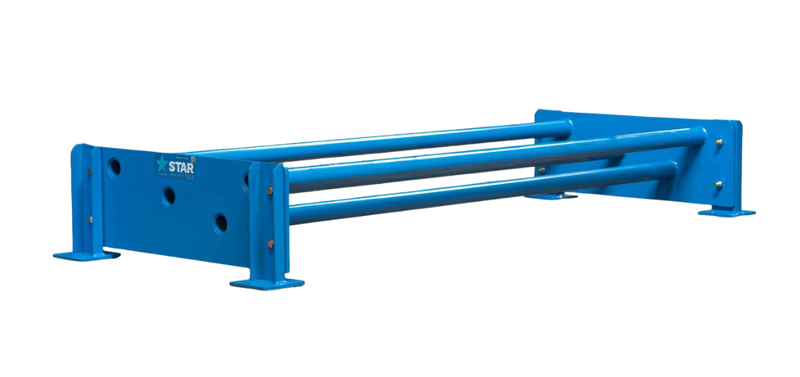

1 Level 910B-1L 84 in (2134 mm) 35 in (889 mm) 294 lb (133 kg)
2 Level 910B-2L 84 in (2134 mm) 62 in (1575 mm) 622 lb (282 kg)

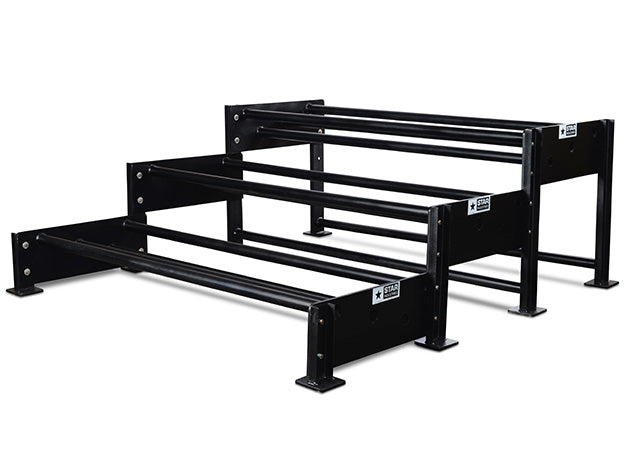

3 Level 910B-3L 84 in (2134 mm) 96 in (2438 mm) 961 lb (436 kg)

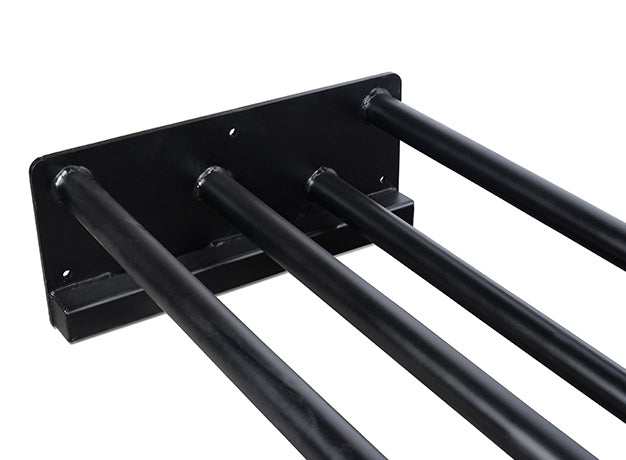

15 degree tube slope
Rain runs off instead of standing in the cutting edge

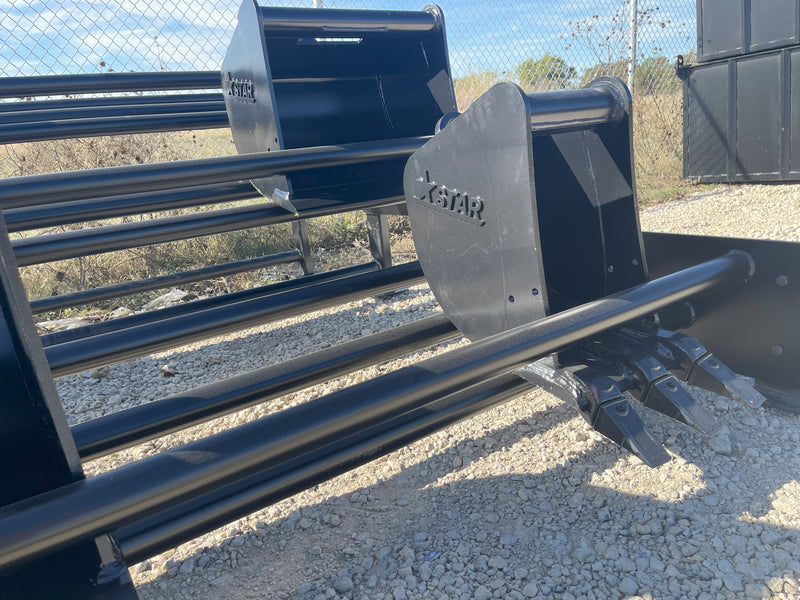

Teeth lock between the tubes
The bucket holds its own position rather than leaning on the next one

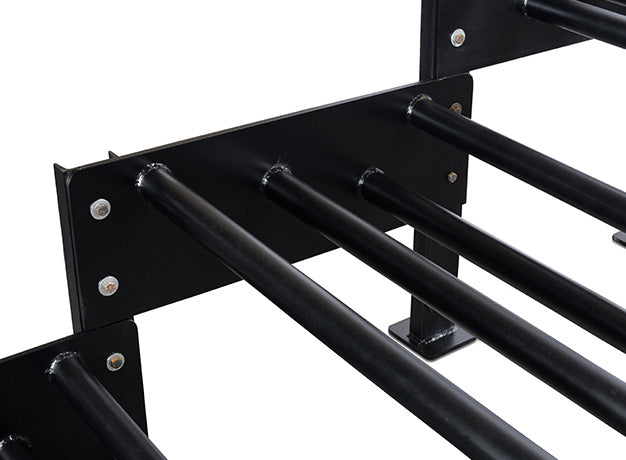

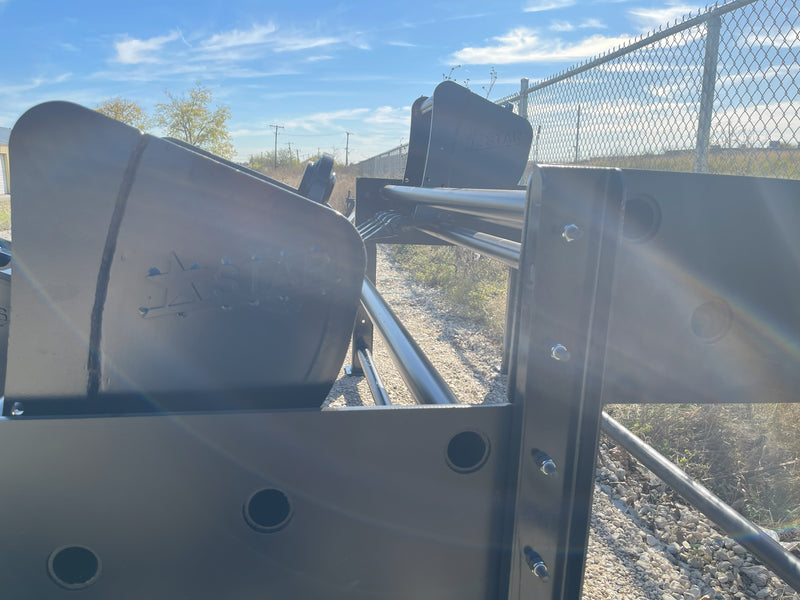

Bolt-together racks
Buy the run you need now and extend it when the fleet grows

Included with Purchase

  • 1 Excavator Bucket Storage Rack (variant/model as ordered)
  • Bolt-together end plates for joining racks

Not Included Unless Stated

  • Buckets
  • Excavator, mini excavator or forklift
  • On-site installation or configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.

Related Equipment

Rammer Stand | Star Industries

Star Industries
Original price $632.00 - Original price $632.00
Original price
$632.00
$632.00 - $632.00
Current price $632.00

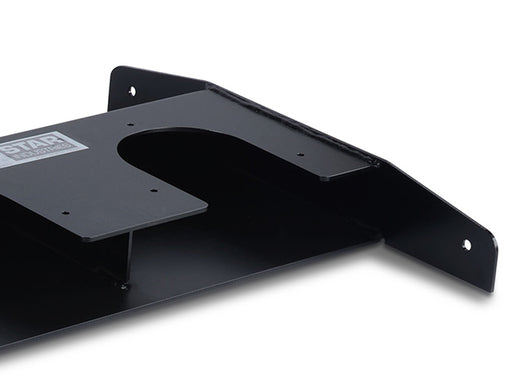

The Star Industries Rammer Stand holds three rammers upright and free standing, with no anchoring into the slab. Bolt stands together in a line, ba...
