Push-Off Bucket | HitchDoc

Brand HitchDocSKU HP068
Original price $6,900.00 - Original price $7,515.00
Original price
$6,900.00
$6,900.00 - $7,515.00
Current price $6,900.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

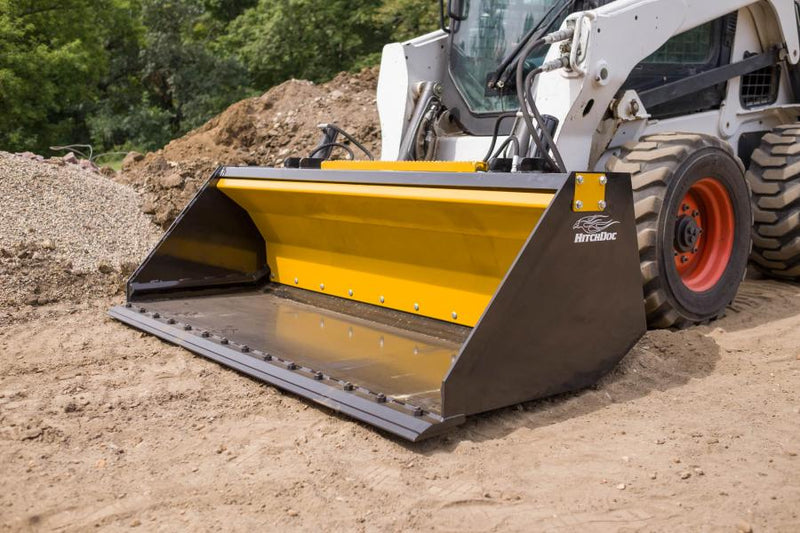

HitchDoc Push-Off Bucket, 68 in, 72 in and 84 in widths, a skid steer ejector bucket whose hydraulically powered extractor blade pushes the load out instead of tipping it. Dumps 2 to 3 ft higher and 2 to 4 ft further than a tipping bucket, in cycles down to about a second. Replaceable cutting edge, greased pivots and powder coat finish.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Widths: 68 in, 72 in, 84 in
  • Capacities: 20.5 cu ft, 21.7 cu ft, 25.4 cu ft by width
  • Extractor Blade: hydraulically powered, self-cleaning, with an adjustable seal that scrapes the back of the bucket
  • Dump Cycle: variable, from close to one second to a slow feathered placement
  • Added Dump Height: 2 ft to 3 ft over a tipping bucket
  • Added Dump Reach: 2 ft to 4 ft over a tipping bucket
  • Distance Between Shields: 46.75 in on the 68 in and 72 in, 58.00 in on the 84 in
  • Cutting Edge: replaceable wear part, ordered width-matched
  • Pivots: greased, easy access
  • Finish: long lasting powder coat
  • Weight: 985 lb to 1,100 lb by width

Fitment / Machine Requirements

  • Mount: skid steer
  • Carriers: skid steers
  • Arm Spacing: the distance between the bucket's shields must be greater than the distance between the machine's arms
  • Hydraulics: equipped for standard flow hydraulic systems
  • Hydraulic Flow, Pressure and Coupler Face: confirm with supplier
  • Minimum Carrier Rated Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

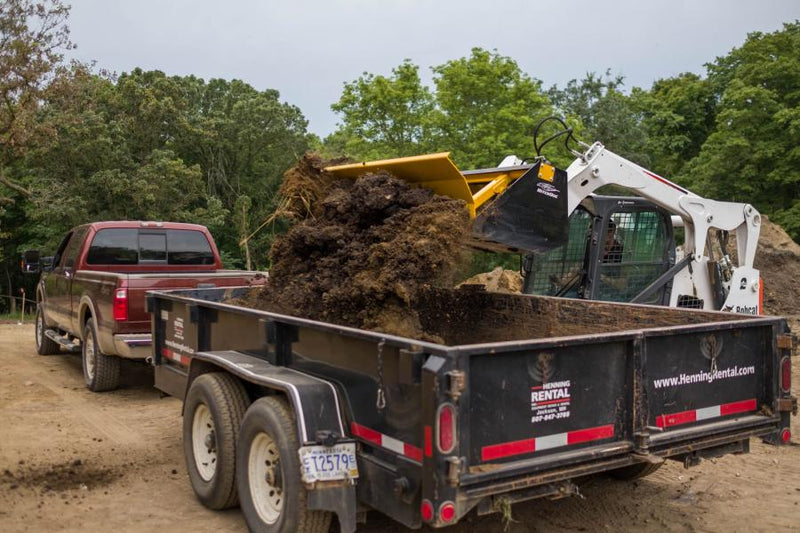

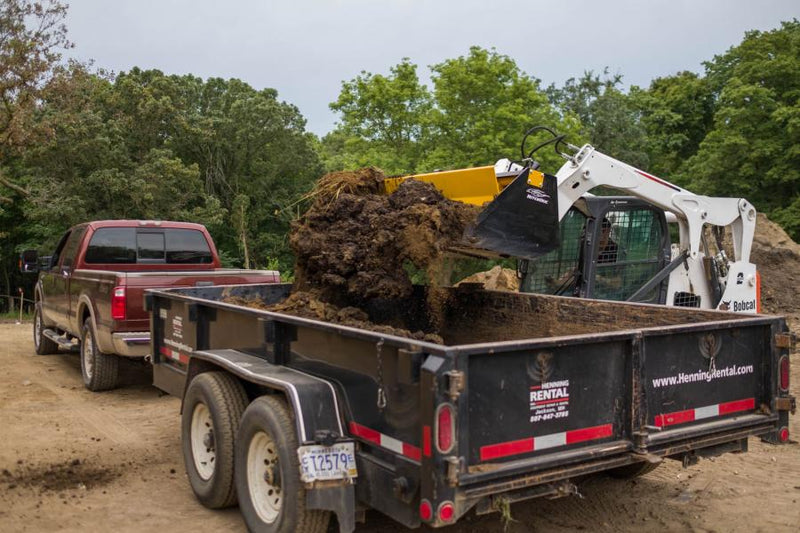

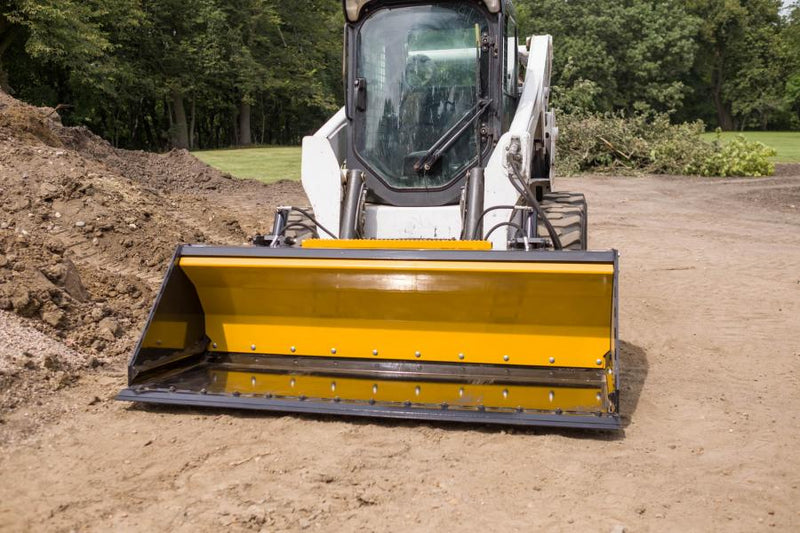

The HitchDoc Push-Off Bucket is an ejector bucket for the operator who spends half a loading day shaking a bucket to get the load out of it. A hydraulically powered extractor blade runs the length of the bucket and pushes the material out the front, so wet clay, compost, mud and snow leave the bucket without the machine being rocked to dislodge them. That is the whole argument for it: the wear and tear of shaking dense material out is transferred from the machine to a wear part on the attachment.

Because the load leaves the bucket without tipping, the bucket can stay level and still empty, which adds 2 to 3 feet of dump height and 2 to 4 feet of dump reach over the same machine with a tipping bucket. That reaches over the side of a taller trailer without risking the sidewall, and it reaches the middle of a trailer for balanced loading. The controls are variable in both directions, so the same attachment dumps in close to a second or feathers material out slowly for placing gravel or backfill against a wall or a planting. Behind the blade an adjustable seal scrapes the bucket floor as the blade returns, which is what keeps dense material from packing in at the back.

Three widths cover the usual skid steer sizes, and each carries its own capacity and its own width-matched replacement cutting edge. One fitment check governs which one fits: the distance between the bucket's shields must be greater than the distance between the carrier's arms, and the supplier publishes that figure per width so it can be measured before ordering.

Common Applications

  • Loading trailers and containers with wet, sticky or dense material
  • Placing gravel, mulch or backfill accurately against structures or plantings
  • Filling trenches without raising or shaking the bucket
  • Moving wet or packed snow that clings inside a conventional bucket
  • Building taller piles by dumping higher than a tipping bucket reaches

Selection Notes

  • Three widths: 68 in, 72 in, 84 in, each with its own capacity
  • Check arm spacing first: the shields must be wider apart than the carrier's arms
  • The replacement cutting edge is chosen with the bucket in the buy box rather than ordered afterwards, and it is width-matched
  • The bucket is equipped for standard flow hydraulic systems
  • Confirm hydraulic flow, pressure and coupler face with supplier
Build

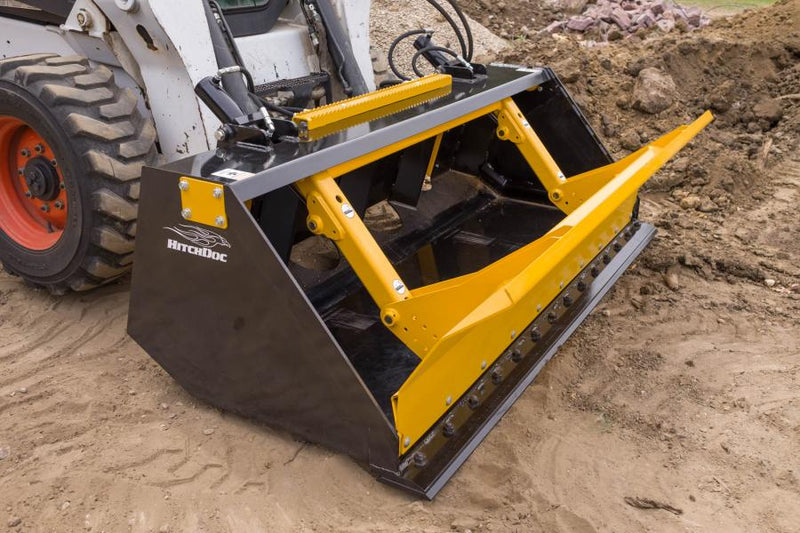

Extractor blade
Hydraulically powered, self-cleaning, with an adjustable seal that scrapes and removes material at the back of the bucket
Cutting edge
Replaceable wear part, ordered width-matched
Cutting edge attachment
Confirm with supplier Confirm with supplier
Pivots
Greased, easy access
Wear parts
Replaceable
Finish
Long lasting powder coat
Steel
High strength American steel
Machine Notes
Dump cycle
Variable, from close to one second to a slow feathered placement
Added dump height
2 ft (610 mm) to 3 ft (914 mm) over a tipping bucket
Added dump reach
2 ft (610 mm) to 4 ft (1219 mm) over a tipping bucket
Material release

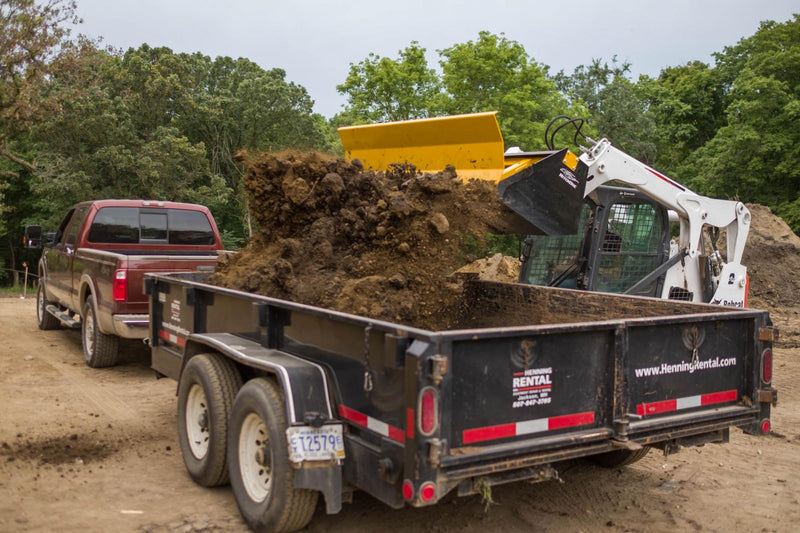

The load is pushed out by the extractor blade rather than tipped, so the bucket empties without being shaken
Mount & Interface
Carriers
Skid steers
Arm spacing
The distance between the bucket's shields must be greater than the distance between the machine's arms

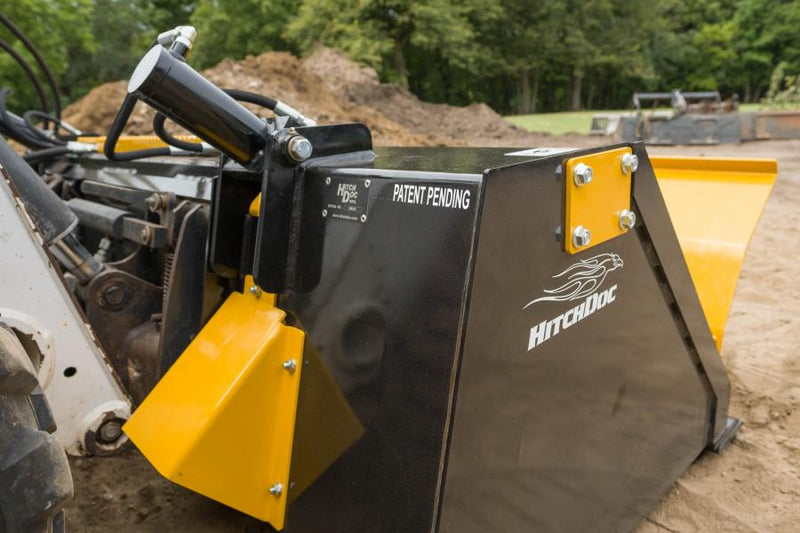

Hydraulics
System
Equipped for standard flow hydraulic systems
Control
Variable hydraulic controls for extremely fast or extremely accurate slow dumping
Coupler face
Confirm with supplier Confirm with supplier
Hydraulic flow (GPM)
Confirm with supplier Confirm with supplier
Operating pressure (PSI)
Confirm with supplier Confirm with supplier
Accessories: To order any of these accessories, contact support@hardscapeheavy.com
Part HB193
68 in steel replacement cutting edge
Part HB192
72 in steel replacement cutting edge
Part HB191
84 in steel replacement cutting edge
WidthDistance between shieldsCapacityWeight
68 in (1727 mm) 46.75 in (1187 mm) 20.5 cu ft (0.58 m3) 985 lb (447 kg)
72 in (1829 mm) 46.75 in (1187 mm) 21.7 cu ft (0.61 m3) 1,025 lb (465 kg)
84 in (2134 mm) 58.00 in (1473 mm) 25.4 cu ft (0.72 m3) 1,100 lb (499 kg)

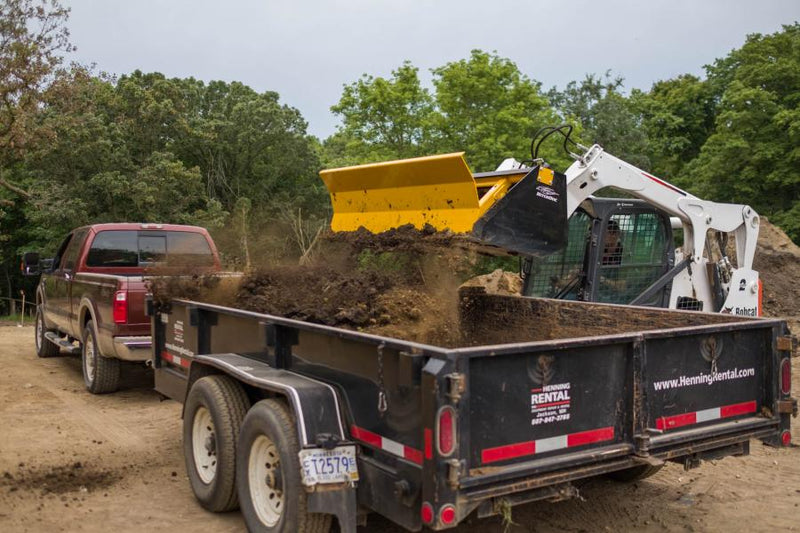

Hydraulic extractor blade
The load is pushed out instead of shaken out, which moves the wear from the machine to a wear part on the attachment
Dumps without tipping
Adds 2 to 3 ft of dump height and 2 to 4 ft of reach, so a taller trailer loads without risking the sidewall
Variable dump speed
One attachment empties in about a second or feathers material out slowly for accurate placement

Included with Purchase

  • 1 HitchDoc Push-Off Bucket (variant/model as ordered)
  • Hydraulically powered extractor blade with its adjustable seal
  • Cutting edge fitted to the bucket
  • The width-matched replacement cutting edge chosen in the buy box, on the Options choice With Replacement Cutting Edge

Not Included Unless Stated

  • Replacement cutting edge, on the Options choice None included
  • Skid steer
  • Hydraulic couplers or hoses beyond those fitted
  • On-site installation or machine configuration

The replacement cutting edge carries its own part number per width, HB193 on the 68 in, HB192 on the 72 in and HB191 on the 84 in, which is why it is chosen with the bucket here rather than ordered afterwards. It is a spare wear part and is additional to the edge already fitted, so the None included choice is a bucket with its own cutting edge and no spare.

Note: Confirm exact included components and mount hardware with supplier at time of order.

Related Equipment

Dirt Bucket | Top Dog

Top Dog Attachments
Original price $1,678.57 - Original price $2,000.00
Original price
$1,678.57 - $2,000.00
$1,678.57 - $2,000.00
Current price $1,678.57

A heavy-built dirt bucket for digging, loading, and carrying soil, gravel, sand, and loose fill, with reinforced skid plates for daily ground contact.

Original price $1,678.57 - Original price $2,000.00
Original price
$1,678.57 - $2,000.00
$1,678.57 - $2,000.00
Current price $1,678.57

Rollout Bucket | Maxx

Maxx Attachments
Original price $12,980.00 - Original price $14,300.00
Original price
$12,980.00 - $14,300.00
$12,980.00 - $14,300.00
Current price $12,980.00

The Maxx Attachments Rollout Bucket is a high-dump skid steer and wheel loader bucket for loading feed trucks, tub grinders, and transfer trailers ...

View full details
Original price $12,980.00 - Original price $14,300.00
Original price
$12,980.00 - $14,300.00
$12,980.00 - $14,300.00
Current price $12,980.00

General Purpose Bucket | Maxx

Maxx Attachments
Original price $1,785.00 - Original price $2,980.00
Original price
$1,785.00 - $2,980.00
$1,785.00 - $2,980.00
Current price $1,785.00

The Maxx Attachments General Purpose Bucket is a heavy-duty loading bucket for skid steers and small wheel loaders, built with A-572 steel, A-514 w...

View full details
Original price $1,785.00 - Original price $2,980.00
Original price
$1,785.00 - $2,980.00
$1,785.00 - $2,980.00
Current price $1,785.00

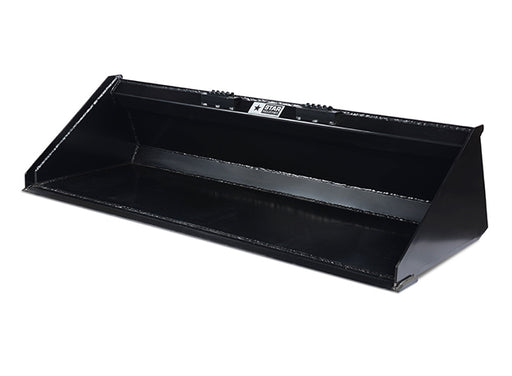

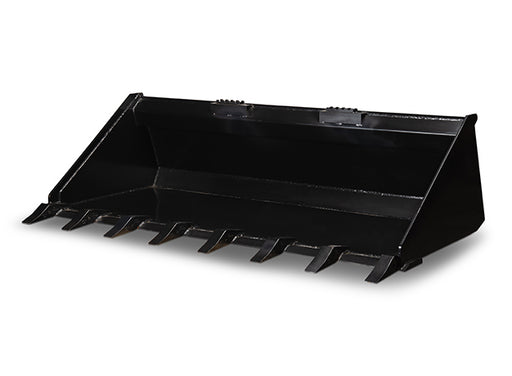

Heavy Duty Skid Steer Bucket | Star Industries
