Rake/Brush Grapple 60" 2 Cylinder | Storm

Brand Storm AttachmentsSKU 0214RAKE60-2SS
Original price $2,699.00 - Original price $2,699.00
Original price
$2,699.00
$2,699.00 - $2,699.00
Current price $2,699.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

Storm rake/brush grapple, 60 in wide, in American steel with 1/4" tines and a 3 x 3 x 7 ga tube frame. Rear-mounted dual cylinders open a larger 48 in mouth for bulky brush and debris. Offered in an SSQA mount.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Width: 60 in
  • Steel: American steel
  • Tines and Claw: 1/4"
  • Tube: 3 x 3 x 7 ga
  • Cylinders: rear-mounted dual 3000 lb welded cylinders
  • Mouth Opening: 48 in fully open
  • Pivots: all greaseable
  • Weight: 370 lb

Fitment / Machine Requirements

  • Mount: SSQA
  • Carriers: skid steers and compact track loaders
  • Hydraulic Couplers: flat-faced 08 SAE
  • Hydraulic Flow: confirm with supplier
  • Hydraulic Pressure: confirm with supplier
  • Minimum Carrier Rated Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The Storm Rake/Brush Grapple 60 in two-cylinder is a rear-cylinder rake grapple that gathers and moves rock, logs, brush, and loose debris on skid steers and compact track loaders. The rear-mounted cylinders open a larger mouth than a top-cylinder rake, so it takes a bigger bite of brush and bulky debris per grab. It suits operators moving larger volumes of loose material in fewer passes.

Mounting the dual cylinders at the rear keeps them and their fittings out of the load path while two cylinders drive the clamp closed on the pile, so the rams are not exposed to the material being grabbed. The wider opening lets the operator scoop a full clam of brush rather than nibbling at a pile. A tube-steel frame and greaseable pivots keep it raking and clearing under repeated loads, which is what the operator moving bulky brush and debris regularly is after.

Common Applications

  • Raking and gathering brush and bulky debris
  • Picking up and moving rock and logs
  • Land clearing and ground cleanup

Selection Notes

  • Rear-mounted dual cylinders with a larger 48 in mouth for bulkier loads
  • Offered in SSQA mount only
  • Runs off the carrier's auxiliary hydraulics; confirm hydraulic flow and pressure with supplier
  • HD hoses included; the coupler set is ordered separately
Build
Steel
American steel
Tines and claw
1/4 in
Tube
3 x 3 x 7 ga
Pivots
All greaseable
Mount
SSQA
Finish
Industrial finish
Origin
Made in Michigan
Warranty
2 year Confirm with supplier
Hydraulics
Cylinders
Rear-mounted dual 3000 lb cylinders with steel covers
Hoses
HD 6100 lb hydraulic hoses
Coupler face
Flat-faced 08 SAE
Hydraulic flow (GPM)
Confirm with supplier Confirm with supplier
Operating pressure (PSI)
Confirm with supplier Confirm with supplier
Dimensions & Weights
Mouth opening (fully open)
48 in (1219 mm)
Weight
370 lb (168 kg)

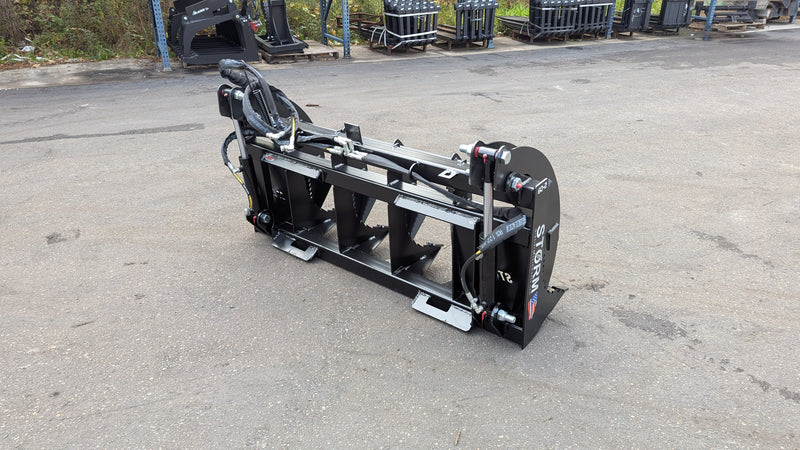

Rear-mounted cylinders
Keeps cylinders and fittings out of the load path and opens a larger mouth

Included with Purchase

  • 1 Storm Rake/Brush Grapple 60 in 2 Cylinder (variant/model as ordered)
  • HD 6100 lb hydraulic hoses

Not Included Unless Stated

  • Hose protector kit
  • Coupler set (flat-faced 08 SAE or AG, ordered separately)
  • Skid steer or compact track loader
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
