Rock/Brush Grapple | Storm

Brand Storm AttachmentsSKU 021404RK48-1SS
Original price $1,846.00 - Original price $3,055.00
Original price
$1,846.00
$1,846.00 - $3,055.00
Current price $1,846.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

Storm rock/brush grapple, 48 in to 72 in widths, in American steel with 3/8" bolted side plates, 1/4" inner tines, and tight 2.75 in tine spacing for smaller stone. Dual 3000 lb cylinders clamp rock, logs, brush, and debris. Available in SSQA, John Deere, Toro Mini CII, and Mini MT mounts.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Widths: 48 in, 60 in, and 72 in
  • Steel: American steel
  • Sides: 3/8" with bolted side plates
  • Inner Tines: 1/4"
  • Tine Spacing: 2.75 in
  • Tube: 3 x 3 x 3/16" square tube
  • Cylinders: dual 3000 lb welded cylinders
  • Weight: 410 lb (48 in) to 610 lb (72 in)

Fitment / Machine Requirements

  • Mount: SSQA, John Deere, Toro Mini CII, or Mini MT as ordered
  • Carriers: skid steers, compact track loaders, and mini loaders
  • Hydraulic Couplers: flat-faced 08 SAE
  • Hydraulic Flow: confirm with supplier
  • Hydraulic Pressure: confirm with supplier
  • Minimum Carrier Rated Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

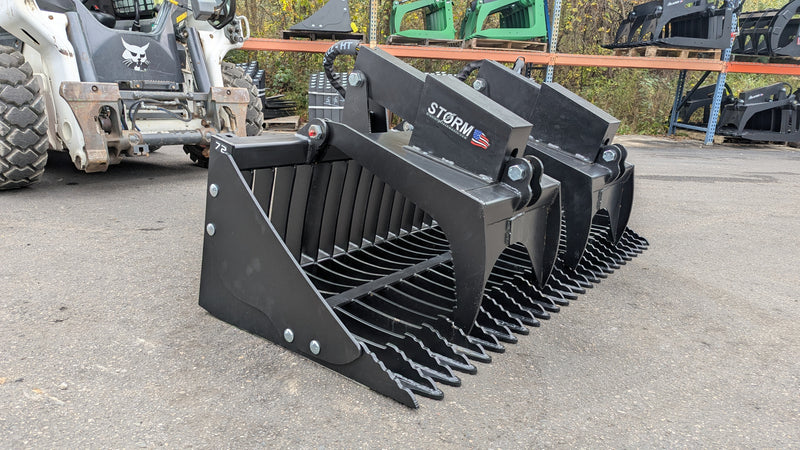

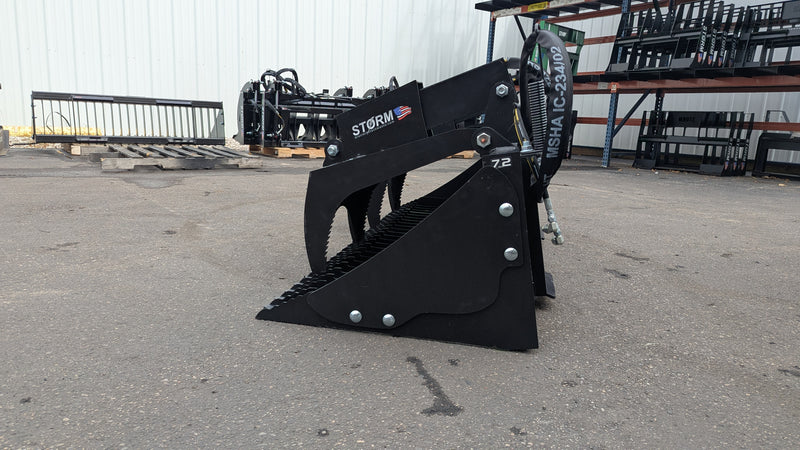

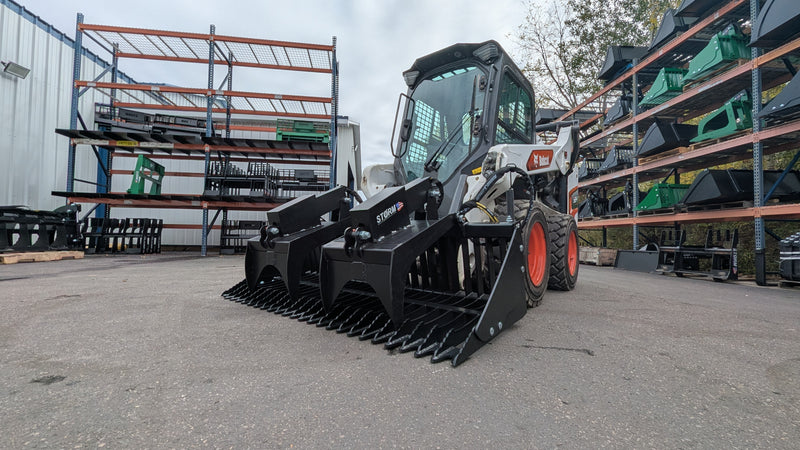

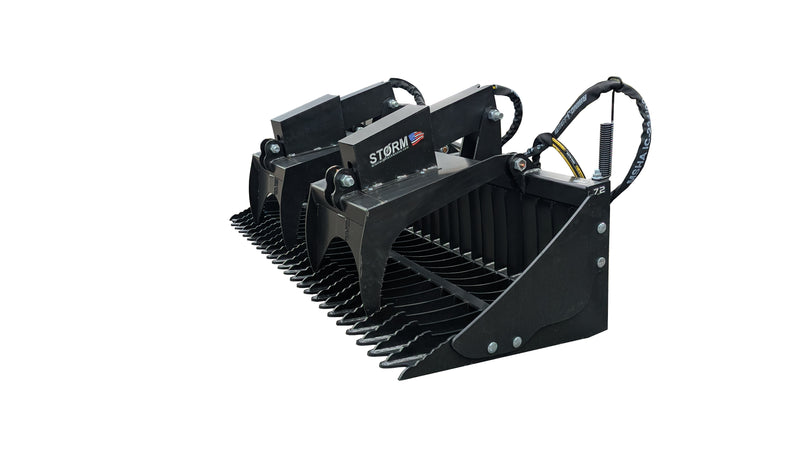

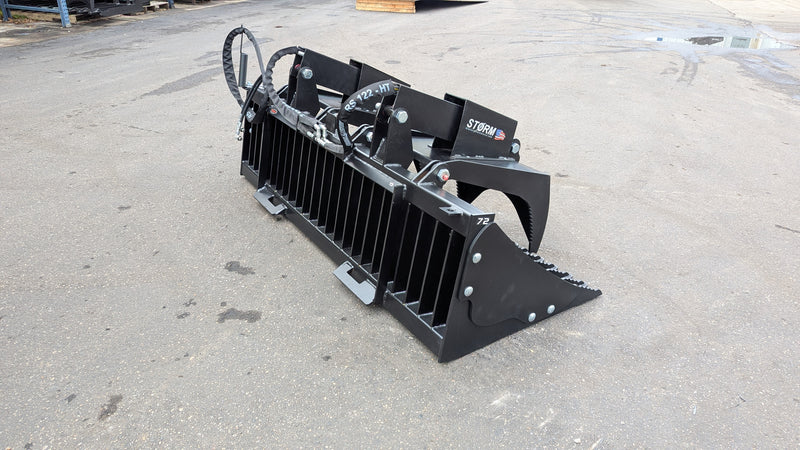

The Storm Rock/Brush Grapple is a heavy rock grapple that picks up and moves rock, stone, logs, brush, and debris on skid steers, compact track loaders, and mini loaders. Tighter tine spacing holds smaller stone that a wider grapple would drop through, so the operator can clean up loose rock as well as grab large material. It is built for home, farm, and light commercial crews handling rock and odd-shaped loads.

Bolted side plates and dual hydraulic cylinders give the frame the rigidity and clamping force to hold rock and uneven loads, while a square-tube backbone takes the repeated loading abrasive material puts on a grapple. Greaseable pivots keep the joints serviced through that grit, and a bracket carries the hose protector kit so the lines are not run loose across the frame. A secure grip on small and large rock plus serviceable joints is what the operator handling rock and debris regularly depends on.

Common Applications

  • Picking up and moving rock and stone
  • Handling logs, brush, and debris
  • Rock removal and ground cleanup

Selection Notes

  • Tighter 2.75 in tine spacing for smaller stone; dual-cylinder clamp
  • Available in 48 in (1 or 2 cylinder), 60 in, and 72 in (2 cylinder)
  • SSQA, John Deere, Toro Mini CII, or Mini MT mount on the 48 in; SSQA or John Deere on the 60 in and 72 in
  • Bolted side plates for added rigidity; built for home, farm, and light commercial use
  • Runs off the carrier's auxiliary hydraulics; confirm hydraulic flow and pressure with supplier
Build
Steel
American steel
Sides
3/8 in with bolted side plates
Inner tines
1/4 in
Tine spacing
2.75 in
Tube
3 x 3 x 3/16 in square tube
Pivots
All greaseable
Mount
SSQA, John Deere, Toro Mini CII, or Mini MT
Finish
Industrial coating
Origin
Made in Michigan
Warranty
2 year Confirm with supplier
Hydraulics
Cylinders
Dual 3000 lb welded cylinders (2 x 8 in) with HD covers
Coupler face
Flat-faced 08 SAE
Hydraulic flow (GPM)
Confirm with supplier Confirm with supplier
Operating pressure (PSI)
Confirm with supplier Confirm with supplier
WidthCylindersWeight
48 in (1219 mm) 1 Cylinder 410 lb (186 kg)
48 in (1219 mm) 2 Cylinder 480 lb (218 kg)
60 in (1524 mm) 2 Cylinder 525 lb (238 kg)
72 in (1829 mm) 2 Cylinder 610 lb (277 kg)

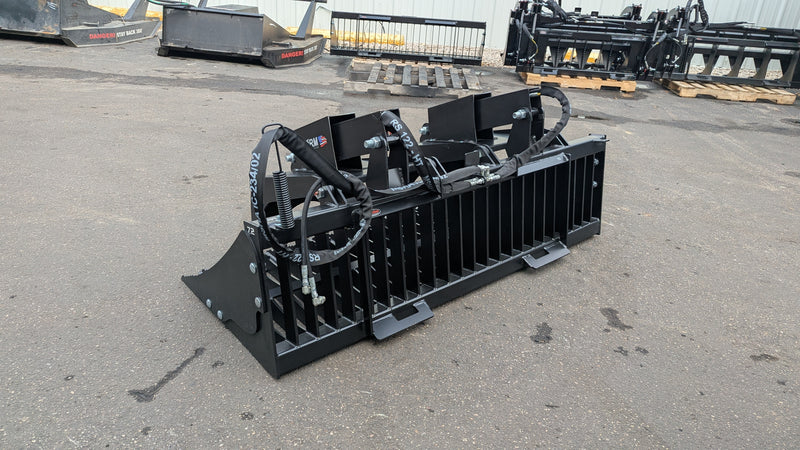

Bolted side plates
Stiffen the frame for rock and abrasive loads and replace when worn

Included with Purchase

  • 1 Storm Rock/Brush Grapple (variant/model as ordered)
  • Bracket for the hose protector kit

Not Included Unless Stated

  • Coupler set (flat-faced 08 SAE or AG, ordered separately)
  • Skid steer, compact track loader, or mini skid steer
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
