Skid Steer Buckets | Arrow

Original price $2,348.61 USD - Original price $4,718.06 USD
Original price
$3,497.22 USD
$2,348.61 USD - $4,718.06 USD
Current price $3,497.22 USD
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

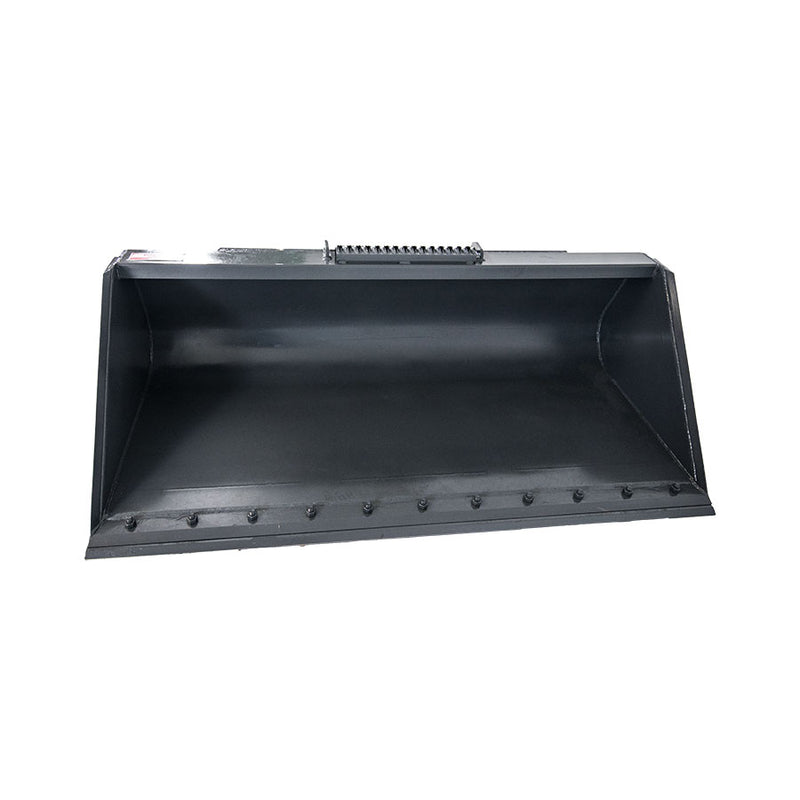

Arrow Skid Steer Buckets in four widths on a universal quick attach mount, with a smooth welded or bolt-on cutting edge. Radiused bottom with a square reinforced heel for back-dragging, four bottom skid plates and two side plates. Every bucket is predrilled to accept an optional bolt-on reversible cutting edge.

Need fitment or freight help before you order? Contact us.

Shipping & Freight

We ship to the 48 contiguous states. We do not ship to Alaska, Hawaii, US territories, military (APO/FPO/DPO) addresses or outside the United States.

Smaller items ship by parcel carrier, priced by weight. Larger items and heavy equipment ship by LTL freight, priced by your ZIP code and the delivery type you choose: terminal pickup and dock delivery cost the least, and commercial liftgate, residential liftgate and jobsite delivery each add the carrier’s fee. Your shipping cost is shown at checkout before you pay.

The best way to get a shipping quote or ask a freight question is the Get a Freight Quote button on this page. You can also call (805) 398-6165.

Delivery types, delivery times, terminal pickup, liftgate service and damage inspection are covered in our Shipping Policy.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Widths: 60 in, 66 in, 72 in, 84 in inside width
  • Outside Widths: 62 in, 68 in, 74 in, 86 in
  • Capacity: 0.4 cu yd to 0.7 cu yd by width
  • Cutting Edge: smooth welded, or bolt on
  • Bottom: radiused, with a square reinforced heel
  • Skid Plates: four bottom, two side
  • Edge Preparation: predrilled for an optional bolt-on reversible cutting edge
  • Profile: low profile design
  • Weight: 426 lb to 604 lb by width and edge

Fitment / Machine Requirements

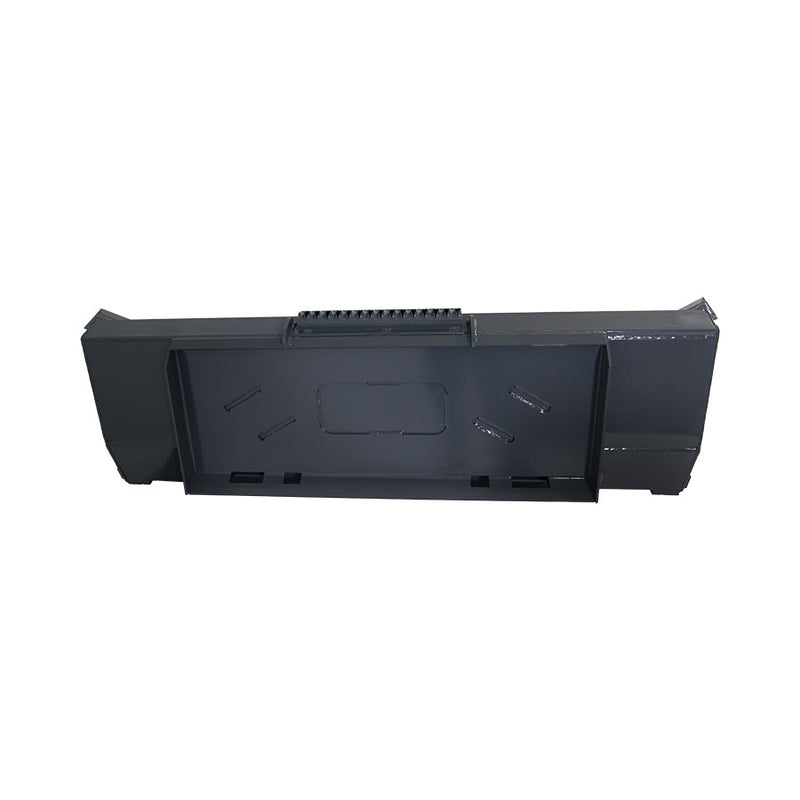

  • Mount: universal quick attach
  • Carriers: skid steers
  • Minimum Carrier Rated Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns: within 30 days of delivery if unused and complete, with a restocking fee of up to 25% plus return freight. Returns need the manufacturer's agreement to take the item back; if they won't, the sale is final. Custom and made-to-order items are final sale. Full terms: Refund Policy.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The Arrow Skid Steer Buckets are general dirt-moving buckets for contractors who dig, load and back-drag on the same machine all day. A radiused bottom running into a square reinforced heel is what makes back-dragging work: the heel takes the load when an operator pulls material back to grade instead of pushing it forward. Four widths let a crew match the bucket to the carrier rather than overload a smaller machine.

Wear protection is where these are built up. Four skid plates run along the bottom and two more sit on the sides, so the surfaces that drag across gravel and slab are the surfaces carrying extra steel. Every bucket leaves the factory predrilled for a bolt-on reversible cutting edge, so an owner can start with a welded edge and add a replaceable one later without shop work, and a low profile design keeps the far edge of the bucket in view while loading. This is the bucket for a crew that fills trucks and moves spoil rather than one that handles rock.

Common Applications

  • Digging and moving dirt, gravel and aggregate on site
  • Loading trucks and trailers from a stockpile
  • Back-dragging and levelling to grade
  • Site cleanup and moving spoil away from an excavation

Selection Notes

  • Cutting edge is a build choice: smooth welded, or bolt on
  • Inside width is the quoted width; outside width runs 2 in wider on every size
  • Every bucket is predrilled, so a bolt-on reversible edge can be added after purchase
  • Teeth builds are published by the supplier but are not offered on this listing
  • Confirm carrier rated operating capacity with supplier
Build
Bottom
Radiused, with a square reinforced heel for back-dragging
Skid plates
Four bottom skid plates and two bucket end plates
Profile
Low profile design for visibility over the bucket
Cutting edge preparation
Predrilled to accept an optional bolt-on reversible cutting edge
Cutting edge options
Smooth welded, or bolt on
Mount & Interface
Mount
Universal quick attach
Carrier
Skid steers
Bucket WidthOutside widthCutting EdgeCapacityWeight
60 in (1524 mm)62 in (1575 mm)Welded0.4 cu yd426 lb (193 kg)
66 in (1676 mm)68 in (1727 mm)Welded0.5 cu yd449 lb (204 kg)
72 in (1829 mm)74 in (1880 mm)Welded0.6 cu yd470 lb (213 kg)
84 in (2134 mm)86 in (2184 mm)Welded0.7 cu yd530 lb (240 kg)
60 in (1524 mm)62 in (1575 mm)Bolt on0.4 cu yd465 lb (211 kg)
66 in (1676 mm)68 in (1727 mm)Bolt on0.5 cu yd500 lb (227 kg)
72 in (1829 mm)74 in (1880 mm)Bolt on0.6 cu yd535 lb (243 kg)
84 in (2134 mm)86 in (2184 mm)Bolt on0.7 cu yd604 lb (274 kg)
Square reinforced heel
Takes the load when an operator drags material back to grade rather than pushing it
Six skid plates
Puts the extra steel on the faces that drag over gravel and slab
Predrilled cutting edge
A bolt-on reversible edge can be added later without returning the bucket to a shop

Included with Purchase

  • 1 Arrow Skid Steer Bucket (variant/model as ordered)
  • Bottom and side skid plates
  • Cutting edge predrilled for a bolt-on reversible edge

Not Included Unless Stated

  • Bolt-on reversible cutting edge, unless chosen as Bolt On in Cutting Edge
  • Bucket teeth, tooth adapters or spill guard
  • Skid steer
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
