Skid Steer Grapple Bucket | Star Industries

Brand Star IndustriesSKU 175-66
Original price $4,397.00 - Original price $5,724.00
Original price
$4,397.00
$4,397.00 - $5,724.00
Current price $4,397.00
Authorized Dealer Sourcing
Financing Available for Eligible Orders
Contractor-Grade Equipment

Shipping: LTL freight. Commercial delivery preferred.

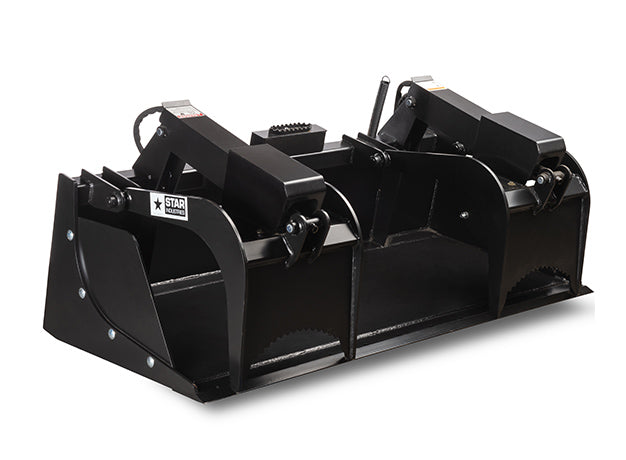

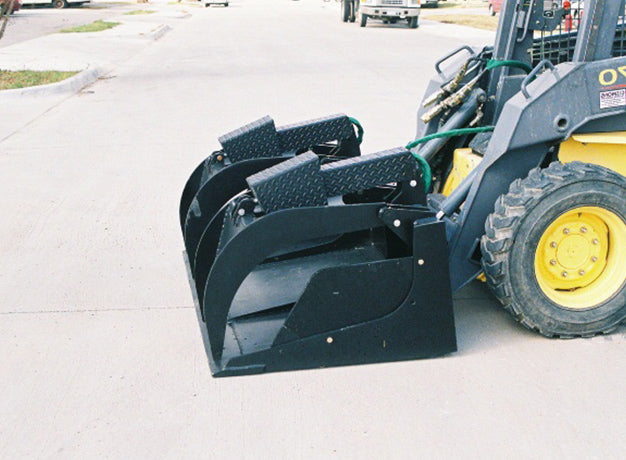

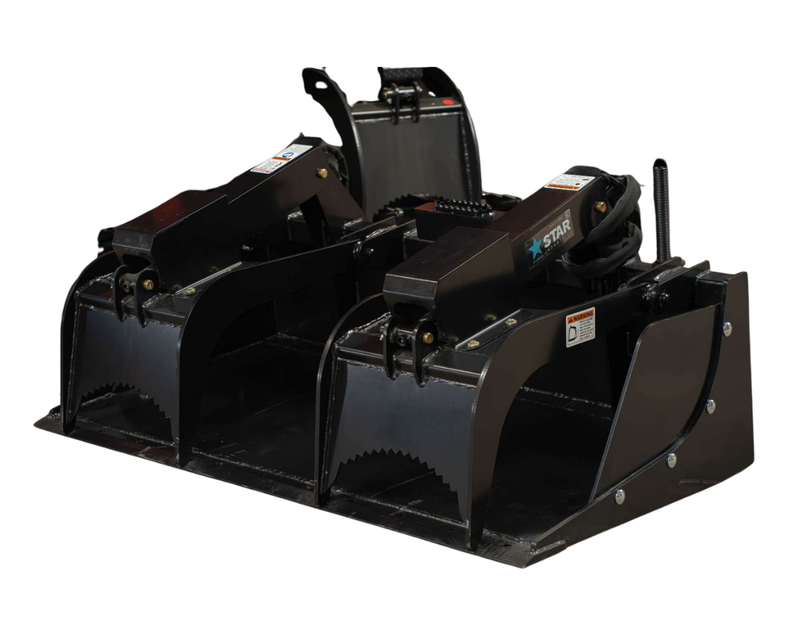

The Star Industries Skid Steer Grapple Bucket is a solid-bottom bucket with two independently operating grapple arms, opening 38-1/2 in on Heavy Duty and 45 in on Demolition Grade. Five models from 66 in to 84 in inside width, 16.5 to 28 cubic feet, with end plates that hold loose material in the bucket.

Need fitment or freight help before you order? Contact our team.

Shipping & Freight

For an order containing products from a single brand, shipping is a flat rate based on your order total:

  • Orders up to $5,000: $279
  • Orders $5,000 to $10,000: $347
  • Orders $10,000 and over: $517

These rates cover standard freight delivery to a commercial address. After you place your order, our team will confirm your delivery timeline within 1 to 3 business days.

Ordering from more than one brand? Multi-brand orders ship on separate freight and are quoted individually rather than at the flat rate above. Place your order or contact us first and we will confirm total freight before anything is finalized.

Liftgate service is not included in these rates. If your delivery location has no loading dock or forklift to unload the freight from the truck, liftgate service is required and will be added to your shipping charge. If you are unsure whether you need it, contact us before ordering.

Commercial delivery locations are preferred when available. Residential delivery, limited-access locations, and appointment scheduling may affect handling.

Lead times vary by product, manufacturer availability, and selected options. Some configured, special-order, or non-stock items require additional processing time before they ship.

Please inspect all freight shipments at delivery before signing. If you see visible damage, note it with the carrier and contact us as soon as possible.

If you need freight, delivery, or lead-time guidance before ordering, contact our team before you purchase.

Compatibility / Fitment

Compatibility varies by product type, machine setup, selected options, and intended application.

For machine-mounted equipment and attachments, buyers should confirm fitment before ordering using the relevant machine information, including model, attachment style, mount type, coupler type, hydraulic requirements, and any other product-specific requirements listed on the page.

Hardscape Heavy can assist with pre-order fitment guidance based on the information you provide. This guidance is limited to purchase and compatibility review before ordering and does not include field installation, hydraulic modification, fabrication, or on-site setup support.

If you are unsure whether a product will work with your machine or application, contact us before placing the order.

Specifications

Core Specs

  • Inside Widths: 66 in, 72 in, 78 in and 84 in
  • Grapple Capacity: 16.5, 18, 24, 26 and 28 cu ft by model
  • Grapple Opening: 38-1/2 in on Heavy Duty, 45 in on Demolition Grade
  • Depth: 34 in on Heavy Duty, 39 in on Demolition Grade
  • Back Height: 19 in on Heavy Duty, 21 in on Demolition Grade
  • Bucket Bottom: 1/4 in plate with 1/2 in wear ribs, all models
  • Bucket Back: 3/16 in plate, all models
  • Sides: 1/2 in plate, all models
  • Cutting Edge: 3/4 in x 6 in on Heavy Duty, 1 in x 8 in on Demolition Grade
  • Empty Weights: 775 lb to 1,200 lb by model

Fitment / Machine Requirements

  • Mount: extreme duty quick-tach
  • Hydraulics: requires auxiliary hydraulics
  • Cylinders: two heavy duty welded, 2 in x 10 in x 1-1/4 in, operating independently
  • Hoses and flat faced couplers: included
  • Minimum Carrier Rated Operating Capacity: confirm with supplier


Need full technical detail?
See the Technical Details tab. If available, also see manufacturer PDF in the Downloads tab.

Returns & Warranty

Warranty coverage is provided by the product manufacturer where applicable. Warranty terms, coverage periods, exclusions, and claim procedures vary by brand and product type.

Hardscape Heavy does not create separate warranty coverage beyond the manufacturer’s warranty unless explicitly stated on the product page.

Returns are governed by our store return policy. Because many products in this category involve freight shipping, special ordering, or configuration-specific selections, return eligibility may vary by product and condition. Special-order, custom-configured, used, damaged, or installed items may not be eligible for return.

Please review our full return policy before purchase. If you have questions about return eligibility or manufacturer warranty coverage for a specific item, contact us before ordering.

The Star Industries Skid Steer Grapple Bucket is the bucket half and the grapple half in one attachment. The bottom is 1/4 in plate with 1/2 in wear ribs, so it carries loose material the way a bucket does, and the two arms close over the top to hold what a bucket alone would spill.

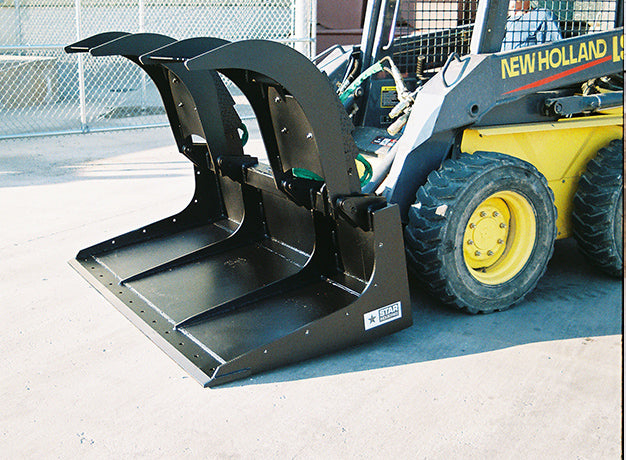

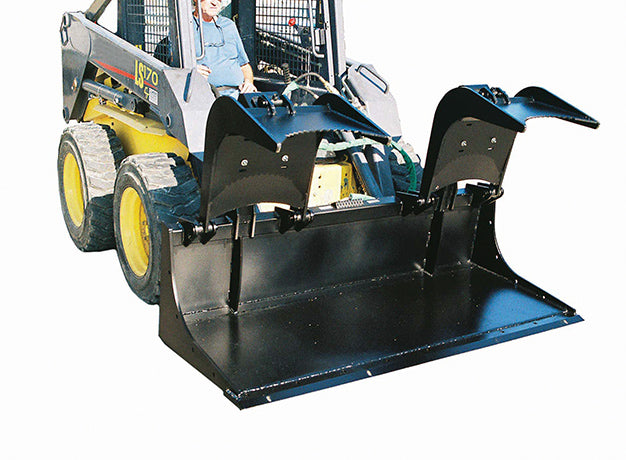

The arms open extra wide for a full load, 38-1/2 in on Heavy Duty and 45 in on Demolition Grade, and their cylinders operate independently so the arms find an uneven load rather than stopping on the first high point. End plates at each side keep loose material from running out as the bucket fills. The hydraulic lines and the grapple cylinders are fully covered against accidental damage, and the lines are zip tied to a heavy spring so they do not get pinched.

The cutting edges are punched for an optional bolt-on blade. Two grades are offered, Heavy Duty at 3/4 in x 6 in edge and 34 in depth, and Demolition Grade at 1 in x 8 in edge and 39 in depth.

Common Applications

  • Moving bulky, hard-to-handle material securely
  • Scooping, lifting and dumping irregular loads
  • Demolition and construction debris handling
  • Brush, log and rock handling on clearing work

Selection Notes

  • Five orderable models across two grades
  • Star's own note: Demolition Grade is especially recommended for track style skid steers and those with 70 hp or 3,500 lb capacity or greater
  • The cutting edges are punched for a bolt-on blade, which is an option rather than a separate model
  • Hydraulic hoses and flat faced couplers are included on every model
  • Confirm your carrier's rated operating capacity before ordering
Build
Bucket bottom
1/4 in plate
Bottom wear protection
1/2 in ribs
Bucket back
3/16 in plate
Sides
1/2 in plate

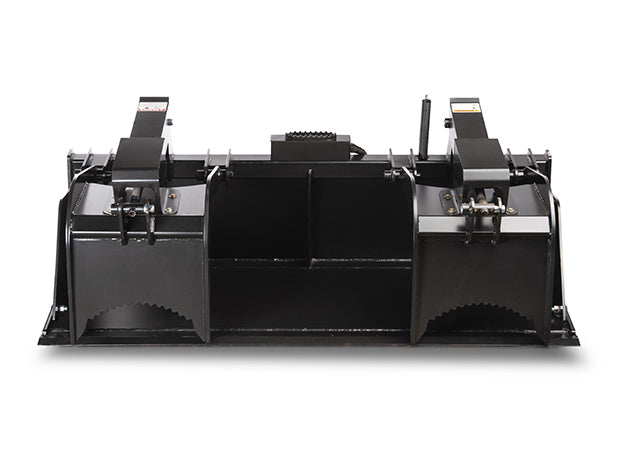

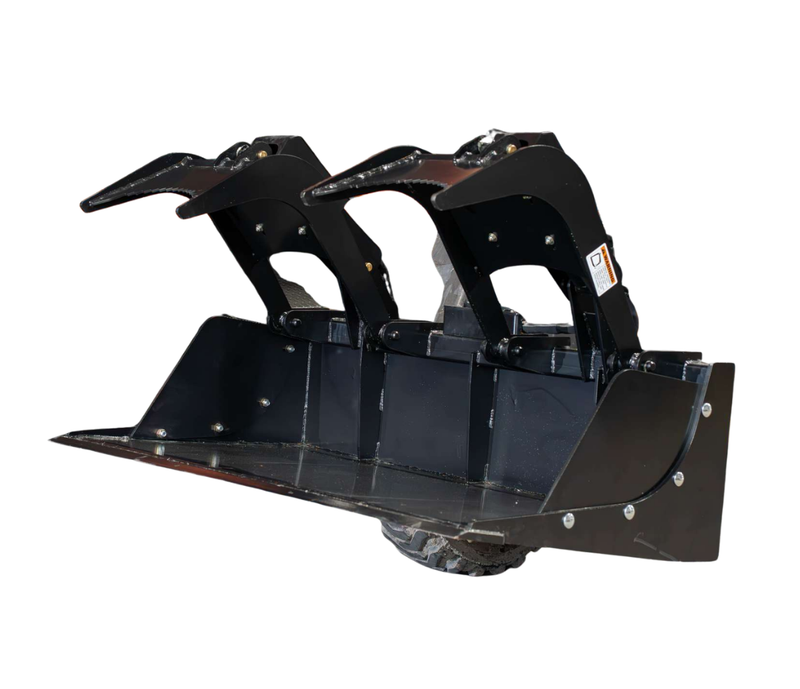

End plates
Fitted to help contain loose materials in the bucket
Grapple thickness
1/2 in, all models
Cutting edge
3/4 in x 6 in on Heavy Duty, 1 in x 8 in on Demolition Grade, punched for an optional bolt-on blade

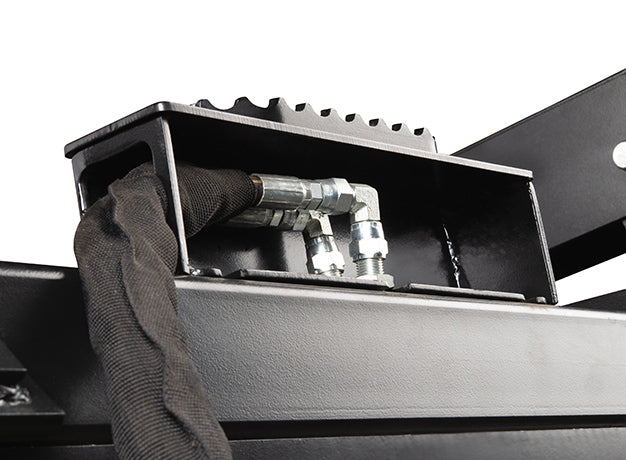

Fitting protection
Built-in covers over the fittings, with the hydraulic lines and grapple cylinders fully covered

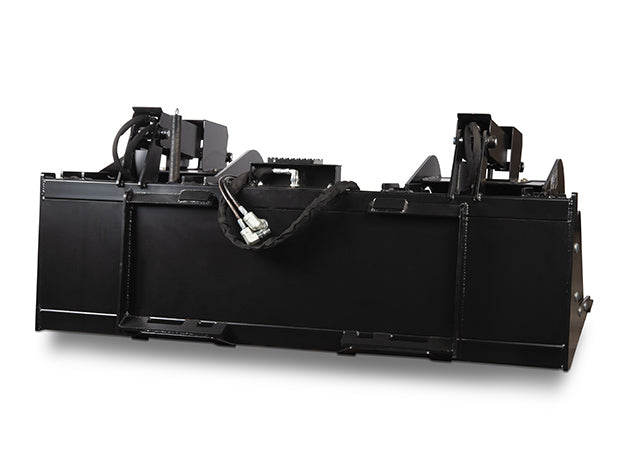

Line routing
Lines zip tied to a heavy spring to keep them from being pinched
Mount & Interface
Mount
Extreme duty quick-tach
Hydraulics
Requirement
Requires auxiliary hydraulics
Cylinders
Heavy duty welded, 2 in x 10 in x 1-1/4 in, operating independently to adjust for uneven loads
Hoses and couplers
Hydraulic hoses and flat faced couplers included, all models
Hydraulic flow requirement
Confirm with supplier Confirm with supplier
Hydraulic pressure requirement
Confirm with supplier Confirm with supplier
Accessories
Bolt-on end plates
175-01, set of 2 for the Heavy Duty grapple bucket, listed on the product's own Parts tab
Star logo decal
DEC10006, listed on the product's own Parts tab
ModelPart numberWidth IDGrapple capacityGrapple openingDepthBack heightCutting edgeEmpty weight
Heavy Duty 66 in 175-66 66 in 16.5 cu ft 38-1/2 in 34 in 19 in 3/4 in x 6 in 775 lb (352 kg)
Heavy Duty 72 in 175-72 72 in 18 cu ft 38-1/2 in 34 in 19 in 3/4 in x 6 in 865 lb (392 kg)
Demolition Grade 72 in 175DG-72 72 in 24 cu ft 45 in 39 in 21 in 1 in x 8 in 1,090 lb (494 kg)
Demolition Grade 78 in 175DG-78 78 in 26 cu ft 45 in 39 in 21 in 1 in x 8 in 1,140 lb (517 kg)
Demolition Grade 84 in 175DG-84 84 in 28 cu ft 45 in 39 in 21 in 1 in x 8 in 1,200 lb (544 kg)
Solid bucket under the grapple
Carries loose material a tine grapple would drop, so one attachment does the scooping and the grabbing
Independently operating cylinders
The arms close on an uneven load instead of stopping on the first high point
Fully covered lines and cylinders
The hoses and rams are behind steel on a machine that works in debris, where an exposed line is the thing that fails first

Included with Purchase

  • 1 Skid Steer Grapple Bucket (variant/model as ordered)
  • Hydraulic hoses
  • Flat faced couplers

Not Included Unless Stated

  • Skid steer loader
  • Bolt-on blade for the cutting edge
  • Bolt-on end plate set 175-01
  • On-site installation or machine configuration

Note: Confirm exact included components and mount hardware with supplier at time of order.
